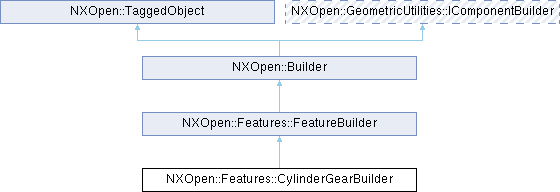

类 NXOpen::Features::CylinderGearBuilder 继承关系图:

Public 类型
enum	EnumAddendumType { EnumAddendumTypeStandardWithoutAddendum , EnumAddendumTypeSameAddendumModification , EnumAddendumTypeDifferentAddendumModification }
enum	EnumHandednessOfHelixType { EnumHandednessOfHelixTypeLeftHand , EnumHandednessOfHelixTypeRightHand }
enum	EnumMachiningType { EnumMachiningTypeHobbing , EnumMachiningTypeShaping }
enum	EnumParameterType { EnumParameterTypeMatchingGearParameters , EnumParameterTypePitchDiameterAndTipDiameter }
enum	Types { TypesExternalSpur , TypesExternalHelical , TypesInternalSpur , TypesInternalHelical }

Public 成员函数
NXOpen::Expression *	AddendumFactor ()
NXOpen::Features::CylinderGearBuilder::EnumAddendumType	AddendumType ()
NXOpen::Expression *	AddenModCoe ()
bool	AssociativeAxis ()
NXOpen::Axis *	Axis ()
NXOpen::GeometricUtilities::BooleanOperation *	BooleanOperation ()
NXOpen::Expression *	Clearance ()
NXOpen::Expression *	CutterAddenModCoe ()
NXOpen::Expression *	CutterTeethNumber ()
NXOpen::Expression *	FaceWidth ()
NXOpen::Expression *	FilletRadiusFactor ()
NXOpen::Features::CylinderGearBuilder::EnumHandednessOfHelixType	HandednessOfHelix ()
NXOpen::Expression *	HelixAngle ()
NXOpen::Features::CylinderGearBuilder::EnumMachiningType	MachiningType ()
NXOpen::Expression *	MatchAddenModCoe ()
NXOpen::Expression *	MatchTeethNumber ()
NXOpen::Expression *	Module ()
NXOpen::Expression *	OutsideDiameter ()
NXOpen::Features::CylinderGearBuilder::EnumParameterType	ParameterType ()
NXOpen::Expression *	PitchDiameter ()
NXOpen::Expression *	PressureAngle ()
void	SetAddendumType (NXOpen::Features::CylinderGearBuilder::EnumAddendumType addendumType)
void	SetAssociativeAxis (bool associativeAxis)
void	SetAxis (NXOpen::Axis *axis)
void	SetHandednessOfHelix (NXOpen::Features::CylinderGearBuilder::EnumHandednessOfHelixType handednessOfHelix)
void	SetMachiningType (NXOpen::Features::CylinderGearBuilder::EnumMachiningType machiningType)
void	SetParameterType (NXOpen::Features::CylinderGearBuilder::EnumParameterType parameterType)
void	SetType (NXOpen::Features::CylinderGearBuilder::Types type)
NXOpen::Expression *	TeethNumber ()
NXOpen::Expression *	TipDiameter ()
NXOpen::Features::CylinderGearBuilder::Types	Type ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_CylinderGearBuilderBuilder

详细描述

圆柱齿轮构建器

        表示 @link NXOpen::Features::CylinderGear NXOpen::Features::CylinderGear@endlink  构建器
         <br> 要创建此类的新实例，请使用 @link NXOpen::Features::GCToolsFeatureCollection::CreateCylinderGearBuilder  NXOpen::Features::GCToolsFeatureCollection::CreateCylinderGearBuilder @endlink  <br>
    默认值。
    <list type="table">
    <listheader><term>
    属性</term>  <description>
    值</description> </listheader>
    <item><term>
    AddenModCoe.Value </term> <description>
    0.0 </description> </item>
    <item><term>
    AddendumFactor.Value </term> <description>
    1 </description> </item>
    <item><term>
    AddendumType </term> <description>
    StandardWithoutAddendum </description> </item>
    <item><term>
    AssociativeAxis </term> <description>
    0 </description> </item>
    <item><term>
    Clearance.Value </term> <description>
    0.25 </description> </item>
    <item><term>
    CutterAddenModCoe.Value </term> <description>
    0.0 </description> </item>
    <item><term>
    CutterTeethNumber.Value </term> <description>
    30 </description> </item>
    <item><term>
    FaceWidth.Value </term> <description>
    20（毫米部件），0（英寸部件） </description> </item>
    <item><term>
    FilletRadiusFactor.Value </term> <description>
    0.25（毫米部件），0（英寸部件） </description> </item>
    <item><term>
    HandednessOfHelix </term> <description>
    LeftHand </description> </item>
    <item><term>
    HelixAngle.Value </term> <description>
    20 </description> </item>
    <item><term>
    MachiningType </term> <description>
    Hobbing </description> </item>
    <item><term>
    MatchAddenModCoe.Value </term> <description>
    0.0 </description> </item>
    <item><term>
    MatchTeethNumber.Value </term> <description>
    30 </description> </item>
    <item><term>
    Module.Value </term> <description>
    2.5（毫米部件），0（英寸部件） </description> </item>
    <item><term>
    OutsideDiameter.Value </term> <description>
    140（毫米部件），0（英寸部件） </description> </item>
    <item><term>
    ParameterType </term> <description>
    MatchingGearParameters </description> </item>
    <item><term>
    PitchDiameter.Value </term> <description>
    87（毫米部件），0（英寸部件） </description> </item>
    <item><term>
    PressureAngle.Value </term> <description>
    20 </description> </item>
    <item><term>
    TeethNumber.Value </term> <description>

35 TipDiameter.Value 93 (毫米零件), 0 (英寸零件)

在NX2212.0.0中创建。

成员枚举类型说明

◆ EnumAddendumType

enum NXOpen::Features::CylinderGearBuilder::EnumAddendumType

齿顶高类型的枚举

枚举值
EnumAddendumTypeStandardWithoutAddendum	标准无齿顶高
EnumAddendumTypeSameAddendumModification	相同齿顶高变位
EnumAddendumTypeDifferentAddendumModification	不同齿顶高变位

◆ EnumHandednessOfHelixType

enum NXOpen::Features::CylinderGearBuilder::EnumHandednessOfHelixType

螺旋线旋向类型的枚举

枚举值
EnumHandednessOfHelixTypeLeftHand	左旋
EnumHandednessOfHelixTypeRightHand	右旋

◆ EnumMachiningType

enum NXOpen::Features::CylinderGearBuilder::EnumMachiningType

加工类型的枚举

枚举值
EnumMachiningTypeHobbing	滚齿
EnumMachiningTypeShaping	插齿

◆ EnumParameterType

enum NXOpen::Features::CylinderGearBuilder::EnumParameterType

参数类型的枚举

枚举值
EnumParameterTypeMatchingGearParameters	配对齿轮参数
EnumParameterTypePitchDiameterAndTipDiameter	分度圆直径和顶圆直径

◆ Types

enum NXOpen::Features::CylinderGearBuilder::Types

齿轮类型的枚举

枚举值
TypesExternalSpur	外啮合直齿
TypesExternalHelical	外啮合斜齿
TypesInternalSpur	内啮合直齿
TypesInternalHelical	内啮合斜齿

成员函数说明

◆ AddendumFactor()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::AddendumFactor ( )

返回齿顶高系数
创建于NX2212.0.0.

许可证要求 : 无

◆ AddendumType()

NXOpen::Features::CylinderGearBuilder::EnumAddendumType NXOpen::Features::CylinderGearBuilder::AddendumType ( )

返回齿顶高类型枚举
在NX2212.0.0中创建。

许可证要求：无

◆ AddenModCoe()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::AddenModCoe ( )

返回齿顶高变位系数
创建于NX2212.0.0.

许可证要求 : 无

◆ AssociativeAxis()

bool NXOpen::Features::CylinderGearBuilder::AssociativeAxis ( )

返回关联轴线状态
于NX2212.0.0版本创建。

许可证要求：无

◆ Axis()

NXOpen::Axis * NXOpen::Features::CylinderGearBuilder::Axis ( )

返回轴线
于NX2212.0.0版本创建。

许可证要求：无

◆ BooleanOperation()

NXOpen::GeometricUtilities::BooleanOperation * NXOpen::Features::CylinderGearBuilder::BooleanOperation ( )

返回布尔运算数据
于NX2212.0.0版本创建。

许可证要求：无

◆ Clearance()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::Clearance ( )

返回侧隙
创建于NX2212.0.0.

许可证要求 : 无

◆ CutterAddenModCoe()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::CutterAddenModCoe ( )

返回刀具齿顶高变位系数
创建于NX2212.0.0.

许可证要求 : 无

◆ CutterTeethNumber()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::CutterTeethNumber ( )

返回刀具齿数
创建于NX2212.0.0.

许可证要求 : 无

◆ FaceWidth()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::FaceWidth ( )

返回齿宽
创建于NX2212.0.0.

许可证要求 : 无

◆ FilletRadiusFactor()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::FilletRadiusFactor ( )

返回齿顶圆角半径系数
创建于NX2212.0.0.

许可证要求 : 无

◆ HandednessOfHelix()

NXOpen::Features::CylinderGearBuilder::EnumHandednessOfHelixType NXOpen::Features::CylinderGearBuilder::HandednessOfHelix ( )

返回螺旋方向
创建于NX2212.0.0.

许可证要求 : 无

◆ HelixAngle()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::HelixAngle ( )

返回螺旋角
创建于NX2212.0.0.

许可证要求 : 无

◆ MachiningType()

NXOpen::Features::CylinderGearBuilder::EnumMachiningType NXOpen::Features::CylinderGearBuilder::MachiningType ( )

返回加工类型
创建于NX2212.0.0.

许可证要求 : 无

◆ MatchAddenModCoe()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::MatchAddenModCoe ( )

返回配对齿轮齿顶高变位系数
创建于NX2212.0.0.

许可证要求 : 无

◆ MatchTeethNumber()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::MatchTeethNumber ( )

返回配对齿轮齿数
创建于NX2212.0.0.

许可证要求 : 无

◆ Module()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::Module ( )

返回模数
在NX2212.0.0中创建。

许可证要求：无

◆ OutsideDiameter()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::OutsideDiameter ( )

返回外径
创建于NX2212.0.0.

许可证要求 : 无

◆ ParameterType()

NXOpen::Features::CylinderGearBuilder::EnumParameterType NXOpen::Features::CylinderGearBuilder::ParameterType ( )

返回参数类型
在NX2212.0.0中创建。

许可证要求：无

◆ PitchDiameter()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::PitchDiameter ( )

返回节圆直径
创建于NX2212.0.0.

许可证要求 : 无

◆ PressureAngle()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::PressureAngle ( )

返回压力角
在NX2212.0.0中创建。

许可证要求：无

◆ SetAddendumType()

void NXOpen::Features::CylinderGearBuilder::SetAddendumType ( NXOpen::Features::CylinderGearBuilder::EnumAddendumType addendumType )

设置齿顶高类型枚举
在NX2212.0.0中创建。

许可证要求：solid_modeling ("SOLIDS MODELING")

参数

addendumType 齿顶高类型

◆ SetAssociativeAxis()

void NXOpen::Features::CylinderGearBuilder::SetAssociativeAxis ( bool associativeAxis )

设置关联轴线状态
于NX2212.0.0版本创建。

许可证要求：实体建模 ("SOLIDS MODELING")

参数

associativeAxis 关联轴线状态

◆ SetAxis()

void NXOpen::Features::CylinderGearBuilder::SetAxis ( NXOpen::Axis * axis )

设置轴线
于NX2212.0.0版本创建。

许可证要求：实体建模 ("SOLIDS MODELING")

参数

axis 轴线

◆ SetHandednessOfHelix()

void NXOpen::Features::CylinderGearBuilder::SetHandednessOfHelix ( NXOpen::Features::CylinderGearBuilder::EnumHandednessOfHelixType handednessOfHelix )

设置螺旋方向
创建于NX2212.0.0.

许可证要求 : solid_modeling ("SOLIDS MODELING")

参数

handednessOfHelix 螺旋方向

◆ SetMachiningType()

void NXOpen::Features::CylinderGearBuilder::SetMachiningType ( NXOpen::Features::CylinderGearBuilder::EnumMachiningType machiningType )

设置加工类型
创建于NX2212.0.0.

许可证要求 : solid_modeling ("SOLIDS MODELING")

参数

machiningType 加工类型

◆ SetParameterType()

void NXOpen::Features::CylinderGearBuilder::SetParameterType ( NXOpen::Features::CylinderGearBuilder::EnumParameterType parameterType )

设置参数类型
在NX2212.0.0中创建。

许可证要求：solid_modeling ("SOLIDS MODELING")

参数

parameterType 参数类型

◆ SetType()

void NXOpen::Features::CylinderGearBuilder::SetType ( NXOpen::Features::CylinderGearBuilder::Types type )

设置类型
于NX2212.0.0版本创建。

许可证要求：实体建模 ("SOLIDS MODELING")

参数

type 类型

◆ TeethNumber()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::TeethNumber ( )

返回齿数
在NX2212.0.0中创建。

许可证要求：无

◆ TipDiameter()

NXOpen::Expression * NXOpen::Features::CylinderGearBuilder::TipDiameter ( )

返回顶圆直径
创建于NX2212.0.0.

许可证要求 : 无

◆ Type()

NXOpen::Features::CylinderGearBuilder::Types NXOpen::Features::CylinderGearBuilder::Type ( )

返回类型
于NX2212.0.0版本创建。

许可证要求：无
