NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 > 模板类 参考

#include <Callback.hxx>

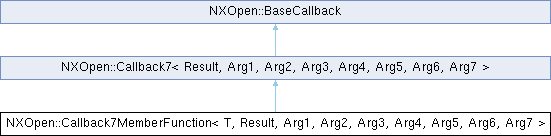

类 NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 > 继承关系图:

Public 类型
typedef Result(T::*	FunctionType) (Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7)
typedef Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >	MyClass
Public 类型 继承自 NXOpen::Callback7< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >
typedef Arg1	Arg1Type
typedef Arg2	Arg2Type
typedef Arg3	Arg3Type
typedef Arg4	Arg4Type
typedef Arg5	Arg5Type
typedef Arg6	Arg6Type
typedef Arg7	Arg7Type
typedef Result	ResultType

Public 成员函数
	Callback7MemberFunction (T *object, FunctionType fn)
virtual BaseCallback *	Clone () const
virtual bool	Equals (const BaseCallback &other) const
virtual Result	operator() (Arg1 a1, Arg2 a2, Arg3 a3, Arg4 a4, Arg5 a5, Arg6 a6, Arg7 a7) const
Public 成员函数 继承自 NXOpen::BaseCallback
virtual	~BaseCallback ()

详细描述

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>
class NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >

用于类成员函数且具有七个输入参数的回调模板类。模板类型 T 是回调函数所属的类。回调函数的返回类型是模板类型 Result。

成员类型定义说明

FunctionType

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

typedef Result(T::* NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::FunctionType) (Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7)

附加到此模板回调类的回调函数的函数签名。

MyClass

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

typedef Callback7MemberFunction<T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7> NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::MyClass

类签名的模板类型定义。用于简化回调框架方法的实现。

构造及析构函数说明

Callback7MemberFunction()

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Callback7MemberFunction ( T * object, FunctionType fn )

inline

构造函数。

成员函数说明

Clone()

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

virtual BaseCallback * NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Clone ( ) const

inlinevirtual

克隆操作的函数接口。派生类将定义此函数以实现深拷贝操作。

实现了 NXOpen::BaseCallback.

Equals()

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

virtual bool NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Equals ( const BaseCallback & other ) const

inlinevirtual

相等性操作的函数接口。

实现了 NXOpen::BaseCallback.

operator()()

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

virtual Result NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::operator() ( Arg1 a1, Arg2 a2, Arg3 a3, Arg4 a4, Arg5 a5, Arg6 a6, Arg7 a7 ) const

inlinevirtual

函数调用操作符，用于调用附加到此 Callback7MemberFunction 实例的回调成员函数。

实现了 NXOpen::Callback7< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >.
