NXOpen::Annotations::FrameBarBuilder类 参考

框架栏构建器 更多...

#include <Annotations_FrameBarBuilder.hxx>

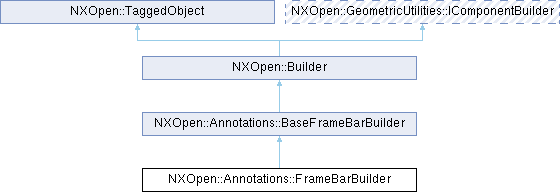

类 NXOpen::Annotations::FrameBarBuilder 继承关系图:

友元
class	_FrameBarBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Annotations::BaseFrameBarBuilder
enum	AxisType { AxisTypeX , AxisTypeY , AxisTypeZ , AxisTypeAlongHull }
enum	HorizontalPositionType { HorizontalPositionTypeAbove , HorizontalPositionTypeShipCenter , HorizontalPositionTypeViewCenter , HorizontalPositionTypeBelow }
enum	OriginOption { OriginOptionSpecifyPosition , OriginOptionDistance }
enum	VerticalPositionType { VerticalPositionTypeLeft , VerticalPositionTypeShipCenter , VerticalPositionTypeViewCenter , VerticalPositionTypeRight }
Public 成员函数 继承自 NXOpen::Annotations::BaseFrameBarBuilder
bool	AftPerpendicular ()
NXOpen::Annotations::BaseFrameBarBuilder::AxisType	Axis ()
bool	Baseline ()
bool	BulkHeads ()
bool	Centerline ()
void	CreateFrameBarObject ()
bool	Decks ()
void	DeleteFrameBarObject ()
bool	ForwardPerpendicular ()
NXOpen::Annotations::BaseFrameBar *	GetFramebar ()
double	HorizontalDistance ()
NXOpen::Annotations::BaseFrameBarBuilder::HorizontalPositionType	HorizontalPosition ()
bool	InterTransverseFrames ()
bool	LongitudinalBulkheads ()
bool	LongitudinalYFrames ()
bool	LongitudinalYInsertFrames ()
bool	LongitudinalZFrames ()
bool	LongitudinalZInsertFrames ()
bool	MainLine ()
NXOpen::NXColor *	MainLineColor ()
NXOpen::DisplayableObject::ObjectFont	MainLineFont ()
NXOpen::Annotations::LineWidth	MainLineWidth ()
bool	Midship ()
NXOpen::Annotations::OriginBuilder *	Origin ()
NXOpen::Annotations::BaseFrameBarBuilder::OriginOption	OriginType ()
void	ReverseAlongHullSide ()
void	ReverseTics ()
void	SetAftPerpendicular (bool aftPerpendicular)
void	SetAxis (NXOpen::Annotations::BaseFrameBarBuilder::AxisType axis)
void	SetBaseline (bool baseline)
void	SetBulkHeads (bool bulkHeads)
void	SetCenterline (bool centerline)
void	SetDecks (bool decks)
void	SetForwardPerpendicular (bool forwardPerpendicular)
void	SetHorizontalDistance (double horizontalDistance)
void	SetHorizontalPosition (NXOpen::Annotations::BaseFrameBarBuilder::HorizontalPositionType horizontalPosition)
void	SetInterTransverseFrames (bool interTransverseFrames)
void	SetLongitudinalBulkheads (bool longitudinalBulkheads)
void	SetLongitudinalYFrames (bool longitudinalYFrames)
void	SetLongitudinalYInsertFrames (bool longitudinalYInsertFrames)
void	SetLongitudinalZFrames (bool longitudinalZFrames)
void	SetLongitudinalZInsertFrames (bool longitudinalZInsertFrames)
void	SetMainLine (bool mainLine)
void	SetMainLineColor (NXOpen::NXColor *color)
void	SetMainLineFont (NXOpen::DisplayableObject::ObjectFont font)
void	SetMainLineWidth (NXOpen::Annotations::LineWidth width)
void	SetMidship (bool midship)
void	SetOriginType (NXOpen::Annotations::BaseFrameBarBuilder::OriginOption originType)
void	SetTransveralInsertArea (bool transveralInsertArea)
void	SetTransverseFrames (bool transverseFrames)
void	SetVerticalDistance (double verticalDistance)
void	SetVerticalPosition (NXOpen::Annotations::BaseFrameBarBuilder::VerticalPositionType verticalPosition)
void	SetWaterline (bool waterline)
NXOpen::Annotations::StyleBuilder *	Style ()
bool	TransveralInsertArea ()
bool	TransverseFrames ()
void	UpdateFrameBarFromStyle ()
void	UpdateFromConceptModel ()
double	VerticalDistance ()
NXOpen::Annotations::BaseFrameBarBuilder::VerticalPositionType	VerticalPosition ()
NXOpen::Drawings::SelectDraftingView *	View ()
bool	Waterline ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

框架栏构建器

表示 @link NXOpen::Annotations::FrameBarBuilder NXOpen::Annotations::FrameBarBuilder@endlink 。
此类用于创建框架栏注释
 <br> 要创建此类的新实例，请使用 @link NXOpen::Annotations::FrameBarCollection::CreateFrameBarBuilder  NXOpen::Annotations::FrameBarCollection::CreateFrameBarBuilder @endlink  <br>

默认值。

属性	值
尾垂线	0
轴	X
基线	0
舱壁	0
中心线	0
甲板	0
首垂线	0
中间横框架	0
Y向纵框架	0
Z向纵框架	0
横向插入区域	0
横框架	0
水线	0

在 NX8.0.0 中创建。
