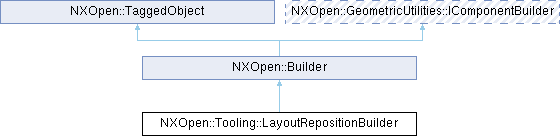

类 NXOpen::Tooling::LayoutRepositionBuilder 继承关系图:

Public 类型
enum	Method { MethodRotate , MethodTransform , MethodPointToPoint }
enum	Type { TypeMove , TypeCopy }

Public 成员函数
void	AddACavityToCopyCavities (NXOpen::NXObject *cavityComponent)
void	AddACavityToMoveCavities (NXOpen::NXObject *cavityComponent)
void	AddCavity (NXOpen::NXObject *selectedCavity)
void	ClearCopyCavities ()
void	ClearMoveCavities ()
NXOpen::Expression *	DimX ()
NXOpen::Expression *	DimY ()
NXOpen::Point *	PointFrom ()
NXOpen::Point *	PointTo ()
void	RemoveOperation ()
NXOpen::Tooling::LayoutRepositionBuilder::Method	RepositionMethod ()
void	RepositionMove (int copyOption)
void	RepositionPointToPoint (int copyOption)
void	RepositionRotate (int type, int copyOption)
void	RepositionToOriginal ()
NXOpen::Tooling::LayoutRepositionBuilder::Type	RepositionType ()
NXOpen::Expression *	RotateAngle ()
NXOpen::Point *	RotatePoint ()
NXOpen::SelectNXObjectList *	SelectInstance ()
void	SetPointFrom (NXOpen::Point *pointFrom)
void	SetPointTo (NXOpen::Point *pointTo)
void	SetRepositionMethod (NXOpen::Tooling::LayoutRepositionBuilder::Method enumRepositionmethod)
void	SetRepositionType (NXOpen::Tooling::LayoutRepositionBuilder::Type enumRepositiontype)
void	SetRotatePoint (NXOpen::Point *rotatePoint)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_LayoutRepositionBuilderBuilder

详细描述

布局重定位构建器

表示Tooling::LayoutRepositionBuilder构建器
要创建此类的新实例，请使用 NXOpen::Tooling::MWLayoutCollection::CreateLayoutRepositionBuilder
默认值。

属性	值
DimX.Value	0（毫米单位），0（英寸单位）
DimY.Value	0（毫米单位），0（英寸单位）
RepositionType	移动
RotateAngle.Value	180

创建于 NX6.0.0。

成员枚举类型说明

◆ Method

enum NXOpen::Tooling::LayoutRepositionBuilder::Method

表示布局变换的类型。

枚举值
MethodRotate	旋转方法
MethodTransform	变换方法
MethodPointToPoint	点到点方法

◆ Type

enum NXOpen::Tooling::LayoutRepositionBuilder::Type

表示布局变换的方法。

枚举值
TypeMove	移动类型
TypeCopy	复制类型

成员函数说明

◆ AddACavityToCopyCavities()

void NXOpen::Tooling::LayoutRepositionBuilder::AddACavityToCopyCavities ( NXOpen::NXObject * cavityComponent )

添加一个型腔以复制型腔
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

cavityComponent cavitycomponent

◆ AddACavityToMoveCavities()

void NXOpen::Tooling::LayoutRepositionBuilder::AddACavityToMoveCavities ( NXOpen::NXObject * cavityComponent )

添加一个型腔以移动型腔
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

cavityComponent cavitycomponent

◆ AddCavity()

void NXOpen::Tooling::LayoutRepositionBuilder::AddCavity ( NXOpen::NXObject * selectedCavity )

Generates a new cavity according to the given cavity occ
Created in NX1872.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

selectedCavity selectedcavity

◆ ClearCopyCavities()

void NXOpen::Tooling::LayoutRepositionBuilder::ClearCopyCavities ( )

清除所有待复制型腔中的型腔
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

◆ ClearMoveCavities()

void NXOpen::Tooling::LayoutRepositionBuilder::ClearMoveCavities ( )

清除所有待移动型腔中的型腔
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

◆ DimX()

NXOpen::Expression * NXOpen::Tooling::LayoutRepositionBuilder::DimX ( )

Returns the distance dimension in X-axis
Created in NX6.0.0.

License requirements : None

◆ DimY()

NXOpen::Expression * NXOpen::Tooling::LayoutRepositionBuilder::DimY ( )

Returns the distance dimension in Y-axis
Created in NX6.0.0.

License requirements : None

◆ PointFrom()

NXOpen::Point * NXOpen::Tooling::LayoutRepositionBuilder::PointFrom ( )

Returns the transform start point
Created in NX6.0.0.

License requirements : None

◆ PointTo()

NXOpen::Point * NXOpen::Tooling::LayoutRepositionBuilder::PointTo ( )

Returns the transform end point
Created in NX6.0.0.

License requirements : None

◆ RemoveOperation()

void NXOpen::Tooling::LayoutRepositionBuilder::RemoveOperation ( )

从当前装配体中移除组件
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

◆ RepositionMethod()

NXOpen::Tooling::LayoutRepositionBuilder::Method NXOpen::Tooling::LayoutRepositionBuilder::RepositionMethod ( )

Returns the reposition method
Created in NX6.0.0.

License requirements : None

◆ RepositionMove()

void NXOpen::Tooling::LayoutRepositionBuilder::RepositionMove ( int copyOption )

Transforms cavity with x y distance
Created in NX1872.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

copyOption copyoption

◆ RepositionPointToPoint()

void NXOpen::Tooling::LayoutRepositionBuilder::RepositionPointToPoint ( int copyOption )

将型腔从点转换到点
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

copyOption copyoption

◆ RepositionRotate()

void NXOpen::Tooling::LayoutRepositionBuilder::RepositionRotate	(	int	type,
		int	copyOption )

旋转型腔
创建于 NX1872.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

type	type
copyOption	copyoption

◆ RepositionToOriginal()

void NXOpen::Tooling::LayoutRepositionBuilder::RepositionToOriginal ( )

重新定位到原始位置
创建于 NX6.0.0。

许可要求 : ug_mold_design ("UG MOLD")

◆ RepositionType()

NXOpen::Tooling::LayoutRepositionBuilder::Type NXOpen::Tooling::LayoutRepositionBuilder::RepositionType ( )

Returns the reposition type
Created in NX6.0.0.

License requirements : None

◆ RotateAngle()

NXOpen::Expression * NXOpen::Tooling::LayoutRepositionBuilder::RotateAngle ( )

Returns the rotate angle
Created in NX6.0.0.

License requirements : None

◆ RotatePoint()

NXOpen::Point * NXOpen::Tooling::LayoutRepositionBuilder::RotatePoint ( )

Returns the rotate point
Created in NX6.0.0.

License requirements : None

◆ SelectInstance()

NXOpen::SelectNXObjectList * NXOpen::Tooling::LayoutRepositionBuilder::SelectInstance ( )

Returns the select instance
Created in NX6.0.0.

License requirements : None

◆ SetPointFrom()

void NXOpen::Tooling::LayoutRepositionBuilder::SetPointFrom ( NXOpen::Point * pointFrom )

Sets the transform start point
Created in NX6.0.0.

License requirements : None

参数

pointFrom pointfrom

◆ SetPointTo()

void NXOpen::Tooling::LayoutRepositionBuilder::SetPointTo ( NXOpen::Point * pointTo )

Sets the transform end point
Created in NX6.0.0.

License requirements : None

参数

pointTo pointto

◆ SetRepositionMethod()

void NXOpen::Tooling::LayoutRepositionBuilder::SetRepositionMethod ( NXOpen::Tooling::LayoutRepositionBuilder::Method enumRepositionmethod )

Sets the reposition method
Created in NX6.0.0.

License requirements : None

参数

enumRepositionmethod enumrepositionmethod

◆ SetRepositionType()

void NXOpen::Tooling::LayoutRepositionBuilder::SetRepositionType ( NXOpen::Tooling::LayoutRepositionBuilder::Type enumRepositiontype )

Sets the reposition type
Created in NX6.0.0.

License requirements : None

参数

enumRepositiontype enumrepositiontype

◆ SetRotatePoint()

void NXOpen::Tooling::LayoutRepositionBuilder::SetRotatePoint ( NXOpen::Point * rotatePoint )

Sets the rotate point
Created in NX6.0.0.

License requirements : None

参数

rotatePoint rotatepoint
