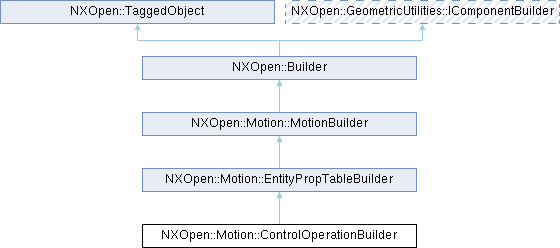

类 NXOpen::Motion::ControlOperationBuilder 继承关系图:

Public 类型
enum	AmplifierGainType { AmplifierGainTypeExpression , AmplifierGainTypeFunction , AmplifierGainTypeProfile2D , AmplifierGainTypeCustomizedSolver }
enum	AmplifierGainYValuePurpose { AmplifierGainYValuePurposeAsGain , AmplifierGainYValuePurposeAsOutput , AmplifierGainYValuePurposeDerivativeAsOutput }
enum	ControlFunctionType { ControlFunctionTypeAbs , ControlFunctionTypeAcos , ControlFunctionTypeAcosh , ControlFunctionTypeAsin , ControlFunctionTypeAsinh , ControlFunctionTypeAtan , ControlFunctionTypeAtanh , ControlFunctionTypeCos , ControlFunctionTypeCosh , ControlFunctionTypeExp , ControlFunctionTypeFderiv , ControlFunctionTypeHaversine , ControlFunctionTypeLn , ControlFunctionTypeLog , ControlFunctionTypeMax , ControlFunctionTypeMin , ControlFunctionTypeNpower , ControlFunctionTypeNroot , ControlFunctionTypePolynomial , ControlFunctionTypeSderiv , ControlFunctionTypeSin , ControlFunctionTypeSinh , ControlFunctionTypeSqrt , ControlFunctionTypeStep , ControlFunctionTypeStep5 , ControlFunctionTypeTan , ControlFunctionTypeTanh }
enum	SteadyStateDriverType { SteadyStateDriverTypeRotation , SteadyStateDriverTypeTranslation }
enum	SwitchSignalType { SwitchSignalTypeDigital , SwitchSignalTypeAnalog }

Public 成员函数
NXString	OutputPortName ()
void	SetOutputPortName (const char *name)
void	SetOutputPortName (const NXString &name)
Public 成员函数继承自 NXOpen::Motion::EntityPropTableBuilder
NXString	EntityName ()
void	GetBooleanPropertyNames (std::vector< NXString > &propertyNames)
bool	GetBooleanPropertyValue (const char *propertyName)
bool	GetBooleanPropertyValue (const NXString &propertyName)
void	GetCsysPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::CoordinateSystem *	GetCsysPropertyValue (const char *propertyName)
NXOpen::CoordinateSystem *	GetCsysPropertyValue (const NXString &propertyName)
void	GetDirectionPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Direction *	GetDirectionPropertyValue (const char *propertyName)
NXOpen::Direction *	GetDirectionPropertyValue (const NXString &propertyName)
NXString	GetEntitySubtypeName ()
void	GetFileReferencePropertyNames (std::vector< NXString > &propertyNames)
NXString	GetFileReferenceValue (const char *propertyName)
NXString	GetFileReferenceValue (const NXString &propertyName)
void	GetIntegerPropertyNames (std::vector< NXString > &propertyNames)
int	GetIntegerPropertyValue (const char *propertyName)
int	GetIntegerPropertyValue (const NXString &propertyName)
void	GetMaterialPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::PhysicalMaterial *	GetMaterialPropertyValue (const char propertyName, bool isInherited)
NXOpen::PhysicalMaterial *	GetMaterialPropertyValue (const NXString &propertyName, bool *isInherited)
void	GetMultiColumnSelectionListPropertyNames (std::vector< NXString > &propertyNames)
void	GetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void	GetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
std::vector< NXOpen::NXObject * >	GetMultipleColumnListPropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * >	GetMultipleColumnListPropertyValue (const NXString &propertyName)
void	GetMultipleReferencePropertyNames (std::vector< NXString > &propertyNames)
std::vector< NXOpen::NXObject * >	GetMultipleReferencePropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * >	GetMultipleReferencePropertyValue (const NXString &propertyName)
void	GetMultiTextPropertyNames (std::vector< NXString > &propertyNames)
NXString	GetMultiTextPropertyValue (const char *propertyName)
NXString	GetMultiTextPropertyValue (const NXString &propertyName)
void	GetPointPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Point *	GetPointPropertyValue (const char *propertyName)
NXOpen::Point *	GetPointPropertyValue (const NXString &propertyName)
NXOpen::Motion::ParamOverrideState	GetPropertyOverrideState (const char *propertyName)
NXOpen::Motion::ParamOverrideState	GetPropertyOverrideState (const NXString &propertyName)
void	GetReferencePropertyNames (std::vector< NXString > &propertyNames)
NXOpen::NXObject *	GetReferencePropertyValue (const char *propertyName)
NXOpen::NXObject *	GetReferencePropertyValue (const NXString &propertyName)
void	GetRGBColorPropertyNames (std::vector< NXString > &propertyNames)
void	GetRGBColorPropertyValue (const char *propertyName, std::vector< double > &propertyValue)
void	GetRGBColorPropertyValue (const NXString &propertyName, std::vector< double > &propertyValue)
void	GetRGBColorPropertyValue255 (const char *propertyName, std::vector< int > &propertyValue)
void	GetRGBColorPropertyValue255 (const NXString &propertyName, std::vector< int > &propertyValue)
void	GetScalarExpressionPropertyNames (std::vector< NXString > &propertyNames)
void	GetScalarExpressionPropertyValue (const char propertyName, double propertyValue, NXOpen::Unit **unitType)
void	GetScalarExpressionPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
void	GetStringPropertyNames (std::vector< NXString > &propertyNames)
NXString	GetStringPropertyValue (const char *propertyName)
NXString	GetStringPropertyValue (const NXString &propertyName)
void	SetBooleanPropertyValue (const char *propertyName, bool propertyValue)
void	SetBooleanPropertyValue (const NXString &propertyName, bool propertyValue)
void	SetCsysPropertyValue (const char propertyName, NXOpen::CoordinateSystem propertyValue)
void	SetCsysPropertyValue (const NXString &propertyName, NXOpen::CoordinateSystem *propertyValue)
void	SetDirectionPropertyValue (const char propertyName, NXOpen::Direction propertyValue)
void	SetDirectionPropertyValue (const NXString &propertyName, NXOpen::Direction *propertyValue)
void	SetEntityName (const char *name)
void	SetEntityName (const NXString &name)
void	SetEntitySubtypeName (const char *entitySubtypeName)
void	SetEntitySubtypeName (const NXString &entitySubtypeName)
void	SetFileReferenceValue (const char propertyName, const char propertyValue)
void	SetFileReferenceValue (const NXString &propertyName, const NXString &propertyValue)
void	SetIntegerExpressionPropertyValue (const char propertyName, const char propertyValue)
void	SetIntegerExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void	SetIntegerPropertyValue (const char *propertyName, int propertyValue)
void	SetIntegerPropertyValue (const NXString &propertyName, int propertyValue)
void	SetMaterialPropertyValue (const char propertyName, bool isInherited, NXOpen::PhysicalMaterial propertyValue)
void	SetMaterialPropertyValue (const NXString &propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void	SetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void	SetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
void	SetMultipleColumnListPropertyValue (const char propertyName, const std::vector< NXOpen::NXObject > &propertyValue)
void	SetMultipleColumnListPropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void	SetMultipleReferencePropertyValue (const char propertyName, const std::vector< NXOpen::NXObject > &propertyValue)
void	SetMultipleReferencePropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void	SetMultiTextPropertyValue (const char propertyName, const char propertyValue)
void	SetMultiTextPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void	SetPointPropertyValue (const char propertyName, NXOpen::Point propertyValue)
void	SetPointPropertyValue (const NXString &propertyName, NXOpen::Point *propertyValue)
void	SetPropertyOverrideState (const char *propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void	SetPropertyOverrideState (const NXString &propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void	SetPropertyWithoutValue (const char *propertyName)
void	SetPropertyWithoutValue (const NXString &propertyName)
void	SetReferencePropertyValue (const char propertyName, NXOpen::NXObject propertyValue)
void	SetReferencePropertyValue (const NXString &propertyName, NXOpen::NXObject *propertyValue)
void	SetRGBColorPropertyValue (const char *propertyName, const std::vector< double > &propertyValue)
void	SetRGBColorPropertyValue (const NXString &propertyName, const std::vector< double > &propertyValue)
void	SetRGBColorPropertyValue255 (const char *propertyName, const std::vector< int > &propertyValue)
void	SetRGBColorPropertyValue255 (const NXString &propertyName, const std::vector< int > &propertyValue)
void	SetScalarExpressionPropertyValue (const char propertyName, const char propertyValue, NXOpen::Unit *unitType)
void	SetScalarExpressionPropertyValue (const char propertyName, double propertyValue, NXOpen::Unit unitType)
void	SetScalarExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue, NXOpen::Unit *unitType)
void	SetScalarExpressionPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
void	SetStringPropertyValue (const char propertyName, const char propertyValue)
void	SetStringPropertyValue (const NXString &propertyName, const NXString &propertyValue)
Public 成员函数继承自 NXOpen::Motion::MotionBuilder
double	DisplayScale ()
NXString	GroupName ()
NXOpen::Motion::MotionObject::GroupType	GroupType ()
void	SetDisplayScale (double displayScale)
void	SetGroupName (const char *groupName)
void	SetGroupName (const NXString &groupName)
void	SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ControlOperationBuilderBuilder

详细描述

控制操作构建器

表示 Motion::ControlOperation 构建器
要创建此类的新实例，请使用 NXOpen::Motion::ControlOperationCollection::CreateControlOperationBuilder

创建于NX1872.0.0。

成员枚举类型说明

◆ AmplifierGainType

enum NXOpen::Motion::ControlOperationBuilder::AmplifierGainType

控制操作放大器增益类型

枚举值
AmplifierGainTypeExpression	表达式
AmplifierGainTypeFunction	函数
AmplifierGainTypeProfile2D	二维曲线
AmplifierGainTypeCustomizedSolver	自定义求解器

◆ AmplifierGainYValuePurpose

enum NXOpen::Motion::ControlOperationBuilder::AmplifierGainYValuePurpose

控制操作放大器增益Y值用途类型

枚举值
AmplifierGainYValuePurposeAsGain	作为增益
AmplifierGainYValuePurposeAsOutput	作为输出
AmplifierGainYValuePurposeDerivativeAsOutput	导数作为输出

◆ ControlFunctionType

enum NXOpen::Motion::ControlOperationBuilder::ControlFunctionType

控制操作控制函数类型

枚举值
ControlFunctionTypeAbs	绝对值
ControlFunctionTypeAcos	反余弦
ControlFunctionTypeAcosh	反双曲余弦
ControlFunctionTypeAsin	反正弦
ControlFunctionTypeAsinh	反双曲正弦
ControlFunctionTypeAtan	反正切
ControlFunctionTypeAtanh	反双曲正切
ControlFunctionTypeCos	余弦
ControlFunctionTypeCosh	双曲余弦
ControlFunctionTypeExp	指数
ControlFunctionTypeFderiv	一阶导数
ControlFunctionTypeHaversine	半正矢
ControlFunctionTypeLn	自然对数
ControlFunctionTypeLog	对数
ControlFunctionTypeMax	最大值
ControlFunctionTypeMin	最小值
ControlFunctionTypeNpower	N次方
ControlFunctionTypeNroot	N次根
ControlFunctionTypePolynomial	多项式
ControlFunctionTypeSderiv	二阶导数
ControlFunctionTypeSin	正弦
ControlFunctionTypeSinh	双曲正弦
ControlFunctionTypeSqrt	平方根
ControlFunctionTypeStep	阶跃
ControlFunctionTypeStep5	5段阶跃
ControlFunctionTypeTan	正切
ControlFunctionTypeTanh	双曲正切

◆ SteadyStateDriverType

enum NXOpen::Motion::ControlOperationBuilder::SteadyStateDriverType

控制操作稳态驱动类型

枚举值
SteadyStateDriverTypeRotation	旋转
SteadyStateDriverTypeTranslation	平移

◆ SwitchSignalType

enum NXOpen::Motion::ControlOperationBuilder::SwitchSignalType

控制操作开关信号类型

枚举值
SwitchSignalTypeDigital	数字
SwitchSignalTypeAnalog	模拟

成员函数说明

◆ OutputPortName()

NXString NXOpen::Motion::ControlOperationBuilder::OutputPortName ( )

获取输出端口名称。在所有运动元素中必须唯一。
创建于NX1872.0.0。

许可证要求：无

◆ SetOutputPortName() [1/2]

void NXOpen::Motion::ControlOperationBuilder::SetOutputPortName ( const char * name )

设置输出端口名称。在所有运动元素中必须唯一。
创建于NX1872.0.0。

许可证要求：mechanisms ("MECHANISMS")

参数

name 名称

◆ SetOutputPortName() [2/2]

void NXOpen::Motion::ControlOperationBuilder::SetOutputPortName ( const NXString & name )
