NXOpen::SketchConicBuilder类 参考

草图圆锥曲线构建器 更多...

#include <SketchConicBuilder.hxx>

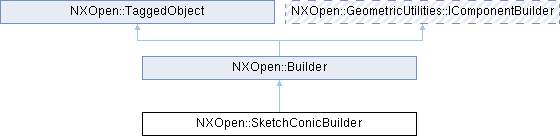

类 NXOpen::SketchConicBuilder 继承关系图:

Public 成员函数
NXOpen::Point *	ControlPoint ()
NXOpen::Point *	EndPoint ()
double	Rho ()
void	SetControlPoint (NXOpen::Point *controlPoint)
void	SetEndPoint (NXOpen::Point *endPoint)
void	SetRho (double rho)
void	SetStartPoint (NXOpen::Point *startPoint)
NXOpen::Point *	StartPoint ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SketchConicBuilderBuilder

详细描述

草图圆锥曲线构建器

Represents a SketchConicBuilder builder
To create a new instance of this class, use SketchCollection::CreateSketchConicBuilder
Default values.

Property	Value
Rho	0.5

Created in NX6.0.0.

成员函数说明

ControlPoint()

NXOpen::Point * NXOpen::SketchConicBuilder::ControlPoint

(

)

Returns the control point
Created in NX6.0.0.

License requirements : None

EndPoint()

NXOpen::Point * NXOpen::SketchConicBuilder::EndPoint

(

)

Returns the end point
Created in NX6.0.0.

License requirements : None

Rho()

double NXOpen::SketchConicBuilder::Rho

(

)

Returns the Rho value
Created in NX6.0.0.

License requirements : None

SetControlPoint()

void NXOpen::SketchConicBuilder::SetControlPoint

(

NXOpen::Point *

controlPoint

)

Sets the control point
Created in NX6.0.0.

License requirements : None

参数

controlPoint

controlpoint

SetEndPoint()

void NXOpen::SketchConicBuilder::SetEndPoint

(

NXOpen::Point *

endPoint

)

Sets the end point
Created in NX6.0.0.

License requirements : None

参数

endPoint

endpoint

SetRho()

void NXOpen::SketchConicBuilder::SetRho

(

double

rho

)

Sets the Rho value
Created in NX6.0.0.

License requirements : None

参数

rho

rho

SetStartPoint()

void NXOpen::SketchConicBuilder::SetStartPoint

(

NXOpen::Point *

startPoint

)

Sets the start point
Created in NX6.0.0.

License requirements : None

参数

startPoint

startpoint

StartPoint()

NXOpen::Point * NXOpen::SketchConicBuilder::StartPoint

(

)

Returns the start point
Created in NX6.0.0.

License requirements : None
