Public 类型 | Public 成员函数 | 友元 | 所有成员列表
NXOpen::Motion::GearContactBuilder类 参考

齿轮接触构建器 更多...

#include <Motion_GearContactBuilder.hxx>

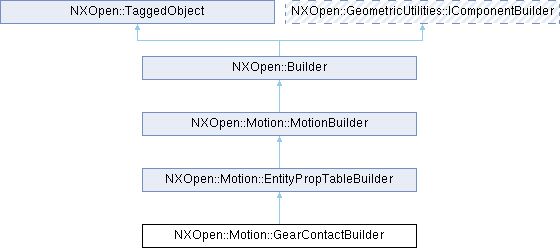

类 NXOpen::Motion::GearContactBuilder 继承关系图:
NXOpen::Motion::EntityPropTableBuilder NXOpen::Motion::MotionBuilder NXOpen::Builder NXOpen::TaggedObject NXOpen::GeometricUtilities::IComponentBuilder

Public 类型

enum  CalculationMethod {
  CalculationMethodStandardISOConstant , CalculationMethodStandardISOTransmissionError , CalculationMethodStandardUserDefined , CalculationMethodStandardUserDefinedTransmissionError ,
  CalculationMethodAdvanced , CalculationMethodAnalyticalISOCAI , CalculationMethodBevelHypoidAdvanced , CalculationMethodBevelHypoidAnalytical ,
  CalculationMethodAnalyticalEmpirical
}
enum  LocalComplianceType { LocalComplianceTypeDry }
enum  StiffnessType { StiffnessTypeExpression , StiffnessTypeProfile2D }

Public 成员函数

enum NX_DEPRECATED ("在NX2312.0.0中已弃用。请使用CalculationMethod代替。") BulkCompliance
Public 成员函数 继承自 NXOpen::Motion::EntityPropTableBuilder
NXString EntityName ()
void GetBooleanPropertyNames (std::vector< NXString > &propertyNames)
bool GetBooleanPropertyValue (const char *propertyName)
bool GetBooleanPropertyValue (const NXString &propertyName)
void GetCsysPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::CoordinateSystem * GetCsysPropertyValue (const char *propertyName)
NXOpen::CoordinateSystem * GetCsysPropertyValue (const NXString &propertyName)
void GetDirectionPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Direction * GetDirectionPropertyValue (const char *propertyName)
NXOpen::Direction * GetDirectionPropertyValue (const NXString &propertyName)
NXString GetEntitySubtypeName ()
void GetFileReferencePropertyNames (std::vector< NXString > &propertyNames)
NXString GetFileReferenceValue (const char *propertyName)
NXString GetFileReferenceValue (const NXString &propertyName)
void GetIntegerPropertyNames (std::vector< NXString > &propertyNames)
int GetIntegerPropertyValue (const char *propertyName)
int GetIntegerPropertyValue (const NXString &propertyName)
void GetMaterialPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::PhysicalMaterial * GetMaterialPropertyValue (const char *propertyName, bool *isInherited)
NXOpen::PhysicalMaterial * GetMaterialPropertyValue (const NXString &propertyName, bool *isInherited)
void GetMultiColumnSelectionListPropertyNames (std::vector< NXString > &propertyNames)
void GetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void GetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
std::vector< NXOpen::NXObject * > GetMultipleColumnListPropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * > GetMultipleColumnListPropertyValue (const NXString &propertyName)
void GetMultipleReferencePropertyNames (std::vector< NXString > &propertyNames)
std::vector< NXOpen::NXObject * > GetMultipleReferencePropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * > GetMultipleReferencePropertyValue (const NXString &propertyName)
void GetMultiTextPropertyNames (std::vector< NXString > &propertyNames)
NXString GetMultiTextPropertyValue (const char *propertyName)
NXString GetMultiTextPropertyValue (const NXString &propertyName)
void GetPointPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Point * GetPointPropertyValue (const char *propertyName)
NXOpen::Point * GetPointPropertyValue (const NXString &propertyName)
NXOpen::Motion::ParamOverrideState GetPropertyOverrideState (const char *propertyName)
NXOpen::Motion::ParamOverrideState GetPropertyOverrideState (const NXString &propertyName)
void GetReferencePropertyNames (std::vector< NXString > &propertyNames)
NXOpen::NXObject * GetReferencePropertyValue (const char *propertyName)
NXOpen::NXObject * GetReferencePropertyValue (const NXString &propertyName)
void GetRGBColorPropertyNames (std::vector< NXString > &propertyNames)
void GetRGBColorPropertyValue (const char *propertyName, std::vector< double > &propertyValue)
void GetRGBColorPropertyValue (const NXString &propertyName, std::vector< double > &propertyValue)
void GetRGBColorPropertyValue255 (const char *propertyName, std::vector< int > &propertyValue)
void GetRGBColorPropertyValue255 (const NXString &propertyName, std::vector< int > &propertyValue)
void GetScalarExpressionPropertyNames (std::vector< NXString > &propertyNames)
void GetScalarExpressionPropertyValue (const char *propertyName, double *propertyValue, NXOpen::Unit **unitType)
void GetScalarExpressionPropertyValue (const NXString &propertyName, double *propertyValue, NXOpen::Unit **unitType)
void GetStringPropertyNames (std::vector< NXString > &propertyNames)
NXString GetStringPropertyValue (const char *propertyName)
NXString GetStringPropertyValue (const NXString &propertyName)
void SetBooleanPropertyValue (const char *propertyName, bool propertyValue)
void SetBooleanPropertyValue (const NXString &propertyName, bool propertyValue)
void SetCsysPropertyValue (const char *propertyName, NXOpen::CoordinateSystem *propertyValue)
void SetCsysPropertyValue (const NXString &propertyName, NXOpen::CoordinateSystem *propertyValue)
void SetDirectionPropertyValue (const char *propertyName, NXOpen::Direction *propertyValue)
void SetDirectionPropertyValue (const NXString &propertyName, NXOpen::Direction *propertyValue)
void SetEntityName (const char *name)
void SetEntityName (const NXString &name)
void SetEntitySubtypeName (const char *entitySubtypeName)
void SetEntitySubtypeName (const NXString &entitySubtypeName)
void SetFileReferenceValue (const char *propertyName, const char *propertyValue)
void SetFileReferenceValue (const NXString &propertyName, const NXString &propertyValue)
void SetIntegerExpressionPropertyValue (const char *propertyName, const char *propertyValue)
void SetIntegerExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void SetIntegerPropertyValue (const char *propertyName, int propertyValue)
void SetIntegerPropertyValue (const NXString &propertyName, int propertyValue)
void SetMaterialPropertyValue (const char *propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void SetMaterialPropertyValue (const NXString &propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void SetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void SetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
void SetMultipleColumnListPropertyValue (const char *propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleColumnListPropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleReferencePropertyValue (const char *propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleReferencePropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultiTextPropertyValue (const char *propertyName, const char *propertyValue)
void SetMultiTextPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void SetPointPropertyValue (const char *propertyName, NXOpen::Point *propertyValue)
void SetPointPropertyValue (const NXString &propertyName, NXOpen::Point *propertyValue)
void SetPropertyOverrideState (const char *propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void SetPropertyOverrideState (const NXString &propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void SetPropertyWithoutValue (const char *propertyName)
void SetPropertyWithoutValue (const NXString &propertyName)
void SetReferencePropertyValue (const char *propertyName, NXOpen::NXObject *propertyValue)
void SetReferencePropertyValue (const NXString &propertyName, NXOpen::NXObject *propertyValue)
void SetRGBColorPropertyValue (const char *propertyName, const std::vector< double > &propertyValue)
void SetRGBColorPropertyValue (const NXString &propertyName, const std::vector< double > &propertyValue)
void SetRGBColorPropertyValue255 (const char *propertyName, const std::vector< int > &propertyValue)
void SetRGBColorPropertyValue255 (const NXString &propertyName, const std::vector< int > &propertyValue)
void SetScalarExpressionPropertyValue (const char *propertyName, const char *propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const char *propertyName, double propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
void SetStringPropertyValue (const char *propertyName, const char *propertyValue)
void SetStringPropertyValue (const NXString &propertyName, const NXString &propertyValue)
Public 成员函数 继承自 NXOpen::Motion::MotionBuilder
double DisplayScale ()
NXString GroupName ()
NXOpen::Motion::MotionObject::GroupType GroupType ()
void SetDisplayScale (double displayScale)
void SetGroupName (const char *groupName)
void SetGroupName (const NXString &groupName)
void SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject * Commit ()
void Destroy ()
std::vector< NXOpen::NXObject * > GetCommittedObjects ()
NXOpen::NXObject * GetObject ()
NXOpen::PreviewBuilder * PreviewBuilder ()
void ShowResults ()
virtual bool Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _GearContactBuilderBuilder

详细描述

齿轮接触构建器

表示 Motion::GearContact 构建器
要创建此类的新实例，请使用 NXOpen::Motion::GearContactCollection::CreateGearContactBuilder

在NX1899.0.0中创建。

成员枚举类型说明

◆ CalculationMethod

enum NXOpen::Motion::GearContactBuilder::CalculationMethod

计算方法类型

枚举值
CalculationMethodStandardISOConstant

标准ISO常量

CalculationMethodStandardISOTransmissionError

标准ISO传动误差

CalculationMethodStandardUserDefined

标准用户定义

CalculationMethodStandardUserDefinedTransmissionError

标准用户定义传动误差

CalculationMethodAdvanced

高级

CalculationMethodAnalyticalISOCAI

解析ISOCAI

CalculationMethodBevelHypoidAdvanced

锥齿轮准双曲面高级

CalculationMethodBevelHypoidAnalytical

锥齿轮准双曲面解析

CalculationMethodAnalyticalEmpirical

解析经验

◆ LocalComplianceType

enum NXOpen::Motion::GearContactBuilder::LocalComplianceType

局部柔度类型

枚举值
LocalComplianceTypeDry

干摩擦

◆ StiffnessType

enum NXOpen::Motion::GearContactBuilder::StiffnessType

几何齿轮类型

枚举值
StiffnessTypeExpression

表达式

StiffnessTypeProfile2D

轮廓2D

成员函数说明

◆ NX_DEPRECATED()

enum NXOpen::Motion::GearContactBuilder::NX_DEPRECATED ( "在NX2312.0.0中已弃用。请使用CalculationMethod代替。" )
inline

整体柔度齿轮类型

弃用
在NX2312.0.0中已弃用。请使用 CalculationMethod 代替。

经验

来自有限元预处理器
