NXOpen::Tooling::ElectrodeCheckingBuilder类 参考

电极检查构建器 更多...

#include <Tooling_ElectrodeCheckingBuilder.hxx>

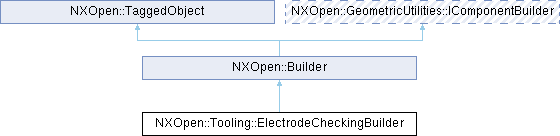

类 NXOpen::Tooling::ElectrodeCheckingBuilder 继承关系图:

Public 成员函数
NXOpen::SelectNXObjectList *	Electrode ()
NXString	ElectrodeNameFilter ()
bool	InterSolid ()
bool	MapFaceColor ()
bool	SameParent ()
bool	SaveResultsInPart ()
void	SetElectrodeNameFilter (const char *electrodeNameFilter)
void	SetElectrodeNameFilter (const NXString &electrodeNameFilter)
void	SetInterSolid (bool interSolid)
void	SetMapFaceColor (bool mapFaceColor)
void	SetSameParent (bool sameParent)
void	SetSaveResultsInPart (bool saveResultsInPart)
void	SetTolerance (double tolerance)
void	SetTouchArea (bool touchArea)
void	SetTouchBody (bool touchBody)
void	SetWorkpieceNameFilter (const char *workpieceNameFilter)
void	SetWorkpieceNameFilter (const NXString &workpieceNameFilter)
double	Tolerance ()
bool	TouchArea ()
NXOpen::Expression *	TouchAreaTolerance ()
bool	TouchBody ()
NXOpen::SelectNXObjectList *	Workpiece ()
NXString	WorkpieceNameFilter ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ElectrodeCheckingBuilderBuilder

详细描述

电极检查构建器

电极检查构建器，用于检查所有电极的接触状态。
要创建此类的新实例，请使用 NXOpen::Tooling::ElectrodeDesignCollection::CreateCheckingBuilder
默认值。

属性	值
InterSolid	1
MapFaceColor	1
SameParent	1
TouchArea	0
TouchAreaTolerance.Value	0.01（毫米单位），0.001（英寸单位）
TouchBody	1

创建于 NX8.0.0。

成员函数说明

Electrode()

NXOpen::SelectNXObjectList * NXOpen::Tooling::ElectrodeCheckingBuilder::Electrode

(

)

Returns the electrode part to be checked with the workpiece part.
Created in NX8.0.0.

License requirements : None

ElectrodeNameFilter()

NXString NXOpen::Tooling::ElectrodeCheckingBuilder::ElectrodeNameFilter

(

)

Returns the wildcard string to filter out the electrode part name.
Created in NX8.0.0.

License requirements : None

InterSolid()

bool NXOpen::Tooling::ElectrodeCheckingBuilder::InterSolid

(

)

Returns the option for generating the interference solid body.
Created in NX8.0.0.

License requirements : None

MapFaceColor()

bool NXOpen::Tooling::ElectrodeCheckingBuilder::MapFaceColor

(

)

Returns the option for mapping color of the touched face pair from workpiece to electrode.
Created in NX8.0.0.

License requirements : None

SameParent()

bool NXOpen::Tooling::ElectrodeCheckingBuilder::SameParent

(

)

Returns the option for checking the workpiece and electrode part under the same part or not.
Created in NX8.0.0.

License requirements : None

SaveResultsInPart()

bool NXOpen::Tooling::ElectrodeCheckingBuilder::SaveResultsInPart

(

)

返回将检查结果保存在部件中的选项。
创建于 NX8.0.0。

许可要求：无

SetElectrodeNameFilter() [1/2]

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetElectrodeNameFilter

(

const char *

electrodeNameFilter

)

Sets the wildcard string to filter out the electrode part name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

electrodeNameFilter

electrodenamefilter

SetElectrodeNameFilter() [2/2]

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetElectrodeNameFilter

(

const NXString &

electrodeNameFilter

)

Sets the wildcard string to filter out the electrode part name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

electrodeNameFilter

electrodenamefilter

SetInterSolid()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetInterSolid

(

bool

interSolid

)

Sets the option for generating the interference solid body.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

interSolid

intersolid

SetMapFaceColor()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetMapFaceColor

(

bool

mapFaceColor

)

Sets the option for mapping color of the touched face pair from workpiece to electrode.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

mapFaceColor

mapfacecolor

SetSameParent()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetSameParent

(

bool

sameParent

)

Sets the option for checking the workpiece and electrode part under the same part or not.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

sameParent

sameparent

SetSaveResultsInPart()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetSaveResultsInPart

(

bool

saveResultsInPart

)

设置将检查结果保存在部件中的选项。
创建于 NX8.0.0。

许可要求：nx_electrode_wizard ("NX Electrode Wizard")

参数

saveResultsInPart

saveresultsinpart

SetTolerance()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetTolerance

(

double

tolerance

)

设置检查电极的精度。
创建于 NX2212.0.0。

许可要求：nx_electrode_wizard ("NX Electrode Wizard")

参数

tolerance

tolerance

SetTouchArea()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetTouchArea

(

bool

touchArea

)

设置计算接触片体面积的选项。
创建于 NX8.0.0。

许可要求：nx_electrode_wizard ("NX Electrode Wizard")

参数

touchArea

toucharea

SetTouchBody()

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetTouchBody

(

bool

touchBody

)

Sets the option for generating the touch sheet body.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

touchBody

touchbody

SetWorkpieceNameFilter() [1/2]

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetWorkpieceNameFilter

(

const char *

workpieceNameFilter

)

Sets the wildcard string to filter out the workpiece part name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

workpieceNameFilter

workpiecenamefilter

SetWorkpieceNameFilter() [2/2]

void NXOpen::Tooling::ElectrodeCheckingBuilder::SetWorkpieceNameFilter

(

const NXString &

workpieceNameFilter

)

Sets the wildcard string to filter out the workpiece part name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

workpieceNameFilter

workpiecenamefilter

Tolerance()

double NXOpen::Tooling::ElectrodeCheckingBuilder::Tolerance

(

)

返回检查电极的精度。
创建于 NX2212.0.0。

许可要求：无

TouchArea()

bool NXOpen::Tooling::ElectrodeCheckingBuilder::TouchArea

(

)

返回计算接触片体面积的选项。
创建于 NX8.0.0。

许可要求：无

TouchAreaTolerance()

NXOpen::Expression * NXOpen::Tooling::ElectrodeCheckingBuilder::TouchAreaTolerance

(

)

返回计算接触面积的精度。
创建于 NX1926.0.0。

许可要求：无

TouchBody()

bool NXOpen::Tooling::ElectrodeCheckingBuilder::TouchBody

(

)

Returns the option for generating the touch sheet body.
Created in NX8.0.0.

License requirements : None

Workpiece()

NXOpen::SelectNXObjectList * NXOpen::Tooling::ElectrodeCheckingBuilder::Workpiece

(

)

Returns the workpiece part to be checked with the electrode part.
Created in NX8.0.0.

License requirements : None

WorkpieceNameFilter()

NXString NXOpen::Tooling::ElectrodeCheckingBuilder::WorkpieceNameFilter

(

)

Returns the wildcard string to filter out the workpiece part name.
Created in NX8.0.0.

License requirements : None
