NXOpen::Tooling::SpindleSliderBuilder类 参考

主轴滑块构建器 更多...

#include <Tooling_SpindleSliderBuilder.hxx>

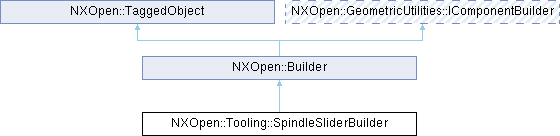

类 NXOpen::Tooling::SpindleSliderBuilder 继承关系图:

Public 成员函数
void	DeleteSpindleSlider (const char *spindleSliderName)
void	DeleteSpindleSlider (const NXString &spindleSliderName)
NXOpen::SelectNXObjectList *	DriveBody ()
NXOpen::Direction *	DriveVector ()
void	SetDriveVector (NXOpen::Direction *driveVector)
void	SetSpindleSliderName (const char *spindleSliderName)
void	SetSpindleSliderName (const NXString &spindleSliderName)
void	SetSpindleSliderVector (NXOpen::Direction *spindleSliderVector)
NXOpen::SelectNXObjectList *	SpindleSliderBody ()
NXString	SpindleSliderName ()
NXOpen::Direction *	SpindleSliderVector ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SpindleSliderBuilderBuilder

详细描述

主轴滑块构建器

Represents a Tooling::SpindleSliderBuilder to create a spindle slider
To create a new instance of this class, use NXOpen::Tooling::AutoDieCollection::CreateSpindleSliderBuilder

Created in NX10.0.2.

成员函数说明

DeleteSpindleSlider() [1/2]

void NXOpen::Tooling::SpindleSliderBuilder::DeleteSpindleSlider

(

const char *

spindleSliderName

)

Deletes the spindle slider
Created in NX10.0.2.

License requirements : nx_dievalidation ("DIE VALIDATION")

参数

spindleSliderName

spindleslidername

DeleteSpindleSlider() [2/2]

void NXOpen::Tooling::SpindleSliderBuilder::DeleteSpindleSlider

(

const NXString &

spindleSliderName

)

Deletes the spindle slider
Created in NX10.0.2.

License requirements : nx_dievalidation ("DIE VALIDATION")

参数

spindleSliderName

spindleslidername

DriveBody()

NXOpen::SelectNXObjectList * NXOpen::Tooling::SpindleSliderBuilder::DriveBody

(

)

Returns the drive body
Created in NX10.0.2.

License requirements : None

DriveVector()

NXOpen::Direction * NXOpen::Tooling::SpindleSliderBuilder::DriveVector

(

)

Returns the direction that drive body drives spindle slider
Created in NX10.0.2.

License requirements : None

SetDriveVector()

void NXOpen::Tooling::SpindleSliderBuilder::SetDriveVector

(

NXOpen::Direction *

driveVector

)

Sets the direction that drive body drives spindle slider
Created in NX10.0.2.

License requirements : nx_dievalidation ("DIE VALIDATION")

参数

driveVector

drivevector

SetSpindleSliderName() [1/2]

void NXOpen::Tooling::SpindleSliderBuilder::SetSpindleSliderName

(

const char *

spindleSliderName

)

Sets the spindle slider name
Created in NX10.0.2.

License requirements : nx_dievalidation ("DIE VALIDATION")

参数

spindleSliderName

spindleslidername

SetSpindleSliderName() [2/2]

void NXOpen::Tooling::SpindleSliderBuilder::SetSpindleSliderName

(

const NXString &

spindleSliderName

)

Sets the spindle slider name
Created in NX10.0.2.

License requirements : nx_dievalidation ("DIE VALIDATION")

参数

spindleSliderName

spindleslidername

SetSpindleSliderVector()

void NXOpen::Tooling::SpindleSliderBuilder::SetSpindleSliderVector

(

NXOpen::Direction *

spindleSliderVector

)

Sets the direction spindle slider move along
Created in NX10.0.2.

License requirements : nx_dievalidation ("DIE VALIDATION")

参数

spindleSliderVector

spindleslidervector

SpindleSliderBody()

NXOpen::SelectNXObjectList * NXOpen::Tooling::SpindleSliderBuilder::SpindleSliderBody

(

)

Returns the spindle slider body
Created in NX10.0.2.

License requirements : None

SpindleSliderName()

NXString NXOpen::Tooling::SpindleSliderBuilder::SpindleSliderName

(

)

Returns the spindle slider name
Created in NX10.0.2.

License requirements : None

SpindleSliderVector()

NXOpen::Direction * NXOpen::Tooling::SpindleSliderBuilder::SpindleSliderVector

(

)

Returns the direction spindle slider move along
Created in NX10.0.2.

License requirements : None
