固定约束构建器更多...

#include <Features_FixedBuilder.hxx>

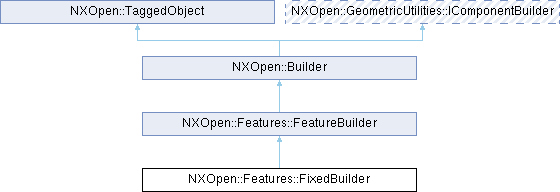

类 NXOpen::Features::FixedBuilder 继承关系图:

Public 成员函数
NXOpen::Features::FaceRecognitionBuilder *	FaceToFix ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_FixedBuilderBuilder

详细描述

固定约束构建器

表示固定特征的构建器。
 <br> 要创建此类的新实例，请使用 @link NXOpen::Features::FeatureCollection::CreateFixedBuilder  NXOpen::Features::FeatureCollection::CreateFixedBuilder @endlink  <br>

默认值。

属性	值
FaceToFix.CloneEnabled	0
FaceToFix.CoaxialEnabled	0
FaceToFix.CoplanarAxesEnabled	0
FaceToFix.CoplanarEnabled	0
FaceToFix.EqualDiameterEnabled	0
FaceToFix.OffsetEnabled	0
FaceToFix.ParallelEnabled	0
FaceToFix.PatternEnabled	0
FaceToFix.PerpendicularEnabled	0
FaceToFix.RigidBodyFaceEnabled	0
FaceToFix.SameEntryEnabled	0
FaceToFix.SameEntrySurfaceEnabled	0
FaceToFix.SameOrbitEnabled	0
FaceToFix.SymmetricEnabled	0
FaceToFix.TangentEnabled	0
FaceToFix.ThicknessChainEnabled	0
FaceToFix.UseFaceBrowse	1

创建于 NX7.0.0。

成员函数说明

◆ FaceToFix()

NXOpen::Features::FaceRecognitionBuilder * NXOpen::Features::FixedBuilder::FaceToFix ( )

返回包含待固定面的面识别构建器。详细信息请参考 NXOpen::Features::FaceRecognitionBuilder 。
创建于 NX7.0.0。

许可要求：无
