尺寸构建器更多...

#include <Features_DimensionBuilder.hxx>

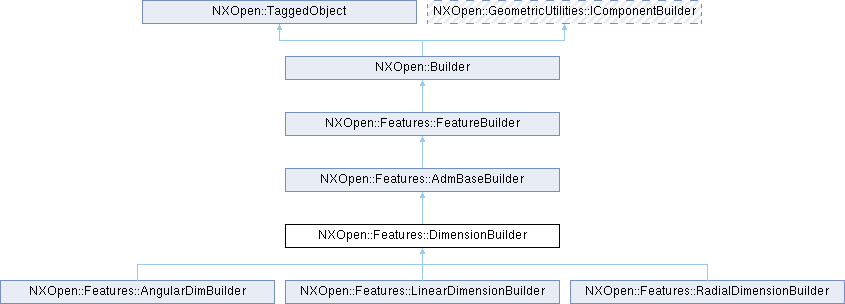

类 NXOpen::Features::DimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::OriginBuilder *	DimensionLocation ()
NXOpen::GeometricUtilities::FaceChangeOverflowBehavior *	FaceChangeOverflowBehavior ()
NXOpen::Features::FaceRecognitionBuilder *	FacesToMove ()
NXOpen::Annotations::Dimension *	GetDimension ()
NXOpen::GeometricUtilities::SaveConstraintsBuilder *	SaveConstraints ()
NXOpen::Expression *	Value ()
Public 成员函数继承自 NXOpen::Features::AdmBaseBuilder
void	OnApplyPre ()
void	Reconfigure ()
void	SetSolveOption (NXOpen::Features::AdmBaseBuilder::SolveOptionType solveOption)
void	SetUpdateMethod (NXOpen::Features::AdmBaseBuilder::UpdateMethodType updateMethod)
NXOpen::Features::AdmBaseBuilder::SolveOptionType	SolveOption ()
NXOpen::Features::AdmBaseBuilder::UpdateMethodType	UpdateMethod ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_DimensionBuilderBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::Features::AdmBaseBuilder
enum	SolveOptionType { SolveOptionTypeC1 , SolveOptionTypeC2 }
enum	UpdateMethodType { UpdateMethodTypeFaceChange = 1 , UpdateMethodTypeAutomaticRecovery , UpdateMethodTypeAutomatic , UpdateMethodTypeMultiple }

详细描述

尺寸构建器

表示 NXOpen::Features::DimensionBuilder
子类应创建对应对象的实例
默认值。

属性	值
FacesToMove.CloneEnabled	0
FacesToMove.CoaxialEnabled	0
FacesToMove.CoplanarAxesEnabled	0
FacesToMove.CoplanarEnabled	0
FacesToMove.EqualDiameterEnabled	0
FacesToMove.OffsetEnabled	0
FacesToMove.ParallelEnabled	0
FacesToMove.PatternEnabled	0
FacesToMove.PerpendicularEnabled	0
FacesToMove.RigidBodyFaceEnabled	0
FacesToMove.SameEntryEnabled	0
FacesToMove.SameEntrySurfaceEnabled	0
FacesToMove.SameOrbitEnabled	0
FacesToMove.SymmetricEnabled	0
FacesToMove.TangentEnabled	0
FacesToMove.ThicknessChainEnabled	0
FacesToMove.UseFaceBrowse	1

创建于NX6.0.0.

成员函数说明

◆ DimensionLocation()

NXOpen::Annotations::OriginBuilder * NXOpen::Features::DimensionBuilder::DimensionLocation ( )

获取由注释原点块控制的尺寸位置/放置
创建于NX6.0.0.

许可证要求：无

◆ FaceChangeOverflowBehavior()

NXOpen::GeometricUtilities::FaceChangeOverflowBehavior * NXOpen::Features::DimensionBuilder::FaceChangeOverflowBehavior ( )

获取面变更溢出行为。详情请参考NXOpen::GeometricUtilities::FaceChangeOverflowBehavior。
创建于NX6.0.2.

许可证要求：无

◆ FacesToMove()

NXOpen::Features::FaceRecognitionBuilder * NXOpen::Features::DimensionBuilder::FacesToMove ( )

获取作为线性尺寸命令一部分被移动的面
创建于NX6.0.0.

许可证要求：无

◆ GetDimension()

NXOpen::Annotations::Dimension * NXOpen::Features::DimensionBuilder::GetDimension ( )

用于尺寸显示的工程图尺寸作为UI工具。由于它与特征一起保存，我们需要在录制过程中创建和编辑它。此命令将隐藏工程图尺寸创建和编辑的所有细节。成功录制需要包含此API
创建于NX6.0.0.

许可证要求：无

◆ SaveConstraints()

NXOpen::GeometricUtilities::SaveConstraintsBuilder * NXOpen::Features::DimensionBuilder::SaveConstraints ( )

获取ADM尺寸特征使用的保存约束构建器。
创建于NX7.0.0.

许可证要求：无

◆ Value()

NXOpen::Expression * NXOpen::Features::DimensionBuilder::Value ( )

获取尺寸值
创建于NX6.0.0.

许可证要求：无
