NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 > 模板类 参考

#include <Callback.hxx>

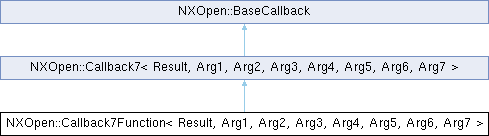

类 NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 > 继承关系图:

Public 类型
typedef Result(*	FunctionType) (Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7)
typedef Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >	MyClass
Public 类型 继承自 NXOpen::Callback7< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >
typedef Arg1	Arg1Type
typedef Arg2	Arg2Type
typedef Arg3	Arg3Type
typedef Arg4	Arg4Type
typedef Arg5	Arg5Type
typedef Arg6	Arg6Type
typedef Arg7	Arg7Type
typedef Result	ResultType

Public 成员函数
	Callback7Function (FunctionType fn)
virtual BaseCallback *	Clone () const
virtual bool	Equals (const BaseCallback &other) const
virtual Result	operator() (Arg1 a1, Arg2 a2, Arg3 a3, Arg4 a4, Arg5 a5, Arg6 a6, Arg7 a7) const
Public 成员函数 继承自 NXOpen::BaseCallback
virtual	~BaseCallback ()

详细描述

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>
class NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >

具有七个输入参数的回调模板类。回调函数的返回类型为模板类型 Result。

成员类型定义说明

FunctionType

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

typedef Result(* NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::FunctionType) (Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7)

附加到此模板回调类的回调函数的签名。

MyClass

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

typedef Callback7Function<Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7> NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::MyClass

类签名的模板类型定义。用于简化回调框架方法的实现。

构造及析构函数说明

Callback7Function()

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Callback7Function ( FunctionType fn )

inline

构造函数。

成员函数说明

Clone()

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

virtual BaseCallback * NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Clone ( ) const

inlinevirtual

克隆操作的函数接口。派生类将定义此函数以实现深拷贝操作。

实现了 NXOpen::BaseCallback.

Equals()

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

virtual bool NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Equals ( const BaseCallback & other ) const

inlinevirtual

相等性操作的函数接口。

实现了 NXOpen::BaseCallback.

operator()()

template<class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>

virtual Result NXOpen::Callback7Function< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::operator() ( Arg1 a1, Arg2 a2, Arg3 a3, Arg4 a4, Arg5 a5, Arg6 a6, Arg7 a7 ) const

inlinevirtual

函数调用运算符函数，用于调用附加到此 Callback7Function 实例的回调函数。

实现了 NXOpen::Callback7< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >.
