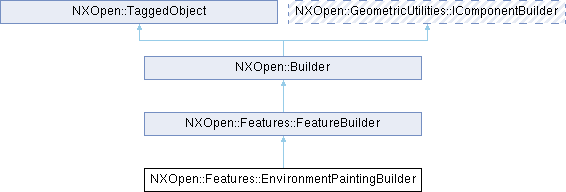

类 NXOpen::Features::EnvironmentPaintingBuilder 继承关系图:

Public 成员函数
bool	AllowDirectVisibility ()
void	ButtonDisplayProperties ()
NXOpen::Features::RotatingPointerListItemBuilder *	CreateRotatingPointerListItemBuilder ()
NXOpen::Features::VDVCameraListItemBuilder *	CreateVDVCameraListItemBuilder ()
NXOpen::Features::VDVMirrorListItemBuilder *	CreateVDVMirrorListItemBuilder ()
NXOpen::Features::SelectFeature *	DirectVision ()
NXOpen::GeometricUtilities::DisplayResolutionBuilder *	DisplayResolution ()
double	DistanceTolerance ()
NXOpen::Features::SelectFeatureList *	Obstructions ()
NXOpen::Features::RotatingPointerListItemBuilderList *	RotatingPointerList ()
void	SetAllowDirectVisibility (bool allowDirectVisibility)
void	SetDistanceTolerance (double distanceTolerance)
void	SetEnvironmentPaintingDisplayResolution (NXOpen::Preferences::PartVisualizationShade::AdvViewToleranceType resolutionReference)
void	SetTargetPoint (NXOpen::Point *targetPoint)
void	SetUseViewDirection (bool useViewDirection)
void	SetViewDirectionMethod (NXOpen::Features::InterceptionBuilder::ViewDirectionMethods viewDirectionMethod)
void	SetViewDirectionVector (NXOpen::Direction *viewDirectionVector)
NXOpen::Point *	TargetPoint ()
bool	UseViewDirection ()
NXOpen::Features::VDVCameraListItemBuilderList *	VDVCameraList ()
NXOpen::Features::SelectFeature *	VDVEnvironment ()
NXOpen::Features::VDVMirrorListItemBuilderList *	VDVMirrorList ()
NXOpen::Features::InterceptionBuilder::ViewDirectionMethods	ViewDirectionMethod ()
NXOpen::Direction *	ViewDirectionVector ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_EnvironmentPaintingBuilderBuilder

详细描述

环境着色构建器

表示环境绘制构建器
环境绘制将目标环境体划分为可见和不可见区域。
绘制时会考虑不同的视觉设备和遮挡体。
 <br> 若要创建此类的新实例，请使用 @link NXOpen::Features::AVDACollection::CreateEnvironmentpaintingBuilder  NXOpen::Features::AVDACollection::CreateEnvironmentpaintingBuilder @endlink  <br>

默认值。

属性	值
DisplayResolution.AngleTolerance	15.0
DisplayResolution.EdgeTolerance	0.005
DisplayResolution.FaceTolerance	0.005
DisplayResolution.Resolution	Standard
DisplayResolution.WidthTolerance	0.3

在 NX2206.0.0 中创建。

成员函数说明

◆ AllowDirectVisibility()

bool NXOpen::Features::EnvironmentPaintingBuilder::AllowDirectVisibility ( )

返回允许直接可见性
Created in NX2306.0.0.

License requirements : None

◆ ButtonDisplayProperties()

void NXOpen::Features::EnvironmentPaintingBuilder::ButtonDisplayProperties ( )

此按钮弹出对话框以设置直接视觉输出数据的显示属性
Created in NX2306.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

◆ CreateRotatingPointerListItemBuilder()

NXOpen::Features::RotatingPointerListItemBuilder * NXOpen::Features::EnvironmentPaintingBuilder::CreateRotatingPointerListItemBuilder ( )

创建 NXOpen::Features::RotatingPointerListItemBuilder
创建于 NX2406.0.0。

许可要求：vehicle_des_val（"Vehicle Design and Validation"）

◆ CreateVDVCameraListItemBuilder()

NXOpen::Features::VDVCameraListItemBuilder * NXOpen::Features::EnvironmentPaintingBuilder::CreateVDVCameraListItemBuilder ( )

创建一个 NXOpen::Features::InterceptionCameraListItemBuilder

弃用: 在NX2306.0.0中已过时。使用 NXOpen::Features::EnvironmentPaintingBuilder::CreateVDVCameraListItemBuilder 。

Created in NX2212.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

返回相机列表

弃用: 在NX2306.0.0中已过时。使用 NXOpen::Features::EnvironmentPaintingBuilder::VDVCameraList 。

Created in NX2212.0.0.

License requirements : None

创建一个 NXOpen::Features::VDVCameraListItemBuilder
Created in NX2212.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

◆ CreateVDVMirrorListItemBuilder()

NXOpen::Features::VDVMirrorListItemBuilder * NXOpen::Features::EnvironmentPaintingBuilder::CreateVDVMirrorListItemBuilder ( )

创建 NXOpen::Features::VDVMirrorListItemBuilder
创建于 NX2406.0.0。

许可要求：vehicle_des_val（"Vehicle Design and Validation"）

◆ DirectVision()

NXOpen::Features::SelectFeature * NXOpen::Features::EnvironmentPaintingBuilder::DirectVision ( )

返回用于创建环境着色特征的直接视觉
Created in NX2306.0.0.

License requirements : None

◆ DisplayResolution()

NXOpen::GeometricUtilities::DisplayResolutionBuilder * NXOpen::Features::EnvironmentPaintingBuilder::DisplayResolution ( )

返回将决定所选环境体的分面面三角形精细度的显示分辨率
创建于 NX2206.0.0。

许可要求：无

◆ DistanceTolerance()

double NXOpen::Features::EnvironmentPaintingBuilder::DistanceTolerance ( )

返回距离公差
创建于 NX2206.0.0。

许可要求：无

◆ Obstructions()

NXOpen::Features::SelectFeatureList * NXOpen::Features::EnvironmentPaintingBuilder::Obstructions ( )

返回用于创建环境绘制特征的障碍物
创建于 NX2206.0.0。

许可要求：无

◆ RotatingPointerList()

NXOpen::Features::RotatingPointerListItemBuilderList * NXOpen::Features::EnvironmentPaintingBuilder::RotatingPointerList ( )

返回旋转指针列表
创建于 NX2406.0.0。

许可要求：无

◆ SetAllowDirectVisibility()

void NXOpen::Features::EnvironmentPaintingBuilder::SetAllowDirectVisibility ( bool allowDirectVisibility )

设置允许直接可见性
Created in NX2306.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

参数

allowDirectVisibility allowdirectvisibility

◆ SetDistanceTolerance()

void NXOpen::Features::EnvironmentPaintingBuilder::SetDistanceTolerance ( double distanceTolerance )

设置距离公差
创建于 NX2206.0.0。

许可要求：vehicle_des_val（"Vehicle Design and Validation"）

参数

distanceTolerance 距离公差

◆ SetEnvironmentPaintingDisplayResolution()

void NXOpen::Features::EnvironmentPaintingBuilder::SetEnvironmentPaintingDisplayResolution ( NXOpen::Preferences::PartVisualizationShade::AdvViewToleranceType resolutionReference )

设置环境绘制分辨率
创建于 NX2406.0.0。

许可要求：vehicle_des_val（"Vehicle Design and Validation"）

参数

resolutionReference 分辨率参考

◆ SetTargetPoint()

void NXOpen::Features::EnvironmentPaintingBuilder::SetTargetPoint ( NXOpen::Point * targetPoint )

设置目标点
Created in NX2306.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

参数

targetPoint targetpoint

◆ SetUseViewDirection()

void NXOpen::Features::EnvironmentPaintingBuilder::SetUseViewDirection ( bool useViewDirection )

设置使用视图方向
Created in NX2306.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

参数

useViewDirection useviewdirection

◆ SetViewDirectionMethod()

void NXOpen::Features::EnvironmentPaintingBuilder::SetViewDirectionMethod ( NXOpen::Features::InterceptionBuilder::ViewDirectionMethods viewDirectionMethod )

设置视图方向方法
Created in NX2306.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

参数

viewDirectionMethod viewdirectionmethod

◆ SetViewDirectionVector()

void NXOpen::Features::EnvironmentPaintingBuilder::SetViewDirectionVector ( NXOpen::Direction * viewDirectionVector )

设置视图方向向量
Created in NX2306.0.0.

License requirements : vehicle_des_val (" Vehicle Design and Validation")

参数

viewDirectionVector viewdirectionvector

◆ TargetPoint()

NXOpen::Point * NXOpen::Features::EnvironmentPaintingBuilder::TargetPoint ( )

返回目标点
Created in NX2306.0.0.

License requirements : None

◆ UseViewDirection()

bool NXOpen::Features::EnvironmentPaintingBuilder::UseViewDirection ( )

返回使用视图方向
Created in NX2306.0.0.

License requirements : None

◆ VDVCameraList()

NXOpen::Features::VDVCameraListItemBuilderList * NXOpen::Features::EnvironmentPaintingBuilder::VDVCameraList ( )

返回相机列表
创建于 NX2212.0.0。

许可要求：无

◆ VDVEnvironment()

NXOpen::Features::SelectFeature * NXOpen::Features::EnvironmentPaintingBuilder::VDVEnvironment ( )

返回用于创建环境绘制特征的 vdvEnvironment
创建于 NX2206.0.0。

许可要求：无

◆ VDVMirrorList()

NXOpen::Features::VDVMirrorListItemBuilderList * NXOpen::Features::EnvironmentPaintingBuilder::VDVMirrorList ( )

返回定义镜像参数的 NXOpen::Features::VDVMirrorListItemBuilder 列表。
创建于 NX2406.0.0。

许可要求：无

◆ ViewDirectionMethod()

NXOpen::Features::InterceptionBuilder::ViewDirectionMethods NXOpen::Features::EnvironmentPaintingBuilder::ViewDirectionMethod ( )

返回视图方向方法
Created in NX2306.0.0.

License requirements : None

◆ ViewDirectionVector()

NXOpen::Direction * NXOpen::Features::EnvironmentPaintingBuilder::ViewDirectionVector ( )

返回视图方向向量
Created in NX2306.0.0.

License requirements : None
