点集特征构建器更多...

#include <Features_PointSetBuilder.hxx>

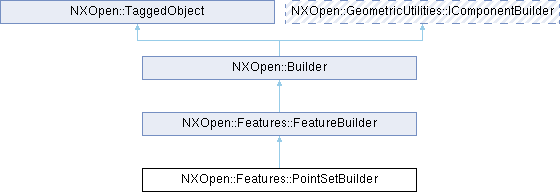

类 NXOpen::Features::PointSetBuilder 继承关系图:

Public 成员函数
double	AngleTolerance ()
NXOpen::Expression *	ArcLength ()
bool	Associative ()
NXOpen::Expression *	ChordalTolerance ()
NXOpen::Features::PointSetFacePercentageBuilder *	CreateFacePercentageListItem ()
NXOpen::Features::SetOfPointsOnCurveBuilder *	CreateSetOfPointsOnCurveListItem ()
NXOpen::NXObjectList *	CurvePercentageList ()
NXOpen::Features::PointSetBuilder::CurvePointsType	CurvePointsBy ()
double	DistanceTolerance ()
NXOpen::Expression *	EndPercentage ()
NXOpen::Section *	EndPercentageSection ()
NXOpen::Features::PointSetFacePercentageBuilderList *	FacePercentageList ()
NXOpen::Features::PointSetBuilder::FacePointsType	FacePointsBy ()
bool	GroupPoints ()
NXOpen::SelectDisplayableObjectList *	IntersectionSelectedObjects ()
NXOpen::SelectDisplayableObjectList *	IntersectionSelectedObjectsSecond ()
NXOpen::Section *	MultipleCurveOrEdgeCollector ()
NXOpen::ScCollector *	MultipleFaceCollector ()
NXOpen::Expression *	NumberOfPointsExpression ()
NXOpen::Expression *	NumberOfPointsInUDirectionExpression ()
NXOpen::Expression *	NumberOfPointsInVDirectionExpression ()
NXOpen::Features::PointSetBuilder::PatternLimitsType	PatternLimitsBy ()
NXOpen::Expression *	PatternLimitsEndingUValue ()
NXOpen::Expression *	PatternLimitsEndingVValue ()
NXOpen::Point *	PatternLimitsEndPoint ()
NXOpen::Expression *	PatternLimitsStartingUValue ()
NXOpen::Expression *	PatternLimitsStartingVValue ()
NXOpen::Point *	PatternLimitsStartPoint ()
NXOpen::PointList *	ProjectionPointList ()
NXOpen::Expression *	Ratio ()
void	SetAngleTolerance (double angleTolerance)
void	SetAssociative (bool associative)
void	SetCurvePointsBy (NXOpen::Features::PointSetBuilder::CurvePointsType curvePointsBy)
void	SetDistanceTolerance (double distanceTolerance)
void	SetFacePointsBy (NXOpen::Features::PointSetBuilder::FacePointsType facePointsBy)
void	SetGroupPoints (bool groupPoints)
NXOpen::Features::PointSetFacePercentageBuilderList *	SetOfPointsOnCurveList ()
void	SetPatternLimitsBy (NXOpen::Features::PointSetBuilder::PatternLimitsType patternLimitsBy)
void	SetPatternLimitsEndPoint (NXOpen::Point *patternLimitsEndPoint)
void	SetPatternLimitsStartPoint (NXOpen::Point *patternLimitsStartPoint)
void	SetSplinePointsBy (NXOpen::Features::PointSetBuilder::SplinePointsType splinePointsBy)
void	SetType (NXOpen::Features::PointSetBuilder::Types type)
NXOpen::Section *	SingleCurveOrEdgeCollector ()
NXOpen::SelectFace *	SingleFaceObject ()
NXOpen::ScCollector *	SplineCollector ()
NXOpen::Features::PointSetBuilder::SplinePointsType	SplinePointsBy ()
NXOpen::Expression *	StartPercentage ()
NXOpen::Section *	StartPercentageSection ()
NXOpen::Features::PointSetBuilder::Types	Type ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_PointSetBuilderBuilder

详细描述

点集特征构建器

        表示 @link NXOpen::Features::PointSetBuilder NXOpen::Features::PointSetBuilder@endlink。此构建器用于
        创建和编辑点集特征。点集特征允许您在曲线、边或面上创建点。
         <br> 要创建此类的新实例，请使用 @link NXOpen::Features::FeatureCollection::CreatePointSetBuilder  NXOpen::Features::FeatureCollection::CreatePointSetBuilder @endlink  <br>
    默认值。
    <list type="table">
    <listheader><term>
    属性</term>  <description>
    值</description> </listheader>
    <item><term>
    ArcLength.Value </term> <description>
    1（毫米部件），0.01（英寸部件） </description> </item>
    <item><term>
    Associative </term> <description>
    1 </description> </item>
    <item><term>
    ChordalTolerance.Value </term> <description>
    2.54（毫米部件），0.1（英寸部件） </description> </item>
    <item><term>
    CurvePointsBy </term> <description>
    EqualArcLength </description> </item>
    <item><term>
    EndPercentage.Value </term> <description>
    100 </description> </item>
    <item><term>
    FacePointsBy </term> <description>
    Pattern </description> </item>
    <item><term>
    NumberOfPointsExpression.Value </term> <description>
    2 </description> </item>
    <item><term>
    NumberOfPointsInUDirectionExpression.Value </term> <description>
    10 </description> </item>
    <item><term>
    NumberOfPointsInVDirectionExpression.Value </term> <description>
    10 </description> </item>
    <item><term>
    PatternLimitsBy </term> <description>
    Percentages </description> </item>
    <item><term>
    PatternLimitsEndingUValue.Value </term> <description>
    100 </description> </item>
    <item><term>
    PatternLimitsEndingVValue.Value </term> <description>
    100 </description> </item>
    <item><term>
    PatternLimitsStartingUValue.Value </term> <description>
    0 </description> </item>
    <item><term>
    PatternLimitsStartingVValue.Value </term> <description>
    0 </description> </item>
    <item><term>
    Ratio.Value </term> <description>
    1 </description> </item>
    <item><term>
    SplinePointsBy </term> <description>
    DefiningPoints </description> </item>

StartPercentage.Value 0

于NX6.0.0中创建。

成员枚举类型说明

◆ CurvePointsType

enum NXOpen::Features::PointSetBuilder::CurvePointsType

曲线点定义的设置。

枚举值
CurvePointsTypeEqualArcLength	沿曲线以相等弧长创建点。
CurvePointsTypeEqualParameters	沿曲线以相等参数间距创建点。
CurvePointsTypeGeometricProgression	沿曲线以几何级数创建点。
CurvePointsTypeChordalTolerance	基于曲线弦偏差创建点。
CurvePointsTypeIncrementalArcLength	以输入的弧长间距创建点。
CurvePointsTypeSpecifiedProjectionPoints	创建到曲线最小距离的点。
CurvePointsTypeCurvePercentage	在给定曲线百分比处创建点。
CurvePointsTypeSetOfPointsOnCurve	使用用户输入创建一组点。

◆ FacePointsType

enum NXOpen::Features::PointSetBuilder::FacePointsType

面点定义的设置。

枚举值
FacePointsTypePattern	基于定义的图案创建点。
FacePointsTypeFacePercentage	在给定面百分比处创建点。
FacePointsTypeBSurfacePoles	在曲面极点处创建点。

◆ PatternLimitsType

enum NXOpen::Features::PointSetBuilder::PatternLimitsType

图案极限定义的设置。

枚举值
PatternLimitsTypeDiagonalPoints	图案极限由两个点定义。
PatternLimitsTypePercentages	图案极限由曲面U和V值定义。

◆ SplinePointsType

enum NXOpen::Features::PointSetBuilder::SplinePointsType

样条点定义的设置。

枚举值
SplinePointsTypeDefiningPoints	在样条定义点处创建点。
SplinePointsTypeKnots	在样条节点处创建点。
SplinePointsTypePoles	在样条极点处创建点。

◆ Types

enum NXOpen::Features::PointSetBuilder::Types

点集特征的类型设置。

枚举值
TypesCurvePoints	沿曲线创建点。
TypesSplinePoints	沿样条曲线创建点。
TypesFacePoints	在面上创建点
TypesIntersectionPoints	创建交点

成员函数说明

◆ AngleTolerance()

double NXOpen::Features::PointSetBuilder::AngleTolerance ( )

获取角度公差。在需要确定曲线相切时使用。
创建于 NX6.0.0。

许可要求：无

◆ ArcLength()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::ArcLength ( )

返回在曲线上要创建点的弧长。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeIncrementalArcLength 时使用。
创建于 NX6.0.0。

许可要求：无

◆ Associative()

bool NXOpen::Features::PointSetBuilder::Associative ( )

获取关联设置。true 表示将创建特征， false 表示仅创建点。
创建于 NX6.0.0。

许可要求：无

◆ ChordalTolerance()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::ChordalTolerance ( )

返回创建点时使用的弦公差。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeChordalTolerance 时使用。
创建于 NX6.0.0。

许可要求：无

◆ CreateFacePercentageListItem()

NXOpen::Features::PointSetFacePercentageBuilder * NXOpen::Features::PointSetBuilder::CreateFacePercentageListItem ( )

为面百分比列表创建一个条目。
创建于 NX6.0.0。

许可要求：solid_modeling ("SOLIDS MODELING")

◆ CreateSetOfPointsOnCurveListItem()

NXOpen::Features::SetOfPointsOnCurveBuilder * NXOpen::Features::PointSetBuilder::CreateSetOfPointsOnCurveListItem ( )

为曲线上的点集列表创建条目。
创建于 NX2406.0.0。
许可证要求：solid_modeling ("SOLIDS MODELING")

◆ CurvePercentageList()

NXOpen::NXObjectList * NXOpen::Features::PointSetBuilder::CurvePercentageList ( )

返回曲线百分比列表。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeCurvePercentage 时使用。
创建于 NX6.0.0。

许可要求：无

◆ CurvePointsBy()

NXOpen::Features::PointSetBuilder::CurvePointsType NXOpen::Features::PointSetBuilder::CurvePointsBy ( )

返回曲线点定义设置。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints 时使用。
于NX6.0.0中创建。

许可证要求：无

◆ DistanceTolerance()

double NXOpen::Features::PointSetBuilder::DistanceTolerance ( )

获取距离公差。在需要合并曲线时使用。
创建于 NX6.0.0。

许可要求：无

◆ EndPercentage()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::EndPercentage ( )

返回停止创建点时曲线的百分比。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualArcLength、 NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualParameters 或 NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 时使用。
创建于 NX6.0.0。

许可要求：无

◆ EndPercentageSection()

NXOpen::Section * NXOpen::Features::PointSetBuilder::EndPercentageSection ( )

返回包含对象（曲线、边或点）的截面，该对象将用于确定与为设置结束百分比选择的曲线/边的交点。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualArcLength、 NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualParameters 或 NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 时使用。
创建于 NX6.0.0。

许可要求：无

◆ FacePercentageList()

NXOpen::Features::PointSetFacePercentageBuilderList * NXOpen::Features::PointSetBuilder::FacePercentageList ( )

获取面百分比列表。仅当类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypeFacePercentage 时使用。
创建于 NX6.0.0。

许可要求：无

◆ FacePointsBy()

NXOpen::Features::PointSetBuilder::FacePointsType NXOpen::Features::PointSetBuilder::FacePointsBy ( )

获取面点定义设置。仅当类型为NXOpen::Features::PointSetBuilder::TypesFacePoints 时使用。
创建于NX6.0.0。

许可要求：无

◆ GroupPoints()

bool NXOpen::Features::PointSetBuilder::GroupPoints ( )

获取分组点设置。true 表示点将被分组在一起。此设置仅在关联为 false 时适用。
创建于 NX7.5.0。

许可要求：无

◆ IntersectionSelectedObjects()

NXOpen::SelectDisplayableObjectList * NXOpen::Features::PointSetBuilder::IntersectionSelectedObjects ( )

获取相交选择对象。仅当 NXOpen::Features::PointSetBuilder::Types 为 NXOpen::Features::PointSetBuilder::TypesIntersectionPoints 时使用。仅允许 NXOpen::Section 或 NXOpen::ScCollector 作为相交选择对象。
创建于 NX8.5.0。

许可要求：无

◆ IntersectionSelectedObjectsSecond()

NXOpen::SelectDisplayableObjectList * NXOpen::Features::PointSetBuilder::IntersectionSelectedObjectsSecond ( )

获取相交截面。仅当 NXOpen::Features::PointSetBuilder::Types 为 NXOpen::Features::PointSetBuilder::TypesIntersectionPoints 时使用。

弃用: 在 NX9.0.0 中已废弃。请使用 NXOpen::Features::PointSetBuilder::IntersectionSelectedObjectsSecond 替代。

创建于 NX8.5.0。

许可要求：无

获取第二个相交选择对象。仅当 NXOpen::Features::PointSetBuilder::Types 为 NXOpen::Features::PointSetBuilder::TypesIntersectionPoints 时使用。
创建于 NX9.0.0。

许可要求：无

◆ MultipleCurveOrEdgeCollector()

NXOpen::Section * NXOpen::Features::PointSetBuilder::MultipleCurveOrEdgeCollector ( )

获取用于容纳多条曲线或边的收集器。仅当类型为NXOpen::Features::PointSetBuilder::TypesCurvePoints ，且NXOpen::Features::PointSetBuilder::CurvePointsBy 为NXOpen::Features::PointSetBuilder::CurvePointsTypeSpecifiedProjectionPoints 或NXOpen::Features::PointSetBuilder::CurvePointsTypeIncrementalArcLength 时使用。
创建于NX6.0.0。

许可要求：无

◆ MultipleFaceCollector()

NXOpen::ScCollector * NXOpen::Features::PointSetBuilder::MultipleFaceCollector ( )

获取用于容纳面的收集器。仅当类型为NXOpen::Features::PointSetBuilder::TypesFacePoints ，且NXOpen::Features::PointSetBuilder::FacePointsBy 为NXOpen::Features::PointSetBuilder::FacePointsTypeFacePercentage 或NXOpen::Features::PointSetBuilder::FacePointsTypeBSurfacePoles 时使用。
创建于NX6.0.0。

许可要求：无

◆ NumberOfPointsExpression()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::NumberOfPointsExpression ( )

获取沿曲线创建的点数。仅当类型为NXOpen::Features::PointSetBuilder::TypesCurvePoints ，且NXOpen::Features::PointSetBuilder::CurvePointsBy 为NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualArcLength 、NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualParameters 或NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 时使用。
创建于NX7.5.0。

许可要求：无

◆ NumberOfPointsInUDirectionExpression()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::NumberOfPointsInUDirectionExpression ( )

返回在 U 方向要创建的点数。仅当类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern 时使用。
创建于 NX7.5.0。

许可要求：无

◆ NumberOfPointsInVDirectionExpression()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::NumberOfPointsInVDirectionExpression ( )

返回在 V 方向要创建的点数。仅当类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern 时使用。
创建于 NX7.5.0。

许可要求：无

◆ PatternLimitsBy()

NXOpen::Features::PointSetBuilder::PatternLimitsType NXOpen::Features::PointSetBuilder::PatternLimitsBy ( )

返回图案边界定义设置。仅当类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern 时使用。
创建于 NX6.0.0。

许可要求：无

◆ PatternLimitsEndingUValue()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::PatternLimitsEndingUValue ( )

获取点集的图案结束U值。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypePercentages 时使用。
创建于 NX6.0.0.

许可要求 : 无

◆ PatternLimitsEndingVValue()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::PatternLimitsEndingVValue ( )

获取点集的图案结束V值。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypePercentages 时使用。
创建于 NX6.0.0.

许可要求 : 无

◆ PatternLimitsEndPoint()

NXOpen::Point * NXOpen::Features::PointSetBuilder::PatternLimitsEndPoint ( )

获取点集的图案结束对角线点。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypeDiagonalPoints 时使用。
创建于 NX6.0.0.

许可要求 : 无

◆ PatternLimitsStartingUValue()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::PatternLimitsStartingUValue ( )

获取点集的图案起始U值。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypePercentages 时使用。
创建于 NX6.0.0.

许可要求 : 无

◆ PatternLimitsStartingVValue()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::PatternLimitsStartingVValue ( )

获取点集的图案起始V值。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypePercentages 时使用。
创建于 NX6.0.0.

许可要求 : 无

◆ PatternLimitsStartPoint()

NXOpen::Point * NXOpen::Features::PointSetBuilder::PatternLimitsStartPoint ( )

获取点集的图案起始对角线点。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypeDiagonalPoints 时使用。
创建于 NX6.0.0.

许可要求 : 无

◆ ProjectionPointList()

NXOpen::PointList * NXOpen::Features::PointSetBuilder::ProjectionPointList ( )

返回投影点列表。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeSpecifiedProjectionPoints 时使用。
创建于 NX6.0.0。

许可要求：无

◆ Ratio()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::Ratio ( )

返回几何级数的比率。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 时使用。
创建于 NX6.0.0。

许可要求：无

◆ SetAngleTolerance()

void NXOpen::Features::PointSetBuilder::SetAngleTolerance ( double angleTolerance )

设置角度公差。在需要确定曲线相切时使用。
创建于 NX6.0.0。

许可要求：solid_modeling ("SOLIDS MODELING")

参数

angleTolerance 角度公差

◆ SetAssociative()

void NXOpen::Features::PointSetBuilder::SetAssociative ( bool associative )

设置关联设置。true 表示将创建特征， false 表示仅创建点。
创建于 NX6.0.0。

许可要求：solid_modeling ("SOLIDS MODELING")

参数

associative 关联

◆ SetCurvePointsBy()

void NXOpen::Features::PointSetBuilder::SetCurvePointsBy ( NXOpen::Features::PointSetBuilder::CurvePointsType curvePointsBy )

设置曲线点定义设置。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints 时使用。
于NX6.0.0中创建。

许可证要求：solid_modeling ("SOLIDS MODELING")

参数

curvePointsBy curvepointsby

◆ SetDistanceTolerance()

void NXOpen::Features::PointSetBuilder::SetDistanceTolerance ( double distanceTolerance )

设置距离公差。在需要合并曲线时使用。
创建于 NX6.0.0。

许可要求：solid_modeling ("SOLIDS MODELING")

参数

distanceTolerance 距离公差

◆ SetFacePointsBy()

void NXOpen::Features::PointSetBuilder::SetFacePointsBy ( NXOpen::Features::PointSetBuilder::FacePointsType facePointsBy )

设置面点定义设置。仅当类型为NXOpen::Features::PointSetBuilder::TypesFacePoints 时使用。
创建于NX6.0.0。

许可要求：实体建模（"SOLIDS MODELING"）

参数

facePointsBy facepointsby

◆ SetGroupPoints()

void NXOpen::Features::PointSetBuilder::SetGroupPoints ( bool groupPoints )

设置分组点设置。true 表示点将被分组在一起。此设置仅在关联为 false 时适用。
创建于 NX7.5.0。

许可要求：solid_modeling ("SOLIDS MODELING")

参数

groupPoints 分组点

◆ SetOfPointsOnCurveList()

NXOpen::Features::PointSetFacePercentageBuilderList * NXOpen::Features::PointSetBuilder::SetOfPointsOnCurveList ( )

获取曲线上的点集列表。仅当类型为 NXOpen::Features::PointSetBuilder::TypesCurvePoints ，且 NXOpen::Features::PointSetBuilder::CurvePointsBy 为 NXOpen::Features::PointSetBuilder::CurvePointsTypeSetOfPointsOnCurve 时使用。
创建于 NX2406.0.0。
许可证要求：无

◆ SetPatternLimitsBy()

void NXOpen::Features::PointSetBuilder::SetPatternLimitsBy ( NXOpen::Features::PointSetBuilder::PatternLimitsType patternLimitsBy )

设置点集的图案边界定义方式。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern 时使用。
创建于 NX6.0.0.

许可要求 : solid_modeling ("SOLIDS MODELING")

参数

patternLimitsBy 图案边界定义方式

◆ SetPatternLimitsEndPoint()

void NXOpen::Features::PointSetBuilder::SetPatternLimitsEndPoint ( NXOpen::Point * patternLimitsEndPoint )

设置点集的图案结束对角线点。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypeDiagonalPoints 时使用。
创建于 NX6.0.0.

许可要求 : solid_modeling ("SOLIDS MODELING")

参数

patternLimitsEndPoint 图案结束对角线点

◆ SetPatternLimitsStartPoint()

void NXOpen::Features::PointSetBuilder::SetPatternLimitsStartPoint ( NXOpen::Point * patternLimitsStartPoint )

设置点集的图案起始对角线点。仅在类型为 NXOpen::Features::PointSetBuilder::TypesFacePoints ，且 NXOpen::Features::PointSetBuilder::FacePointsBy 为 NXOpen::Features::PointSetBuilder::FacePointsTypePattern ，且 NXOpen::Features::PointSetBuilder::PatternLimitsBy 为 NXOpen::Features::PointSetBuilder::PatternLimitsTypeDiagonalPoints 时使用。
创建于 NX6.0.0.

许可要求 : solid_modeling ("SOLIDS MODELING")

参数

patternLimitsStartPoint 图案起始对角线点

◆ SetSplinePointsBy()

void NXOpen::Features::PointSetBuilder::SetSplinePointsBy ( NXOpen::Features::PointSetBuilder::SplinePointsType splinePointsBy )

设置样条点定义设置。仅当类型为 NXOpen::Features::PointSetBuilder::TypesSplinePoints 时使用。
于NX6.0.0中创建。

许可证要求：solid_modeling ("SOLIDS MODELING")

参数

splinePointsBy splinepointsby

◆ SetType()

void NXOpen::Features::PointSetBuilder::SetType ( NXOpen::Features::PointSetBuilder::Types type )

设置类型设置。
创建于 NX6.0.0。
许可证要求：solid_modeling ("SOLIDS MODELING")

参数

type 类型

◆ SingleCurveOrEdgeCollector()

NXOpen::Section * NXOpen::Features::PointSetBuilder::SingleCurveOrEdgeCollector ( )

获取用于容纳单条曲线或边定义的收集器。仅当类型为NXOpen::Features::PointSetBuilder::TypesCurvePoints ，且NXOpen::Features::PointSetBuilder::CurvePointsBy 为NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualArcLength 、NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualParameters 、NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 、NXOpen::Features::PointSetBuilder::CurvePointsTypeChordalTolerance 或NXOpen::Features::PointSetBuilder::CurvePointsTypeIncrementalArcLength 时使用。
创建于NX6.0.0。

许可要求：无

◆ SingleFaceObject()

NXOpen::SelectFace * NXOpen::Features::PointSetBuilder::SingleFaceObject ( )

获取用于容纳面的选择对象。仅当类型为NXOpen::Features::PointSetBuilder::TypesFacePoints ，且NXOpen::Features::PointSetBuilder::FacePointsBy 为NXOpen::Features::PointSetBuilder::FacePointsTypePattern 时使用。
创建于NX6.0.0。

许可要求：无

◆ SplineCollector()

NXOpen::ScCollector * NXOpen::Features::PointSetBuilder::SplineCollector ( )

获取用于容纳样条曲线的收集器。仅当类型为NXOpen::Features::PointSetBuilder::TypesSplinePoints 时使用。
创建于NX6.0.0。

许可要求：无

◆ SplinePointsBy()

NXOpen::Features::PointSetBuilder::SplinePointsType NXOpen::Features::PointSetBuilder::SplinePointsBy ( )

返回样条点定义设置。仅当类型为 NXOpen::Features::PointSetBuilder::TypesSplinePoints 时使用。
于NX6.0.0中创建。

许可证要求：无

◆ StartPercentage()

NXOpen::Expression * NXOpen::Features::PointSetBuilder::StartPercentage ( )

获取开始创建点的曲线百分比。仅当类型为NXOpen::Features::PointSetBuilder::TypesCurvePoints ，且NXOpen::Features::PointSetBuilder::CurvePointsBy 为NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualArcLength 、NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualParameters 或NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 时使用。
创建于NX6.0.0。

许可要求：无

◆ StartPercentageSection()

NXOpen::Section * NXOpen::Features::PointSetBuilder::StartPercentageSection ( )

获取包含一个用于确定与所选曲线/边相交以设置StartPercentage的对象（曲线、边或点）的截面。仅当类型为NXOpen::Features::PointSetBuilder::TypesCurvePoints ，且NXOpen::Features::PointSetBuilder::CurvePointsBy 为NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualArcLength 、NXOpen::Features::PointSetBuilder::CurvePointsTypeEqualParameters 或NXOpen::Features::PointSetBuilder::CurvePointsTypeGeometricProgression 时使用。
创建于NX6.0.0。

许可要求：无

◆ Type()

NXOpen::Features::PointSetBuilder::Types NXOpen::Features::PointSetBuilder::Type ( )

获取类型设置。
创建于 NX6.0.0。
许可证要求：无

Public 类型
enum	CurvePointsType { CurvePointsTypeEqualArcLength , CurvePointsTypeEqualParameters , CurvePointsTypeGeometricProgression , CurvePointsTypeChordalTolerance , CurvePointsTypeIncrementalArcLength , CurvePointsTypeSpecifiedProjectionPoints , CurvePointsTypeCurvePercentage , CurvePointsTypeSetOfPointsOnCurve }
enum	FacePointsType { FacePointsTypePattern , FacePointsTypeFacePercentage , FacePointsTypeBSurfacePoles }
enum	PatternLimitsType { PatternLimitsTypeDiagonalPoints , PatternLimitsTypePercentages }
enum	SplinePointsType { SplinePointsTypeDefiningPoints , SplinePointsTypeKnots , SplinePointsTypePoles }
enum	Types { TypesCurvePoints , TypesSplinePoints , TypesFacePoints , TypesIntersectionPoints }

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ CurvePointsType

◆ FacePointsType

◆ PatternLimitsType

◆ SplinePointsType

◆ Types

成员函数说明

◆ AngleTolerance()

◆ ArcLength()

◆ Associative()

◆ ChordalTolerance()

◆ CreateFacePercentageListItem()

◆ CreateSetOfPointsOnCurveListItem()

◆ CurvePercentageList()

◆ CurvePointsBy()

◆ DistanceTolerance()

◆ EndPercentage()

◆ EndPercentageSection()

◆ FacePercentageList()

◆ FacePointsBy()

◆ GroupPoints()

◆ IntersectionSelectedObjects()

◆ IntersectionSelectedObjectsSecond()

◆ MultipleCurveOrEdgeCollector()

◆ MultipleFaceCollector()

◆ NumberOfPointsExpression()

◆ NumberOfPointsInUDirectionExpression()

◆ NumberOfPointsInVDirectionExpression()

◆ PatternLimitsBy()

◆ PatternLimitsEndingUValue()

◆ PatternLimitsEndingVValue()

◆ PatternLimitsEndPoint()

◆ PatternLimitsStartingUValue()

◆ PatternLimitsStartingVValue()

◆ PatternLimitsStartPoint()

◆ ProjectionPointList()

◆ Ratio()

◆ SetAngleTolerance()

◆ SetAssociative()

◆ SetCurvePointsBy()

◆ SetDistanceTolerance()

◆ SetFacePointsBy()

◆ SetGroupPoints()

◆ SetOfPointsOnCurveList()

◆ SetPatternLimitsBy()

◆ SetPatternLimitsEndPoint()

◆ SetPatternLimitsStartPoint()

◆ SetSplinePointsBy()

◆ SetType()

◆ SingleCurveOrEdgeCollector()

◆ SingleFaceObject()

◆ SplineCollector()

◆ SplinePointsBy()

◆ StartPercentage()

◆ StartPercentageSection()

◆ Type()
