网格目标构建器更多...

#include <Features_GridTargetBuilder.hxx>

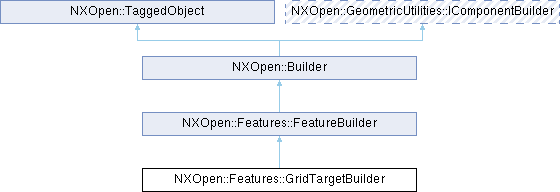

类 NXOpen::Features::GridTargetBuilder 继承关系图:

Public 类型
enum	GridDriverSide { GridDriverSideLeftDriven , GridDriverSideRightDriven , GridDriverSideCenterDriven , GridDriverSideNotDefined }
enum	GridLocations { GridLocationsFloor , GridLocationsWall , GridLocationsNotDefined }
enum	GridPointSelectionType { GridPointSelectionTypeDirectVision , GridPointSelectionTypeExistingPoint , GridPointSelectionTypeNotDefined }
enum	GridPositions { GridPositionsFrontSide , GridPositionsLeftSide , GridPositionsRearSide , GridPositionsRightSide , GridPositionsNotDefined }
enum	GridStandards { GridStandardsECER46ClassI , GridStandardsECER46ClassII , GridStandardsECER46ClassIII , GridStandardsECER46ClassIV , GridStandardsECER46ClassVClose , GridStandardsECER46ClassVLarge , GridStandardsECER46ClassVI , GridStandardsECER46ClassVII , GridStandardsIso5006 , GridStandardsIso5721 , GridStandardsISO57212Behind , GridStandardsISO57212Side , GridStandardsISO144012FOVClassA , GridStandardsISO144012FOVClassB , GridStandardsISO144012FOVClassC , GridStandardsISO144012FOVClassD , GridStandardsMLIT44TruckLT8t , GridStandardsMLIT44TruckGE8t , GridStandardsUsacanadafmvss111cmvsss111 , GridStandardsUserDefined , GridStandardsNotDefined , GridStandardsMLIT44Truck1mHighLT8t , GridStandardsMLIT44Truck1mHighGE8t }
enum	GridTypes { GridTypesCircularRadius , GridTypesCircularConical , GridTypesCircularDefaultConical , GridTypesQuadrilateral , GridTypesPentagonal , GridTypesLShape , GridTypesStandard }
enum	TargetDistanceReferences { TargetDistanceReferencesDriverOcularPoint , TargetDistanceReferencesVehicleRearSide }

Public 成员函数
NXOpen::Expression *	AngleIncrement ()
NXOpen::Expression *	BoundaryOffset ()
NXOpen::Point *	CreateGroundWidePointForGrid ()
NXOpen::Point *	CreateOuterGroundContactPoint ()
NXOpen::Features::SelectFeature *	DirectVision ()
bool	DisplayAngleValues ()
NXOpen::Features::GridTargetBuilder::GridDriverSide	DriverSideForGrid ()
NXOpen::Expression *	EndAngle ()
NXOpen::Expression *	EndRadius ()
NXOpen::Features::GridTargetBuilder::GridLocations	GridLocation ()
NXOpen::Features::GridTargetBuilder::GridPositions	GridPosition ()
NXOpen::Point *	GridReferencePoint ()
NXOpen::Features::GridTargetBuilder::GridTypes	GridType ()
NXOpen::Point *	GroundWidePoint ()
NXString	Loading ()
NXOpen::Expression *	RadiusIncrement ()
NXOpen::Expression *	RadLinesAngleIncrement ()
NXOpen::Features::GridTargetBuilder::GridPointSelectionType	ReferencePointMethod ()
void	SetDisplayAngleValues (bool displayAngleValues)
void	SetDriverSideForGrid (NXOpen::Features::GridTargetBuilder::GridDriverSide driverSideForGrid)
void	SetGridLocation (NXOpen::Features::GridTargetBuilder::GridLocations gridLocation)
void	SetGridPosition (NXOpen::Features::GridTargetBuilder::GridPositions gridPosition)
void	SetGridReferencePoint (NXOpen::Point *gridReferencePoint)
void	SetGridType (NXOpen::Features::GridTargetBuilder::GridTypes gridType)
void	SetGroundWidePoint (NXOpen::Point *groundWidePoint)
void	SetLoading (const char *loading)
void	SetLoading (const NXString &loading)
void	SetReferencePointMethod (NXOpen::Features::GridTargetBuilder::GridPointSelectionType referencePointMethod)
void	SetShowRadiatingLines (bool showRadiatingLines)
void	SetShowRectangularBoundary (bool showRectangularBoundary)
void	SetStandard (NXOpen::Features::GridTargetBuilder::GridStandards standard)
void	SetStartDirection (NXOpen::Direction *startDirection)
void	SetTargetDistanceRef (NXOpen::Features::GridTargetBuilder::TargetDistanceReferences targetDistanceRef)
void	SetUseLoadingSpecifiedStandard (bool useLoadingSpecifiedStandard)
bool	ShowRadiatingLines ()
bool	ShowRectangularBoundary ()
NXOpen::Features::GridTargetBuilder::GridStandards	Standard ()
NXOpen::Expression *	StartAngle ()
NXOpen::Direction *	StartDirection ()
NXOpen::Expression *	StartRadius ()
NXOpen::Expression *	TargetDistanceFar ()
NXOpen::Expression *	TargetDistanceInfinite ()
NXOpen::Expression *	TargetDistanceNear ()
NXOpen::Features::GridTargetBuilder::TargetDistanceReferences	TargetDistanceRef ()
NXOpen::Expression *	TargetWidthFar ()
NXOpen::Expression *	TargetWidthInfinite ()
NXOpen::Expression *	TargetWidthNear ()
bool	UseLoadingSpecifiedStandard ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_GridTargetBuilderBuilder

详细描述

网格目标构建器

        代表@link Features::GridTarget Features::GridTarget@endlink 构建器
         <br> 要创建此类的新实例，请使用@link NXOpen::Features::AVDACollection::CreateGridTargetBuilder  NXOpen::Features::AVDACollection::CreateGridTargetBuilder @endlink  <br>
    默认值。
    <list type="table">
    <listheader><term>
    属性</term>  <description>
    值</description> </listheader>
    <item><term>
    AngleIncrement.Value </term> <description>
    15 </description> </item>
    <item><term>
    BoundaryOffset.Value </term> <description>
    1000（毫米单位零件）, 39.370（英寸单位零件） </description> </item>
    <item><term>
    DisplayAngleValues </term> <description>
    0 </description> </item>
    <item><term>
    DriverSideForGrid </term> <description>
    LeftDriven </description> </item>
    <item><term>
    EndAngle.Value </term> <description>
    75 </description> </item>
    <item><term>
    EndRadius.Value </term> <description>
    12000（毫米单位零件）, 472.441（英寸单位零件） </description> </item>
    <item><term>
    GridLocation </term> <description>
    Floor </description> </item>
    <item><term>
    GridPosition </term> <description>
    FrontSide </description> </item>
    <item><term>
    GridType </term> <description>
    Quadrilateral </description> </item>
    <item><term>
    RadLinesAngleIncrement.Value </term> <description>
    45 </description> </item>
    <item><term>
    RadiusIncrement.Value </term> <description>
    3000（毫米单位零件）, 118.110（英寸单位零件） </description> </item>
    <item><term>
    ReferencePointMethod </term> <description>
    DirectVision </description> </item>
    <item><term>
    ShowRadiatingLines </term> <description>
    1 </description> </item>
    <item><term>
    ShowRectangularBoundary </term> <description>
    0 </description> </item>
    <item><term>
    Standard </term> <description>
    ECER46ClassI </description> </item>
    <item><term>
    StartAngle.Value </term> <description>
    15 </description> </item>
    <item><term>
    StartRadius.Value </term> <description>
    3000（毫米单位零件）, 118.110（英寸单位零件） </description> </item>
    <item><term>
    TargetDistanceFar.Value </term> <description>
    0（毫米单位零件）, 0（英寸单位零件） </description> </item>
    <item><term>
    TargetDistanceInfinite.Value </term> <description>
    0（毫米单位零件）, 0（英寸单位零件） </description> </item>
    <item><term>  </description> </item>

TargetDistanceNear.Value 0（毫米制零件）, 0（英寸制零件） TargetDistanceRef 驾驶员眼点 TargetWidthFar.Value 0（毫米制零件）, 0（英寸制零件） TargetWidthInfinite.Value 0（毫米制零件）, 0（英寸制零件） TargetWidthNear.Value 0（毫米制零件）, 0（英寸制零件） UseLoadingSpecifiedStandard 1

创建于NX1953.0.0.

成员枚举类型说明

◆ GridDriverSide

enum NXOpen::Features::GridTargetBuilder::GridDriverSide

用于指示中置驾驶车辆的驾驶侧

枚举值
GridDriverSideLeftDriven	左舵
GridDriverSideRightDriven	右舵
GridDriverSideCenterDriven	中置驾驶
GridDriverSideNotDefined	未定义

◆ GridLocations

enum NXOpen::Features::GridTargetBuilder::GridLocations

用于指示网格位置

枚举值
GridLocationsFloor	地面
GridLocationsWall	墙面
GridLocationsNotDefined	未定义

◆ GridPointSelectionType

enum NXOpen::Features::GridTargetBuilder::GridPointSelectionType

用于指示网格的点选择类型

枚举值
GridPointSelectionTypeDirectVision	直接视野点
GridPointSelectionTypeExistingPoint	现有点
GridPointSelectionTypeNotDefined	未定义

◆ GridPositions

enum NXOpen::Features::GridTargetBuilder::GridPositions

用于指示网格位置是前部、左侧、后部还是右侧

枚举值
GridPositionsFrontSide	前部
GridPositionsLeftSide	左侧
GridPositionsRearSide	后部
GridPositionsRightSide	右侧
GridPositionsNotDefined	未定义

◆ GridStandards

enum NXOpen::Features::GridTargetBuilder::GridStandards

用于指示网格标准

枚举值
GridStandardsECER46ClassI	欧洲ECER46法规I类
GridStandardsECER46ClassII	欧洲ECER46法规II类
GridStandardsECER46ClassIII	欧洲ECER46法规III类
GridStandardsECER46ClassIV	欧洲ECER46法规IV类
GridStandardsECER46ClassVClose	欧洲ECER46法规V类(紧凑型)
GridStandardsECER46ClassVLarge	欧洲ECER46法规V类(大型)
GridStandardsECER46ClassVI	欧洲ECER46法规VI类
GridStandardsECER46ClassVII	欧洲ECER46法规VII类
GridStandardsIso5006	ISO5006标准
GridStandardsIso5721	ISO5721标准
GridStandardsISO57212Behind	ISO5721-2(后部)标准
GridStandardsISO57212Side	ISO5721-2(侧面)标准
GridStandardsISO144012FOVClassA	ISO14401-2视野A类
GridStandardsISO144012FOVClassB	ISO14401-2视野B类
GridStandardsISO144012FOVClassC	ISO14401-2视野C类
GridStandardsISO144012FOVClassD	ISO14401-2视野D类
GridStandardsMLIT44TruckLT8t	日本MLIT44标准(总重<8吨卡车)
GridStandardsMLIT44TruckGE8t	日本MLIT44标准(总重≥8吨卡车)
GridStandardsUsacanadafmvss111cmvsss111	美加FMVSS111/CMVSS111标准
GridStandardsUserDefined	用户自定义
GridStandardsNotDefined	未定义
GridStandardsMLIT44Truck1mHighLT8t	日本MLIT44标准(1米高、总重<8吨卡车)
GridStandardsMLIT44Truck1mHighGE8t	日本MLIT44标准(1米高、总重≥8吨卡车)

◆ GridTypes

enum NXOpen::Features::GridTargetBuilder::GridTypes

根据网格形状指示网格类型

枚举值
GridTypesCircularRadius	圆形(半径型)
GridTypesCircularConical	圆形(圆锥型)
GridTypesCircularDefaultConical	圆形(默认圆锥型)
GridTypesQuadrilateral	四边形
GridTypesPentagonal	五边形
GridTypesLShape	L型
GridTypesStandard	标准型

◆ TargetDistanceReferences

enum NXOpen::Features::GridTargetBuilder::TargetDistanceReferences

用于指示目标距离的参考对象

枚举值
TargetDistanceReferencesDriverOcularPoint	驾驶员眼点
TargetDistanceReferencesVehicleRearSide	车辆后部

成员函数说明

◆ AngleIncrement()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::AngleIncrement ( )

获取角度增量
创建于NX1953.0.0.

许可要求 : 无

◆ BoundaryOffset()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::BoundaryOffset ( )

获取边界偏置
创建于NX1953.0.0.

许可要求: 无

◆ CreateGroundWidePointForGrid()

NXOpen::Point * NXOpen::Features::GridTargetBuilder::CreateGroundWidePointForGrid ( )

创建地面宽度点（用于网格）
创建于NX1980.0.0.

许可要求: 无

◆ CreateOuterGroundContactPoint()

NXOpen::Point * NXOpen::Features::GridTargetBuilder::CreateOuterGroundContactPoint ( )

创建外侧地面接触点
创建于NX1980.0.0.

许可要求: 无

◆ DirectVision()

NXOpen::Features::SelectFeature * NXOpen::Features::GridTargetBuilder::DirectVision ( )

获取直接视域特征
创建于NX1980.0.0.

许可要求 : 无

◆ DisplayAngleValues()

bool NXOpen::Features::GridTargetBuilder::DisplayAngleValues ( )

获取显示角度值状态
创建于NX1953.0.0.

许可要求: 无

◆ DriverSideForGrid()

NXOpen::Features::GridTargetBuilder::GridDriverSide NXOpen::Features::GridTargetBuilder::DriverSideForGrid ( )

获取中心驾驶的驾驶员侧
版本：NX1980.0.0

许可要求：无

◆ EndAngle()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::EndAngle ( )

获取终止角度
创建于NX1953.0.0.

许可要求 : 无

◆ EndRadius()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::EndRadius ( )

获取终止半径
创建于NX1953.0.0.

许可要求 : 无

◆ GridLocation()

NXOpen::Features::GridTargetBuilder::GridLocations NXOpen::Features::GridTargetBuilder::GridLocation ( )

获取网格位置
版本：NX1953.0.0

许可要求：无

◆ GridPosition()

NXOpen::Features::GridTargetBuilder::GridPositions NXOpen::Features::GridTargetBuilder::GridPosition ( )

获取网格位置
版本：NX1980.0.0

许可要求：无

◆ GridReferencePoint()

NXOpen::Point * NXOpen::Features::GridTargetBuilder::GridReferencePoint ( )

获取栅格参考点
创建于NX1953.0.0.

许可要求 : 无

◆ GridType()

NXOpen::Features::GridTargetBuilder::GridTypes NXOpen::Features::GridTargetBuilder::GridType ( )

获取网格类型
版本：NX1953.0.0

许可要求：无

◆ GroundWidePoint()

NXOpen::Point * NXOpen::Features::GridTargetBuilder::GroundWidePoint ( )

获取地面宽点
创建于NX1980.0.0.

许可要求 : 无

◆ Loading()

NXString NXOpen::Features::GridTargetBuilder::Loading ( )

获取载荷
版本：NX1953.0.0

许可要求：无

◆ RadiusIncrement()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::RadiusIncrement ( )

获取半径增量
创建于NX1953.0.0.

许可要求 : 无

◆ RadLinesAngleIncrement()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::RadLinesAngleIncrement ( )

获取辐线角度增量
创建于NX1953.0.0.

许可要求: 无

◆ ReferencePointMethod()

NXOpen::Features::GridTargetBuilder::GridPointSelectionType NXOpen::Features::GridTargetBuilder::ReferencePointMethod ( )

获取参考点选择方法
版本：NX1980.0.0

许可要求：无

◆ SetDisplayAngleValues()

void NXOpen::Features::GridTargetBuilder::SetDisplayAngleValues ( bool displayAngleValues )

设置显示角度值状态
创建于NX1953.0.0.

许可要求: vehicle_des_val ("车辆设计与验证")

参数

displayAngleValues 显示角度值状态

◆ SetDriverSideForGrid()

void NXOpen::Features::GridTargetBuilder::SetDriverSideForGrid ( NXOpen::Features::GridTargetBuilder::GridDriverSide driverSideForGrid )

设置中心驾驶的驾驶员侧
版本：NX1980.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

driverSideForGrid 中心驾驶的驾驶员侧

◆ SetGridLocation()

void NXOpen::Features::GridTargetBuilder::SetGridLocation ( NXOpen::Features::GridTargetBuilder::GridLocations gridLocation )

设置网格位置
版本：NX1953.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

gridLocation 网格位置

◆ SetGridPosition()

void NXOpen::Features::GridTargetBuilder::SetGridPosition ( NXOpen::Features::GridTargetBuilder::GridPositions gridPosition )

设置网格位置
版本：NX1980.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

gridPosition 网格位置

◆ SetGridReferencePoint()

void NXOpen::Features::GridTargetBuilder::SetGridReferencePoint ( NXOpen::Point * gridReferencePoint )

设置栅格参考点
创建于NX1953.0.0.

许可要求 : vehicle_des_val (" Vehicle Design and Validation")

参数

gridReferencePoint 栅格参考点

◆ SetGridType()

void NXOpen::Features::GridTargetBuilder::SetGridType ( NXOpen::Features::GridTargetBuilder::GridTypes gridType )

设置网格类型
版本：NX1953.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

gridType 网格类型

◆ SetGroundWidePoint()

void NXOpen::Features::GridTargetBuilder::SetGroundWidePoint ( NXOpen::Point * groundWidePoint )

设置地面宽点
创建于NX1980.0.0.

许可要求 : vehicle_des_val (" Vehicle Design and Validation")

参数

groundWidePoint 地面宽点

◆ SetLoading() [1/2]

void NXOpen::Features::GridTargetBuilder::SetLoading ( const char * loading )

设置载荷
版本：NX1953.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

loading 载荷

◆ SetLoading() [2/2]

void NXOpen::Features::GridTargetBuilder::SetLoading ( const NXString & loading )

设置载荷
版本：NX1953.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

loading 载荷

◆ SetReferencePointMethod()

void NXOpen::Features::GridTargetBuilder::SetReferencePointMethod ( NXOpen::Features::GridTargetBuilder::GridPointSelectionType referencePointMethod )

设置参考点方法
创建于NX1980.0.0.

许可要求 : vehicle_des_val (" Vehicle Design and Validation")

参数

referencePointMethod 参考点方法

◆ SetShowRadiatingLines()

void NXOpen::Features::GridTargetBuilder::SetShowRadiatingLines ( bool showRadiatingLines )

设置是否显示辐射线
创建于NX1953.0.0.

许可要求 : vehicle_des_val (" Vehicle Design and Validation")

参数

showRadiatingLines 是否显示辐射线

◆ SetShowRectangularBoundary()

void NXOpen::Features::GridTargetBuilder::SetShowRectangularBoundary ( bool showRectangularBoundary )

设置是否显示矩形边界
创建于NX1953.0.0.

许可要求: vehicle_des_val ("车辆设计与验证")

参数

showRectangularBoundary 显示矩形边界状态

◆ SetStandard()

void NXOpen::Features::GridTargetBuilder::SetStandard ( NXOpen::Features::GridTargetBuilder::GridStandards standard )

设置标准
版本：NX1953.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

standard 标准

◆ SetStartDirection()

void NXOpen::Features::GridTargetBuilder::SetStartDirection ( NXOpen::Direction * startDirection )

设置起始方向
创建于NX1953.0.0.

许可要求 : vehicle_des_val (" Vehicle Design and Validation")

参数

startDirection 起始方向

◆ SetTargetDistanceRef()

void NXOpen::Features::GridTargetBuilder::SetTargetDistanceRef ( NXOpen::Features::GridTargetBuilder::TargetDistanceReferences targetDistanceRef )

设置目标距离参考
创建于NX1980.0.0.

许可要求: vehicle_des_val ("车辆设计与验证")

参数

targetDistanceRef 目标距离参考

◆ SetUseLoadingSpecifiedStandard()

void NXOpen::Features::GridTargetBuilder::SetUseLoadingSpecifiedStandard ( bool useLoadingSpecifiedStandard )

设置是否使用载荷指定的标准
版本：NX1953.0.0

许可要求：vehicle_des_val ("车辆设计与验证")

参数

useLoadingSpecifiedStandard 是否使用载荷指定的标准

◆ ShowRadiatingLines()

bool NXOpen::Features::GridTargetBuilder::ShowRadiatingLines ( )

获取是否显示辐射线
创建于NX1953.0.0.

许可要求 : 无

◆ ShowRectangularBoundary()

bool NXOpen::Features::GridTargetBuilder::ShowRectangularBoundary ( )

获取是否显示矩形边界
创建于NX1953.0.0.

许可要求: 无

◆ Standard()

NXOpen::Features::GridTargetBuilder::GridStandards NXOpen::Features::GridTargetBuilder::Standard ( )

获取标准
版本：NX1953.0.0

许可要求：无

◆ StartAngle()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::StartAngle ( )

获取起始角度
创建于NX1953.0.0.

许可要求 : 无

◆ StartDirection()

NXOpen::Direction * NXOpen::Features::GridTargetBuilder::StartDirection ( )

获取起始方向
创建于NX1953.0.0.

许可要求 : 无

◆ StartRadius()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::StartRadius ( )

获取起始半径
创建于NX1953.0.0.

许可要求 : 无

◆ TargetDistanceFar()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::TargetDistanceFar ( )

获取远侧目标距离
创建于NX1980.0.0.

许可要求: 无

◆ TargetDistanceInfinite()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::TargetDistanceInfinite ( )

获取无限远目标距离
创建于NX1980.0.0.

许可要求: 无

◆ TargetDistanceNear()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::TargetDistanceNear ( )

获取近侧目标距离
创建于NX1980.0.0.

许可要求: 无

◆ TargetDistanceRef()

NXOpen::Features::GridTargetBuilder::TargetDistanceReferences NXOpen::Features::GridTargetBuilder::TargetDistanceRef ( )

获取目标距离参考
创建于NX1980.0.0.

许可要求: 无

◆ TargetWidthFar()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::TargetWidthFar ( )

获取远侧目标宽度
创建于NX1980.0.0.

许可要求: 无

◆ TargetWidthInfinite()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::TargetWidthInfinite ( )

获取无限远目标宽度
创建于NX1980.0.0.

许可要求: 无

◆ TargetWidthNear()

NXOpen::Expression * NXOpen::Features::GridTargetBuilder::TargetWidthNear ( )

获取近侧目标宽度
创建于NX1980.0.0.

许可要求: 无

◆ UseLoadingSpecifiedStandard()

bool NXOpen::Features::GridTargetBuilder::UseLoadingSpecifiedStandard ( )

获取是否使用载荷指定的标准
版本：NX1953.0.0

许可要求：无

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ GridDriverSide

◆ GridLocations

◆ GridPointSelectionType

◆ GridPositions

◆ GridStandards

◆ GridTypes

◆ TargetDistanceReferences

成员函数说明

◆ AngleIncrement()

◆ BoundaryOffset()

◆ CreateGroundWidePointForGrid()

◆ CreateOuterGroundContactPoint()

◆ DirectVision()

◆ DisplayAngleValues()

◆ DriverSideForGrid()

◆ EndAngle()

◆ EndRadius()

◆ GridLocation()

◆ GridPosition()

◆ GridReferencePoint()

◆ GridType()

◆ GroundWidePoint()

◆ Loading()

◆ RadiusIncrement()

◆ RadLinesAngleIncrement()

◆ ReferencePointMethod()

◆ SetDisplayAngleValues()

◆ SetDriverSideForGrid()

◆ SetGridLocation()

◆ SetGridPosition()

◆ SetGridReferencePoint()

◆ SetGridType()

◆ SetGroundWidePoint()

◆ SetLoading() [1/2]

◆ SetLoading() [2/2]

◆ SetReferencePointMethod()

◆ SetShowRadiatingLines()

◆ SetShowRectangularBoundary()

◆ SetStandard()

◆ SetStartDirection()

◆ SetTargetDistanceRef()

◆ SetUseLoadingSpecifiedStandard()

◆ ShowRadiatingLines()

◆ ShowRectangularBoundary()

◆ Standard()

◆ StartAngle()

◆ StartDirection()

◆ StartRadius()

◆ TargetDistanceFar()

◆ TargetDistanceInfinite()

◆ TargetDistanceNear()

◆ TargetDistanceRef()

◆ TargetWidthFar()

◆ TargetWidthInfinite()

◆ TargetWidthNear()

◆ UseLoadingSpecifiedStandard()
