NXOpen::Tooling::ChangeoverManagementBuilder类 参考

换模管理构建器 更多...

#include <Tooling_ChangeoverManagementBuilder.hxx>

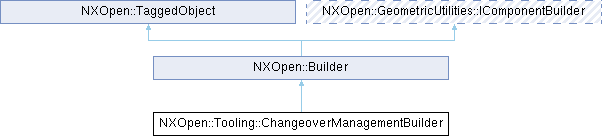

类 NXOpen::Tooling::ChangeoverManagementBuilder 继承关系图:

Public 类型
enum	Types { TypesCreate , TypesManage }

Public 成员函数
bool	AddComponentsExclusively ()
void	AddToChangeover ()
NXString	ChangeoverName ()
NXString	ClonedProductName ()
void	DeleteArrangement (bool removeComponents)
NXString	NewChangeoverName ()
void	RemoveFromChangeover ()
void	RenameArrangement ()
bool	RenameComponent ()
NXOpen::Assemblies::SelectComponentList *	SelectComponents ()
NXString	SelectedArrangementName ()
NXOpen::Assemblies::SelectComponent *	SelectProduct ()
void	SetAddComponentsExclusively (bool addComponentsExclusively)
void	SetChangeoverName (const char *changeoverName)
void	SetChangeoverName (const NXString &changeoverName)
void	SetClonedProductName (const char *clonedProductName)
void	SetClonedProductName (const NXString &clonedProductName)
void	SetNewChangeoverName (const char *newChangeoverName)
void	SetNewChangeoverName (const NXString &newChangeoverName)
void	SetRenameComponent (bool renameComponent)
void	SetSelectedArrangementName (const char *arrangementName)
void	SetSelectedArrangementName (const NXString &arrangementName)
void	SetType (NXOpen::Tooling::ChangeoverManagementBuilder::Types type)
NXOpen::Tooling::ChangeoverManagementBuilder::Types	Type ()
void	UseArrangement ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ChangeoverManagementBuilderBuilder

详细描述

换模管理构建器

Represents a NXOpen::Tooling::ChangeoverManagementBuilder to support changeover workflow management. To create a new instance of this class, use NXOpen::Tooling::WorkflowManagementCollection::CreateChangeoverManagementBuilder Default values.

Property	Value
AddComponentsExclusively	0
RenameComponent	0

Created in NX8.0.0.

成员枚举类型说明

Types

enum NXOpen::Tooling::ChangeoverManagementBuilder::Types

Specifies the types of changeover management.

枚举值
TypesCreate	the create mode
TypesManage	the manage mode

成员函数说明

AddComponentsExclusively()

bool NXOpen::Tooling::ChangeoverManagementBuilder::AddComponentsExclusively

(

)

Returns the exclusive adding
Created in NX8.0.0.

License requirements : None

AddToChangeover()

void NXOpen::Tooling::ChangeoverManagementBuilder::AddToChangeover

(

)

Add selected components to the selected changeover.
Created in NX8.0.0.

License requirements : None

ChangeoverName()

NXString NXOpen::Tooling::ChangeoverManagementBuilder::ChangeoverName

(

)

Returns the name of the to-be-created changeover. Created in NX8.0.0. License requirements : None

ClonedProductName()

NXString NXOpen::Tooling::ChangeoverManagementBuilder::ClonedProductName

(

)

返回用于创建新转换的克隆产品包的名称。
创建于 NX8.0.0。

许可要求：无

DeleteArrangement()

void NXOpen::Tooling::ChangeoverManagementBuilder::DeleteArrangement

(

bool

removeComponents

)

Delete the selected changeover.
Created in NX8.0.0.

License requirements : None

参数

removeComponents

removecomponents

NewChangeoverName()

NXString NXOpen::Tooling::ChangeoverManagementBuilder::NewChangeoverName

(

)

Returns the new name of the selected changeover.
Created in NX8.0.0.

License requirements : None

RemoveFromChangeover()

void NXOpen::Tooling::ChangeoverManagementBuilder::RemoveFromChangeover

(

)

Remove selected components from the selected changeover.
Created in NX8.0.0.

License requirements : None

RenameArrangement()

void NXOpen::Tooling::ChangeoverManagementBuilder::RenameArrangement

(

)

Rename the selected changeover.
Created in NX8.0.0.

License requirements : None

RenameComponent()

bool NXOpen::Tooling::ChangeoverManagementBuilder::RenameComponent

(

)

Returns the option to rename the components of the to-be-created changeover.
Created in NX8.0.0.

License requirements : None

SelectComponents()

NXOpen::Assemblies::SelectComponentList * NXOpen::Tooling::ChangeoverManagementBuilder::SelectComponents

(

)

Returns the selection of components to be added to or removed from a changeover.
Created in NX8.0.0.

License requirements : None

SelectedArrangementName()

NXString NXOpen::Tooling::ChangeoverManagementBuilder::SelectedArrangementName

(

)

返回所选转换安排的名称。
创建于 NX8.0.0。

许可要求：无

SelectProduct()

NXOpen::Assemblies::SelectComponent * NXOpen::Tooling::ChangeoverManagementBuilder::SelectProduct

(

)

Returns the selection of product for which to create changeover. Created in NX8.0.0. License requirements : None

SetAddComponentsExclusively()

void NXOpen::Tooling::ChangeoverManagementBuilder::SetAddComponentsExclusively

(

bool

addComponentsExclusively

)

Sets the exclusive adding
Created in NX8.0.0.

License requirements : None

参数

addComponentsExclusively

addcomponentsexclusively

SetChangeoverName() [1/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetChangeoverName

(

const char *

changeoverName

)

Sets the name of the to-be-created changeover.
Created in NX8.0.0.

License requirements : None

参数

changeoverName

changeovername

SetChangeoverName() [2/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetChangeoverName

(

const NXString &

changeoverName

)

Sets the name of the to-be-created changeover.
Created in NX8.0.0.

License requirements : None

参数

changeoverName

changeovername

SetClonedProductName() [1/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetClonedProductName

(

const char *

clonedProductName

)

设置用于创建新转换的克隆产品包的名称。
创建于 NX8.0.0。

许可要求：无

参数

clonedProductName

克隆产品名称

SetClonedProductName() [2/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetClonedProductName

(

const NXString &

clonedProductName

)

设置用于创建新转换的克隆产品包的名称。
创建于 NX8.0.0。

许可要求：无

参数

clonedProductName

克隆产品名称

SetNewChangeoverName() [1/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetNewChangeoverName

(

const char *

newChangeoverName

)

Sets the new name of the selected changeover.
Created in NX8.0.0.

License requirements : None

参数

newChangeoverName

newchangeovername

SetNewChangeoverName() [2/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetNewChangeoverName

(

const NXString &

newChangeoverName

)

Sets the new name of the selected changeover.
Created in NX8.0.0.

License requirements : None

参数

newChangeoverName

newchangeovername

SetRenameComponent()

void NXOpen::Tooling::ChangeoverManagementBuilder::SetRenameComponent

(

bool

renameComponent

)

Sets the option to rename the components of the to-be-created changeover.
Created in NX8.0.0.

License requirements : None

参数

renameComponent

renamecomponent

SetSelectedArrangementName() [1/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetSelectedArrangementName

(

const char *

arrangementName

)

设置所选转换安排的名称。
创建于 NX8.0.0。

许可要求：无

参数

arrangementName

安排名称

SetSelectedArrangementName() [2/2]

void NXOpen::Tooling::ChangeoverManagementBuilder::SetSelectedArrangementName

(

const NXString &

arrangementName

)

设置所选转换安排的名称。
创建于 NX8.0.0。

许可要求：无

参数

arrangementName

安排名称

SetType()

void NXOpen::Tooling::ChangeoverManagementBuilder::SetType

(

NXOpen::Tooling::ChangeoverManagementBuilder::Types

type

)

设置转换管理的类型。
创建于 NX8.0.0。

许可要求：无

参数

type

类型

Type()

NXOpen::Tooling::ChangeoverManagementBuilder::Types NXOpen::Tooling::ChangeoverManagementBuilder::Type

(

)

Returns the type of changeover management.
Created in NX8.0.0.

License requirements : None

UseArrangement()

void NXOpen::Tooling::ChangeoverManagementBuilder::UseArrangement

(

)

Set the selected changeover as current used one.
Created in NX8.0.0.

License requirements : None
