Public 类型 | 友元 | 所有成员列表
NXOpen::Motion::BearingPropertyBuilder类 参考

轴承属性构建器 更多...

#include <Motion_BearingPropertyBuilder.hxx>

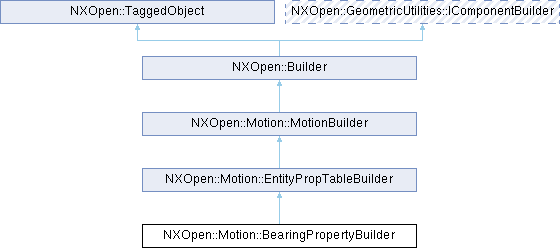

类 NXOpen::Motion::BearingPropertyBuilder 继承关系图:
NXOpen::Motion::EntityPropTableBuilder NXOpen::Motion::MotionBuilder NXOpen::Builder NXOpen::TaggedObject NXOpen::GeometricUtilities::IComponentBuilder

Public 类型

enum  BearingType {
  BearingTypeStandard , BearingTypeDeepGrooveBall , BearingTypeAngularContactBall , BearingTypeThrustBall ,
  BearingTypeCylindricalRoller , BearingTypeTaperedRoller , BearingTypeThrustNeedle
}
enum  DiagonalDampingType { DiagonalDampingTypeAbsolute , DiagonalDampingTypeVariablePercentage , DiagonalDampingTypeConstantPercentage }
enum  LocalComplianceType { LocalComplianceTypeDry , LocalComplianceTypeWet , LocalComplianceTypeWetD }
enum  MicrogeometryType { MicrogeometryTypeProfile2d , MicrogeometryTypeFunction }
enum  ReferenceRing { ReferenceRingInner , ReferenceRingOuter }

友元

class _BearingPropertyBuilderBuilder

额外继承的成员函数

Public 成员函数 继承自 NXOpen::Motion::EntityPropTableBuilder
NXString EntityName ()
void GetBooleanPropertyNames (std::vector< NXString > &propertyNames)
bool GetBooleanPropertyValue (const char *propertyName)
bool GetBooleanPropertyValue (const NXString &propertyName)
void GetCsysPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::CoordinateSystem * GetCsysPropertyValue (const char *propertyName)
NXOpen::CoordinateSystem * GetCsysPropertyValue (const NXString &propertyName)
void GetDirectionPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Direction * GetDirectionPropertyValue (const char *propertyName)
NXOpen::Direction * GetDirectionPropertyValue (const NXString &propertyName)
NXString GetEntitySubtypeName ()
void GetFileReferencePropertyNames (std::vector< NXString > &propertyNames)
NXString GetFileReferenceValue (const char *propertyName)
NXString GetFileReferenceValue (const NXString &propertyName)
void GetIntegerPropertyNames (std::vector< NXString > &propertyNames)
int GetIntegerPropertyValue (const char *propertyName)
int GetIntegerPropertyValue (const NXString &propertyName)
void GetMaterialPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::PhysicalMaterial * GetMaterialPropertyValue (const char *propertyName, bool *isInherited)
NXOpen::PhysicalMaterial * GetMaterialPropertyValue (const NXString &propertyName, bool *isInherited)
void GetMultiColumnSelectionListPropertyNames (std::vector< NXString > &propertyNames)
void GetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void GetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
std::vector< NXOpen::NXObject * > GetMultipleColumnListPropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * > GetMultipleColumnListPropertyValue (const NXString &propertyName)
void GetMultipleReferencePropertyNames (std::vector< NXString > &propertyNames)
std::vector< NXOpen::NXObject * > GetMultipleReferencePropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * > GetMultipleReferencePropertyValue (const NXString &propertyName)
void GetMultiTextPropertyNames (std::vector< NXString > &propertyNames)
NXString GetMultiTextPropertyValue (const char *propertyName)
NXString GetMultiTextPropertyValue (const NXString &propertyName)
void GetPointPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Point * GetPointPropertyValue (const char *propertyName)
NXOpen::Point * GetPointPropertyValue (const NXString &propertyName)
NXOpen::Motion::ParamOverrideState GetPropertyOverrideState (const char *propertyName)
NXOpen::Motion::ParamOverrideState GetPropertyOverrideState (const NXString &propertyName)
void GetReferencePropertyNames (std::vector< NXString > &propertyNames)
NXOpen::NXObject * GetReferencePropertyValue (const char *propertyName)
NXOpen::NXObject * GetReferencePropertyValue (const NXString &propertyName)
void GetRGBColorPropertyNames (std::vector< NXString > &propertyNames)
void GetRGBColorPropertyValue (const char *propertyName, std::vector< double > &propertyValue)
void GetRGBColorPropertyValue (const NXString &propertyName, std::vector< double > &propertyValue)
void GetRGBColorPropertyValue255 (const char *propertyName, std::vector< int > &propertyValue)
void GetRGBColorPropertyValue255 (const NXString &propertyName, std::vector< int > &propertyValue)
void GetScalarExpressionPropertyNames (std::vector< NXString > &propertyNames)
void GetScalarExpressionPropertyValue (const char *propertyName, double *propertyValue, NXOpen::Unit **unitType)
void GetScalarExpressionPropertyValue (const NXString &propertyName, double *propertyValue, NXOpen::Unit **unitType)
void GetStringPropertyNames (std::vector< NXString > &propertyNames)
NXString GetStringPropertyValue (const char *propertyName)
NXString GetStringPropertyValue (const NXString &propertyName)
void SetBooleanPropertyValue (const char *propertyName, bool propertyValue)
void SetBooleanPropertyValue (const NXString &propertyName, bool propertyValue)
void SetCsysPropertyValue (const char *propertyName, NXOpen::CoordinateSystem *propertyValue)
void SetCsysPropertyValue (const NXString &propertyName, NXOpen::CoordinateSystem *propertyValue)
void SetDirectionPropertyValue (const char *propertyName, NXOpen::Direction *propertyValue)
void SetDirectionPropertyValue (const NXString &propertyName, NXOpen::Direction *propertyValue)
void SetEntityName (const char *name)
void SetEntityName (const NXString &name)
void SetEntitySubtypeName (const char *entitySubtypeName)
void SetEntitySubtypeName (const NXString &entitySubtypeName)
void SetFileReferenceValue (const char *propertyName, const char *propertyValue)
void SetFileReferenceValue (const NXString &propertyName, const NXString &propertyValue)
void SetIntegerExpressionPropertyValue (const char *propertyName, const char *propertyValue)
void SetIntegerExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void SetIntegerPropertyValue (const char *propertyName, int propertyValue)
void SetIntegerPropertyValue (const NXString &propertyName, int propertyValue)
void SetMaterialPropertyValue (const char *propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void SetMaterialPropertyValue (const NXString &propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void SetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void SetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
void SetMultipleColumnListPropertyValue (const char *propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleColumnListPropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleReferencePropertyValue (const char *propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleReferencePropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultiTextPropertyValue (const char *propertyName, const char *propertyValue)
void SetMultiTextPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void SetPointPropertyValue (const char *propertyName, NXOpen::Point *propertyValue)
void SetPointPropertyValue (const NXString &propertyName, NXOpen::Point *propertyValue)
void SetPropertyOverrideState (const char *propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void SetPropertyOverrideState (const NXString &propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void SetPropertyWithoutValue (const char *propertyName)
void SetPropertyWithoutValue (const NXString &propertyName)
void SetReferencePropertyValue (const char *propertyName, NXOpen::NXObject *propertyValue)
void SetReferencePropertyValue (const NXString &propertyName, NXOpen::NXObject *propertyValue)
void SetRGBColorPropertyValue (const char *propertyName, const std::vector< double > &propertyValue)
void SetRGBColorPropertyValue (const NXString &propertyName, const std::vector< double > &propertyValue)
void SetRGBColorPropertyValue255 (const char *propertyName, const std::vector< int > &propertyValue)
void SetRGBColorPropertyValue255 (const NXString &propertyName, const std::vector< int > &propertyValue)
void SetScalarExpressionPropertyValue (const char *propertyName, const char *propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const char *propertyName, double propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
void SetStringPropertyValue (const char *propertyName, const char *propertyValue)
void SetStringPropertyValue (const NXString &propertyName, const NXString &propertyValue)
Public 成员函数 继承自 NXOpen::Motion::MotionBuilder
double DisplayScale ()
NXString GroupName ()
NXOpen::Motion::MotionObject::GroupType GroupType ()
void SetDisplayScale (double displayScale)
void SetGroupName (const char *groupName)
void SetGroupName (const NXString &groupName)
void SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject * Commit ()
void Destroy ()
std::vector< NXOpen::NXObject * > GetCommittedObjects ()
NXOpen::NXObject * GetObject ()
NXOpen::PreviewBuilder * PreviewBuilder ()
void ShowResults ()
virtual bool Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

详细描述

轴承属性构建器

表示 Motion::BearingProperty 构建器
要创建此类的新实例，请使用 NXOpen::Motion::BearingPropertyCollection::CreateBearingPropertyBuilder

在NX1926.0.0中创建。

成员枚举类型说明

◆ BearingType

enum NXOpen::Motion::BearingPropertyBuilder::BearingType

轴承属性的轴承类型

枚举值
BearingTypeStandard

标准

BearingTypeDeepGrooveBall

深沟球

BearingTypeAngularContactBall

角接触球

BearingTypeThrustBall

推力球

BearingTypeCylindricalRoller

圆柱滚子

BearingTypeTaperedRoller

圆锥滚子

BearingTypeThrustNeedle

推力滚针

◆ DiagonalDampingType

enum NXOpen::Motion::BearingPropertyBuilder::DiagonalDampingType

轴承属性的对角阻尼值类型

枚举值
DiagonalDampingTypeAbsolute

绝对

DiagonalDampingTypeVariablePercentage

可变百分比

DiagonalDampingTypeConstantPercentage

恒定百分比

◆ LocalComplianceType

enum NXOpen::Motion::BearingPropertyBuilder::LocalComplianceType

轴承属性的局部柔度类型

枚举值
LocalComplianceTypeDry

干

LocalComplianceTypeWet

湿

LocalComplianceTypeWetD

湿 d

◆ MicrogeometryType

enum NXOpen::Motion::BearingPropertyBuilder::MicrogeometryType

轴承属性的微观几何类型

枚举值
MicrogeometryTypeProfile2d

profile2d

MicrogeometryTypeFunction

函数

◆ ReferenceRing

enum NXOpen::Motion::BearingPropertyBuilder::ReferenceRing

轴承属性的参考环

枚举值
ReferenceRingInner

内

ReferenceRingOuter

外
