NXOpen::Annotations::ThicknessDimensionBuilder类 参考
厚度尺寸构建器 更多...
#include <Annotations_ThicknessDimensionBuilder.hxx>

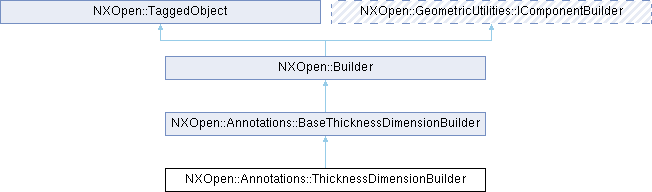

类 NXOpen::Annotations::ThicknessDimensionBuilder 继承关系图:
Public 成员函数 | |
| NXOpen::Annotations::ForeshorteningSymbolBuilder * | ForeshorteningSymbol () |
| Public 成员函数 继承自 NXOpen::Annotations::BaseThicknessDimensionBuilder | |
| NXOpen::Annotations::AppendedTextBuilder * | AppendedText () |
| NXOpen::SelectDisplayableObject * | FirstAssociativity () |
| NXOpen::Annotations::SelectDimension * | Inherit () |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| NXOpen::SelectDisplayableObject * | SecondAssociativity () |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Public 成员函数 继承自 NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| void | Destroy () |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| NXOpen::NXObject * | GetObject () |
| NXOpen::PreviewBuilder * | PreviewBuilder () |
| void | ShowResults () |
| virtual bool | Validate () |
| Public 成员函数 继承自 NXOpen::TaggedObject | |
| tag_t | Tag () const |
友元 | |
| class | _ThicknessDimensionBuilderBuilder |
详细描述
厚度尺寸构建器
表示 NXOpen::Annotations::ConcentricCircleDimension 构建器
要创建此类的新实例，请使用 NXOpen::Annotations::DimensionCollection::CreateThicknessDimensionBuilder
在 NX9.0.0 中创建。
成员函数说明
◆ ForeshorteningSymbol()
| NXOpen::Annotations::ForeshorteningSymbolBuilder * NXOpen::Annotations::ThicknessDimensionBuilder::ForeshorteningSymbol | ( | ) |
返回 短缩符号构建器
在 NX10.0.0 中创建。
许可要求：无
