Public 类型 | 友元 | 所有成员列表
NXOpen::Motion::HydrodynamicBearingBuilder类 参考

流体动压轴承构建器 更多...

#include <Motion_HydrodynamicBearingBuilder.hxx>

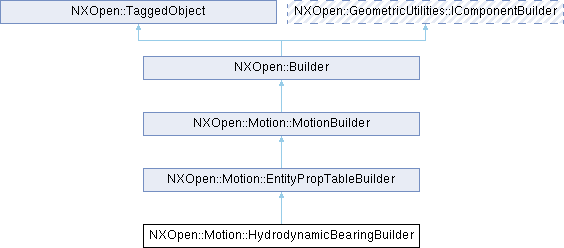

类 NXOpen::Motion::HydrodynamicBearingBuilder 继承关系图:
NXOpen::Motion::EntityPropTableBuilder NXOpen::Motion::MotionBuilder NXOpen::Builder NXOpen::TaggedObject NXOpen::GeometricUtilities::IComponentBuilder

Public 类型

enum  CavitationAlgorithm { CavitationAlgorithmQuasiStatic , CavitationAlgorithmMassConserving , CavitationAlgorithmUpdateMassConserving }
enum  Force {
  ForceNewton , ForceMicronewton , ForceKilogramForce , ForcePound ,
  ForceDyne
}
enum  Length {
  LengthMillimeter , LengthCentimeter , LengthMeter , LengthInch ,
  LengthFeet
}
enum  Lubricant { LubricantPredefined , LubricantProfile2D }
enum  LubricantType {
  LubricantTypeSae5w30 , LubricantTypeSae10w30 , LubricantTypeSae10w40 , LubricantTypeSae15w40 ,
  LubricantTypeSae20w50 , LubricantTypeSae10w , LubricantTypeSae20w , LubricantTypeSae20 ,
  LubricantTypeSae30 , LubricantTypeSae40 , LubricantTypeSae50
}
enum  Mass {
  MassGram , MassKilogram , MassMetricTonne , MassSlinch ,
  MassSlug
}
enum  ViscosityType { ViscosityTypeExpression , ViscosityTypeProfile2D , ViscosityTypeTemperatureDependent }

友元

class _HydrodynamicBearingBuilderBuilder

额外继承的成员函数

Public 成员函数 继承自 NXOpen::Motion::EntityPropTableBuilder
NXString EntityName ()
void GetBooleanPropertyNames (std::vector< NXString > &propertyNames)
bool GetBooleanPropertyValue (const char *propertyName)
bool GetBooleanPropertyValue (const NXString &propertyName)
void GetCsysPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::CoordinateSystem * GetCsysPropertyValue (const char *propertyName)
NXOpen::CoordinateSystem * GetCsysPropertyValue (const NXString &propertyName)
void GetDirectionPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Direction * GetDirectionPropertyValue (const char *propertyName)
NXOpen::Direction * GetDirectionPropertyValue (const NXString &propertyName)
NXString GetEntitySubtypeName ()
void GetFileReferencePropertyNames (std::vector< NXString > &propertyNames)
NXString GetFileReferenceValue (const char *propertyName)
NXString GetFileReferenceValue (const NXString &propertyName)
void GetIntegerPropertyNames (std::vector< NXString > &propertyNames)
int GetIntegerPropertyValue (const char *propertyName)
int GetIntegerPropertyValue (const NXString &propertyName)
void GetMaterialPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::PhysicalMaterial * GetMaterialPropertyValue (const char *propertyName, bool *isInherited)
NXOpen::PhysicalMaterial * GetMaterialPropertyValue (const NXString &propertyName, bool *isInherited)
void GetMultiColumnSelectionListPropertyNames (std::vector< NXString > &propertyNames)
void GetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void GetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
std::vector< NXOpen::NXObject * > GetMultipleColumnListPropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * > GetMultipleColumnListPropertyValue (const NXString &propertyName)
void GetMultipleReferencePropertyNames (std::vector< NXString > &propertyNames)
std::vector< NXOpen::NXObject * > GetMultipleReferencePropertyValue (const char *propertyName)
std::vector< NXOpen::NXObject * > GetMultipleReferencePropertyValue (const NXString &propertyName)
void GetMultiTextPropertyNames (std::vector< NXString > &propertyNames)
NXString GetMultiTextPropertyValue (const char *propertyName)
NXString GetMultiTextPropertyValue (const NXString &propertyName)
void GetPointPropertyNames (std::vector< NXString > &propertyNames)
NXOpen::Point * GetPointPropertyValue (const char *propertyName)
NXOpen::Point * GetPointPropertyValue (const NXString &propertyName)
NXOpen::Motion::ParamOverrideState GetPropertyOverrideState (const char *propertyName)
NXOpen::Motion::ParamOverrideState GetPropertyOverrideState (const NXString &propertyName)
void GetReferencePropertyNames (std::vector< NXString > &propertyNames)
NXOpen::NXObject * GetReferencePropertyValue (const char *propertyName)
NXOpen::NXObject * GetReferencePropertyValue (const NXString &propertyName)
void GetRGBColorPropertyNames (std::vector< NXString > &propertyNames)
void GetRGBColorPropertyValue (const char *propertyName, std::vector< double > &propertyValue)
void GetRGBColorPropertyValue (const NXString &propertyName, std::vector< double > &propertyValue)
void GetRGBColorPropertyValue255 (const char *propertyName, std::vector< int > &propertyValue)
void GetRGBColorPropertyValue255 (const NXString &propertyName, std::vector< int > &propertyValue)
void GetScalarExpressionPropertyNames (std::vector< NXString > &propertyNames)
void GetScalarExpressionPropertyValue (const char *propertyName, double *propertyValue, NXOpen::Unit **unitType)
void GetScalarExpressionPropertyValue (const NXString &propertyName, double *propertyValue, NXOpen::Unit **unitType)
void GetStringPropertyNames (std::vector< NXString > &propertyNames)
NXString GetStringPropertyValue (const char *propertyName)
NXString GetStringPropertyValue (const NXString &propertyName)
void SetBooleanPropertyValue (const char *propertyName, bool propertyValue)
void SetBooleanPropertyValue (const NXString &propertyName, bool propertyValue)
void SetCsysPropertyValue (const char *propertyName, NXOpen::CoordinateSystem *propertyValue)
void SetCsysPropertyValue (const NXString &propertyName, NXOpen::CoordinateSystem *propertyValue)
void SetDirectionPropertyValue (const char *propertyName, NXOpen::Direction *propertyValue)
void SetDirectionPropertyValue (const NXString &propertyName, NXOpen::Direction *propertyValue)
void SetEntityName (const char *name)
void SetEntityName (const NXString &name)
void SetEntitySubtypeName (const char *entitySubtypeName)
void SetEntitySubtypeName (const NXString &entitySubtypeName)
void SetFileReferenceValue (const char *propertyName, const char *propertyValue)
void SetFileReferenceValue (const NXString &propertyName, const NXString &propertyValue)
void SetIntegerExpressionPropertyValue (const char *propertyName, const char *propertyValue)
void SetIntegerExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void SetIntegerPropertyValue (const char *propertyName, int propertyValue)
void SetIntegerPropertyValue (const NXString &propertyName, int propertyValue)
void SetMaterialPropertyValue (const char *propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void SetMaterialPropertyValue (const NXString &propertyName, bool isInherited, NXOpen::PhysicalMaterial *propertyValue)
void SetMultiColumnSelectionListPropertyValue (const char *propertyName, std::vector< NXString > &propertyValue)
void SetMultiColumnSelectionListPropertyValue (const NXString &propertyName, std::vector< NXString > &propertyValue)
void SetMultipleColumnListPropertyValue (const char *propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleColumnListPropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleReferencePropertyValue (const char *propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultipleReferencePropertyValue (const NXString &propertyName, const std::vector< NXOpen::NXObject * > &propertyValue)
void SetMultiTextPropertyValue (const char *propertyName, const char *propertyValue)
void SetMultiTextPropertyValue (const NXString &propertyName, const NXString &propertyValue)
void SetPointPropertyValue (const char *propertyName, NXOpen::Point *propertyValue)
void SetPointPropertyValue (const NXString &propertyName, NXOpen::Point *propertyValue)
void SetPropertyOverrideState (const char *propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void SetPropertyOverrideState (const NXString &propertyName, NXOpen::Motion::ParamOverrideState overrideState)
void SetPropertyWithoutValue (const char *propertyName)
void SetPropertyWithoutValue (const NXString &propertyName)
void SetReferencePropertyValue (const char *propertyName, NXOpen::NXObject *propertyValue)
void SetReferencePropertyValue (const NXString &propertyName, NXOpen::NXObject *propertyValue)
void SetRGBColorPropertyValue (const char *propertyName, const std::vector< double > &propertyValue)
void SetRGBColorPropertyValue (const NXString &propertyName, const std::vector< double > &propertyValue)
void SetRGBColorPropertyValue255 (const char *propertyName, const std::vector< int > &propertyValue)
void SetRGBColorPropertyValue255 (const NXString &propertyName, const std::vector< int > &propertyValue)
void SetScalarExpressionPropertyValue (const char *propertyName, const char *propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const char *propertyName, double propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const NXString &propertyName, const NXString &propertyValue, NXOpen::Unit *unitType)
void SetScalarExpressionPropertyValue (const NXString &propertyName, double propertyValue, NXOpen::Unit *unitType)
void SetStringPropertyValue (const char *propertyName, const char *propertyValue)
void SetStringPropertyValue (const NXString &propertyName, const NXString &propertyValue)
Public 成员函数 继承自 NXOpen::Motion::MotionBuilder
double DisplayScale ()
NXString GroupName ()
NXOpen::Motion::MotionObject::GroupType GroupType ()
void SetDisplayScale (double displayScale)
void SetGroupName (const char *groupName)
void SetGroupName (const NXString &groupName)
void SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject * Commit ()
void Destroy ()
std::vector< NXOpen::NXObject * > GetCommittedObjects ()
NXOpen::NXObject * GetObject ()
NXOpen::PreviewBuilder * PreviewBuilder ()
void ShowResults ()
virtual bool Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

详细描述

流体动压轴承构建器

表示 Motion::HydrodynamicBearing 构造器
要创建此类的新实例，请使用 NXOpen::Motion::HydrodynamicBearingCollection::CreateHydrodynamicBearingBuilder

在 NX2007.0.0 中创建。

成员枚举类型说明

◆ CavitationAlgorithm

enum NXOpen::Motion::HydrodynamicBearingBuilder::CavitationAlgorithm

气穴算法

枚举值
CavitationAlgorithmQuasiStatic

准静态

CavitationAlgorithmMassConserving

质量守恒

CavitationAlgorithmUpdateMassConserving

更新质量守恒

◆ Force

enum NXOpen::Motion::HydrodynamicBearingBuilder::Force

文件单位力

枚举值
ForceNewton

牛顿

ForceMicronewton

微牛顿

ForceKilogramForce

千克力

ForcePound

磅

ForceDyne

达因

◆ Length

enum NXOpen::Motion::HydrodynamicBearingBuilder::Length

文件单位长度

枚举值
LengthMillimeter

毫米

LengthCentimeter

厘米

LengthMeter

米

LengthInch

英寸

LengthFeet

英尺

◆ Lubricant

enum NXOpen::Motion::HydrodynamicBearingBuilder::Lubricant

润滑剂

枚举值
LubricantPredefined

预定义

LubricantProfile2D

2D轮廓

◆ LubricantType

enum NXOpen::Motion::HydrodynamicBearingBuilder::LubricantType

润滑剂类型

枚举值
LubricantTypeSae5w30

SAE 5W-30

LubricantTypeSae10w30

SAE 10W-30

LubricantTypeSae10w40

SAE 10W-40

LubricantTypeSae15w40

SAE 15W-40

LubricantTypeSae20w50

SAE 20W-50

LubricantTypeSae10w

SAE 10W

LubricantTypeSae20w

SAE 20W

LubricantTypeSae20

SAE 20

LubricantTypeSae30

SAE 30

LubricantTypeSae40

SAE 40

LubricantTypeSae50

SAE 50

◆ Mass

enum NXOpen::Motion::HydrodynamicBearingBuilder::Mass

文件单位质量

枚举值
MassGram

克

MassKilogram

千克

MassMetricTonne

公吨

MassSlinch

Slinch

MassSlug

斯勒格

◆ ViscosityType

enum NXOpen::Motion::HydrodynamicBearingBuilder::ViscosityType

粘度类型

枚举值
ViscosityTypeExpression

表达式

ViscosityTypeProfile2D

2D轮廓

ViscosityTypeTemperatureDependent

温度相关
