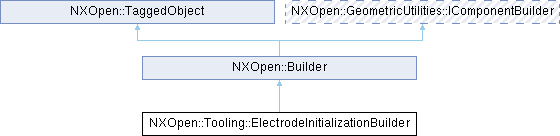

类 NXOpen::Tooling::ElectrodeInitializationBuilder 继承关系图:

Public 类型
enum	Method { MethodOriginal , MethodNoWorkingPart , MethodNoMsetPart , MethodNoTemplate , MethodOnlyTopPart , MethodNumber }
enum	Type { TypeCloneTopPart , TypeCloneMsetPart , TypeCloneWorkingPart }

Public 成员函数
NXOpen::Tooling::ElectrodeInitializationBuilder::Method	ActionType ()
std::vector< int >	AnalyseInitProjectRegisterData (int number)
NXString	BuildMemberPartName (NXOpen::Tooling::ElectrodeInitializationBuilder::Type type)
NXOpen::Tooling::CloneObject *	CreateCloneObjectOfMsetPart ()
NXOpen::Tooling::CloneObject *	CreateCloneObjectOfTopPart ()
NXOpen::Tooling::CloneObject *	CreateCloneObjectOfWorkingPart ()
NXOpen::TaggedObject *	CreateMsetPart (NXOpen::Tooling::CloneObject *cloneObject)
void	CreateProject (NXOpen::Tooling::CloneObject *cloneObject)
NXOpen::TaggedObject *	CreateWorkingPart (NXOpen::Tooling::CloneObject cloneObject, NXOpen::TaggedObject msetPartTag)
NXOpen::TaggedObject *	CurrentMset ()
void	DisposeCloneObject (NXOpen::Tooling::CloneObject *cloneObject)
NXOpen::SelectFaceList *	FaceList ()
NXOpen::TaggedObject *	GetMsetPart (int listIndex)
NXOpen::TaggedObject *	GetWorkingPart (NXOpen::TaggedObject *msetPartTag)
void	InitalizeProjectParameter (NXOpen::NXObject *rootPartTag)
void	InitLinkObjects (NXOpen::TaggedObject *workingPartTag)
NXString	InputName ()
NXString	PathBrowser ()
void	RemoveSelectedMsetNode (NXOpen::TaggedObject *msetPartTag)
bool	Rename ()
void	SetActionType (NXOpen::Tooling::ElectrodeInitializationBuilder::Method actionType)
void	SetCloneMethod (int cloneMethod)
void	SetConfigurationData (const char configName, const char topPartName, const char msetPartName, const char workingPartName, const char *subdir, int cloneMethod)
void	SetConfigurationData (const NXString &configName, const NXString &topPartName, const NXString &msetPartName, const NXString &workingPartName, const NXString &subdir, int cloneMethod)
void	SetCurrentMset (NXOpen::TaggedObject *mset)
void	SetInputName (const char *inputName)
void	SetInputName (const NXString &inputName)
void	SetMsetCsysMatrixOrigin (const NXOpen::Matrix3x3 &matrix, const NXOpen::Point3d &origin)
void	SetMsetCsysOriginToFaceCenter ()
void	SetPathBrowser (const char *foldername)
void	SetPathBrowser (const NXString &foldername)
void	SetRename (bool rename)
NXOpen::SelectBody *	Workpiece ()
NXOpen::SelectBodyList *	WorkpieceList ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ElectrodeInitializationBuilderBuilder

详细描述

电极初始化构建器

电极初始化项目构建器，用于创建电极设计装配体。
要创建此类的新实例，请使用 NXOpen::Tooling::ElectrodeDesignCollection::CreateProjectBuilder
默认值。

属性	值
ActionType	原始
Rename	0

创建于 NX8.0.0。

成员枚举类型说明

◆ Method

enum NXOpen::Tooling::ElectrodeInitializationBuilder::Method

初始化类型：原始、无工作部件、无机床设置部件和无模板。

枚举值
MethodOriginal	原始
MethodNoWorkingPart	无工作部件
MethodNoMsetPart	无机床设置部件
MethodNoTemplate	无模板
MethodOnlyTopPart	仅顶部部件
MethodNumber	数量

◆ Type

enum NXOpen::Tooling::ElectrodeInitializationBuilder::Type

克隆电极装配体的成员，如顶部部件、机床设置部件和工作部件。

枚举值
TypeCloneTopPart	克隆顶部部件
TypeCloneMsetPart	克隆机床设置部件
TypeCloneWorkingPart	克隆工作部件

成员函数说明

◆ ActionType()

NXOpen::Tooling::ElectrodeInitializationBuilder::Method NXOpen::Tooling::ElectrodeInitializationBuilder::ActionType ( )

Returns the initialize method of initialize electrode project.
Created in NX11.0.1.

License requirements : None

◆ AnalyseInitProjectRegisterData()

std::vector< int > NXOpen::Tooling::ElectrodeInitializationBuilder::AnalyseInitProjectRegisterData ( int number )

Analyse the register data.

返回: Array of index map between action type to initialize method
Created in NX12.0.2.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

number Number of action type in register spreadsheet

◆ BuildMemberPartName()

NXString NXOpen::Tooling::ElectrodeInitializationBuilder::BuildMemberPartName ( NXOpen::Tooling::ElectrodeInitializationBuilder::Type type )

Builds the name of a part which is a member of an electrode assembly.
Created in NX11.0.2.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

type type

◆ CreateCloneObjectOfMsetPart()

NXOpen::Tooling::CloneObject * NXOpen::Tooling::ElectrodeInitializationBuilder::CreateCloneObjectOfMsetPart ( )

Creates clone object of machine set part.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ CreateCloneObjectOfTopPart()

NXOpen::Tooling::CloneObject * NXOpen::Tooling::ElectrodeInitializationBuilder::CreateCloneObjectOfTopPart ( )

Creates clone object of top part.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ CreateCloneObjectOfWorkingPart()

NXOpen::Tooling::CloneObject * NXOpen::Tooling::ElectrodeInitializationBuilder::CreateCloneObjectOfWorkingPart ( )

Creates clone object of working part.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ CreateMsetPart()

NXOpen::TaggedObject * NXOpen::Tooling::ElectrodeInitializationBuilder::CreateMsetPart ( NXOpen::Tooling::CloneObject * cloneObject )

Creates the mset part.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

cloneObject cloneobject

◆ CreateProject()

void NXOpen::Tooling::ElectrodeInitializationBuilder::CreateProject ( NXOpen::Tooling::CloneObject * cloneObject )

Creates the assembly structure of Electrode Wizard project.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

cloneObject cloneobject

◆ CreateWorkingPart()

NXOpen::TaggedObject * NXOpen::Tooling::ElectrodeInitializationBuilder::CreateWorkingPart	(	NXOpen::Tooling::CloneObject *	cloneObject,
		NXOpen::TaggedObject *	msetPartTag )

Creates the working part.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

cloneObject	cloneobject
msetPartTag	msetparttag

◆ CurrentMset()

NXOpen::TaggedObject * NXOpen::Tooling::ElectrodeInitializationBuilder::CurrentMset ( )

Returns the machine set part which is the working part.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ DisposeCloneObject()

void NXOpen::Tooling::ElectrodeInitializationBuilder::DisposeCloneObject ( NXOpen::Tooling::CloneObject * cloneObject )

Disposes the clone object.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

cloneObject cloneobject

◆ FaceList()

NXOpen::SelectFaceList * NXOpen::Tooling::ElectrodeInitializationBuilder::FaceList ( )

Returns the face whose center will be the origin of the machine set csys.

弃用: Deprecated in NX11.0.0. This functionality is no longer supported.

Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

Returns the face list whose center will be the origin of the machine set csys.
Created in NX11.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ GetMsetPart()

NXOpen::TaggedObject * NXOpen::Tooling::ElectrodeInitializationBuilder::GetMsetPart ( int listIndex )

Gets the machine set part in machine set tree list.
Created in NX11.0.2.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

listIndex index of machine set node in machine set tree list

◆ GetWorkingPart()

NXOpen::TaggedObject * NXOpen::Tooling::ElectrodeInitializationBuilder::GetWorkingPart ( NXOpen::TaggedObject * msetPartTag )

Gets the working part in mset.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

msetPartTag msetparttag

◆ InitalizeProjectParameter()

void NXOpen::Tooling::ElectrodeInitializationBuilder::InitalizeProjectParameter ( NXOpen::NXObject * rootPartTag )

Initialize the parameters of the project that need no machine set part.
Created in NX11.0.2.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

rootPartTag root part object

◆ InitLinkObjects()

void NXOpen::Tooling::ElectrodeInitializationBuilder::InitLinkObjects ( NXOpen::TaggedObject * workingPartTag )

Links the selected objects to the working component of Electrode assembly.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

workingPartTag workingparttag

◆ InputName()

NXString NXOpen::Tooling::ElectrodeInitializationBuilder::InputName ( )

Returns the input name as project name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ PathBrowser()

NXString NXOpen::Tooling::ElectrodeInitializationBuilder::PathBrowser ( )

Returns the path browser.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ RemoveSelectedMsetNode()

void NXOpen::Tooling::ElectrodeInitializationBuilder::RemoveSelectedMsetNode ( NXOpen::TaggedObject * msetPartTag )

Remove a selected machine set node.
Created in NX12.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

msetPartTag msetparttag

◆ Rename()

bool NXOpen::Tooling::ElectrodeInitializationBuilder::Rename ( )

Returns the component name can be defined in the part name management.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ SetActionType()

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetActionType ( NXOpen::Tooling::ElectrodeInitializationBuilder::Method actionType )

Sets the initialize method of initialize electrode project.
Created in NX11.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

actionType actiontype

◆ SetCloneMethod()

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetCloneMethod ( int cloneMethod )

Set clone method.
Created in NX11.0.2.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

cloneMethod clone method

◆ SetConfigurationData() [1/2]

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetConfigurationData	(	const char *	configName,
		const char *	topPartName,
		const char *	msetPartName,
		const char *	workingPartName,
		const char *	subdir,
		int	cloneMethod )

Sets details of the configuration data.
Created in NX11.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

configName	configuration name
topPartName	top part name
msetPartName	machine set part name
workingPartName	working part name
subdir	sub direction
cloneMethod	cloning method

◆ SetConfigurationData() [2/2]

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetConfigurationData	(	const NXString &	configName,
		const NXString &	topPartName,
		const NXString &	msetPartName,
		const NXString &	workingPartName,
		const NXString &	subdir,
		int	cloneMethod )

Sets details of the configuration data.
Created in NX11.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

configName	configuration name
topPartName	top part name
msetPartName	machine set part name
workingPartName	working part name
subdir	sub direction
cloneMethod	cloning method

◆ SetCurrentMset()

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetCurrentMset ( NXOpen::TaggedObject * mset )

Sets the machine set part which is the working part.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

mset	machine set part

◆ SetInputName() [1/2]

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetInputName ( const char * inputName )

Sets the input name as project name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

inputName inputname

◆ SetInputName() [2/2]

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetInputName ( const NXString & inputName )

Sets the input name as project name.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

inputName inputname

◆ SetMsetCsysMatrixOrigin()

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetMsetCsysMatrixOrigin	(	const NXOpen::Matrix3x3 &	matrix,
		const NXOpen::Point3d &	origin )

Sets csys matrix and origin.
Created in NX8.5.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

matrix	csys matrix
origin	csys origin

◆ SetMsetCsysOriginToFaceCenter()

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetMsetCsysOriginToFaceCenter ( )

Sets MSET CSYS origin to center of the selected faces.
Created in NX9.0.1.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

◆ SetPathBrowser() [1/2]

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetPathBrowser ( const char * foldername )

Sets the path browser.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

foldername foldername

◆ SetPathBrowser() [2/2]

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetPathBrowser ( const NXString & foldername )

Sets the path browser.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

foldername foldername

◆ SetRename()

void NXOpen::Tooling::ElectrodeInitializationBuilder::SetRename ( bool rename )

Sets the component name can be defined in the part name management.
Created in NX8.0.0.

License requirements : nx_electrode_wizard ("NX Electrode Wizard")

参数

rename rename

◆ Workpiece()

NXOpen::SelectBody * NXOpen::Tooling::ElectrodeInitializationBuilder::Workpiece ( )

Returns the utility to get the workpiece to create an electrode design project.
Created in NX8.0.0.

License requirements : None

◆ WorkpieceList()

NXOpen::SelectBodyList * NXOpen::Tooling::ElectrodeInitializationBuilder::WorkpieceList ( )

Returns the utility to get the workpiece list to create an electrode design project.
Created in NX8.5.3.

License requirements : None

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ Method

◆ Type

成员函数说明

◆ ActionType()

◆ AnalyseInitProjectRegisterData()

◆ BuildMemberPartName()

◆ CreateCloneObjectOfMsetPart()

◆ CreateCloneObjectOfTopPart()

◆ CreateCloneObjectOfWorkingPart()

◆ CreateMsetPart()

◆ CreateProject()

◆ CreateWorkingPart()

◆ CurrentMset()

◆ DisposeCloneObject()

◆ FaceList()

◆ GetMsetPart()

◆ GetWorkingPart()

◆ InitalizeProjectParameter()

◆ InitLinkObjects()

◆ InputName()

◆ PathBrowser()

◆ RemoveSelectedMsetNode()

◆ Rename()

◆ SetActionType()

◆ SetCloneMethod()

◆ SetConfigurationData() [1/2]

◆ SetConfigurationData() [2/2]

◆ SetCurrentMset()

◆ SetInputName() [1/2]

◆ SetInputName() [2/2]

◆ SetMsetCsysMatrixOrigin()

◆ SetMsetCsysOriginToFaceCenter()

◆ SetPathBrowser() [1/2]

◆ SetPathBrowser() [2/2]

◆ SetRename()

◆ Workpiece()

◆ WorkpieceList()
