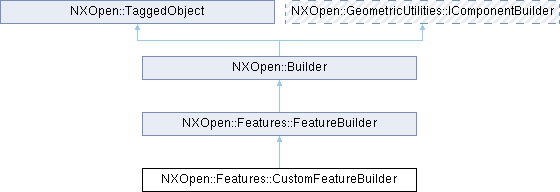

类 NXOpen::Features::CustomFeatureBuilder 继承关系图:

Public 成员函数
NXOpen::Features::CustomFeatureData *	FeatureData ()
void	SetFeatureData (NXOpen::Features::CustomFeatureData *data)
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_CustomFeatureBuilderBuilder

详细描述

自定义特征构建器

  表示@link Features::CustomFeature Features::CustomFeature@endlink 构建器
<br> 要创建此类的新实例，请使用@link NXOpen::Features::FeatureCollection::CreateCustomFeatureBuilder  NXOpen::Features::FeatureCollection::CreateCustomFeatureBuilder @endlink  <br>

于NX11.0.0版本创建。

成员函数说明

◆ FeatureData()

NXOpen::Features::CustomFeatureData * NXOpen::Features::CustomFeatureBuilder::FeatureData ( )

返回自定义特征数据
于NX11.0.0版本创建。

许可证要求：solid_modeling ("SOLIDS MODELING")

◆ SetFeatureData()

void NXOpen::Features::CustomFeatureBuilder::SetFeatureData ( NXOpen::Features::CustomFeatureData * data )

设置自定义特征数据
于NX11.0.0版本创建。

许可证要求：solid_modeling ("SOLIDS MODELING")

参数

data 数据
