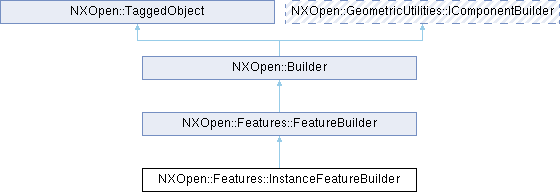

类 NXOpen::Features::InstanceFeatureBuilder 继承关系图:

Public 成员函数
NXOpen::GeometricUtilities::InstanceEditedExpressionsList *	EditedExpressionsList ()
NXOpen::GeometricUtilities::PatternClockingBuilder *	InstanceClocking ()
void	RemoveClocking ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_InstanceFeatureBuilderBuilder

详细描述

实例特征构建器

实例特征构造器
要创建此类的新实例，请使用 NXOpen::Features::FeatureCollection::CreateInstanceFeatureBuilder
默认值。

属性	值
InstanceClocking.Motion.DeltaEnum	ReferenceWcsWorkPart
InstanceClocking.Motion.DeltaXc.Value	0.0
InstanceClocking.Motion.DeltaYc.Value	0.0
InstanceClocking.Motion.DeltaZc.Value	0.0

创建于 NX8.0.0。

成员函数说明

NXOpen::GeometricUtilities::InstanceEditedExpressionsList * NXOpen::Features::InstanceFeatureBuilder::EditedExpressionsList ( )

返回已编辑表达式列表 NXOpen::GeometricUtilities::InstanceEditedExpressionsList 。
创建于 NX8.0.0。

许可证要求：无

NXOpen::GeometricUtilities::PatternClockingBuilder * NXOpen::Features::InstanceFeatureBuilder::InstanceClocking ( )

返回实例定序 NXOpen::GeometricUtilities::PatternClockingBuilder 。
创建于 NX8.0.0。

许可证要求：无

void NXOpen::Features::InstanceFeatureBuilder::RemoveClocking ( )

从 NXOpen::Features::InstanceFeature 移除定序（取消定序）。
创建于 NX8.0.0。

许可证要求：solid_modeling ("SOLIDS MODELING")
