布尔并运算构建器更多...

#include <Implicit_UniteBuilder.hxx>

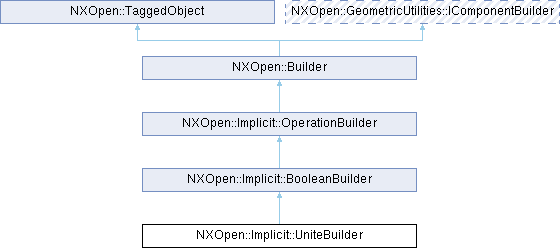

类 NXOpen::Implicit::UniteBuilder 继承关系图:

友元
class	_UniteBuilderBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::Implicit::BooleanBuilder
enum	BlendMethodType { BlendMethodTypeContinuous , BlendMethodTypeRound , BlendMethodTypeChamfer }
Public 成员函数继承自 NXOpen::Implicit::BooleanBuilder
int	BlendFactor ()
NXOpen::Implicit::BooleanBuilder::BlendMethodType	BlendMethod ()
double	ComputeBlendRegion ()
bool	KeepTarget ()
bool	KeepTool ()
	NX_DEPRECATED ("在NX1980.0.0中已弃用。请使用NXOpen::Implicit::BooleanBuilder::BlendFactor替代。任何大于0的值均表示需要创建混合。") void SetCreateBlends(bool createBlends)
	NX_DEPRECATED ("在NX1980.0.0中已弃用。请使用NXOpen::Implicit::BooleanBuilder::BlendFactor替代。若返回值大于0，则表示已创建混合。") bool CreateBlends()
void	SetBlendFactor (int blendFactor)
void	SetBlendMethod (NXOpen::Implicit::BooleanBuilder::BlendMethodType blendMethod)
void	SetKeepTarget (bool keepTarget)
void	SetKeepTool (bool keepTool)
NXOpen::ScCollector *	TargetBody ()
NXOpen::ScCollector *	ToolBody ()
Public 成员函数继承自 NXOpen::Implicit::OperationBuilder
bool	DisplayVoxel ()
	NX_DEPRECATED ("在NX1980.0.0中过时。请改用NXOpen::Implicit::OperationBuilder::VoxelSizePercent。") bool UpdateDefaultVoxelSizeBasedOnFirstOperation()
	NX_DEPRECATED ("在NX1980.0.0中过时。请改用NXOpen::Implicit::OperationBuilder::VoxelSizePercent。") void SetUpdateDefaultVoxelSizeBasedOnFirstOperation(bool updateVoxelSize)
void	SetDisplayVoxel (bool displayVoxelFlag)
void	SetSmoothness (double smoothness)
double	Smoothness ()
NXOpen::Expression *	VoxelSizeAbsolute ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

详细描述

布尔并运算构建器

表示Implicit.UniteBuilder。
它将对所选体创建合并操作。
 <br> 要创建此类的新实例，请使用 @link NXOpen::Implicit::ImplicitOperationCollection::CreateUniteBuilder1  NXOpen::Implicit::ImplicitOperationCollection::CreateUniteBuilder1 @endlink  <br>

默认值。

属性	值
BlendFactor	0
BlendMethod	Continuous
CreateBlends (已弃用)	false
KeepTarget	false
KeepTool	false

在NX1953.0.0中创建。
