NXOpen::SketchLinearDimensionBuilder类 参考

草图线性尺寸构建器 更多...

#include <SketchLinearDimensionBuilder.hxx>

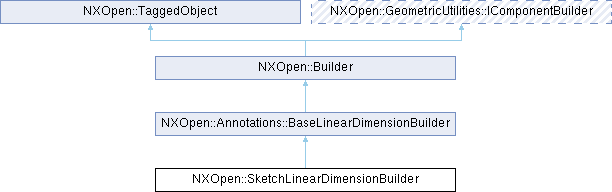

类 NXOpen::SketchLinearDimensionBuilder 继承关系图:

Public 成员函数
void	ConvertFromHalfDiameter (bool updateStyle)
void	ConvertToHalfDiameter (bool updateStyle)
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
Public 成员函数 继承自 NXOpen::Annotations::BaseLinearDimensionBuilder
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
NXOpen::Annotations::DimensionSetBuilder *	DimensionSet ()
NXOpen::SelectNXObject *	FirstAssociativity ()
NXOpen::Annotations::TextPlacement	GetNthSecondaryArrowheadOrientation (int nth)
NXOpen::Point3d	GetNthSecondaryOrigin (int nth)
std::vector< NXOpen::Annotations::Dimension * >	GetSecondaryCallouts ()
NXOpen::SelectDisplayableObject *	Inherit ()
bool	IsAutoplaced ()
NXOpen::Annotations::DimensionMeasurementBuilder *	Measurement ()
NXOpen::Annotations::Dimension::MeasurementTypes	MeasurementType ()
NXOpen::Annotations::OriginBuilder *	Origin ()
NXOpen::SelectNXObject *	SecondAssociativity ()
void	SetAutoplaced (bool isAutoplaced)
void	SetMeasurementType (NXOpen::Annotations::Dimension::MeasurementTypes measurementType)
void	SetNthSecondaryArrowheadOrientation (int nth, NXOpen::Annotations::TextPlacement secondaryArrowheadOrientation)
void	SetNthSecondaryOrigin (int nth, const NXOpen::Point3d &secondaryOrigin)
void	SetUseBaseline (bool useBaseline)
NXOpen::Annotations::StyleBuilder *	Style ()
bool	UseBaseline ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SketchLinearDimensionBuilderBuilder

详细描述

草图线性尺寸构建器

Represents a NXOpen::SketchLinearDimensionBuilder
To create a new instance of this class, use NXOpen::SketchCollection::CreateLinearDimensionBuilder

Created in NX9.0.0.

成员函数说明

ConvertFromHalfDiameter()

void NXOpen::SketchLinearDimensionBuilder::ConvertFromHalfDiameter

(

bool

updateStyle

)

Converts a half diameter or cylindrical dimension to a perpendicular dimension The dimension's value will become half the original value. The dimension will display as double-sided if updateStyle is true. This method should be followed by a subsequent call to NXOpen::Update::DoUpdate .
Created in NX2007.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR drafting ("DRAFTING")

参数

updateStyle

updatestyle

ConvertToHalfDiameter()

void NXOpen::SketchLinearDimensionBuilder::ConvertToHalfDiameter

(

bool

updateStyle

)

Converts a perpendicular dimension to a half diameter or cylindrical dimension The dimension's value will become double the original value. The dimension will display as single-sided if updateStyle is true. This method should be followed by a subsequent call to NXOpen::Update::DoUpdate .
Created in NX2007.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR drafting ("DRAFTING")

参数

updateStyle

updatestyle

Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::SketchLinearDimensionBuilder::Driving

(

)

Returns the driving value builder, which manages driving dimension values
Created in NX9.0.0.

License requirements : None
