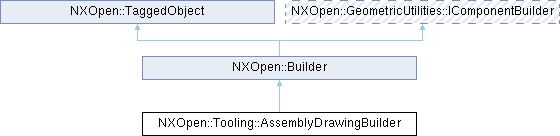

类 NXOpen::Tooling::AssemblyDrawingBuilder 继承关系图:

Public 类型
enum	AttributeNames { AttributeNamesMwSide , AttributeNamesMwComponentName }
enum	AttributeValues { AttributeValuesA , AttributeValuesB , AttributeValuesHide }
enum	BomListSortOption { BomListSortOptionUnsorted , BomListSortOptionAscending , BomListSortOptionDescending }
enum	BomListTypes { BomListTypesBomList , BomListTypesHideList }
enum	DrawingCreateOrEdit { DrawingCreateOrEditCreateNew , DrawingCreateOrEditSh1 }
enum	DrawingTypes { DrawingTypesMasterModel , DrawingTypesSelfContained }
enum	ModelViewToUseValue { ModelViewToUseValueTop , ModelViewToUseValueFront , ModelViewToUseValueRight , ModelViewToUseValueBack , ModelViewToUseValueBottom , ModelViewToUseValueLeft , ModelViewToUseValueIsometric , ModelViewToUseValueTrimetric }
enum	SheetsNum { SheetsNumOne , SheetsNumTwo , SheetsNumThree , SheetsNumFour }
enum	Types { TypesVisibility , TypesDrawing , TypesView }
enum	ViewOptionValue { ViewOptionValueDefaultView , ViewOptionValueBaseViewTool }

Public 成员函数
void	AddSectionView ()
void	AddView (NXOpen::NXObject viewTag, const char attrName, std::vector< NXString > &componentType)
void	AddView (NXOpen::NXObject *viewTag, const NXString &attrName, std::vector< NXString > &componentType)
void	AssignAttr (const std::vector< NXOpen::NXObject * > &selectdObjs, const char attrName, const char attrValue)
void	AssignAttr (const std::vector< NXOpen::NXObject * > &selectdObjs, const NXString &attrName, const NXString &attrValue)
NXOpen::Tooling::BomListDataProvider *	BomListDataProvider ()
NXString	BomTemplate ()
void	CreateDrawing (const char sheetName, const char templateName)
void	CreateDrawing (const char sheetName, const char templateName, int sheetsNumber)
void	CreateDrawing (const NXString &sheetName, const NXString &templateName)
void	CreateDrawing (const NXString &sheetName, const NXString &templateName, int sheetsNumber)
NXOpen::DisplayableObject *	CreatePartsList (const std::vector< int > &columnWidths, const NXOpen::Point3d &point)
void	CreateSectionView (const char viewName, NXOpen::NXObject parentView, const std::vector< double > &stepDirection, const std::vector< double > &arrowdirection, const std::vector< double > &pointX, const std::vector< double > &pointY, const std::vector< double > &pointZ, const std::vector< int > &segmentType, const char *attrName, std::vector< NXString > &attrValueList)
void	CreateSectionView (const NXString &viewName, NXOpen::NXObject *parentView, const std::vector< double > &stepDirection, const std::vector< double > &arrowdirection, const std::vector< double > &pointX, const std::vector< double > &pointY, const std::vector< double > &pointZ, const std::vector< int > &segmentType, const NXString &attrName, std::vector< NXString > &attrValueList)
void	CreateView (const char *viewName, double viewScale)
void	CreateView (const NXString &viewName, double viewScale)
NXOpen::NXObject *	CreateViewToShowComponents (const char *viewName)
NXOpen::NXObject *	CreateViewToShowComponents (const NXString &viewName)
bool	DeleteButtonClicked ()
void	DeleteSheet (const char *selectedSheetName)
void	DeleteSheet (const NXString &selectedSheetName)
void	DeleteView (const char *viewName)
void	DeleteView (const NXString &viewName)
double	DoubleViewScale ()
void	EditDrawing (const char sheetName, const char templateName)
void	EditDrawing (const NXString &sheetName, const NXString &templateName)
NXOpen::Tooling::AssemblyDrawingBuilder::AttributeNames	EnumAttributeName ()
NXOpen::Tooling::AssemblyDrawingBuilder::AttributeValues	EnumAttributeValue ()
NXOpen::Tooling::AssemblyDrawingBuilder::DrawingTypes	EnumDrawingType ()
NXOpen::Tooling::AssemblyDrawingBuilder::DrawingCreateOrEdit	EnumSheets ()
NXOpen::Tooling::AssemblyDrawingBuilder::ModelViewToUseValue	ModelViewToUse ()
NXString	NewArrangementName ()
void	NewMasterModelFile (const char *masterModelFileName)
void	NewMasterModelFile (const NXString &masterModelFileName)
void	OpenMasterModelFile (const char *masterModelFileName)
void	OpenMasterModelFile (const NXString &masterModelFileName)
void	PopulateBomListData ()
void	RetrieveSheet (const char *selectedSheetName)
void	RetrieveSheet (const NXString &selectedSheetName)
bool	ScaleModified ()
bool	SectionViewButtonClicked ()
NXString	SelectedArrangementName ()
void	SetBomTemplate (const char *bomTemplate)
void	SetBomTemplate (const NXString &bomTemplate)
void	SetDeleteButtonClicked (bool deleteButtonClicked)
void	SetDoubleViewScale (double doubleViewScale)
void	SetEnumAttributeName (NXOpen::Tooling::AssemblyDrawingBuilder::AttributeNames enumAttributeName)
void	SetEnumAttributeValue (NXOpen::Tooling::AssemblyDrawingBuilder::AttributeValues enumAttributeValue)
void	SetEnumDrawingType (NXOpen::Tooling::AssemblyDrawingBuilder::DrawingTypes enumDrawingType)
void	SetEnumSheets (NXOpen::Tooling::AssemblyDrawingBuilder::DrawingCreateOrEdit enumSheets)
void	SetModelViewToUse (NXOpen::Tooling::AssemblyDrawingBuilder::ModelViewToUseValue modelViewToUseValue)
void	SetNewArrangementName (const char *newArrangementrName)
void	SetNewArrangementName (const NXString &newArrangementrName)
void	SetScaleModified (bool scaleModified)
void	SetSectionViewButtonClicked (bool sectionViewButtonClicked)
void	SetSelectedArrangementName (const char *arrangementName)
void	SetSelectedArrangementName (const NXString &arrangementName)
void	SetSheetsNumber (NXOpen::Tooling::AssemblyDrawingBuilder::SheetsNum sheetsNumber)
void	SetStringFilterRule (const char *stringFilterRule)
void	SetStringFilterRule (const NXString &stringFilterRule)
void	SetStringNameRule (const char *stringNameRule)
void	SetStringNameRule (const NXString &stringNameRule)
void	SetStringSheetName (const char *stringSheetName)
void	SetStringSheetName (const NXString &stringSheetName)
void	SetTgShowA (bool tgShowA)
void	SetTgShowB (bool tgShowB)
void	SetTgShowC (bool tgShowC)
void	SetToggleBlankComponentsWithAttribute (bool toggleBlankComponentsWithAttribute)
void	SetToggleCreateFourSheets (bool createFourSheets)
void	SetToggleListDependents (bool toggleListDependents)
void	SetToggleShowOnly (bool showOnly)
void	SetType (NXOpen::Tooling::AssemblyDrawingBuilder::Types type)
void	SetViewLocation (NXOpen::Point *viewLocation)
void	SetViewOption (NXOpen::Tooling::AssemblyDrawingBuilder::ViewOptionValue viewOptionValue)
void	SetViewScale (double viewScale)
void	SetWizardType (int wizardType)
NXOpen::Tooling::AssemblyDrawingBuilder::SheetsNum	SheetsNumber ()
NXString	StringFilterRule ()
NXString	StringNameRule ()
NXString	StringSheetName ()
bool	TgShowA ()
bool	TgShowB ()
bool	TgShowC ()
bool	ToggleBlankComponentsWithAttribute ()
bool	ToggleCreateFourSheets ()
bool	ToggleListDependents ()
bool	ToggleShowOnly ()
NXOpen::Tooling::AssemblyDrawingBuilder::Types	Type ()
void	UnhighlightOccOfSelectedPartOccs (std::vector< NXString > &attributeNames, std::vector< NXString > &attributeValues, int indexAttributeName, int indexAttributeValue, NXOpen::NXObject *partOccTag, bool unhighlight)
void	UpdateEventForBlankComponetsWithAttributes (std::vector< NXString > &attributeNames, std::vector< NXString > &attributeValues, const std::vector< NXOpen::NXObject * > &allComps)
void	UpdateEventForShowOnly (std::vector< NXString > &attributeNames, std::vector< NXString > &attributeValues, const std::vector< NXOpen::NXObject * > &allComps)
void	UpdateEventForShowOnlyTrue (std::vector< NXString > &attributeNames, std::vector< NXString > &attributeValues, const std::vector< NXOpen::NXObject * > &allComps)
void	UseArrangement ()
NXOpen::Point *	ViewLocation ()
NXOpen::Tooling::AssemblyDrawingBuilder::ViewOptionValue	ViewOption ()
double	ViewScale ()
int	WizardType ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_AssemblyDrawingBuilderBuilder

详细描述

装配图纸构建器

  Represents a @link NXOpen::Tooling::AssemblyDrawingBuilder NXOpen::Tooling::AssemblyDrawingBuilder@endlink  which is
  used to create or edit the Assembly Drawing.
 <br> To create a new instance of this class, use @link NXOpen::Tooling::ToolingDrawingCollection::CreateAssemblyDrawingBuilder  NXOpen::Tooling::ToolingDrawingCollection::CreateAssemblyDrawingBuilder @endlink  <br>

Default values.

Property	Value
DoubleViewScale	1
EnumAttributeName	MwSide
EnumAttributeValue	A
EnumDrawingType	MasterModel
EnumSheets	CreateNew
ModelViewToUse	Top
SheetsNumber	One
TgShowA	0
TgShowB	0
TgShowC	0
ToggleBlankComponentsWithAttribute	0
ToggleCreateFourSheets	0
ToggleListDependents	0
ToggleShowOnly	0
ViewOption	DefaultView
ViewScale	1

Created in NX8.5.0.

成员枚举类型说明

◆ AttributeNames

enum NXOpen::Tooling::AssemblyDrawingBuilder::AttributeNames

Specifies the attribute name

枚举值
AttributeNamesMwSide	mw side
AttributeNamesMwComponentName	mw component name

◆ AttributeValues

enum NXOpen::Tooling::AssemblyDrawingBuilder::AttributeValues

Specifies the attribute value.

枚举值
AttributeValuesA	a
AttributeValuesB	b
AttributeValuesHide	hide

◆ BomListSortOption

enum NXOpen::Tooling::AssemblyDrawingBuilder::BomListSortOption

Represents an enumeration indicating whether the sorting needs to be performed in ascending or descending order.

枚举值
BomListSortOptionUnsorted	Unsorted
BomListSortOptionAscending	Ascending
BomListSortOptionDescending	Descending

◆ BomListTypes

enum NXOpen::Tooling::AssemblyDrawingBuilder::BomListTypes

Represents an index to components list type.

枚举值
BomListTypesBomList	A list includes components in BOM
BomListTypesHideList	A list includes hidden components

◆ DrawingCreateOrEdit

enum NXOpen::Tooling::AssemblyDrawingBuilder::DrawingCreateOrEdit

Specifies the sheet operation.

枚举值
DrawingCreateOrEditCreateNew	create new
DrawingCreateOrEditSh1	sh1

◆ DrawingTypes

enum NXOpen::Tooling::AssemblyDrawingBuilder::DrawingTypes

Specifies the drawing type.

枚举值
DrawingTypesMasterModel	master model
DrawingTypesSelfContained	self contained

◆ ModelViewToUseValue

enum NXOpen::Tooling::AssemblyDrawingBuilder::ModelViewToUseValue

Specifies the model view to use.

枚举值
ModelViewToUseValueTop	top
ModelViewToUseValueFront	front
ModelViewToUseValueRight	right
ModelViewToUseValueBack	back
ModelViewToUseValueBottom	bottom
ModelViewToUseValueLeft	left
ModelViewToUseValueIsometric	isometric
ModelViewToUseValueTrimetric	trimetric

◆ SheetsNum

enum NXOpen::Tooling::AssemblyDrawingBuilder::SheetsNum

The number of sheets.

枚举值
SheetsNumOne	one sheets
SheetsNumTwo	two sheets
SheetsNumThree	three sheets
SheetsNumFour	four sheets

◆ Types

enum NXOpen::Tooling::AssemblyDrawingBuilder::Types

Specifies the filter of assembly.

枚举值
TypesVisibility	visibility
TypesDrawing	drawing
TypesView	view

◆ ViewOptionValue

enum NXOpen::Tooling::AssemblyDrawingBuilder::ViewOptionValue

Specifies the view options.

枚举值
ViewOptionValueDefaultView	default view
ViewOptionValueBaseViewTool	base view tool

成员函数说明

◆ AddSectionView()

void NXOpen::Tooling::AssemblyDrawingBuilder::AddSectionView ( )

The option for add section view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

◆ AddView() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::AddView	(	NXOpen::NXObject *	viewTag,
		const char *	attrName,
		std::vector< NXString > &	componentType )

The option for add view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewTag	viewtag
attrName	attrname
componentType	componenttype

◆ AddView() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::AddView	(	NXOpen::NXObject *	viewTag,
		const NXString &	attrName,
		std::vector< NXString > &	componentType )

The option for add view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewTag	viewtag
attrName	attrname
componentType	componenttype

◆ AssignAttr() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::AssignAttr	(	const std::vector< NXOpen::NXObject * > &	selectdObjs,
		const char *	attrName,
		const char *	attrValue )

Assign attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectdObjs	selectdobjs
attrName	attrname
attrValue	attrvalue

◆ AssignAttr() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::AssignAttr	(	const std::vector< NXOpen::NXObject * > &	selectdObjs,
		const NXString &	attrName,
		const NXString &	attrValue )

Assign attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectdObjs	selectdobjs
attrName	attrname
attrValue	attrvalue

◆ BomListDataProvider()

NXOpen::Tooling::BomListDataProvider * NXOpen::Tooling::AssemblyDrawingBuilder::BomListDataProvider ( )

返回 BOM 的数据提供器
创建于 NX1926.0.0。

许可要求：无

◆ BomTemplate()

NXString NXOpen::Tooling::AssemblyDrawingBuilder::BomTemplate ( )

返回 BOM 的模板文件
创建于 NX1926.0.0。

许可要求：无

◆ CreateDrawing() [1/4]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateDrawing	(	const char *	sheetName,
		const char *	templateName )

Create drawing
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetName	sheetname
templateName	templatename

◆ CreateDrawing() [2/4]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateDrawing	(	const char *	sheetName,
		const char *	templateName,
		int	sheetsNumber )

使用指定的板料数量创建图纸
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetName	图纸名称
templateName	模板名称
sheetsNumber	板料数量

◆ CreateDrawing() [3/4]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateDrawing	(	const NXString &	sheetName,
		const NXString &	templateName )

Create drawing
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetName	sheetname
templateName	templatename

◆ CreateDrawing() [4/4]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateDrawing	(	const NXString &	sheetName,
		const NXString &	templateName,
		int	sheetsNumber )

使用指定的板料数量创建图纸
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetName	图纸名称
templateName	模板名称
sheetsNumber	板料数量

◆ CreatePartsList()

NXOpen::DisplayableObject * NXOpen::Tooling::AssemblyDrawingBuilder::CreatePartsList	(	const std::vector< int > &	columnWidths,
		const NXOpen::Point3d &	point )

Create parts list

返回: The created parts list.
Created in NX1953.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

columnWidths	The widths of each column.
point	The position of parts list.

◆ CreateSectionView() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateSectionView	(	const char *	viewName,
		NXOpen::NXObject *	parentView,
		const std::vector< double > &	stepDirection,
		const std::vector< double > &	arrowdirection,
		const std::vector< double > &	pointX,
		const std::vector< double > &	pointY,
		const std::vector< double > &	pointZ,
		const std::vector< int > &	segmentType,
		const char *	attrName,
		std::vector< NXString > &	attrValueList )

Create section view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName	viewname
parentView	parentview
stepDirection	stepdirection
arrowdirection	arrowdirection
pointX	pointx
pointY	pointy
pointZ	pointz
segmentType	segmenttype
attrName	attrname
attrValueList	attrvaluelist

◆ CreateSectionView() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateSectionView	(	const NXString &	viewName,
		NXOpen::NXObject *	parentView,
		const std::vector< double > &	stepDirection,
		const std::vector< double > &	arrowdirection,
		const std::vector< double > &	pointX,
		const std::vector< double > &	pointY,
		const std::vector< double > &	pointZ,
		const std::vector< int > &	segmentType,
		const NXString &	attrName,
		std::vector< NXString > &	attrValueList )

Create section view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName	viewname
parentView	parentview
stepDirection	stepdirection
arrowdirection	arrowdirection
pointX	pointx
pointY	pointy
pointZ	pointz
segmentType	segmenttype
attrName	attrname
attrValueList	attrvaluelist

◆ CreateView() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateView	(	const char *	viewName,
		double	viewScale )

Create view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName	viewname
viewScale	viewscale

◆ CreateView() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::CreateView	(	const NXString &	viewName,
		double	viewScale )

Create view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName	viewname
viewScale	viewscale

◆ CreateViewToShowComponents() [1/2]

NXOpen::NXObject * NXOpen::Tooling::AssemblyDrawingBuilder::CreateViewToShowComponents ( const char * viewName )

Create view to show components
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName viewname

◆ CreateViewToShowComponents() [2/2]

NXOpen::NXObject * NXOpen::Tooling::AssemblyDrawingBuilder::CreateViewToShowComponents ( const NXString & viewName )

Create view to show components
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName viewname

◆ DeleteButtonClicked()

bool NXOpen::Tooling::AssemblyDrawingBuilder::DeleteButtonClicked ( )

Returns the delete button clicked attribute
Created in NX8.5.0.

License requirements : None

◆ DeleteSheet() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::DeleteSheet ( const char * selectedSheetName )

删除图纸
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectedSheetName selectedsheetname

◆ DeleteSheet() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::DeleteSheet ( const NXString & selectedSheetName )

删除图纸
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectedSheetName selectedsheetname

◆ DeleteView() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::DeleteView ( const char * viewName )

Delete view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName viewname

◆ DeleteView() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::DeleteView ( const NXString & viewName )

Delete view
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewName viewname

◆ DoubleViewScale()

double NXOpen::Tooling::AssemblyDrawingBuilder::DoubleViewScale ( )

Returns a double view scale
Created in NX8.5.0.

License requirements : None

◆ EditDrawing() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::EditDrawing	(	const char *	sheetName,
		const char *	templateName )

Edit drawing
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetName	sheetname
templateName	templatename

◆ EditDrawing() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::EditDrawing	(	const NXString &	sheetName,
		const NXString &	templateName )

Edit drawing
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetName	sheetname
templateName	templatename

◆ EnumAttributeName()

NXOpen::Tooling::AssemblyDrawingBuilder::AttributeNames NXOpen::Tooling::AssemblyDrawingBuilder::EnumAttributeName ( )

Returns the option for select the attribute name
Created in NX8.5.0.

License requirements : None

◆ EnumAttributeValue()

NXOpen::Tooling::AssemblyDrawingBuilder::AttributeValues NXOpen::Tooling::AssemblyDrawingBuilder::EnumAttributeValue ( )

Returns the option for select the attribute value
Created in NX8.5.0.

License requirements : None

◆ EnumDrawingType()

NXOpen::Tooling::AssemblyDrawingBuilder::DrawingTypes NXOpen::Tooling::AssemblyDrawingBuilder::EnumDrawingType ( )

Returns the option for the assembly drawing operation
Created in NX8.5.0.

License requirements : None

◆ EnumSheets()

NXOpen::Tooling::AssemblyDrawingBuilder::DrawingCreateOrEdit NXOpen::Tooling::AssemblyDrawingBuilder::EnumSheets ( )

返回选择图纸的选项
创建于NX8.5.0。

许可要求：无

◆ ModelViewToUse()

NXOpen::Tooling::AssemblyDrawingBuilder::ModelViewToUseValue NXOpen::Tooling::AssemblyDrawingBuilder::ModelViewToUse ( )

Returns the option for model view to use
Created in NX8.5.0.

License requirements : None

◆ NewArrangementName()

NXString NXOpen::Tooling::AssemblyDrawingBuilder::NewArrangementName ( )

返回选定排列的新名称。
创建于 NX1926.0.0。

许可要求：无

◆ NewMasterModelFile() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::NewMasterModelFile ( const char * masterModelFileName )

Create a new master model file
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

masterModelFileName mastermodelfilename

◆ NewMasterModelFile() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::NewMasterModelFile ( const NXString & masterModelFileName )

Create a new master model file
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

masterModelFileName mastermodelfilename

◆ OpenMasterModelFile() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::OpenMasterModelFile ( const char * masterModelFileName )

打开主模型文件
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

masterModelFileName mastermodelfilename

◆ OpenMasterModelFile() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::OpenMasterModelFile ( const NXString & masterModelFileName )

Open the master model file
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

masterModelFileName mastermodelfilename

◆ PopulateBomListData()

void NXOpen::Tooling::AssemblyDrawingBuilder::PopulateBomListData ( )

根据当前模板填充 BOM 列表数据。
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 nx_electrode_wizard ("NX Electrode Wizard") 或 prog_die_wizard ("UG/Progressive Die Wizard")

◆ RetrieveSheet() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::RetrieveSheet ( const char * selectedSheetName )

Retrieve the sheet
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectedSheetName selectedsheetname

◆ RetrieveSheet() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::RetrieveSheet ( const NXString & selectedSheetName )

Retrieve the sheet
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectedSheetName selectedsheetname

◆ ScaleModified()

bool NXOpen::Tooling::AssemblyDrawingBuilder::ScaleModified ( )

Returns the scale modified attribute
Created in NX8.5.0.

License requirements : None

◆ SectionViewButtonClicked()

bool NXOpen::Tooling::AssemblyDrawingBuilder::SectionViewButtonClicked ( )

Returns the section view button clicked attribute
Created in NX8.5.0.

License requirements : None

◆ SelectedArrangementName()

NXString NXOpen::Tooling::AssemblyDrawingBuilder::SelectedArrangementName ( )

返回选定转换排列的名称。
创建于 NX1926.0.0。

许可要求：无

◆ SetBomTemplate() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetBomTemplate ( const char * bomTemplate )

设置 BOM 的模板文件
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 nx_electrode_wizard ("NX Electrode Wizard") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

bomTemplate BOM 模板

◆ SetBomTemplate() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetBomTemplate ( const NXString & bomTemplate )

设置 BOM 的模板文件
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 nx_electrode_wizard ("NX Electrode Wizard") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

bomTemplate BOM 模板

◆ SetDeleteButtonClicked()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetDeleteButtonClicked ( bool deleteButtonClicked )

Sets the delete button clicked attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

deleteButtonClicked deletebuttonclicked

◆ SetDoubleViewScale()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetDoubleViewScale ( double doubleViewScale )

Sets a double view scale
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

doubleViewScale doubleviewscale

◆ SetEnumAttributeName()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetEnumAttributeName ( NXOpen::Tooling::AssemblyDrawingBuilder::AttributeNames enumAttributeName )

Sets the option for select the attribute name
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

enumAttributeName enumattributename

◆ SetEnumAttributeValue()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetEnumAttributeValue ( NXOpen::Tooling::AssemblyDrawingBuilder::AttributeValues enumAttributeValue )

Sets the option for select the attribute value
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

enumAttributeValue enumattributevalue

◆ SetEnumDrawingType()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetEnumDrawingType ( NXOpen::Tooling::AssemblyDrawingBuilder::DrawingTypes enumDrawingType )

Sets the option for the assembly drawing operation
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

enumDrawingType enumdrawingtype

◆ SetEnumSheets()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetEnumSheets ( NXOpen::Tooling::AssemblyDrawingBuilder::DrawingCreateOrEdit enumSheets )

设置选择图纸的选项
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

enumSheets enumsheets

◆ SetModelViewToUse()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetModelViewToUse ( NXOpen::Tooling::AssemblyDrawingBuilder::ModelViewToUseValue modelViewToUseValue )

Sets the option for model view to use
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

modelViewToUseValue modelviewtousevalue

◆ SetNewArrangementName() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetNewArrangementName ( const char * newArrangementrName )

设置选定排列的新名称。
创建于 NX1926.0.0。

许可要求：无

参数

newArrangementrName 新排列名称

◆ SetNewArrangementName() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetNewArrangementName ( const NXString & newArrangementrName )

设置选定排列的新名称。
创建于 NX1926.0.0。

许可要求：无

参数

newArrangementrName 新排列名称

◆ SetScaleModified()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetScaleModified ( bool scaleModified )

Sets the scale modified attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

scaleModified scalemodified

◆ SetSectionViewButtonClicked()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetSectionViewButtonClicked ( bool sectionViewButtonClicked )

Sets the section view button clicked attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

sectionViewButtonClicked sectionviewbuttonclicked

◆ SetSelectedArrangementName() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetSelectedArrangementName ( const char * arrangementName )

设置选定转换排列的名称。
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 nx_electrode_wizard ("NX Electrode Wizard") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

arrangementName 排列名称

◆ SetSelectedArrangementName() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetSelectedArrangementName ( const NXString & arrangementName )

设置选定转换排列的名称。
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 nx_electrode_wizard ("NX Electrode Wizard") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

arrangementName 排列名称

◆ SetSheetsNumber()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetSheetsNumber ( NXOpen::Tooling::AssemblyDrawingBuilder::SheetsNum sheetsNumber )

设置板料数量
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

sheetsNumber 板料数量

◆ SetStringFilterRule() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetStringFilterRule ( const char * stringFilterRule )

设置过滤规则
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

stringFilterRule stringfilterrule

◆ SetStringFilterRule() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetStringFilterRule ( const NXString & stringFilterRule )

设置过滤规则
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

stringFilterRule stringfilterrule

◆ SetStringNameRule() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetStringNameRule ( const char * stringNameRule )

设置字符串名称规则
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

stringNameRule stringnamerule

◆ SetStringNameRule() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetStringNameRule ( const NXString & stringNameRule )

设置字符串名称规则
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

stringNameRule stringnamerule

◆ SetStringSheetName() [1/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetStringSheetName ( const char * stringSheetName )

设置图纸名称
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

stringSheetName stringsheetname

◆ SetStringSheetName() [2/2]

void NXOpen::Tooling::AssemblyDrawingBuilder::SetStringSheetName ( const NXString & stringSheetName )

设置图纸名称
创建于NX8.5.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

参数

stringSheetName stringsheetname

◆ SetTgShowA()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetTgShowA ( bool tgShowA )

Sets the A attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

tgShowA tgshowa

◆ SetTgShowB()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetTgShowB ( bool tgShowB )

Sets the B attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

tgShowB tgshowb

◆ SetTgShowC()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetTgShowC ( bool tgShowC )

Sets the C attribute
Created in NX1926.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

tgShowC tgshowc

◆ SetToggleBlankComponentsWithAttribute()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetToggleBlankComponentsWithAttribute ( bool toggleBlankComponentsWithAttribute )

Sets the blank components with attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

toggleBlankComponentsWithAttribute toggleblankcomponentswithattribute

◆ SetToggleCreateFourSheets()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetToggleCreateFourSheets ( bool createFourSheets )

Sets the only show components with attribute toggle
Created in NX1926.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

createFourSheets createfoursheets

◆ SetToggleListDependents()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetToggleListDependents ( bool toggleListDependents )

Sets the List dependents
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

toggleListDependents togglelistdependents

◆ SetToggleShowOnly()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetToggleShowOnly ( bool showOnly )

Sets the only show components with attribute toggle
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

showOnly showonly

◆ SetType()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetType ( NXOpen::Tooling::AssemblyDrawingBuilder::Types type )

Sets the option for the Assembly drawing operation
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

type type

◆ SetViewLocation()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetViewLocation ( NXOpen::Point * viewLocation )

Sets the view location
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewLocation viewlocation

◆ SetViewOption()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetViewOption ( NXOpen::Tooling::AssemblyDrawingBuilder::ViewOptionValue viewOptionValue )

Sets the option for view tools
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewOptionValue viewoptionvalue

◆ SetViewScale()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetViewScale ( double viewScale )

Sets a view scale for create views automatically
Created in NX1926.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

viewScale viewscale

◆ SetWizardType()

void NXOpen::Tooling::AssemblyDrawingBuilder::SetWizardType ( int wizardType )

Sets the wizard type attribute
Created in NX8.5.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

wizardType wizardtype

◆ SheetsNumber()

NXOpen::Tooling::AssemblyDrawingBuilder::SheetsNum NXOpen::Tooling::AssemblyDrawingBuilder::SheetsNumber ( )

Returns the sheets number
Created in NX1926.0.0.

License requirements : None

◆ StringFilterRule()

NXString NXOpen::Tooling::AssemblyDrawingBuilder::StringFilterRule ( )

返回过滤规则
创建于NX8.5.0。

许可要求：无

◆ StringNameRule()

NXString NXOpen::Tooling::AssemblyDrawingBuilder::StringNameRule ( )

返回字符串名称规则
创建于NX8.5.0。

许可要求：无

◆ StringSheetName()

NXString NXOpen::Tooling::AssemblyDrawingBuilder::StringSheetName ( )

返回图纸名称
创建于NX8.5.0。

许可要求：无

◆ TgShowA()

bool NXOpen::Tooling::AssemblyDrawingBuilder::TgShowA ( )

Returns the A attribute
Created in NX8.5.0.

License requirements : None

◆ TgShowB()

bool NXOpen::Tooling::AssemblyDrawingBuilder::TgShowB ( )

Returns the B attribute
Created in NX8.5.0.

License requirements : None

◆ TgShowC()

bool NXOpen::Tooling::AssemblyDrawingBuilder::TgShowC ( )

Returns the C attribute
Created in NX1926.0.0.

License requirements : None

◆ ToggleBlankComponentsWithAttribute()

bool NXOpen::Tooling::AssemblyDrawingBuilder::ToggleBlankComponentsWithAttribute ( )

Returns the blank components with attribute
Created in NX8.5.0.

License requirements : None

◆ ToggleCreateFourSheets()

bool NXOpen::Tooling::AssemblyDrawingBuilder::ToggleCreateFourSheets ( )

Returns the only show components with attribute toggle
Created in NX1926.0.0.

License requirements : None

◆ ToggleListDependents()

bool NXOpen::Tooling::AssemblyDrawingBuilder::ToggleListDependents ( )

返回依赖项列表
创建于NX8.5.0。

许可要求：无

◆ ToggleShowOnly()

bool NXOpen::Tooling::AssemblyDrawingBuilder::ToggleShowOnly ( )

Returns the only show components with attribute toggle
Created in NX8.5.0.

License requirements : None

◆ Type()

NXOpen::Tooling::AssemblyDrawingBuilder::Types NXOpen::Tooling::AssemblyDrawingBuilder::Type ( )

Returns the option for the Assembly drawing operation
Created in NX8.5.0.

License requirements : None

◆ UnhighlightOccOfSelectedPartOccs()

void NXOpen::Tooling::AssemblyDrawingBuilder::UnhighlightOccOfSelectedPartOccs	(	std::vector< NXString > &	attributeNames,
		std::vector< NXString > &	attributeValues,
		int	indexAttributeName,
		int	indexAttributeValue,
		NXOpen::NXObject *	partOccTag,
		bool	unhighlight )

Update event for unhighlight occurrence o fselected part occurrences
Created in NX1847.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

attributeNames	attributenames
attributeValues	attributevalues
indexAttributeName	indexattributename
indexAttributeValue	indexattributevalue
partOccTag	partocctag
unhighlight	unhighlight

◆ UpdateEventForBlankComponetsWithAttributes()

void NXOpen::Tooling::AssemblyDrawingBuilder::UpdateEventForBlankComponetsWithAttributes	(	std::vector< NXString > &	attributeNames,
		std::vector< NXString > &	attributeValues,
		const std::vector< NXOpen::NXObject * > &	allComps )

Update event for blank componets with attributes
Created in NX1847.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

attributeNames	attributenames
attributeValues	attributevalues
allComps	all comps

◆ UpdateEventForShowOnly()

void NXOpen::Tooling::AssemblyDrawingBuilder::UpdateEventForShowOnly	(	std::vector< NXString > &	attributeNames,
		std::vector< NXString > &	attributeValues,
		const std::vector< NXOpen::NXObject * > &	allComps )

Update event for show only
Created in NX1847.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

attributeNames	attributenames
attributeValues	attributevalues
allComps	all comps

◆ UpdateEventForShowOnlyTrue()

void NXOpen::Tooling::AssemblyDrawingBuilder::UpdateEventForShowOnlyTrue	(	std::vector< NXString > &	attributeNames,
		std::vector< NXString > &	attributeValues,
		const std::vector< NXOpen::NXObject * > &	allComps )

Update event for show only true
Created in NX1847.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

attributeNames	attributenames
attributeValues	attributevalues
allComps	all comps

◆ UseArrangement()

void NXOpen::Tooling::AssemblyDrawingBuilder::UseArrangement ( )

将选定的排列设置为当前使用的排列。
创建于 NX1926.0.0。

许可要求：ug_mold_design ("UG MOLD") 或 prog_die_wizard ("UG/Progressive Die Wizard")

◆ ViewLocation()

NXOpen::Point * NXOpen::Tooling::AssemblyDrawingBuilder::ViewLocation ( )

Returns the view location
Created in NX8.5.0.

License requirements : None

◆ ViewOption()

NXOpen::Tooling::AssemblyDrawingBuilder::ViewOptionValue NXOpen::Tooling::AssemblyDrawingBuilder::ViewOption ( )

Returns the option for view tools
Created in NX8.5.0.

License requirements : None

◆ ViewScale()

double NXOpen::Tooling::AssemblyDrawingBuilder::ViewScale ( )

Returns a view scale for create views automatically
Created in NX1926.0.0.

License requirements : None

◆ WizardType()

int NXOpen::Tooling::AssemblyDrawingBuilder::WizardType ( )

Returns the wizard type attribute
Created in NX8.5.0.

License requirements : None

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ AttributeNames

◆ AttributeValues

◆ BomListSortOption

◆ BomListTypes

◆ DrawingCreateOrEdit

◆ DrawingTypes

◆ ModelViewToUseValue

◆ SheetsNum

◆ Types

◆ ViewOptionValue

成员函数说明

◆ AddSectionView()

◆ AddView() [1/2]

◆ AddView() [2/2]

◆ AssignAttr() [1/2]

◆ AssignAttr() [2/2]

◆ BomListDataProvider()

◆ BomTemplate()

◆ CreateDrawing() [1/4]

◆ CreateDrawing() [2/4]

◆ CreateDrawing() [3/4]

◆ CreateDrawing() [4/4]

◆ CreatePartsList()

◆ CreateSectionView() [1/2]

◆ CreateSectionView() [2/2]

◆ CreateView() [1/2]

◆ CreateView() [2/2]

◆ CreateViewToShowComponents() [1/2]

◆ CreateViewToShowComponents() [2/2]

◆ DeleteButtonClicked()

◆ DeleteSheet() [1/2]

◆ DeleteSheet() [2/2]

◆ DeleteView() [1/2]

◆ DeleteView() [2/2]

◆ DoubleViewScale()

◆ EditDrawing() [1/2]

◆ EditDrawing() [2/2]

◆ EnumAttributeName()

◆ EnumAttributeValue()

◆ EnumDrawingType()

◆ EnumSheets()

◆ ModelViewToUse()

◆ NewArrangementName()

◆ NewMasterModelFile() [1/2]

◆ NewMasterModelFile() [2/2]

◆ OpenMasterModelFile() [1/2]

◆ OpenMasterModelFile() [2/2]

◆ PopulateBomListData()

◆ RetrieveSheet() [1/2]

◆ RetrieveSheet() [2/2]

◆ ScaleModified()

◆ SectionViewButtonClicked()

◆ SelectedArrangementName()

◆ SetBomTemplate() [1/2]

◆ SetBomTemplate() [2/2]

◆ SetDeleteButtonClicked()

◆ SetDoubleViewScale()

◆ SetEnumAttributeName()

◆ SetEnumAttributeValue()

◆ SetEnumDrawingType()

◆ SetEnumSheets()

◆ SetModelViewToUse()

◆ SetNewArrangementName() [1/2]

◆ SetNewArrangementName() [2/2]

◆ SetScaleModified()

◆ SetSectionViewButtonClicked()

◆ SetSelectedArrangementName() [1/2]

◆ SetSelectedArrangementName() [2/2]

◆ SetSheetsNumber()

◆ SetStringFilterRule() [1/2]

◆ SetStringFilterRule() [2/2]

◆ SetStringNameRule() [1/2]

◆ SetStringNameRule() [2/2]

◆ SetStringSheetName() [1/2]

◆ SetStringSheetName() [2/2]
