草图投影构建器 更多...
#include <SketchProjectBuilder.hxx>
Public 类型 | |
| enum | OutputCurve { OutputCurveOriginal , OutputCurveSplineSegment , OutputCurveSingleSpline } |
Public 成员函数 | |
| bool | Associativity () |
| NXOpen::SelectNXObjectList * | CurveList () |
| NXOpen::SketchProjectBuilder::OutputCurve | CurveType () |
| bool | ProjectAsDumbFixedCurves () |
| NXOpen::Section * | Section () |
| void | SetAssociativity (bool associativity) |
| void | SetCurveType (NXOpen::SketchProjectBuilder::OutputCurve curveType) |
| void | SetProjectAsDumbFixedCurves (bool projectAsDumbFixed) |
| void | SetTolerance (double tolerance) |
| double | Tolerance () |
| Public 成员函数 继承自 NXOpen::Features::EmbeddedOperationBuilder | |
| NXOpen::Features::Feature * | CommitOperation () |
| NXOpen::Features::Feature * | GetOperation () |
| Public 成员函数 继承自 NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| void | Destroy () |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| NXOpen::NXObject * | GetObject () |
| NXOpen::PreviewBuilder * | PreviewBuilder () |
| void | ShowResults () |
| virtual bool | Validate () |
| Public 成员函数 继承自 NXOpen::TaggedObject | |
| tag_t | Tag () const |
友元 | |
| class | _SketchProjectBuilderBuilder |

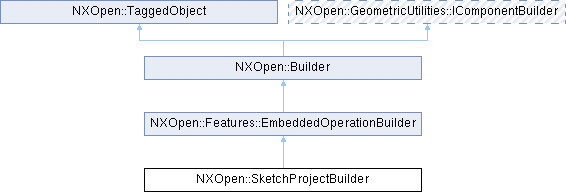

详细描述
草图投影构建器
Represents a SketchProjectBuilder builder
To create a new instance of this class, use SketchCollection::CreateProjectBuilder
Default values.
| Property | Value |
|---|---|
| Associativity | True |
| CurveType | Original |
Created in NX5.0.0.
成员枚举类型说明
◆ OutputCurve
成员函数说明
◆ Associativity()
| bool NXOpen::SketchProjectBuilder::Associativity | ( | ) |
Returns the associativity of projection. If this variable is turned on, the output curves will always depend on the input curves. So that when the input curves change, the output curves will change accordingly. If this variable is set to false, the output curves derive their shape from current stage of the input curves and then become independent of the input curves. In drafting mode, one can not project curves in associative manner. Also if the curves belong to multiple parts, they can not be projected in associative manner.
Created in NX5.0.0.
License requirements : None
◆ CurveList()
| NXOpen::SelectNXObjectList * NXOpen::SketchProjectBuilder::CurveList | ( | ) |
Returns the curve list. The curves to project should be added to this list only if they belong to multiple parts and they are to be projected in non associative manner. All the curves to be projected should either go to the section or the curve list depending on their owning parts.
Created in NX5.0.0.
License requirements : None
◆ CurveType()
| NXOpen::SketchProjectBuilder::OutputCurve NXOpen::SketchProjectBuilder::CurveType | ( | ) |
Returns the output curve type generated by the projection. Depending on this value, the projected curve can have the same geometry as the input curves or it can be a single spline curve or a set of splines.
Created in NX5.0.0.
License requirements : None
◆ ProjectAsDumbFixedCurves()
| bool NXOpen::SketchProjectBuilder::ProjectAsDumbFixedCurves | ( | ) |
Returns the flag to indicate if the projection output needs to be converted to dumb fully fixed curves in the sketch. This flag overrides the associativity flag i.e. if both projectAsDumbFixed and associativity are set to true, the result will be dumb fixed curves and not an associative projection.
Created in NX7.5.0.
License requirements : solid_modeling ("SOLIDS MODELING") OR geometric_tol ("GDT")
◆ Section()
| NXOpen::Section * NXOpen::SketchProjectBuilder::Section | ( | ) |
Returns the section. The curves to project should be added to the section if they do not belong to multiple parts. All the curves to be projected should either go to the section or the curve list depending on their owning parts.
Created in NX5.0.0.
License requirements : None
◆ SetAssociativity()
| void NXOpen::SketchProjectBuilder::SetAssociativity | ( | bool | associativity | ) |
Sets the associativity of projection. If this variable is turned on, the output curves will always depend on the input curves. So that when the input curves change, the output curves will change accordingly. If this variable is set to false, the output curves derive their shape from current stage of the input curves and then become independent of the input curves. In drafting mode, one can not project curves in associative manner. Also if the curves belong to multiple parts, they can not be projected in associative manner.
Created in NX5.0.0.
License requirements : solid_modeling ("SOLIDS MODELING") OR geometric_tol ("GDT")
- 参数
-
associativity associativity
◆ SetCurveType()
| void NXOpen::SketchProjectBuilder::SetCurveType | ( | NXOpen::SketchProjectBuilder::OutputCurve | curveType | ) |
Sets the output curve type generated by the projection. Depending on this value, the projected curve can have the same geometry as the input curves or it can be a single spline curve or a set of splines.
Created in NX5.0.0.
License requirements : solid_modeling ("SOLIDS MODELING") OR geometric_tol ("GDT")
- 参数
-
curveType curve type
◆ SetProjectAsDumbFixedCurves()
| void NXOpen::SketchProjectBuilder::SetProjectAsDumbFixedCurves | ( | bool | projectAsDumbFixed | ) |
Sets the flag to indicate if the projection output needs to be converted to dumb fully fixed curves in the sketch. This flag overrides the associativity flag i.e. if both projectAsDumbFixed and associativity are set to true, the result will be dumb fixed curves and not an associative projection.
Created in NX7.5.0.
License requirements : solid_modeling ("SOLIDS MODELING") OR geometric_tol ("GDT")
- 参数
-
projectAsDumbFixed projectasdumbfixed
◆ SetTolerance()
| void NXOpen::SketchProjectBuilder::SetTolerance | ( | double | tolerance | ) |
Sets the tolerance value used for the projection. The same value is used for the tolerances related to the section.
Created in NX5.0.0.
License requirements : solid_modeling ("SOLIDS MODELING") OR geometric_tol ("GDT")
- 参数
-
tolerance tolerance
◆ Tolerance()
| double NXOpen::SketchProjectBuilder::Tolerance | ( | ) |
Returns the tolerance value used for the projection. The same value is used for the tolerances related to the section.
Created in NX5.0.0.
License requirements : None
