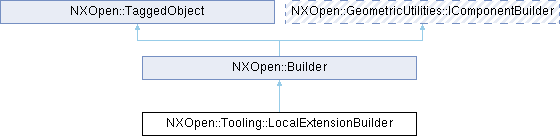

类 NXOpen::Tooling::LocalExtensionBuilder 继承关系图:

Public 类型
enum	BodyType { BodyTypeSolid , BodyTypeSheet }
enum	ConvertTypeOption { ConvertTypeOptionWithCopies , ConvertTypeOptionNoCopies }
enum	FaceSerialNumber { FaceSerialNumberBothFaces , FaceSerialNumberFirstFace , FaceSerialNumberSecondFace }

Public 成员函数
int	AdjustPointPosition (NXOpen::Point3d *adjustedPoint)
NXOpen::Vector3d	AskZDirectionOfCurrentCSYS ()
bool	AsPatchSurface ()
NXOpen::NXColor *	BodyColor ()
NXOpen::Tooling::LocalExtensionBuilder::ConvertTypeOption	ConvertType ()
void	CreateDeleteFaceFeature ()
void	CreateExtendSheetFeature (NXOpen::Tooling::LocalExtensionBuilder::FaceSerialNumber serialNumberOfFace)
void	CreateFeaturesOnSheetTypeSelected ()
void	CreateOffsetRegionFeature (NXOpen::Tooling::LocalExtensionBuilder::FaceSerialNumber serialNumberOfFace)
int	CreateReplaceFace (NXOpen::NXObject *replacementFace)
void	CreateTwoPointLine ()
NXOpen::NXObject *	DeleteFaceFeature ()
void	DeleteFeature (NXOpen::NXObject *featureTag)
void	DeleteFeatureOnSolidTypeSelected ()
void	DeleteFeaturesOnSheetTypeSelected ()
NXOpen::Point3d	DiscardRegionPoint ()
void	EditOffsetValueOfReplaceFeature (NXOpen::NXObject *featureTag, double offsetValue)
NXOpen::Point *	EndPoint ()
NXOpen::NXObject *	ExtrudeBody ()
std::vector< NXOpen::NXObject * >	FindEdgesIntersectBodyFaces (const std::vector< NXOpen::NXObject * > &loopEdges)
std::vector< NXOpen::NXObject * >	FindFaceLoopEdges (const std::vector< NXOpen::NXObject * > &faces)
NXOpen::NXObject *	FirstExtendSheetFeature ()
NXOpen::Expression *	FirstOffsetDistance ()
NXOpen::NXObject *	FirstOffsetFace ()
NXOpen::NXObject *	FirstOffsetFeature ()
NXOpen::NXObject *	FirstReplaceFeature ()
int	GetNewCavityAndCorePartingProcessStatus ()
NXOpen::Expression *	InitialThickness ()
NXOpen::NXObject *	Line ()
bool	OptimizeFace ()
void	RecreateReplaceFaceFeature ()
NXOpen::Tooling::LocalExtensionBuilder::BodyType	ResultBodyType ()
NXOpen::NXObject *	SecondExtendSheetFeature ()
NXOpen::Expression *	SecondOffsetDistance ()
NXOpen::NXObject *	SecondOffsetFace ()
NXOpen::NXObject *	SecondOffsetFeature ()
NXOpen::NXObject *	SecondReplaceFeature ()
NXOpen::SelectTaggedObjectList *	SelectBoundary ()
NXOpen::ScCollector *	SelectFace ()
void	SetAsPatchSurface (bool asPatchSurface)
void	SetBodyColor (NXOpen::NXColor *patchColor)
void	SetConvertType (NXOpen::Tooling::LocalExtensionBuilder::ConvertTypeOption convertType)
void	SetDeleteFaceFeature (NXOpen::NXObject *deleteFaceFeature)
void	SetDiscardRegionPoint (const NXOpen::Point3d &regionPointOrigin)
void	SetEndPoint (NXOpen::Point *endPoint)
void	SetExtrudeBody (NXOpen::NXObject *extrudeBodyTag)
void	SetFirstExtendSheetFeature (NXOpen::NXObject *firstExtendSheetFeature)
void	SetFirstOffsetFace (NXOpen::NXObject *firstOffsetFace)
void	SetFirstOffsetFeature (NXOpen::NXObject *firstOffsetFeature)
void	SetFirstReplaceFeature (NXOpen::NXObject *firstReplaceFeature)
void	SetLine (NXOpen::NXObject *lineTag)
void	SetOptimizeFace (bool optimizeFaceOption)
void	SetResultBodyType (NXOpen::Tooling::LocalExtensionBuilder::BodyType type)
void	SetSecondExtendSheetFeature (NXOpen::NXObject *secondExtendSheetFeature)
void	SetSecondOffsetFace (NXOpen::NXObject *secondOffsetFace)
void	SetSecondOffsetFeature (NXOpen::NXObject *secondOffsetFeature)
void	SetSecondReplaceFeature (NXOpen::NXObject *secondReplaceFeature)
void	SetStartPoint (NXOpen::Point *startPoint)
void	SetTrimSheetFeature (NXOpen::NXObject *trimSheetFeature)
NXOpen::Point *	StartPoint ()
NXOpen::NXObject *	TrimSheetFeature ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_LocalExtensionBuilderBuilder

详细描述

局部延伸构建器

Represents a NXOpen::Tooling::LocalExtensionBuilder builder.
To create a new instance of this class, use NXOpen::Tooling::MoldwizardManager::CreateLocalExtensionBuilder

Created in NX2312.0.0.

成员枚举类型说明

◆ BodyType

enum NXOpen::Tooling::LocalExtensionBuilder::BodyType

Represents the body type to create local extension.

枚举值
BodyTypeSolid	Create solid body type
BodyTypeSheet	Create sheet body type

◆ ConvertTypeOption

enum NXOpen::Tooling::LocalExtensionBuilder::ConvertTypeOption

The option to convert to have copies or no copies for all created sheets.

枚举值
ConvertTypeOptionWithCopies	with copies for all created sheets
ConvertTypeOptionNoCopies	without copies for all created sheets

◆ FaceSerialNumber

enum NXOpen::Tooling::LocalExtensionBuilder::FaceSerialNumber

Represents the face serial number to create local extension.

枚举值
FaceSerialNumberBothFaces	both first and second faces
FaceSerialNumberFirstFace	first face
FaceSerialNumberSecondFace	second face

成员函数说明

◆ AdjustPointPosition()

int NXOpen::Tooling::LocalExtensionBuilder::AdjustPointPosition ( NXOpen::Point3d * adjustedPoint )

Adjust two point position in same height.

返回: if point type is 0, adjust start point, 1 adjust end point, -1 not adjust
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

adjustedPoint The point coordinates after adjust

◆ AskZDirectionOfCurrentCSYS()

NXOpen::Vector3d NXOpen::Tooling::LocalExtensionBuilder::AskZDirectionOfCurrentCSYS ( )

获取当前坐标系的 Z 方向。

返回: 当前坐标系的 Z 方向
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ AsPatchSurface()

bool NXOpen::Tooling::LocalExtensionBuilder::AsPatchSurface ( )

返回是否将结果区域设置为补丁面的选项值。
创建于 NX2312.0.0。

许可要求：无

◆ BodyColor()

NXOpen::NXColor * NXOpen::Tooling::LocalExtensionBuilder::BodyColor ( )

返回补丁面实体的颜色值。
创建于 NX2312.0.0。

许可要求：无

◆ ConvertType()

NXOpen::Tooling::LocalExtensionBuilder::ConvertTypeOption NXOpen::Tooling::LocalExtensionBuilder::ConvertType ( )

返回所有创建的片体是否复制的转换选项。
创建于 NX2312.0.0。

许可要求：无

◆ CreateDeleteFaceFeature()

void NXOpen::Tooling::LocalExtensionBuilder::CreateDeleteFaceFeature ( )

创建删除面特征。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ CreateExtendSheetFeature()

void NXOpen::Tooling::LocalExtensionBuilder::CreateExtendSheetFeature ( NXOpen::Tooling::LocalExtensionBuilder::FaceSerialNumber serialNumberOfFace )

创建延伸片体特征。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

serialNumberOfFace 0- 两个面，1- 第一个面，2- 第二个面

◆ CreateFeaturesOnSheetTypeSelected()

void NXOpen::Tooling::LocalExtensionBuilder::CreateFeaturesOnSheetTypeSelected ( )

将实体转换为片体类型时创建特征。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ CreateOffsetRegionFeature()

void NXOpen::Tooling::LocalExtensionBuilder::CreateOffsetRegionFeature ( NXOpen::Tooling::LocalExtensionBuilder::FaceSerialNumber serialNumberOfFace )

创建偏移区域特征。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

serialNumberOfFace 0- 两个面，1- 第一个面，2- 第二个面

◆ CreateReplaceFace()

int NXOpen::Tooling::LocalExtensionBuilder::CreateReplaceFace ( NXOpen::NXObject * replacementFace )

创建替换面特征。

返回: 0- 创建特征时两个面均未成功；1- 第一个面替换成功；2- 第二个面替换成功
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

replacementFace 替换面标签

◆ CreateTwoPointLine()

void NXOpen::Tooling::LocalExtensionBuilder::CreateTwoPointLine ( )

Create line with two points.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

◆ DeleteFaceFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::DeleteFaceFeature ( )

Returns the delete face feature tag .
Created in NX2312.0.0.

License requirements : None

◆ DeleteFeature()

void NXOpen::Tooling::LocalExtensionBuilder::DeleteFeature ( NXOpen::NXObject * featureTag )

Delete the input feature tag.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

featureTag featuretag

◆ DeleteFeatureOnSolidTypeSelected()

void NXOpen::Tooling::LocalExtensionBuilder::DeleteFeatureOnSolidTypeSelected ( )

将片体转换为实体类型时删除特征。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ DeleteFeaturesOnSheetTypeSelected()

void NXOpen::Tooling::LocalExtensionBuilder::DeleteFeaturesOnSheetTypeSelected ( )

将实体转换为片体类型时删除特征。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ DiscardRegionPoint()

NXOpen::Point3d NXOpen::Tooling::LocalExtensionBuilder::DiscardRegionPoint ( )

Returns the initial origin as discard region point.
Created in NX2312.0.0.

License requirements : None

◆ EditOffsetValueOfReplaceFeature()

void NXOpen::Tooling::LocalExtensionBuilder::EditOffsetValueOfReplaceFeature	(	NXOpen::NXObject *	featureTag,
		double	offsetValue )

编辑替换特征的偏移值。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

featureTag	替换特征标签
offsetValue	偏移值

◆ EndPoint()

NXOpen::Point * NXOpen::Tooling::LocalExtensionBuilder::EndPoint ( )

Returns the end point
Created in NX2312.0.0.

License requirements : None

◆ ExtrudeBody()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::ExtrudeBody ( )

返回通过沿指定矢量拉伸直线截面生成的拉伸体。
创建于 NX2312.0.0。

许可要求 : 无

◆ FindEdgesIntersectBodyFaces()

std::vector< NXOpen::NXObject * > NXOpen::Tooling::LocalExtensionBuilder::FindEdgesIntersectBodyFaces ( const std::vector< NXOpen::NXObject * > & loopEdges )

Find edges intersect with faces.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

loopEdges loopedges

◆ FindFaceLoopEdges()

std::vector< NXOpen::NXObject * > NXOpen::Tooling::LocalExtensionBuilder::FindFaceLoopEdges ( const std::vector< NXOpen::NXObject * > & faces )

Find loop edges on the given faces.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

faces faces

◆ FirstExtendSheetFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::FirstExtendSheetFeature ( )

Returns the first extend sheet feature tag .
Created in NX2312.0.0.

License requirements : None

◆ FirstOffsetDistance()

NXOpen::Expression * NXOpen::Tooling::LocalExtensionBuilder::FirstOffsetDistance ( )

返回其中一个线性手柄的偏移距离。
创建于 NX2312.0.0。

许可要求 : 无

◆ FirstOffsetFace()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::FirstOffsetFace ( )

返回通过拖动一个手柄生成的第一个偏移面标签。
创建于 NX2312.0.0。

许可要求 : 无

◆ FirstOffsetFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::FirstOffsetFeature ( )

Returns the first offset region feature tag .
Created in NX2312.0.0.

License requirements : None

◆ FirstReplaceFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::FirstReplaceFeature ( )

Returns the first replace feature tag .
Created in NX2312.0.0.

License requirements : None

◆ GetNewCavityAndCorePartingProcessStatus()

int NXOpen::Tooling::LocalExtensionBuilder::GetNewCavityAndCorePartingProcessStatus ( )

The status for the new Cavity and Core parting process.

返回: New Cavity and Core parting process status
Created in NX2312.0.0.

License requirements : None

◆ InitialThickness()

NXOpen::Expression * NXOpen::Tooling::LocalExtensionBuilder::InitialThickness ( )

返回创建的拉伸体的初始厚度。
创建于 NX2312.0.0。

许可要求 : 无

◆ Line()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::Line ( )

返回由两点生成的直线。
创建于 NX2312.0.0。

许可要求 : 无

◆ OptimizeFace()

bool NXOpen::Tooling::LocalExtensionBuilder::OptimizeFace ( )

返回是否执行优化面操作的指示。
创建于 NX2312.0.0。

许可要求 : 无

◆ RecreateReplaceFaceFeature()

void NXOpen::Tooling::LocalExtensionBuilder::RecreateReplaceFaceFeature ( )

重新创建替换面特征
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

◆ ResultBodyType()

NXOpen::Tooling::LocalExtensionBuilder::BodyType NXOpen::Tooling::LocalExtensionBuilder::ResultBodyType ( )

返回是否创建实体或片体的指示。
创建于 NX2312.0.0。

许可要求 : 无

◆ SecondExtendSheetFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::SecondExtendSheetFeature ( )

Returns the second extend sheet feature tag.
Created in NX2312.0.0.

License requirements : None

◆ SecondOffsetDistance()

NXOpen::Expression * NXOpen::Tooling::LocalExtensionBuilder::SecondOffsetDistance ( )

返回另一个线性手柄的偏移距离。
创建于 NX2312.0.0。

许可要求 : 无

◆ SecondOffsetFace()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::SecondOffsetFace ( )

Returns the second offset face tag generated by dragging another handle.
Created in NX2312.0.0.

License requirements : None

◆ SecondOffsetFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::SecondOffsetFeature ( )

Returns the second offset region feature tag .
Created in NX2312.0.0.

License requirements : None

◆ SecondReplaceFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::SecondReplaceFeature ( )

Returns the second replace feature tag .
Created in NX2312.0.0.

License requirements : None

◆ SelectBoundary()

NXOpen::SelectTaggedObjectList * NXOpen::Tooling::LocalExtensionBuilder::SelectBoundary ( )

返回用于操作修剪片体的所选边界对象。
创建于 NX2312.0.0。

许可要求 : 无

◆ SelectFace()

NXOpen::ScCollector * NXOpen::Tooling::LocalExtensionBuilder::SelectFace ( )

返回用于操作替换面的所选面。
创建于 NX2312.0.0。

许可要求 : 无

◆ SetAsPatchSurface()

void NXOpen::Tooling::LocalExtensionBuilder::SetAsPatchSurface ( bool asPatchSurface )

设置是否将结果区域设置为补丁面的选项值。
创建于 NX2312.0.0。

许可要求：无

参数

asPatchSurface 补丁面开关

◆ SetBodyColor()

void NXOpen::Tooling::LocalExtensionBuilder::SetBodyColor ( NXOpen::NXColor * patchColor )

设置补丁面实体的颜色值。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

patchColor 颜色索引

◆ SetConvertType()

void NXOpen::Tooling::LocalExtensionBuilder::SetConvertType ( NXOpen::Tooling::LocalExtensionBuilder::ConvertTypeOption convertType )

设置所有创建的片体是否复制的转换选项。
创建于 NX2312.0.0。

许可要求：ug_mold_design ("UG MOLD")

参数

convertType 转换类型

◆ SetDeleteFaceFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetDeleteFaceFeature ( NXOpen::NXObject * deleteFaceFeature )

Sets the delete face feature tag .
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

deleteFaceFeature deletefacefeature

◆ SetDiscardRegionPoint()

void NXOpen::Tooling::LocalExtensionBuilder::SetDiscardRegionPoint ( const NXOpen::Point3d & regionPointOrigin )

Sets the initial origin as discard region point.
Created in NX2312.0.0.

License requirements : None

参数

regionPointOrigin regionpointorigin

◆ SetEndPoint()

void NXOpen::Tooling::LocalExtensionBuilder::SetEndPoint ( NXOpen::Point * endPoint )

设置端点
创建于 NX2312.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

endPoint 端点

◆ SetExtrudeBody()

void NXOpen::Tooling::LocalExtensionBuilder::SetExtrudeBody ( NXOpen::NXObject * extrudeBodyTag )

设置通过沿指定矢量拉伸直线截面生成的拉伸体。
创建于 NX2312.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

extrudeBodyTag 拉伸体标签

◆ SetFirstExtendSheetFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetFirstExtendSheetFeature ( NXOpen::NXObject * firstExtendSheetFeature )

Sets the first extend sheet feature tag .
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

firstExtendSheetFeature firstextendsheetfeature

◆ SetFirstOffsetFace()

void NXOpen::Tooling::LocalExtensionBuilder::SetFirstOffsetFace ( NXOpen::NXObject * firstOffsetFace )

设置通过拖动一个手柄生成的第一个偏移面标签。
创建于 NX2312.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

firstOffsetFace 第一个偏移面

◆ SetFirstOffsetFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetFirstOffsetFeature ( NXOpen::NXObject * firstOffsetFeature )

Sets the first offset region feature tag .
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

firstOffsetFeature firstoffsetfeature

◆ SetFirstReplaceFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetFirstReplaceFeature ( NXOpen::NXObject * firstReplaceFeature )

Sets the first replace feature tag .
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

firstReplaceFeature firstreplacefeature

◆ SetLine()

void NXOpen::Tooling::LocalExtensionBuilder::SetLine ( NXOpen::NXObject * lineTag )

设置由两点生成的直线。
创建于 NX2312.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

lineTag 直线标签

◆ SetOptimizeFace()

void NXOpen::Tooling::LocalExtensionBuilder::SetOptimizeFace ( bool optimizeFaceOption )

设置是否执行优化面操作的指示。
创建于 NX2312.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

optimizeFaceOption 优化面选项

◆ SetResultBodyType()

void NXOpen::Tooling::LocalExtensionBuilder::SetResultBodyType ( NXOpen::Tooling::LocalExtensionBuilder::BodyType type )

设置是否创建实体或片体的指示。
创建于 NX2312.0.0。

许可要求 : ug_mold_design ("UG MOLD")

参数

type 类型

◆ SetSecondExtendSheetFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetSecondExtendSheetFeature ( NXOpen::NXObject * secondExtendSheetFeature )

Sets the second extend sheet feature tag.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

secondExtendSheetFeature secondextendsheetfeature

◆ SetSecondOffsetFace()

void NXOpen::Tooling::LocalExtensionBuilder::SetSecondOffsetFace ( NXOpen::NXObject * secondOffsetFace )

Sets the second offset face tag generated by dragging another handle.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

secondOffsetFace secondoffsetface

◆ SetSecondOffsetFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetSecondOffsetFeature ( NXOpen::NXObject * secondOffsetFeature )

Sets the second offset region feature tag .
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

secondOffsetFeature secondoffsetfeature

◆ SetSecondReplaceFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetSecondReplaceFeature ( NXOpen::NXObject * secondReplaceFeature )

Sets the second replace feature tag .
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

secondReplaceFeature secondreplacefeature

◆ SetStartPoint()

void NXOpen::Tooling::LocalExtensionBuilder::SetStartPoint ( NXOpen::Point * startPoint )

Sets the start point
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

startPoint startpoint

◆ SetTrimSheetFeature()

void NXOpen::Tooling::LocalExtensionBuilder::SetTrimSheetFeature ( NXOpen::NXObject * trimSheetFeature )

Sets the second trim sheet feature tag.
Created in NX2312.0.0.

License requirements : ug_mold_design ("UG MOLD")

参数

trimSheetFeature trimsheetfeature

◆ StartPoint()

NXOpen::Point * NXOpen::Tooling::LocalExtensionBuilder::StartPoint ( )

Returns the start point
Created in NX2312.0.0.

License requirements : None

◆ TrimSheetFeature()

NXOpen::NXObject * NXOpen::Tooling::LocalExtensionBuilder::TrimSheetFeature ( )

Returns the second trim sheet feature tag.
Created in NX2312.0.0.

License requirements : None

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ BodyType

◆ ConvertTypeOption

◆ FaceSerialNumber

成员函数说明

◆ AdjustPointPosition()

◆ AskZDirectionOfCurrentCSYS()

◆ AsPatchSurface()

◆ BodyColor()

◆ ConvertType()

◆ CreateDeleteFaceFeature()

◆ CreateExtendSheetFeature()

◆ CreateFeaturesOnSheetTypeSelected()

◆ CreateOffsetRegionFeature()

◆ CreateReplaceFace()

◆ CreateTwoPointLine()

◆ DeleteFaceFeature()

◆ DeleteFeature()

◆ DeleteFeatureOnSolidTypeSelected()

◆ DeleteFeaturesOnSheetTypeSelected()

◆ DiscardRegionPoint()

◆ EditOffsetValueOfReplaceFeature()

◆ EndPoint()

◆ ExtrudeBody()

◆ FindEdgesIntersectBodyFaces()

◆ FindFaceLoopEdges()

◆ FirstExtendSheetFeature()

◆ FirstOffsetDistance()

◆ FirstOffsetFace()

◆ FirstOffsetFeature()

◆ FirstReplaceFeature()

◆ GetNewCavityAndCorePartingProcessStatus()

◆ InitialThickness()

◆ Line()

◆ OptimizeFace()

◆ RecreateReplaceFaceFeature()

◆ ResultBodyType()

◆ SecondExtendSheetFeature()

◆ SecondOffsetDistance()

◆ SecondOffsetFace()

◆ SecondOffsetFeature()

◆ SecondReplaceFeature()

◆ SelectBoundary()

◆ SelectFace()

◆ SetAsPatchSurface()

◆ SetBodyColor()

◆ SetConvertType()

◆ SetDeleteFaceFeature()

◆ SetDiscardRegionPoint()

◆ SetEndPoint()

◆ SetExtrudeBody()

◆ SetFirstExtendSheetFeature()

◆ SetFirstOffsetFace()

◆ SetFirstOffsetFeature()

◆ SetFirstReplaceFeature()

◆ SetLine()

◆ SetOptimizeFace()

◆ SetResultBodyType()

◆ SetSecondExtendSheetFeature()

◆ SetSecondOffsetFace()

◆ SetSecondOffsetFeature()

◆ SetSecondReplaceFeature()

◆ SetStartPoint()

◆ SetTrimSheetFeature()

◆ StartPoint()

◆ TrimSheetFeature()
