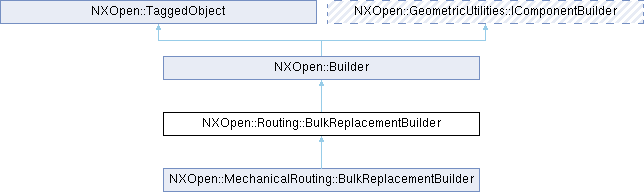

类 NXOpen::Routing::BulkReplacementBuilder 继承关系图:

Public 成员函数
void	ClearAttributeForAllObjects (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char *attributeId)
void	ClearAttributeForAllObjects (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
void	ClearAttributeForObject (NXOpen::NXObject objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char attributeId)
void	ClearAttributeForObject (NXOpen::NXObject *objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
void	CopySearchResultsToObject (NXOpen::NXObject fromObjectTag, NXOpen::NXObject toObjectTag)
NXString	GetAttributeForObject (NXOpen::NXObject objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char attributeId)
NXString	GetAttributeForObject (NXOpen::NXObject *objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
int	GetPartLayer ()
std::vector< NXString >	GetPartLibraryValuesForAttributeForObject (NXOpen::NXObject objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char attributeId)
std::vector< NXString >	GetPartLibraryValuesForAttributeForObject (NXOpen::NXObject *objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
NXString	GetPartReferenceSet ()
NXOpen::Routing::RoutingBulkReplacementBuilderReplacementMethodType	GetReplacementMethodForObject (NXOpen::NXObject *objectTag)
NXString	GetReplacementObjectIdentifierForObject (NXOpen::NXObject *objectTag)
std::vector< NXString >	GetReplacementObjectIdentifiersFromSearchResultsForObject (NXOpen::NXObject *objectTag)
NXOpen::Routing::RoutingBulkReplacementBuilderRetainReasonType	GetRetainReasonForObject (NXOpen::NXObject *objectTag)
std::vector< NXString >	GetSelectedObjectValuesForAttribute (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char *attributeId)
std::vector< NXString >	GetSelectedObjectValuesForAttribute (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
NXString	GetValueForAttributeFromReferenceObject (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char *attributeId)
NXString	GetValueForAttributeFromReferenceObject (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
NXOpen::SelectNXObject *	ReferenceObject ()
NXOpen::Routing::RouteObjectCollector *	RouteObjectCollector ()
void	SearchForReplacementForObject (NXOpen::NXObject *objectTag)
void	SearchForReplacementForObjectOnAttributes (NXOpen::NXObject *objectTag, const std::vector< NXOpen::Routing::RoutingAttributeIdentifierType > &attributeIdTypes, std::vector< NXString > &attributeIds)
void	SetAttributeForAllObjects (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char attributeId, const char value)
void	SetAttributeForAllObjects (NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId, const NXString &value)
void	SetAttributeForObject (NXOpen::NXObject objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char attributeId, const char *value)
void	SetAttributeForObject (NXOpen::NXObject *objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId, const NXString &value)
void	SetAttributeValueForObjectFromReferenceObject (NXOpen::NXObject objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const char attributeId)
void	SetAttributeValueForObjectFromReferenceObject (NXOpen::NXObject *objectTag, NXOpen::Routing::RoutingAttributeIdentifierType attributeIdType, const NXString &attributeId)
void	SetPartLayer (int layer)
void	SetPartReferenceSet (const char *referenceSetName)
void	SetPartReferenceSet (const NXString &referenceSetName)
void	SetReplacementClassificationObjectForObject (NXOpen::NXObject objectTag, const char classificationClassId, const char *classificationInstanceId)
void	SetReplacementClassificationObjectForObject (NXOpen::NXObject *objectTag, const NXString &classificationClassId, const NXString &classificationInstanceId)
void	SetReplacementMethodForAllObjects (NXOpen::Routing::RoutingBulkReplacementBuilderReplacementMethodType method)
void	SetReplacementMethodForObject (NXOpen::NXObject *objectTag, NXOpen::Routing::RoutingBulkReplacementBuilderReplacementMethodType method)
void	SetReplacementObjectIdentifierForObject (NXOpen::NXObject objectTag, const char objectIdentifier)
void	SetReplacementObjectIdentifierForObject (NXOpen::NXObject *objectTag, const NXString &objectIdentifier)
void	SetReplacementObjectPartNumberForObject (NXOpen::NXObject objectTag, const char partNumber)
void	SetReplacementObjectPartNumberForObject (NXOpen::NXObject *objectTag, const NXString &partNumber)
void	SetReplacementPartSpecificationForObject (NXOpen::NXObject objectTag, const char partSpecification)
void	SetReplacementPartSpecificationForObject (NXOpen::NXObject *objectTag, const NXString &partSpecification)
void	SetSequenceOfObjectReplacement (const std::vector< NXOpen::NXObject * > &objects)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_BulkReplacementBuilderBuilder

详细描述

批量替换构建器

批量替换的构造器类，用于管理管路对象的替换操作
不支持KF。

创建于NX12.0.0版本。

成员函数说明

◆ ClearAttributeForAllObjects() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::ClearAttributeForAllObjects	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

清除所有对象的属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

attributeIdType	要清除的属性类型
attributeId	要清除的属性标识符

◆ ClearAttributeForAllObjects() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::ClearAttributeForAllObjects	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

清除所有对象的属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

attributeIdType	要清除的属性类型
attributeId	要清除的属性标识符

◆ ClearAttributeForObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::ClearAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

清除对象属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag	要清除属性值的目标对象
attributeIdType	要清除的属性类型
attributeId	要清除的属性标识符

◆ ClearAttributeForObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::ClearAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

清除对象属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag	要清除属性值的目标对象
attributeIdType	要清除的属性类型
attributeId	要清除的属性标识符

◆ CopySearchResultsToObject()

void NXOpen::Routing::BulkReplacementBuilder::CopySearchResultsToObject	(	NXOpen::NXObject *	fromObjectTag,
		NXOpen::NXObject *	toObjectTag )

将搜索结果从一个对象复制到另一个对象
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

fromObjectTag	要从中复制搜索结果的对象
toObjectTag	要将搜索结果复制到的对象

◆ GetAttributeForObject() [1/2]

NXString NXOpen::Routing::BulkReplacementBuilder::GetAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

获取对象属性值

返回: 属性的值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag	要获取属性值的目标对象
attributeIdType	要获取的属性类型
attributeId	要获取的属性标识符

◆ GetAttributeForObject() [2/2]

NXString NXOpen::Routing::BulkReplacementBuilder::GetAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

获取对象属性值

返回: 属性的值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag	要获取属性值的目标对象
attributeIdType	要获取的属性类型
attributeId	要获取的属性标识符

◆ GetPartLayer()

int NXOpen::Routing::BulkReplacementBuilder::GetPartLayer ( )

获取新替换对象所用的图层

返回: 图层编号
创建于NX12.0.0.

许可要求: routing_advanced ("Routing Advanced")

◆ GetPartLibraryValuesForAttributeForObject() [1/2]

std::vector< NXString > NXOpen::Routing::BulkReplacementBuilder::GetPartLibraryValuesForAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

获取指定对象的指定属性的零件库值

返回: 从零件库中检索到的该属性的值
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

objectTag	要获取零件库值的对象
attributeIdType	要获取值的属性类型
attributeId	要获取值的属性标识符

◆ GetPartLibraryValuesForAttributeForObject() [2/2]

std::vector< NXString > NXOpen::Routing::BulkReplacementBuilder::GetPartLibraryValuesForAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

获取指定对象的指定属性的零件库值

返回: 从零件库中检索到的该属性的值
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

objectTag	要获取零件库值的对象
attributeIdType	要获取值的属性类型
attributeId	要获取值的属性标识符

◆ GetPartReferenceSet()

NXString NXOpen::Routing::BulkReplacementBuilder::GetPartReferenceSet ( )

获取新替换对象所用的引用集

返回: 引用集名称
创建于NX12.0.0.

许可要求: routing_advanced ("Routing Advanced")

◆ GetReplacementMethodForObject()

NXOpen::Routing::RoutingBulkReplacementBuilderReplacementMethodType NXOpen::Routing::BulkReplacementBuilder::GetReplacementMethodForObject ( NXOpen::NXObject * objectTag )

获取单个对象的替换方式

返回: 该对象当前设置的替换方式
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag 要获取替换方式的对象

◆ GetReplacementObjectIdentifierForObject()

NXString NXOpen::Routing::BulkReplacementBuilder::GetReplacementObjectIdentifierForObject ( NXOpen::NXObject * objectTag )

获取替换对象标识符

返回: 当前设置为替换对象的标识符
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag 要获取其替换对象的目标对象

◆ GetReplacementObjectIdentifiersFromSearchResultsForObject()

std::vector< NXString > NXOpen::Routing::BulkReplacementBuilder::GetReplacementObjectIdentifiersFromSearchResultsForObject ( NXOpen::NXObject * objectTag )

获取可用替换对象标识符

返回: 可用替换对象的标识符数组
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag 要获取其可用替换对象标识符的目标对象

◆ GetRetainReasonForObject()

NXOpen::Routing::RoutingBulkReplacementBuilderRetainReasonType NXOpen::Routing::BulkReplacementBuilder::GetRetainReasonForObject ( NXOpen::NXObject * objectTag )

获取单个对象的保留原因

返回: 该对象当前设置的保留原因
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag 要获取保留原因的对象

◆ GetSelectedObjectValuesForAttribute() [1/2]

std::vector< NXString > NXOpen::Routing::BulkReplacementBuilder::GetSelectedObjectValuesForAttribute	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

从所有对象中检索指定属性的所有值

返回: 从所有对象中检索到的该属性的值
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

attributeIdType	要获取所有值的属性类型
attributeId	要获取所有值的属性标识符

◆ GetSelectedObjectValuesForAttribute() [2/2]

std::vector< NXString > NXOpen::Routing::BulkReplacementBuilder::GetSelectedObjectValuesForAttribute	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

从所有对象中检索指定属性的所有值

返回: 从所有对象中检索到的该属性的值
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

attributeIdType	要获取所有值的属性类型
attributeId	要获取所有值的属性标识符

◆ GetValueForAttributeFromReferenceObject() [1/2]

NXString NXOpen::Routing::BulkReplacementBuilder::GetValueForAttributeFromReferenceObject	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

从参考对象中获取指定属性的值

返回: 从参考对象中获取的该属性的值
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

attributeIdType	要获取值的属性类型
attributeId	要获取所有值的属性标识符

◆ GetValueForAttributeFromReferenceObject() [2/2]

NXString NXOpen::Routing::BulkReplacementBuilder::GetValueForAttributeFromReferenceObject	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

从参考对象中获取指定属性的值

返回: 从参考对象中获取的该属性的值
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

attributeIdType	要获取值的属性类型
attributeId	要获取所有值的属性标识符

◆ ReferenceObject()

NXOpen::SelectNXObject * NXOpen::Routing::BulkReplacementBuilder::ReferenceObject ( )

获取用于批量替换特征提取的参考对象
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

◆ RouteObjectCollector()

NXOpen::Routing::RouteObjectCollector * NXOpen::Routing::BulkReplacementBuilder::RouteObjectCollector ( )

获取管路对象收集器
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

◆ SearchForReplacementForObject()

void NXOpen::Routing::BulkReplacementBuilder::SearchForReplacementForObject ( NXOpen::NXObject * objectTag )

启动对象替换搜索
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

objectTag 要启动搜索的对象

◆ SearchForReplacementForObjectOnAttributes()

void NXOpen::Routing::BulkReplacementBuilder::SearchForReplacementForObjectOnAttributes	(	NXOpen::NXObject *	objectTag,
		const std::vector< NXOpen::Routing::RoutingAttributeIdentifierType > &	attributeIdTypes,
		std::vector< NXString > &	attributeIds )

传入属性作为条件，启动对象替换搜索
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

objectTag	要启动搜索的对象
attributeIdTypes	用于限制搜索的属性类型数组
attributeIds	用于限制搜索的属性标识符数组

◆ SetAttributeForAllObjects() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetAttributeForAllObjects	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId,
		const char *	value )

为所有对象设置属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

attributeIdType	要设置的属性类型
attributeId	要设置的属性标识符
value	属性的新值

◆ SetAttributeForAllObjects() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetAttributeForAllObjects	(	NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId,
		const NXString &	value )

为所有对象设置属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

attributeIdType	要设置的属性类型
attributeId	要设置的属性标识符
value	属性的新值

◆ SetAttributeForObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId,
		const char *	value )

设置对象属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag	要设置属性值的目标对象
attributeIdType	要设置的属性类型
attributeId	要设置的属性标识符
value	属性的新值

◆ SetAttributeForObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetAttributeForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId,
		const NXString &	value )

设置对象属性值
创建于NX12.0.0。

许可要求: routing_advanced ("Routing Advanced")

参数

objectTag	要设置属性值的目标对象
attributeIdType	要设置的属性类型
attributeId	要设置的属性标识符
value	属性的新值

◆ SetAttributeValueForObjectFromReferenceObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetAttributeValueForObjectFromReferenceObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const char *	attributeId )

将参考对象的属性值设置到指定对象上
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置参考对象属性值的目标对象
attributeIdType	要从参考对象设置值的属性类型
attributeId	要从参考对象设置值的属性标识符

◆ SetAttributeValueForObjectFromReferenceObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetAttributeValueForObjectFromReferenceObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingAttributeIdentifierType	attributeIdType,
		const NXString &	attributeId )

将参考对象的属性值设置到指定对象上
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置参考对象属性值的目标对象
attributeIdType	要从参考对象设置值的属性类型
attributeId	要从参考对象设置值的属性标识符

◆ SetPartLayer()

void NXOpen::Routing::BulkReplacementBuilder::SetPartLayer ( int layer )

设置新替换对象所用的图层
创建于NX12.0.0.

许可要求: routing_advanced ("Routing Advanced")

参数

layer 图层编号

◆ SetPartReferenceSet() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetPartReferenceSet ( const char * referenceSetName )

设置新替换对象所用的引用集
创建于NX12.0.0.

许可要求: routing_advanced ("Routing Advanced")

参数

referenceSetName 引用集名称

◆ SetPartReferenceSet() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetPartReferenceSet ( const NXString & referenceSetName )

设置新替换对象使用的引用集
创建于NX12.0.0。

许可要求：routing_advanced ("Routing Advanced")

参数

referenceSetName 引用集名称

◆ SetReplacementClassificationObjectForObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementClassificationObjectForObject	(	NXOpen::NXObject *	objectTag,
		const char *	classificationClassId,
		const char *	classificationInstanceId )

设置单个对象的替换分类对象
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
classificationClassId	要设为替换对象的分类对象类ID
classificationInstanceId	要设为替换对象的分类对象实例ID

◆ SetReplacementClassificationObjectForObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementClassificationObjectForObject	(	NXOpen::NXObject *	objectTag,
		const NXString &	classificationClassId,
		const NXString &	classificationInstanceId )

设置单个对象的替换分类对象
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
classificationClassId	要设为替换对象的分类对象类ID
classificationInstanceId	要设为替换对象的分类对象实例ID

◆ SetReplacementMethodForAllObjects()

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementMethodForAllObjects ( NXOpen::Routing::RoutingBulkReplacementBuilderReplacementMethodType method )

设置所有对象的替换方式
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

method 要为所有对象设置的替换方式

◆ SetReplacementMethodForObject()

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementMethodForObject	(	NXOpen::NXObject *	objectTag,
		NXOpen::Routing::RoutingBulkReplacementBuilderReplacementMethodType	method )

设置单个对象的替换方式
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换方式的对象
method	该对象要使用的替换方式

◆ SetReplacementObjectIdentifierForObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementObjectIdentifierForObject	(	NXOpen::NXObject *	objectTag,
		const char *	objectIdentifier )

设置单个对象的替换对象标识符
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
objectIdentifier	要设为替换对象的标识符

◆ SetReplacementObjectIdentifierForObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementObjectIdentifierForObject	(	NXOpen::NXObject *	objectTag,
		const NXString &	objectIdentifier )

设置单个对象的替换对象标识符
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
objectIdentifier	要设为替换对象的标识符

◆ SetReplacementObjectPartNumberForObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementObjectPartNumberForObject	(	NXOpen::NXObject *	objectTag,
		const char *	partNumber )

设置单个对象的替换对象零件编号
创建于NX1899.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
partNumber	要设为替换对象的零件编号

◆ SetReplacementObjectPartNumberForObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementObjectPartNumberForObject	(	NXOpen::NXObject *	objectTag,
		const NXString &	partNumber )

设置单个对象的替换对象零件编号
创建于NX1899.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
partNumber	要设为替换对象的零件编号

◆ SetReplacementPartSpecificationForObject() [1/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementPartSpecificationForObject	(	NXOpen::NXObject *	objectTag,
		const char *	partSpecification )

设置单个对象的替换零件规格
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
partSpecification	替换要使用的零件的完整规格

◆ SetReplacementPartSpecificationForObject() [2/2]

void NXOpen::Routing::BulkReplacementBuilder::SetReplacementPartSpecificationForObject	(	NXOpen::NXObject *	objectTag,
		const NXString &	partSpecification )

设置单个对象的替换零件规格
创建于NX12.0.0。

许可证要求：routing_advanced ("Routing Advanced")

参数

objectTag	要设置替换对象的目标对象
partSpecification	替换要使用的零件的完整规格

◆ SetSequenceOfObjectReplacement()

void NXOpen::Routing::BulkReplacementBuilder::SetSequenceOfObjectReplacement ( const std::vector< NXOpen::NXObject * > & objects )

设置对象替换的顺序
创建于NX12.0.0.

许可要求: routing_advanced ("Routing Advanced")

参数

objects 按替换顺序排列的对象

Public 成员函数

友元

详细描述

成员函数说明

◆ ClearAttributeForAllObjects() [1/2]

◆ ClearAttributeForAllObjects() [2/2]

◆ ClearAttributeForObject() [1/2]

◆ ClearAttributeForObject() [2/2]

◆ CopySearchResultsToObject()

◆ GetAttributeForObject() [1/2]

◆ GetAttributeForObject() [2/2]

◆ GetPartLayer()

◆ GetPartLibraryValuesForAttributeForObject() [1/2]

◆ GetPartLibraryValuesForAttributeForObject() [2/2]

◆ GetPartReferenceSet()

◆ GetReplacementMethodForObject()

◆ GetReplacementObjectIdentifierForObject()

◆ GetReplacementObjectIdentifiersFromSearchResultsForObject()

◆ GetRetainReasonForObject()

◆ GetSelectedObjectValuesForAttribute() [1/2]

◆ GetSelectedObjectValuesForAttribute() [2/2]

◆ GetValueForAttributeFromReferenceObject() [1/2]

◆ GetValueForAttributeFromReferenceObject() [2/2]

◆ ReferenceObject()

◆ RouteObjectCollector()

◆ SearchForReplacementForObject()

◆ SearchForReplacementForObjectOnAttributes()

◆ SetAttributeForAllObjects() [1/2]

◆ SetAttributeForAllObjects() [2/2]

◆ SetAttributeForObject() [1/2]

◆ SetAttributeForObject() [2/2]

◆ SetAttributeValueForObjectFromReferenceObject() [1/2]

◆ SetAttributeValueForObjectFromReferenceObject() [2/2]

◆ SetPartLayer()

◆ SetPartReferenceSet() [1/2]

◆ SetPartReferenceSet() [2/2]

◆ SetReplacementClassificationObjectForObject() [1/2]

◆ SetReplacementClassificationObjectForObject() [2/2]

◆ SetReplacementMethodForAllObjects()

◆ SetReplacementMethodForObject()

◆ SetReplacementObjectIdentifierForObject() [1/2]

◆ SetReplacementObjectIdentifierForObject() [2/2]

◆ SetReplacementObjectPartNumberForObject() [1/2]

◆ SetReplacementObjectPartNumberForObject() [2/2]

◆ SetReplacementPartSpecificationForObject() [1/2]

◆ SetReplacementPartSpecificationForObject() [2/2]

◆ SetSequenceOfObjectReplacement()
