Public 成员函数 | 友元 | 所有成员列表
NXOpen::Annotations::PmiPreferencesBuilder类 参考

PMI首选项构建器类 更多...

#include <Annotations_PmiPreferencesBuilder.hxx>

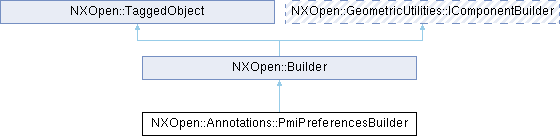

类 NXOpen::Annotations::PmiPreferencesBuilder 继承关系图:
NXOpen::Builder NXOpen::TaggedObject NXOpen::GeometricUtilities::IComponentBuilder

Public 成员函数

NXOpen::Annotations::OriginAlignmentBuilder * AnnotationOriginAlignment ()
NXOpen::Annotations::StyleBuilder * AnnotationStyle ()
NXOpen::Annotations::CommonWorkflowBuilder * CommonWorkflow ()
NXOpen::Annotations::OriginAlignmentBuilder * DimensionOriginAlignment ()
NXOpen::Annotations::DimensionWorkflowBuilder * DimensionWorkflow ()
void InheritSettingsFromCustomerDefault ()
void InheritSettingsFromPreferences ()
void InheritSettingsFromSelectedObject (NXOpen::NXObject *selectedObject)
NXOpen::Annotations::PmiContextGeneralBuilder * PmiContextGeneral ()
NXOpen::Annotations::PmiGeneralSetupDisplayBuilder * PmiGeneralSetupDisplay ()
NXOpen::Annotations::PmiGeneralSetupEffectivityBuilder * PmiGeneralSetupEffectivity ()
NXOpen::Annotations::PmiGeneralSetupGeneralBuilder * PmiGeneralSetupGeneral ()
NXOpen::Annotations::PmiGeneralSetupParallelToScreenBuilder * PmiGeneralSetupParallelToScreen ()
NXOpen::Annotations::PmiSectionViewCuttingPlaneSymbolBuilder * PmiSectionViewCuttingPlaneSymbol ()
NXOpen::Annotations::PmiSectionViewViewBuilder * PmiSectionViewView ()
NXOpen::Annotations::PmiSupplementalGeometryRegionBuilder * PmiSupplementalGeometryRegion ()
NXOpen::Annotations::RetainedAnnotationsBuilder * RetainedAnnotations ()
NXOpen::Annotations::SymbolWorkflowBuilder * SymbolWorkflow ()
void SynchronizeFCFSymbolSequence ()
NXOpen::Annotations::TableCellStyleBuilder * TableCellStyle ()
NXOpen::Annotations::OriginAlignmentBuilder * TableOriginAlignment ()
NXOpen::Annotations::TableSectionStyleBuilder * TableSection ()
NXOpen::Annotations::TabularNoteStyleBuilder * TabularNoteStyle ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject * Commit ()
void Destroy ()
std::vector< NXOpen::NXObject * > GetCommittedObjects ()
NXOpen::NXObject * GetObject ()
NXOpen::PreviewBuilder * PreviewBuilder ()
void ShowResults ()
virtual bool Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _PmiPreferencesBuilderBuilder

详细描述

PMI首选项构建器类

表示NXOpen.Annotations.PmiPreferencesBuilder构建器
要创建此类的新实例，请使用 NXOpen::Annotations::PmiSettingsManager::CreatePreferencesBuilder

创建于NX1847.0.0.

成员函数说明

◆ AnnotationOriginAlignment()

NXOpen::Annotations::OriginAlignmentBuilder * NXOpen::Annotations::PmiPreferencesBuilder::AnnotationOriginAlignment ( )

返回注释原点对齐
创建于NX1980.0.0.

许可要求：无

◆ AnnotationStyle()

NXOpen::Annotations::StyleBuilder * NXOpen::Annotations::PmiPreferencesBuilder::AnnotationStyle ( )

返回 注释样式构建器
创建于NX1847.0.0.

许可要求：无

◆ CommonWorkflow()

NXOpen::Annotations::CommonWorkflowBuilder * NXOpen::Annotations::PmiPreferencesBuilder::CommonWorkflow ( )

返回 通用工作流构建器
创建于NX1847.0.0.

许可要求：无

◆ DimensionOriginAlignment()

NXOpen::Annotations::OriginAlignmentBuilder * NXOpen::Annotations::PmiPreferencesBuilder::DimensionOriginAlignment ( )

返回尺寸原点对齐
创建于NX1980.0.0.

许可要求：无

◆ DimensionWorkflow()

NXOpen::Annotations::DimensionWorkflowBuilder * NXOpen::Annotations::PmiPreferencesBuilder::DimensionWorkflow ( )

返回 尺寸工作流构建器
创建于NX1847.0.0.

许可要求：无

◆ InheritSettingsFromCustomerDefault()

void NXOpen::Annotations::PmiPreferencesBuilder::InheritSettingsFromCustomerDefault ( )

从客户默认值继承设置
创建于NX1847.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

◆ InheritSettingsFromPreferences()

void NXOpen::Annotations::PmiPreferencesBuilder::InheritSettingsFromPreferences ( )

从首选项继承设置
创建于NX1847.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

◆ InheritSettingsFromSelectedObject()

void NXOpen::Annotations::PmiPreferencesBuilder::InheritSettingsFromSelectedObject ( NXOpen::NXObject * selectedObject)

从选定对象继承设置
创建于NX1847.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

参数
selectedObject选定的注释或表格实例对象。不允许为NULL。

◆ PmiContextGeneral()

NXOpen::Annotations::PmiContextGeneralBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiContextGeneral ( )

返回PMI首选项中上下文常规设置构建器
创建于NX2212.0.0.

许可要求：无

◆ PmiGeneralSetupDisplay()

NXOpen::Annotations::PmiGeneralSetupDisplayBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiGeneralSetupDisplay ( )

返回 PMI首选项中显示设置构建器
创建于NX1847.0.0.

许可要求：无

◆ PmiGeneralSetupEffectivity()

NXOpen::Annotations::PmiGeneralSetupEffectivityBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiGeneralSetupEffectivity ( )

返回PMI首选项中有效性设置构建器
创建于NX1847.0.0.

许可要求：无

◆ PmiGeneralSetupGeneral()

NXOpen::Annotations::PmiGeneralSetupGeneralBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiGeneralSetupGeneral ( )

返回 PMI首选项中通用设置构建器
创建于NX1847.0.0.

许可要求：无

◆ PmiGeneralSetupParallelToScreen()

NXOpen::Annotations::PmiGeneralSetupParallelToScreenBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiGeneralSetupParallelToScreen ( )

返回PMI首选项中平行于屏幕设置构建器
创建于NX1847.0.0.

许可要求：无

◆ PmiSectionViewCuttingPlaneSymbol()

NXOpen::Annotations::PmiSectionViewCuttingPlaneSymbolBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiSectionViewCuttingPlaneSymbol ( )

返回PMI首选项中切割平面符号设置构建器
创建于NX1847.0.0.

许可要求：无

◆ PmiSectionViewView()

NXOpen::Annotations::PmiSectionViewViewBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiSectionViewView ( )

返回PMI首选项中视图设置构建器
创建于NX1847.0.0.

许可要求：无

◆ PmiSupplementalGeometryRegion()

NXOpen::Annotations::PmiSupplementalGeometryRegionBuilder * NXOpen::Annotations::PmiPreferencesBuilder::PmiSupplementalGeometryRegion ( )

返回PMI首选项中区域设置构建器
创建于NX1847.0.0.

许可要求：无

◆ RetainedAnnotations()

NXOpen::Annotations::RetainedAnnotationsBuilder * NXOpen::Annotations::PmiPreferencesBuilder::RetainedAnnotations ( )

返回 通用保留注释构建器
创建于NX1847.0.0.

许可要求：无

◆ SymbolWorkflow()

NXOpen::Annotations::SymbolWorkflowBuilder * NXOpen::Annotations::PmiPreferencesBuilder::SymbolWorkflow ( )

返回 符号工作流构建器
创建于NX1847.0.0.

许可要求：无

◆ SynchronizeFCFSymbolSequence()

void NXOpen::Annotations::PmiPreferencesBuilder::SynchronizeFCFSymbolSequence ( )

同步FCF符号序列
创建于NX2212.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING")

◆ TableCellStyle()

NXOpen::Annotations::TableCellStyleBuilder * NXOpen::Annotations::PmiPreferencesBuilder::TableCellStyle ( )

返回 表格单元格样式构建器
创建于NX1847.0.0.

许可要求：无

◆ TableOriginAlignment()

NXOpen::Annotations::OriginAlignmentBuilder * NXOpen::Annotations::PmiPreferencesBuilder::TableOriginAlignment ( )

返回表格原点对齐
创建于NX1980.0.0.

许可要求：无

◆ TableSection()

NXOpen::Annotations::TableSectionStyleBuilder * NXOpen::Annotations::PmiPreferencesBuilder::TableSection ( )

返回 表格区域样式构建器
创建于NX1847.0.0.

许可要求：无

◆ TabularNoteStyle()

NXOpen::Annotations::TabularNoteStyleBuilder * NXOpen::Annotations::PmiPreferencesBuilder::TabularNoteStyle ( )

返回 表格注释样式构建器
创建于NX1847.0.0.

许可要求：无
