NXOpen::Tooling::AssignMaterialBuilder类 参考

分配材料构建器 更多...

#include <Tooling_AssignMaterialBuilder.hxx>

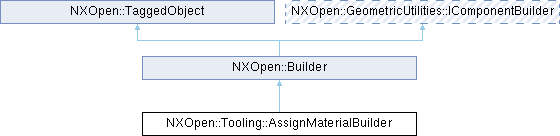

类 NXOpen::Tooling::AssignMaterialBuilder 继承关系图:

Public 成员函数
void	AddComponents (const std::vector< NXOpen::NXObject * > &components)
void	SetSelectedMaterialLibrary (const char *materialLibrary)
void	SetSelectedMaterialLibrary (const NXString &materialLibrary)
void	SetSelectedMaterialName (const char *materialName)
void	SetSelectedMaterialName (const NXString &materialName)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_AssignMaterialBuilderBuilder

详细描述

分配材料构建器

Represents a Tooling Assign Material Builder
To create a new instance of this class, use NXOpen::Tooling::MoldwizardManager::CreateAssignMaterialBuilder

Created in NX2212.0.0.

成员函数说明

AddComponents()

void NXOpen::Tooling::AssignMaterialBuilder::AddComponents

(

const std::vector< NXOpen::NXObject * > &

components

)

Adds components as selected
Created in NX2212.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

components

the specified components

SetSelectedMaterialLibrary() [1/2]

void NXOpen::Tooling::AssignMaterialBuilder::SetSelectedMaterialLibrary

(

const char *

materialLibrary

)

Set the selected material library
Created in NX2212.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

materialLibrary

materiallibrary

SetSelectedMaterialLibrary() [2/2]

void NXOpen::Tooling::AssignMaterialBuilder::SetSelectedMaterialLibrary

(

const NXString &

materialLibrary

)

Set the selected material library
Created in NX2212.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

materialLibrary

materiallibrary

SetSelectedMaterialName() [1/2]

void NXOpen::Tooling::AssignMaterialBuilder::SetSelectedMaterialName

(

const char *

materialName

)

Set the selected material name
Created in NX2212.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

materialName

materialname

SetSelectedMaterialName() [2/2]

void NXOpen::Tooling::AssignMaterialBuilder::SetSelectedMaterialName

(

const NXString &

materialName

)

Set the selected material name
Created in NX2212.0.0.

License requirements : ug_mold_design ("UG MOLD") OR nx_electrode_wizard ("NX Electrode Wizard") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

materialName

materialname
