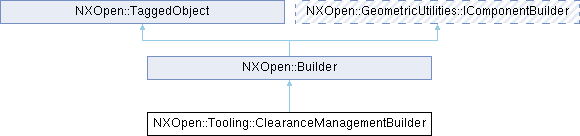

类 NXOpen::Tooling::ClearanceManagementBuilder 继承关系图:

Public 类型
enum	Selection { SelectionToolPart , SelectionTargetPart }
enum	Type { TypeAssignClearances , TypeCheckClearances }

Public 成员函数
bool	IsHighLightFacesWithSameClearance ()
double	PlateClearanceEighth ()
double	PlateClearanceFifth ()
double	PlateClearanceFirst ()
double	PlateClearanceFourth ()
double	PlateClearanceNinth ()
double	PlateClearanceSecond ()
double	PlateClearanceSeventh ()
double	PlateClearanceSixth ()
double	PlateClearanceTenth ()
double	PlateClearanceThird ()
NXOpen::ScCollector *	SelectFace ()
NXOpen::SelectBody *	SelectPart ()
void	SetHighLightFacesWithSameClearance (bool isHighLightFacesWithSameClearance)
void	SetParameters (std::vector< NXString > &paraNames, std::vector< NXString > &paraValues)
void	SetPlateClearanceEighth (double plateClearanceEighth)
void	SetPlateClearanceFifth (double plateClearanceFifth)
void	SetPlateClearanceFirst (double plateClearanceFirst)
void	SetPlateClearanceFourth (double plateClearanceFourth)
void	SetPlateClearanceNinth (double plateClearanceNinth)
void	SetPlateClearanceSecond (double plateClearanceSecond)
void	SetPlateClearanceSeventh (double plateClearanceSeventh)
void	SetPlateClearanceSixth (double plateClearanceSixth)
void	SetPlateClearanceTenth (double plateClearanceTenth)
void	SetPlateClearanceThird (double plateClaranceThird)
void	SetShowPartAndClearanceHoleOnly (bool showPartAndClearanceHoleOnly)
void	SetSpecifyClearanceDataFile (const char *filename)
void	SetSpecifyClearanceDataFile (const NXString &filename)
void	SetToolPartOrTargetPart (NXOpen::Tooling::ClearanceManagementBuilder::Selection toolPartOrTargetPart)
void	SetTypeAssignOrCheck (NXOpen::Tooling::ClearanceManagementBuilder::Type typeAssignOrCheck)
void	SetUsePlateClearanceEighth (bool usePlateClearanceEighth)
void	SetUsePlateClearanceFifth (bool usePlateClearanceFifth)
void	SetUsePlateClearanceFirst (bool usePlateClearanceFirst)
void	SetUsePlateClearanceFourth (bool usePlateClearanceFourth)
void	SetUsePlateClearanceNinth (bool usePlateClearanceNinth)
void	SetUsePlateClearanceSecond (bool usePlateClearanceSecond)
void	SetUsePlateClearanceSeventh (bool usePlateClearanceSeventh)
void	SetUsePlateClearanceSixth (bool usePlateClearanceSixth)
void	SetUsePlateClearanceTenth (bool usePlateClearanceTenth)
void	SetUsePlateClearanceThird (bool usePlateClearanceThird)
bool	ShowPartAndClearanceHoleOnly ()
NXString	SpecifyClearanceDataFile ()
NXOpen::Tooling::ClearanceManagementBuilder::Selection	ToolPartOrTargetPart ()
NXOpen::Tooling::ClearanceManagementBuilder::Type	TypeAssignOrCheck ()
bool	UsePlateClearanceEighth ()
bool	UsePlateClearanceFifth ()
bool	UsePlateClearanceFirst ()
bool	UsePlateClearanceFourth ()
bool	UsePlateClearanceNinth ()
bool	UsePlateClearanceSecond ()
bool	UsePlateClearanceSeventh ()
bool	UsePlateClearanceSixth ()
bool	UsePlateClearanceTenth ()
bool	UsePlateClearanceThird ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ClearanceManagementBuilderBuilder

详细描述

间隙管理构建器

Progressive Die Wizard builder to management clearances.
To create a new instance of this class, use NXOpen::Tooling::ClearanceManagementCollection::CreateClearanceManagementBuilder
Default values.

Property	Value
IsHighLightFacesWithSameClearance	0
PlateClearanceEighth	0
PlateClearanceFifth	0
PlateClearanceFirst	0
PlateClearanceFourth	0
PlateClearanceNinth	0
PlateClearanceSecond	0
PlateClearanceSeventh	0
PlateClearanceSixth	0
PlateClearanceTenth	0
PlateClearanceThird	0
ShowPartAndClearanceHoleOnly	0
ToolPartOrTargetPart	ToolPart
TypeAssignOrCheck	AssignClearances
UsePlateClearanceEighth	0
UsePlateClearanceFifth	0
UsePlateClearanceFirst	0
UsePlateClearanceFourth	0
UsePlateClearanceNinth	0
UsePlateClearanceSecond	0
UsePlateClearanceSeventh	0

UsePlateClearanceSixth 0 UsePlateClearanceTenth 0 UsePlateClearanceThird 0

Created in NX8.0.0.

成员枚举类型说明

◆ Selection

enum NXOpen::Tooling::ClearanceManagementBuilder::Selection

Specifies clearance management part.

枚举值
SelectionToolPart	tool part
SelectionTargetPart	target part

◆ Type

enum NXOpen::Tooling::ClearanceManagementBuilder::Type

Specifies type to assign or check clearances

枚举值
TypeAssignClearances	assign clearances
TypeCheckClearances	check clearances

成员函数说明

◆ IsHighLightFacesWithSameClearance()

bool NXOpen::Tooling::ClearanceManagementBuilder::IsHighLightFacesWithSameClearance ( )

Returns the option whether highlight faces with same clearance.
Created in NX8.0.0.

License requirements : None

◆ PlateClearanceEighth()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceEighth ( )

返回板间隙第八个值。
创建于 NX8.0.0。

许可要求 : 无

◆ PlateClearanceFifth()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceFifth ( )

返回板间隙第五个值。
创建于 NX8.0.0。

许可要求 : 无

◆ PlateClearanceFirst()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceFirst ( )

Returns the plate clearance first.
Created in NX8.0.0.

License requirements : None

◆ PlateClearanceFourth()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceFourth ( )

Returns the plate clearance fourth.
Created in NX8.0.0.

License requirements : None

◆ PlateClearanceNinth()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceNinth ( )

Returns the plate clearance ninth.
Created in NX8.0.0.

License requirements : None

◆ PlateClearanceSecond()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceSecond ( )

Returns the plate clearance second.
Created in NX8.0.0.

License requirements : None

◆ PlateClearanceSeventh()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceSeventh ( )

返回板间隙第七个值。
创建于 NX8.0.0。

许可要求 : 无

◆ PlateClearanceSixth()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceSixth ( )

返回板间隙第六个值。
创建于 NX8.0.0。

许可要求 : 无

◆ PlateClearanceTenth()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceTenth ( )

Returns the plate clearance tenth.
Created in NX8.0.0.

License requirements : None

◆ PlateClearanceThird()

double NXOpen::Tooling::ClearanceManagementBuilder::PlateClearanceThird ( )

Returns the plate clearance third.
Created in NX8.0.0.

License requirements : None

◆ SelectFace()

NXOpen::ScCollector * NXOpen::Tooling::ClearanceManagementBuilder::SelectFace ( )

Returns the select face.
Created in NX8.0.0.

License requirements : None

◆ SelectPart()

NXOpen::SelectBody * NXOpen::Tooling::ClearanceManagementBuilder::SelectPart ( )

Returns the selected part.
Created in NX8.0.0.

License requirements : None

◆ SetHighLightFacesWithSameClearance()

void NXOpen::Tooling::ClearanceManagementBuilder::SetHighLightFacesWithSameClearance ( bool isHighLightFacesWithSameClearance )

Sets the option whether highlight faces with same clearance.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

isHighLightFacesWithSameClearance ishighlightfaceswithsameclearance

◆ SetParameters()

void NXOpen::Tooling::ClearanceManagementBuilder::SetParameters	(	std::vector< NXString > &	paraNames,
		std::vector< NXString > &	paraValues )

Set the parameter number, names and values in the tree list into builder attribute.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

paraNames	an array of names
paraValues	an array of values

◆ SetPlateClearanceEighth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceEighth ( double plateClearanceEighth )

设置板间隙第八个值。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

plateClearanceEighth plateclearanceeighth

◆ SetPlateClearanceFifth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceFifth ( double plateClearanceFifth )

设置板间隙第五个值。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

plateClearanceFifth plateclearancefifth

◆ SetPlateClearanceFirst()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceFirst ( double plateClearanceFirst )

Sets the plate clearance first.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

plateClearanceFirst plateclearancefirst

◆ SetPlateClearanceFourth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceFourth ( double plateClearanceFourth )

Sets the plate clearance fourth.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

plateClearanceFourth plateclearancefourth

◆ SetPlateClearanceNinth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceNinth ( double plateClearanceNinth )

Sets the plate clearance ninth.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

plateClearanceNinth plateclearanceninth

◆ SetPlateClearanceSecond()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceSecond ( double plateClearanceSecond )

Sets the plate clearance second.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

plateClearanceSecond plateclearancesecond

◆ SetPlateClearanceSeventh()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceSeventh ( double plateClearanceSeventh )

设置板间隙第七个值。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

plateClearanceSeventh plateclearanceseventh

◆ SetPlateClearanceSixth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceSixth ( double plateClearanceSixth )

设置板间隙第六个值。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

plateClearanceSixth plateclearancesixth

◆ SetPlateClearanceTenth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceTenth ( double plateClearanceTenth )

Sets the plate clearance tenth.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

plateClearanceTenth plateclearancetenth

◆ SetPlateClearanceThird()

void NXOpen::Tooling::ClearanceManagementBuilder::SetPlateClearanceThird ( double plateClaranceThird )

Sets the plate clearance third.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

plateClaranceThird plateclarancethird

◆ SetShowPartAndClearanceHoleOnly()

void NXOpen::Tooling::ClearanceManagementBuilder::SetShowPartAndClearanceHoleOnly ( bool showPartAndClearanceHoleOnly )

Sets the option to show selected part and clearance hole only.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

showPartAndClearanceHoleOnly showpartandclearanceholeonly

◆ SetSpecifyClearanceDataFile() [1/2]

void NXOpen::Tooling::ClearanceManagementBuilder::SetSpecifyClearanceDataFile ( const char * filename )

Sets the name and full path of specified file.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

filename filename

◆ SetSpecifyClearanceDataFile() [2/2]

void NXOpen::Tooling::ClearanceManagementBuilder::SetSpecifyClearanceDataFile ( const NXString & filename )

Sets the name and full path of specified file.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

filename filename

◆ SetToolPartOrTargetPart()

void NXOpen::Tooling::ClearanceManagementBuilder::SetToolPartOrTargetPart ( NXOpen::Tooling::ClearanceManagementBuilder::Selection toolPartOrTargetPart )

Sets the tool part or target part.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

toolPartOrTargetPart toolpartortargetpart

◆ SetTypeAssignOrCheck()

void NXOpen::Tooling::ClearanceManagementBuilder::SetTypeAssignOrCheck ( NXOpen::Tooling::ClearanceManagementBuilder::Type typeAssignOrCheck )

Sets the clearance management type.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

typeAssignOrCheck typeassignorcheck

◆ SetUsePlateClearanceEighth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceEighth ( bool usePlateClearanceEighth )

设置是否使用板间隙第八个选项。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

usePlateClearanceEighth useplateclearanceeighth

◆ SetUsePlateClearanceFifth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceFifth ( bool usePlateClearanceFifth )

设置是否使用板间隙第五个选项。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

usePlateClearanceFifth useplateclearancefifth

◆ SetUsePlateClearanceFirst()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceFirst ( bool usePlateClearanceFirst )

Sets the option whether use plate clearance first.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

usePlateClearanceFirst useplateclearancefirst

◆ SetUsePlateClearanceFourth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceFourth ( bool usePlateClearanceFourth )

Sets the option whether use plate clearance fourth.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

usePlateClearanceFourth useplateclearancefourth

◆ SetUsePlateClearanceNinth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceNinth ( bool usePlateClearanceNinth )

Sets the option whether use plate clearance ninth.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

usePlateClearanceNinth useplateclearanceninth

◆ SetUsePlateClearanceSecond()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceSecond ( bool usePlateClearanceSecond )

Sets the option whether use plate clearance second.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

usePlateClearanceSecond useplateclearancesecond

◆ SetUsePlateClearanceSeventh()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceSeventh ( bool usePlateClearanceSeventh )

设置是否使用板间隙第七个选项。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

usePlateClearanceSeventh useplateclearanceseventh

◆ SetUsePlateClearanceSixth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceSixth ( bool usePlateClearanceSixth )

设置是否使用板间隙第六个选项。
创建于 NX8.0.0。

许可要求 : prog_die_wizard ("UG/级进模向导")

参数

usePlateClearanceSixth useplateclearancesixth

◆ SetUsePlateClearanceTenth()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceTenth ( bool usePlateClearanceTenth )

Sets the option whether use plate clearance tenth.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

usePlateClearanceTenth useplateclearancetenth

◆ SetUsePlateClearanceThird()

void NXOpen::Tooling::ClearanceManagementBuilder::SetUsePlateClearanceThird ( bool usePlateClearanceThird )

Sets the option whether use plate clearance third.
Created in NX8.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

usePlateClearanceThird useplateclearancethird

◆ ShowPartAndClearanceHoleOnly()

bool NXOpen::Tooling::ClearanceManagementBuilder::ShowPartAndClearanceHoleOnly ( )

Returns the option to show selected part and clearance hole only.
Created in NX8.0.0.

License requirements : None

◆ SpecifyClearanceDataFile()

NXString NXOpen::Tooling::ClearanceManagementBuilder::SpecifyClearanceDataFile ( )

Returns the name and full path of specified file.
Created in NX8.0.0.

License requirements : None

◆ ToolPartOrTargetPart()

NXOpen::Tooling::ClearanceManagementBuilder::Selection NXOpen::Tooling::ClearanceManagementBuilder::ToolPartOrTargetPart ( )

Returns the tool part or target part.
Created in NX8.0.0.

License requirements : None

◆ TypeAssignOrCheck()

NXOpen::Tooling::ClearanceManagementBuilder::Type NXOpen::Tooling::ClearanceManagementBuilder::TypeAssignOrCheck ( )

Returns the clearance management type.
Created in NX8.0.0.

License requirements : None

◆ UsePlateClearanceEighth()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceEighth ( )

返回是否使用板间隙第八个选项。
创建于 NX8.0.0。

许可要求 : 无

◆ UsePlateClearanceFifth()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceFifth ( )

Returns the option whether use plate clearance fifth.
Created in NX8.0.0.

License requirements : None

◆ UsePlateClearanceFirst()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceFirst ( )

Returns the option whether use plate clearance first.
Created in NX8.0.0.

License requirements : None

◆ UsePlateClearanceFourth()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceFourth ( )

Returns the option whether use plate clearance fourth.
Created in NX8.0.0.

License requirements : None

◆ UsePlateClearanceNinth()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceNinth ( )

返回是否使用板间隙第九个选项。
创建于 NX8.0.0。

许可要求 : 无

◆ UsePlateClearanceSecond()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceSecond ( )

Returns the option whether use plate clearance second.
Created in NX8.0.0.

License requirements : None

◆ UsePlateClearanceSeventh()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceSeventh ( )

返回是否使用板间隙第七个选项。
创建于 NX8.0.0。

许可要求 : 无

◆ UsePlateClearanceSixth()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceSixth ( )

返回是否使用板间隙第六个选项。
创建于 NX8.0.0。

许可要求 : 无

◆ UsePlateClearanceTenth()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceTenth ( )

Returns the option whether use plate clearance tenth.
Created in NX8.0.0.

License requirements : None

◆ UsePlateClearanceThird()

bool NXOpen::Tooling::ClearanceManagementBuilder::UsePlateClearanceThird ( )

Returns the option whether use plate clearance third.
Created in NX8.0.0.

License requirements : None

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ Selection

◆ Type

成员函数说明

◆ IsHighLightFacesWithSameClearance()

◆ PlateClearanceEighth()

◆ PlateClearanceFifth()

◆ PlateClearanceFirst()

◆ PlateClearanceFourth()

◆ PlateClearanceNinth()

◆ PlateClearanceSecond()

◆ PlateClearanceSeventh()

◆ PlateClearanceSixth()

◆ PlateClearanceTenth()

◆ PlateClearanceThird()

◆ SelectFace()

◆ SelectPart()

◆ SetHighLightFacesWithSameClearance()

◆ SetParameters()

◆ SetPlateClearanceEighth()

◆ SetPlateClearanceFifth()

◆ SetPlateClearanceFirst()

◆ SetPlateClearanceFourth()

◆ SetPlateClearanceNinth()

◆ SetPlateClearanceSecond()

◆ SetPlateClearanceSeventh()

◆ SetPlateClearanceSixth()

◆ SetPlateClearanceTenth()

◆ SetPlateClearanceThird()

◆ SetShowPartAndClearanceHoleOnly()

◆ SetSpecifyClearanceDataFile() [1/2]

◆ SetSpecifyClearanceDataFile() [2/2]

◆ SetToolPartOrTargetPart()

◆ SetTypeAssignOrCheck()

◆ SetUsePlateClearanceEighth()

◆ SetUsePlateClearanceFifth()

◆ SetUsePlateClearanceFirst()

◆ SetUsePlateClearanceFourth()

◆ SetUsePlateClearanceNinth()

◆ SetUsePlateClearanceSecond()

◆ SetUsePlateClearanceSeventh()

◆ SetUsePlateClearanceSixth()

◆ SetUsePlateClearanceTenth()

◆ SetUsePlateClearanceThird()

◆ ShowPartAndClearanceHoleOnly()

◆ SpecifyClearanceDataFile()

◆ ToolPartOrTargetPart()

◆ TypeAssignOrCheck()

◆ UsePlateClearanceEighth()

◆ UsePlateClearanceFifth()

◆ UsePlateClearanceFirst()

◆ UsePlateClearanceFourth()

◆ UsePlateClearanceNinth()

◆ UsePlateClearanceSecond()

◆ UsePlateClearanceSeventh()

◆ UsePlateClearanceSixth()

◆ UsePlateClearanceTenth()

◆ UsePlateClearanceThird()
