NXOpen::SketchSilhouetteBuilder类 参考

草图轮廓线构建器 更多...

#include <SketchSilhouetteBuilder.hxx>

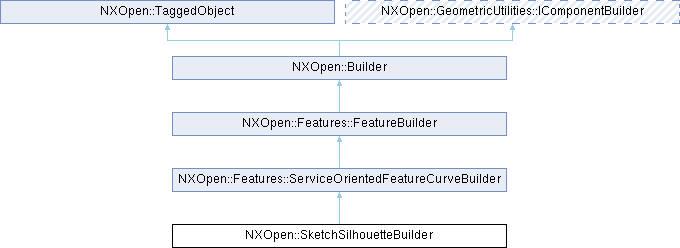

类 NXOpen::SketchSilhouetteBuilder 继承关系图:

Public 类型
enum	DirectionType { DirectionTypeDefault , DirectionTypeFlipped }

Public 成员函数
bool	Associativity ()
NXOpen::SketchSilhouetteBuilder::DirectionType	Direction ()
double	DistanceThreshold ()
NXOpen::ScCollector *	ObjectToSilhouette ()
bool	OptimizeCurve ()
void	SetAssociativity (bool associativity)
void	SetDirection (NXOpen::SketchSilhouetteBuilder::DirectionType directionType)
void	SetDistanceThreshold (double distanceThreshold)
void	SetOptimizeCurve (bool optimizeCurve)
Public 成员函数 继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SketchSilhouetteBuilderBuilder

详细描述

草图轮廓线构建器

Represents a NXOpen::SketchSilhouetteBuilder builder
To create a new instance of this class, use NXOpen::SketchCollection::CreateSilhouetteBuilder
Default values.

Property	Value
Associativity	True
DistanceThreshold	0.25 (millimeters part), 0.01 (inches part)
OptimizeCurve	0

Created in NX2306.0.0.

成员枚举类型说明

DirectionType

enum NXOpen::SketchSilhouetteBuilder::DirectionType

Specifies the viewing direction for silhouettes of faces

枚举值
DirectionTypeDefault	For face edges that are visible in the default sketch orientation.
DirectionTypeFlipped	For face edges that are visible from backside of the body.

成员函数说明

Associativity()

bool NXOpen::SketchSilhouetteBuilder::Associativity

(

)

Returns the associativity of projection. If this variable is turned on, the output curves will always depend on the input curves. So that when the input curves change, the output curves will change accordingly. If this variable is set to false, the output curves derive their shape from current stage of the input curves and then become independent of the input curves. In drafting mode, one can not project curves in associative manner. Also if the curves belong to multiple parts, they can not be projected in associative manner.
Created in NX2306.0.0.

License requirements : None

Direction()

NXOpen::SketchSilhouetteBuilder::DirectionType NXOpen::SketchSilhouetteBuilder::Direction

(

)

Returns the option to flip the projected direction of the silhouette curves.
Created in NX2312.0.0.

License requirements : None

DistanceThreshold()

double NXOpen::SketchSilhouetteBuilder::DistanceThreshold

(

)

Returns the distance threshold for use in optimizing the output curves.
Created in NX2306.0.0.

License requirements : None

ObjectToSilhouette()

NXOpen::ScCollector * NXOpen::SketchSilhouetteBuilder::ObjectToSilhouette

(

)

Returns the object to silhouette
Created in NX2306.0.0.

License requirements : None

OptimizeCurve()

bool NXOpen::SketchSilhouetteBuilder::OptimizeCurve

(

)

Returns the optional optimization of the output curves. Any gaps larger than the provided distance threshold will be closed.
Created in NX2306.0.0.

License requirements : None

SetAssociativity()

void NXOpen::SketchSilhouetteBuilder::SetAssociativity

(

bool

associativity

)

Sets the associativity of projection. If this variable is turned on, the output curves will always depend on the input curves. So that when the input curves change, the output curves will change accordingly. If this variable is set to false, the output curves derive their shape from current stage of the input curves and then become independent of the input curves. In drafting mode, one can not project curves in associative manner. Also if the curves belong to multiple parts, they can not be projected in associative manner.
Created in NX2306.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

参数

associativity

associativity

SetDirection()

void NXOpen::SketchSilhouetteBuilder::SetDirection

(

NXOpen::SketchSilhouetteBuilder::DirectionType

directionType

)

Sets the option to flip the projected direction of the silhouette curves.
Created in NX2312.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

参数

directionType

directiontype

SetDistanceThreshold()

void NXOpen::SketchSilhouetteBuilder::SetDistanceThreshold

(

double

distanceThreshold

)

Sets the distance threshold for use in optimizing the output curves.
Created in NX2306.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

参数

distanceThreshold

distancethreshold

SetOptimizeCurve()

void NXOpen::SketchSilhouetteBuilder::SetOptimizeCurve

(

bool

optimizeCurve

)

Sets the optional optimization of the output curves. Any gaps larger than the provided distance threshold will be closed.
Created in NX2306.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

参数

optimizeCurve

optimizecurve
