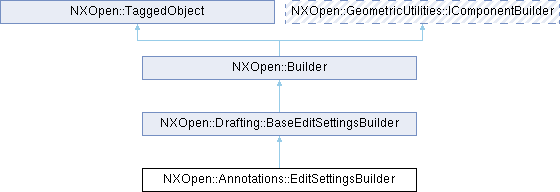

类 NXOpen::Annotations::EditSettingsBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::StyleBuilder *	AnnotationStyle ()
NXOpen::Annotations::DrawingFormatTitleBuilder *	DrawingFormatTitle ()
void	InheritSettingsFromCustomerDefault ()
void	InheritSettingsFromPreferences ()
void	InheritSettingsFromSelectedObjects (NXOpen::DisplayableObject *selectedObject)
NXOpen::Drawings::ViewProjectedArrowSettingsBuilder *	ViewProjectedArrowSettings ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_EditSettingsBuilderBuilder

详细描述

编辑设置构建器

编辑设置构建器
要创建此类的新实例，请使用 NXOpen::Drafting::SettingsManager::CreateAnnotationEditSettingsBuilder

创建于 NX9.0.0.

成员函数说明

NXOpen::Annotations::StyleBuilder * NXOpen::Annotations::EditSettingsBuilder::AnnotationStyle ( )

获取注释样式构建器
创建于 NX9.0.0.

许可要求：无

NXOpen::Annotations::DrawingFormatTitleBuilder * NXOpen::Annotations::EditSettingsBuilder::DrawingFormatTitle ( )

获取图纸格式标题栏构建器
创建于 NX9.0.0.

许可要求：无

void NXOpen::Annotations::EditSettingsBuilder::InheritSettingsFromCustomerDefault ( )

从客户默认设置继承设置
创建于 NX9.0.0.

许可要求：drafting ("DRAFTING")

void NXOpen::Annotations::EditSettingsBuilder::InheritSettingsFromPreferences ( )

从首选项继承设置
创建于 NX9.0.0.

许可要求：drafting ("DRAFTING")

void NXOpen::Annotations::EditSettingsBuilder::InheritSettingsFromSelectedObjects ( NXOpen::DisplayableObject * selectedObject )

从选定对象继承设置
创建于 NX9.0.0.

许可要求：drafting ("DRAFTING")

参数

selectedObject 选定的注释或表格实例对象。不允许为 NULL。

NXOpen::Drawings::ViewProjectedArrowSettingsBuilder * NXOpen::Annotations::EditSettingsBuilder::ViewProjectedArrowSettings ( )

获取投影视图箭头设置构建器
创建于 NX9.0.0.

许可要求：无
