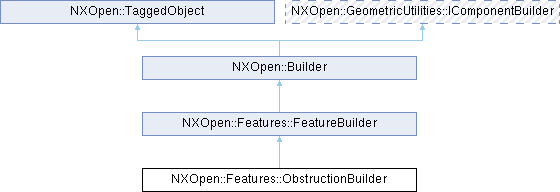

类 NXOpen::Features::ObstructionBuilder 继承关系图:

Public 成员函数
NXOpen::ScCollector *	ObstructionBodySelect ()
Public 成员函数继承自 NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
NXOpen::Features::Feature *	GetFeature ()
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
bool	ParentFeatureInternal ()
void	SetParentFeatureInternal (bool isInternal)
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_ObstructionBuilderBuilder

详细描述

障碍特征构建器

表示 Features::Obstruction 建造器
要创建此类的新实例，请使用 NXOpen::Features::AVDACollection::CreateObstructionBuilder

创建于 NX1953.0.0.

成员函数说明

NXOpen::ScCollector * NXOpen::Features::ObstructionBuilder::ObstructionBodySelect ( )

获取体选择器
创建于 NX1953.0.0.

许可证要求 : 无
