NXOpen::SketchMakeRelationBuilder类 参考

草图关系约束构建器 更多...

#include <SketchMakeRelationBuilder.hxx>

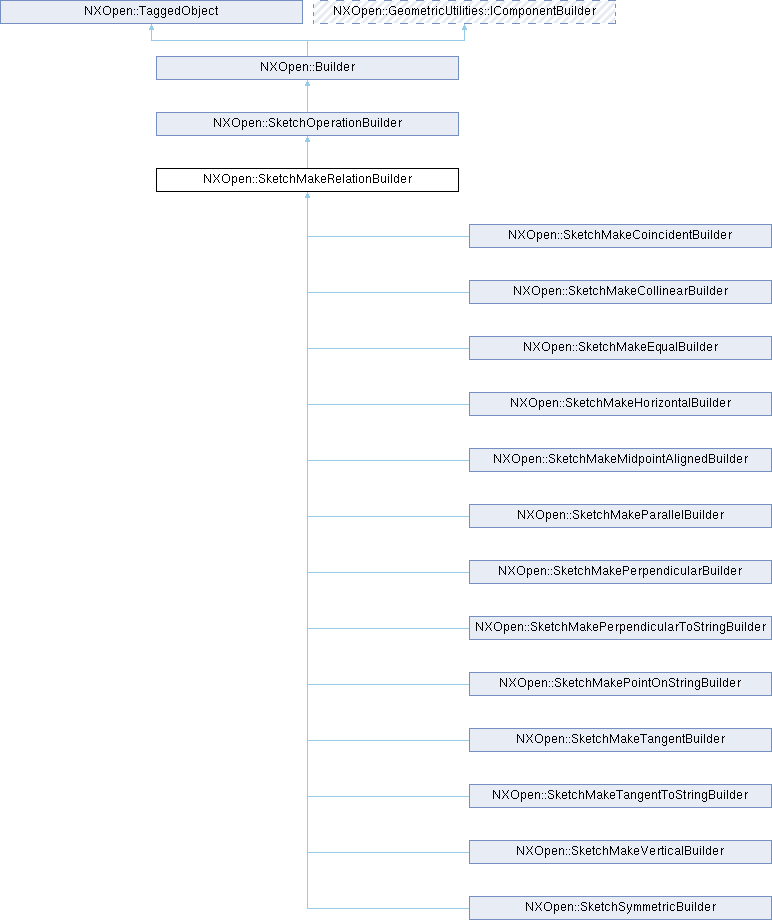

类 NXOpen::SketchMakeRelationBuilder 继承关系图:

Public 类型
enum	RelationTypes {   RelationTypesCoincident , RelationTypesCollinear , RelationTypesHorizontal , RelationTypesVertical ,   RelationTypesParallel , RelationTypesPerpendicular , RelationTypesEqualLength , RelationTypesEqualRadius ,   RelationTypesSymmetric , RelationTypesTangent , RelationTypesMidpointAligned , RelationTypesPointOnString ,   RelationTypesTangentToString , RelationTypesPerpendicularToString }
Public 类型 继承自 NXOpen::SketchOperationBuilder
enum	SolverStatus {   SolverStatusUnknown , SolverStatusInitializing , SolverStatusConfigured , SolverStatusConfigureFailed ,   SolverStatusUpdated , SolverStatusUpdateFailed }

Public 成员函数
void	ClearCurrentOperation ()
NXOpen::SelectNXObjectList *	LockObjects ()
NXOpen::SelectNXObjectList *	LockPoints ()
NXOpen::SelectNXObjectList *	MotionObjects ()
NXOpen::SelectNXObjectList *	MotionPoints ()
void	SetCreateConstraints (bool createConstaints)
NXOpen::SelectNXObject *	StationaryObject ()
Public 成员函数 继承自 NXOpen::SketchOperationBuilder
NXOpen::SketchOperationData *	ExportOperationData ()
std::vector< NXOpen::SketchFoundRelation * >	FindRelations ()
NXOpen::SketchOperationBuilder::SolverStatus	GetSolverStatus ()
	NX_DEPRECATED ("Deprecated in NX2007.0.0. Use NXOpen::SketchOperationBuilder::ExportOperationData instead.") NXString ExportSolverConfiguration(int *numStringSize)
void	RestoreOperation ()
void	SetRelationRelaxState (NXOpen::SketchRelation *relation, bool relax)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SketchMakeRelationBuilderBuilder

详细描述

草图关系约束构建器

Represents a SketchMakeRelationBuilder.
The sub-class should create an instance of corresponding object
Created in NX1847.0.0.

成员枚举类型说明

RelationTypes

enum NXOpen::SketchMakeRelationBuilder::RelationTypes

the relation types

枚举值
RelationTypesCoincident	coincident
RelationTypesCollinear	collinear
RelationTypesHorizontal	horizontal
RelationTypesVertical	vertical
RelationTypesParallel	parallel
RelationTypesPerpendicular	perpendicular
RelationTypesEqualLength	equal length
RelationTypesEqualRadius	equal radius
RelationTypesSymmetric	symmetric
RelationTypesTangent	tangent
RelationTypesMidpointAligned	midpoint aligned
RelationTypesPointOnString	point on string
RelationTypesTangentToString	tangent to string
RelationTypesPerpendicularToString	perpendicular to string

成员函数说明

ClearCurrentOperation()

void NXOpen::SketchMakeRelationBuilder::ClearCurrentOperation

(

)

Clear the current Operation. The operation need be cleared after deselection and reselection loops.
Created in NX1847.0.0.
License requirements : None

LockObjects()

NXOpen::SelectNXObjectList * NXOpen::SketchMakeRelationBuilder::LockObjects

(

)

Returns the lock curves. To get all lock objects, combine this with LockPoints.
Created in NX1847.0.0.
License requirements : None

LockPoints()

NXOpen::SelectNXObjectList * NXOpen::SketchMakeRelationBuilder::LockPoints

(

)

Returns the lock points. To get all lock objects, combine this with LockObjects.
Created in NX1953.0.0.
License requirements : None

MotionObjects()

NXOpen::SelectNXObjectList * NXOpen::SketchMakeRelationBuilder::MotionObjects

(

)

Returns the motion curves. To get all motion objects, combine this with MotionPoints.
Created in NX1847.0.0.
License requirements : None

MotionPoints()

NXOpen::SelectNXObjectList * NXOpen::SketchMakeRelationBuilder::MotionPoints

(

)

Returns the motion points. To get all motion objects, combine this with MotionObjects.
Created in NX1953.0.0.
License requirements : None

SetCreateConstraints()

void NXOpen::SketchMakeRelationBuilder::SetCreateConstraints

(

bool

createConstaints

)

Set Create Constraints.Optionally a constraint can be created by setting createConstraint to true.
Created in NX1847.0.0.
License requirements : None

参数

createConstaints

createconstaints

StationaryObject()

NXOpen::SelectNXObject * NXOpen::SketchMakeRelationBuilder::StationaryObject

(

)

Returns the stationary object
Created in NX1847.0.0.
License requirements : None
