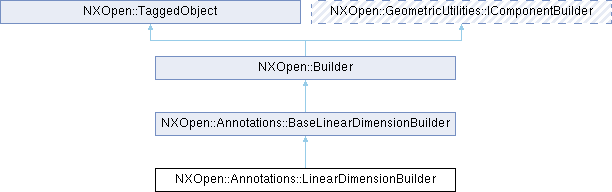

类 NXOpen::Annotations::LinearDimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
NXOpen::Annotations::ForeshorteningSymbolBuilder *	ForeshorteningSymbol ()
Public 成员函数继承自 NXOpen::Annotations::BaseLinearDimensionBuilder
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
NXOpen::Annotations::DimensionSetBuilder *	DimensionSet ()
NXOpen::SelectNXObject *	FirstAssociativity ()
NXOpen::Annotations::TextPlacement	GetNthSecondaryArrowheadOrientation (int nth)
NXOpen::Point3d	GetNthSecondaryOrigin (int nth)
std::vector< NXOpen::Annotations::Dimension * >	GetSecondaryCallouts ()
NXOpen::SelectDisplayableObject *	Inherit ()
bool	IsAutoplaced ()
NXOpen::Annotations::DimensionMeasurementBuilder *	Measurement ()
NXOpen::Annotations::Dimension::MeasurementTypes	MeasurementType ()
NXOpen::Annotations::OriginBuilder *	Origin ()
NXOpen::SelectNXObject *	SecondAssociativity ()
void	SetAutoplaced (bool isAutoplaced)
void	SetMeasurementType (NXOpen::Annotations::Dimension::MeasurementTypes measurementType)
void	SetNthSecondaryArrowheadOrientation (int nth, NXOpen::Annotations::TextPlacement secondaryArrowheadOrientation)
void	SetNthSecondaryOrigin (int nth, const NXOpen::Point3d &secondaryOrigin)
void	SetUseBaseline (bool useBaseline)
NXOpen::Annotations::StyleBuilder *	Style ()
bool	UseBaseline ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_LinearDimensionBuilderBuilder

详细描述

线性尺寸构建器

表示 NXOpen::Annotations::Dimension 构建器
要创建此类的新实例，请使用 NXOpen::Annotations::DimensionCollection::CreateLinearDimensionBuilder

创建于 NX9.0.0.

成员函数说明

◆ Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::Annotations::LinearDimensionBuilder::Driving ( )

返回驱动值构建器
创建于 NX9.0.0.

许可要求：无

◆ ForeshorteningSymbol()

NXOpen::Annotations::ForeshorteningSymbolBuilder * NXOpen::Annotations::LinearDimensionBuilder::ForeshorteningSymbol ( )

返回缩略符号构建器
创建于 NX10.0.0.

许可要求：无
