NXOpen::Annotations::RapidDimensionBuilder类 参考

快速尺寸构建器 更多...

#include <Annotations_RapidDimensionBuilder.hxx>

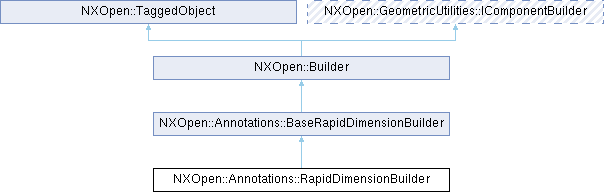

类 NXOpen::Annotations::RapidDimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
NXOpen::Annotations::ForeshorteningSymbolBuilder *	ForeshorteningSymbol ()
Public 成员函数 继承自 NXOpen::Annotations::BaseRapidDimensionBuilder
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
NXOpen::SelectDisplayableObject *	FirstAssociativity ()
bool	GetFirstAssociativityVectorFlipped ()
bool	GetSecondAssociativityVectorFlipped ()
NXOpen::SelectDisplayableObject *	Inherit ()
NXOpen::Annotations::DimensionMeasurementBuilder *	Measurement ()
NXOpen::Annotations::OriginBuilder *	Origin ()
NXOpen::SelectDisplayableObject *	SecondAssociativity ()
void	SetFirstAssociativityVectorFlipped (bool firstVectorFlipped)
void	SetSecondAssociativityVectorFlipped (bool secondVectorFlipped)
NXOpen::Annotations::StyleBuilder *	Style ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_RapidDimensionBuilderBuilder

详细描述

快速尺寸构建器

表示 NXOpen::Annotations::Dimension 构建器
要创建此类的新实例，请使用 NXOpen::Annotations::DimensionCollection::CreateRapidDimensionBuilder

创建于 NX9.0.0.

成员函数说明

Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::Annotations::RapidDimensionBuilder::Driving

(

)

返回 驱动值构建器
创建于 NX9.0.0.

许可要求：无

ForeshorteningSymbol()

NXOpen::Annotations::ForeshorteningSymbolBuilder * NXOpen::Annotations::RapidDimensionBuilder::ForeshorteningSymbol

(

)

返回 缩略符号构建器
创建于 NX10.0.0.

许可要求：无
