NXOpen::SketchRadialDimensionBuilder类 参考

草图径向尺寸构建器 更多...

#include <SketchRadialDimensionBuilder.hxx>

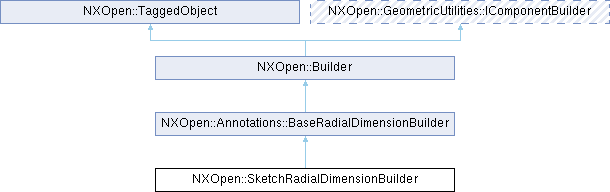

类 NXOpen::SketchRadialDimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
Public 成员函数 继承自 NXOpen::Annotations::BaseRadialDimensionBuilder
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
double	DiameterDimensionDimLineAngle ()
NXOpen::SelectNXObject *	FirstAssociativity ()
NXOpen::SelectDisplayableObject *	FoldLocation ()
NXOpen::SelectDisplayableObject *	Inherit ()
bool	IsFoldedRadius ()
bool	IsHoleStyle ()
bool	IsRadiusToCenter ()
NXOpen::Annotations::DimensionMeasurementBuilder *	Measurement ()
NXOpen::SelectDisplayableObject *	OffsetCenterPoint ()
NXOpen::Annotations::OriginBuilder *	Origin ()
void	SetDiameterDimensionDimLineAngle (double dimLineAngle)
void	SetFoldedRadius (bool isFoldedRadius)
void	SetHoleStyle (bool isArrowsOutDia)
void	SetRadiusToCenter (bool isRadiusToCenter)
NXOpen::Annotations::StyleBuilder *	Style ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SketchRadialDimensionBuilderBuilder

详细描述

草图径向尺寸构建器

表示 NXOpen::SketchRadialDimensionBuilder
创建此类新实例，请使用 NXOpen::SketchCollection::CreateRadialDimensionBuilder

创建于 NX9.0.0.

成员函数说明

Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::SketchRadialDimensionBuilder::Driving

(

)

返回驱动值构建器，用于管理驱动尺寸值
创建于 NX9.0.0.

许可证要求 : 无
