NXOpen::Annotations::RadialDimensionBuilder类 参考

径向尺寸构建器 更多...

#include <Annotations_RadialDimensionBuilder.hxx>

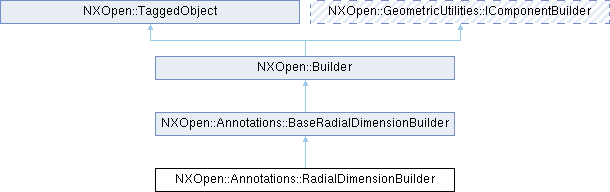

类 NXOpen::Annotations::RadialDimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
NXOpen::Annotations::ForeshorteningSymbolBuilder *	ForeshorteningSymbol ()
NXOpen::Annotations::TextPlacement	GetNthSecondaryArrowheadOrientation (int nth)
NXOpen::Point3d	GetNthSecondaryOrigin (int nth)
std::vector< NXOpen::Annotations::Dimension * >	GetSecondaryCallouts ()
bool	IsAutoplaced ()
void	SetAutoplaced (bool isAutoplaced)
void	SetNthSecondaryArrowheadOrientation (int nth, NXOpen::Annotations::TextPlacement secondaryArrowheadOrientation)
void	SetNthSecondaryOrigin (int nth, const NXOpen::Point3d &secondaryOrigin)
Public 成员函数 继承自 NXOpen::Annotations::BaseRadialDimensionBuilder
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
double	DiameterDimensionDimLineAngle ()
NXOpen::SelectNXObject *	FirstAssociativity ()
NXOpen::SelectDisplayableObject *	FoldLocation ()
NXOpen::SelectDisplayableObject *	Inherit ()
bool	IsFoldedRadius ()
bool	IsHoleStyle ()
bool	IsRadiusToCenter ()
NXOpen::Annotations::DimensionMeasurementBuilder *	Measurement ()
NXOpen::SelectDisplayableObject *	OffsetCenterPoint ()
NXOpen::Annotations::OriginBuilder *	Origin ()
void	SetDiameterDimensionDimLineAngle (double dimLineAngle)
void	SetFoldedRadius (bool isFoldedRadius)
void	SetHoleStyle (bool isArrowsOutDia)
void	SetRadiusToCenter (bool isRadiusToCenter)
NXOpen::Annotations::StyleBuilder *	Style ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_RadialDimensionBuilderBuilder

详细描述

径向尺寸构建器

表示 NXOpen::Annotations::Dimension 构建器
要创建此类的新实例，请使用 NXOpen::Annotations::DimensionCollection::CreateRadialDimensionBuilder

创建于 NX9.0.0.

成员函数说明

Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::Annotations::RadialDimensionBuilder::Driving

(

)

获取 驱动值构建器
创建于 NX9.0.0.

许可要求：无

ForeshorteningSymbol()

NXOpen::Annotations::ForeshorteningSymbolBuilder * NXOpen::Annotations::RadialDimensionBuilder::ForeshorteningSymbol

(

)

获取 缩短符号构建器
创建于 NX10.0.0.

许可要求：无

GetNthSecondaryArrowheadOrientation()

NXOpen::Annotations::TextPlacement NXOpen::Annotations::RadialDimensionBuilder::GetNthSecondaryArrowheadOrientation

(

int

nth

)

获取第n个次级尺寸的箭头方向
创建于 NX11.0.0.

许可要求：无

参数

nth

nth

GetNthSecondaryOrigin()

NXOpen::Point3d NXOpen::Annotations::RadialDimensionBuilder::GetNthSecondaryOrigin

(

int

nth

)

获取第n个次级尺寸的原点
创建于 NX11.0.0.

许可要求：无

参数

nth

nth

GetSecondaryCallouts()

std::vector< NXOpen::Annotations::Dimension * > NXOpen::Annotations::RadialDimensionBuilder::GetSecondaryCallouts

(

)

获取次级标注列表
创建于 NX11.0.0.

许可要求：无

IsAutoplaced()

bool NXOpen::Annotations::RadialDimensionBuilder::IsAutoplaced

(

)

获取 自动放置标志，用于计算次级尺寸的原点
创建于 NX11.0.0.

许可要求：无

SetAutoplaced()

void NXOpen::Annotations::RadialDimensionBuilder::SetAutoplaced

(

bool

isAutoplaced

)

设置 自动放置标志，用于计算次级尺寸的原点
创建于 NX11.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING") 或 nx_2d_edit (" NX 2D Edit")

参数

isAutoplaced

isautoplaced

SetNthSecondaryArrowheadOrientation()

void NXOpen::Annotations::RadialDimensionBuilder::SetNthSecondaryArrowheadOrientation	(	int	nth,
		NXOpen::Annotations::TextPlacement	secondaryArrowheadOrientation )

设置第n个次级尺寸的箭头方向
创建于 NX11.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING") 或 nx_2d_edit (" NX 2D Edit")

参数

nth	nth
secondaryArrowheadOrientation	secondaryarrowheadorientation

SetNthSecondaryOrigin()

void NXOpen::Annotations::RadialDimensionBuilder::SetNthSecondaryOrigin	(	int	nth,
		const NXOpen::Point3d &	secondaryOrigin )

设置第n个次级尺寸的原点
创建于 NX11.0.0.

许可要求：geometric_tol ("GDT") 或 drafting ("DRAFTING") 或 nx_2d_edit (" NX 2D Edit")

参数

nth	nth
secondaryOrigin	secondaryorigin
