STEP文件创建器更多...

#include <StepCreator.hxx>

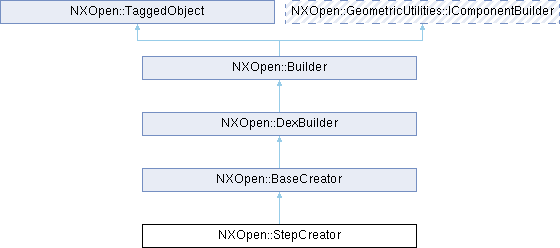

类 NXOpen::StepCreator 继承关系图:

Public 类型
enum	CsysrefEnum { CsysrefEnumAbsolute , CsysrefEnumWcs , CsysrefEnumSpecifiedCsys }
enum	EntityNameOption { EntityNameOptionLongName , EntityNameOptionShortName }
enum	ExportAsOption { ExportAsOptionAp203 , ExportAsOptionAp214 , ExportAsOptionAp242 , ExportAsOptionAp242ED2 }
enum	ExportConvergentAsOption { ExportConvergentAsOptionSplitPreciseAndTessellated , ExportConvergentAsOptionTessellated }
enum	ExportFromOption { ExportFromOptionDisplayPart , ExportFromOptionExistingPart }
enum	ExportSolidsAndSurfacesAsOption { ExportSolidsAndSurfacesAsOptionPrecise , ExportSolidsAndSurfacesAsOptionTessellated }
enum	ExternalReferenceStructureOption { ExternalReferenceStructureOptionBasic , ExternalReferenceStructureOptionNested }
Public 类型继承自 NXOpen::BaseCreator
enum	ExportDestinationOption { ExportDestinationOptionNativeFileSystem , ExportDestinationOptionTeamcenter }

Public 成员函数
bool	AssemblyValidationProperties ()
NXString	Author ()
NXString	Authorization ()
double	BsplineTol ()
bool	CloudOfPointsProperties ()
bool	ColorAndLayers ()
NXString	Company ()
NXOpen::CoordinateSystem *	Csys ()
NXString	Description ()
NXOpen::StepCreator::EntityNameOption	EntityNames ()
NXOpen::StepCreator::ExportAsOption	ExportAs ()
NXOpen::StepCreator::ExportConvergentAsOption	ExportConvergentAs ()
bool	ExportExtRef ()
NXOpen::StepCreator::ExternalReferenceStructureOption	ExportExtRefStructureAs ()
NXOpen::StepCreator::ExportFromOption	ExportFrom ()
NXOpen::ObjectSelector *	ExportSelectionBlock ()
NXOpen::StepCreator::ExportSolidsAndSurfacesAsOption	ExportSolidsAndSurfacesAs ()
bool	FileSaveFlag ()
bool	GeometricValidationProperties ()
NXString	InputFile ()
NXString	KinematicApp ()
NXString	LayerMask ()
bool	Material ()
NXOpen::ObjectTypeSelector *	ObjectTypes ()
bool	PMIValidationProperties ()
NXOpen::StepCreator::CsysrefEnum	ReferenceType ()
void	SaveSettings (const char *filename)
void	SaveSettings (const NXString &filename)
void	SetAssemblyValidationProperties (bool validationProperties)
void	SetAuthor (const char *author)
void	SetAuthor (const NXString &author)
void	SetAuthorization (const char *authorization)
void	SetAuthorization (const NXString &authorization)
void	SetBsplineTol (double bsplineTol)
void	SetCloudOfPointsProperties (bool validationProperties)
void	SetColorAndLayers (bool colorAndLayers)
void	SetCompany (const char *company)
void	SetCompany (const NXString &company)
void	SetCsys (NXOpen::CoordinateSystem *csys)
void	SetDescription (const char *description)
void	SetDescription (const NXString &description)
void	SetEntityNames (NXOpen::StepCreator::EntityNameOption entityNames)
void	SetExportAs (NXOpen::StepCreator::ExportAsOption exportAs)
void	SetExportConvergentAs (NXOpen::StepCreator::ExportConvergentAsOption exportConvergentAs)
void	SetExportExtRef (bool exportExtRef)
void	SetExportExtRefStructureAs (NXOpen::StepCreator::ExternalReferenceStructureOption exportExtRefStructureAs)
void	SetExportFrom (NXOpen::StepCreator::ExportFromOption exportFrom)
void	SetExportSolidsAndSurfacesAs (NXOpen::StepCreator::ExportSolidsAndSurfacesAsOption exportSolidsAndSurfacesAs)
void	SetFileSaveFlag (bool doingFileSave)
void	SetGeometricValidationProperties (bool validationProperties)
void	SetInputFile (const char *filename)
void	SetInputFile (const NXString &filename)
void	SetKinematicApp (const char *kinematicApp)
void	SetKinematicApp (const NXString &kinematicApp)
void	SetLayerMask (const char *layerMask)
void	SetLayerMask (const NXString &layerMask)
void	SetMaterial (bool material)
void	SetPMIValidationProperties (bool validationProperties)
void	SetReferenceType (NXOpen::StepCreator::CsysrefEnum referenceType)
void	SetSettingsFile (const char *filename)
void	SetSettingsFile (const NXString &filename)
void	SetSystemAttributes (bool systemAttributes)
NXString	SettingsFile ()
void	SetUserDefinedAttributes (bool userDefinedAttributes)
void	SetValidationProperties (bool validationProperties)
bool	SystemAttributes ()
bool	UserDefinedAttributes ()
bool	ValidationProperties ()
Public 成员函数继承自 NXOpen::BaseCreator
NXString	DatasetName ()
NXOpen::BaseCreator::ExportDestinationOption	ExportDestination ()
NXString	OutputFile ()
NXString	OutputFileExtension ()
void	SetDatasetName (const char *datasetName)
void	SetDatasetName (const NXString &datasetName)
void	SetExportDestination (NXOpen::BaseCreator::ExportDestinationOption exportFrom)
void	SetOutputFile (const char *filename)
void	SetOutputFile (const NXString &filename)
void	SetOutputFileExtension (const char *outputFileExtension)
void	SetOutputFileExtension (const NXString &outputFileExtension)
Public 成员函数继承自 NXOpen::DexBuilder
bool	ProcessHoldFlag ()
void	SetProcessHoldFlag (bool doingFileSave)
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_StepCreatorBuilder

详细描述

STEP文件创建器

表示用于导出STEP数据的StepCreator类。此类通过DexManager创建。 Commit()返回NULL对象。提交前工作部件必须存在于会话中。要创建此类的新实例，请使用DexManager::CreateStepCreator。默认值：

属性	值
BsplineTol	0.0254
ColorAndLayers	0
EntityNames	LongName
ExportAs	Ap214
ExportExtRef	0
ExportExtRefStructureAs	Basic
ExportFrom	DisplayPart
ExportSolidsAndSurfacesAs	Precise
ProcessHoldFlag	0
ReferenceType	Absolute
ValidationProperties	0

创建于NX11.0.0。

成员枚举类型说明

◆ CsysrefEnum

enum NXOpen::StepCreator::CsysrefEnum

坐标系引用选项

枚举值
CsysrefEnumAbsolute	相对于绝对坐标系导出
CsysrefEnumWcs	相对于工作坐标系导出
CsysrefEnumSpecifiedCsys	相对于指定坐标系导出

◆ EntityNameOption

enum NXOpen::StepCreator::EntityNameOption

实体名称选项

枚举值
EntityNameOptionLongName	创建长名称
EntityNameOptionShortName	创建短名称

◆ ExportAsOption

enum NXOpen::StepCreator::ExportAsOption

导出格式选项

枚举值
ExportAsOptionAp203	使用AP203导出
ExportAsOptionAp214	使用AP214导出
ExportAsOptionAp242	使用AP242导出
ExportAsOptionAp242ED2	使用AP242_ED2导出

◆ ExportConvergentAsOption

enum NXOpen::StepCreator::ExportConvergentAsOption

导出收敛体选项

枚举值
ExportConvergentAsOptionSplitPreciseAndTessellated	以拆分的精确和网格几何导出
ExportConvergentAsOptionTessellated	以网格几何导出

◆ ExportFromOption

enum NXOpen::StepCreator::ExportFromOption

创建构建器

枚举值
ExportFromOptionDisplayPart	从显示部件导出数据
ExportFromOptionExistingPart	从磁盘上的现有部件导出数据

◆ ExportSolidsAndSurfacesAsOption

enum NXOpen::StepCreator::ExportSolidsAndSurfacesAsOption

导出体和曲面选项

枚举值
ExportSolidsAndSurfacesAsOptionPrecise	以精确几何导出体和曲面
ExportSolidsAndSurfacesAsOptionTessellated	以网格几何导出体和曲面

◆ ExternalReferenceStructureOption

enum NXOpen::StepCreator::ExternalReferenceStructureOption

外部引用结构选项

枚举值
ExternalReferenceStructureOptionBasic	以BASIC格式输出外部引用结构
ExternalReferenceStructureOptionNested	以NESTED格式输出外部引用结构

成员函数说明

◆ AssemblyValidationProperties()

bool NXOpen::StepCreator::AssemblyValidationProperties ( )

Returns the assembly validation properties - use this for ap242 export only. if set to true assembly validation properties will be created
Created in NX1980.0.0.

License requirements : None

◆ Author()

NXString NXOpen::StepCreator::Author ( )

Returns the author
Created in NX11.0.0.

License requirements : None

◆ Authorization()

NXString NXOpen::StepCreator::Authorization ( )

返回授权信息
创建于NX11.0.0。

许可要求：无

◆ BsplineTol()

double NXOpen::StepCreator::BsplineTol ( )

Returns the bspline tolerance
Created in NX11.0.0.

License requirements : None

◆ CloudOfPointsProperties()

bool NXOpen::StepCreator::CloudOfPointsProperties ( )

Returns the cloud of points validation properties - use this for ap242 export only. if set to true cloud of points validation properties will be created
Created in NX12.0.0.

License requirements : None

◆ ColorAndLayers()

bool NXOpen::StepCreator::ColorAndLayers ( )

返回颜色和层 - 如果设为 true，则保留 NX 颜色和层
创建于 NX11.0.0。

许可要求：无

◆ Company()

NXString NXOpen::StepCreator::Company ( )

返回公司名称
创建于NX11.0.0。

许可要求：无

◆ Csys()

NXOpen::CoordinateSystem * NXOpen::StepCreator::Csys ( )

返回坐标系 - 用于导出数据的参考坐标系
创建于 NX2406.0.0.

许可要求：无

◆ Description()

NXString NXOpen::StepCreator::Description ( )

返回描述信息
创建于NX11.0.0。

许可要求：无

◆ EntityNames()

NXOpen::StepCreator::EntityNameOption NXOpen::StepCreator::EntityNames ( )

返回实体名称类型（长或短）
创建于 NX11.0.0。

许可要求：无

◆ ExportAs()

NXOpen::StepCreator::ExportAsOption NXOpen::StepCreator::ExportAs ( )

返回导出类型 - 该选项决定数据是否使用AP203、AP214或AP242导出
创建于NX11.0.0。

许可要求：无

◆ ExportConvergentAs()

NXOpen::StepCreator::ExportConvergentAsOption NXOpen::StepCreator::ExportConvergentAs ( )

返回导出收敛几何的方式 - 该选项决定收敛几何是否作为精确和离散化几何或仅离散化几何导出
创建于NX1953.0.0。

许可要求：无

◆ ExportExtRef()

bool NXOpen::StepCreator::ExportExtRef ( )

Returns the export ext ref - if set to true NX data can be output as external reference
Created in NX11.0.0.

License requirements : None

◆ ExportExtRefStructureAs()

NXOpen::StepCreator::ExternalReferenceStructureOption NXOpen::StepCreator::ExportExtRefStructureAs ( )

Returns the export ext ref as - specifiy the external reference Structure type
Created in NX11.0.0.

License requirements : None

◆ ExportFrom()

NXOpen::StepCreator::ExportFromOption NXOpen::StepCreator::ExportFrom ( )

Returns the export from - this option will determine if data from display part or existing part is exported
Created in NX11.0.0.

License requirements : None

◆ ExportSelectionBlock()

NXOpen::ObjectSelector * NXOpen::StepCreator::ExportSelectionBlock ( )

Returns the export selection block - the object selection will be done by this block.
Created in NX11.0.0.

License requirements : None

◆ ExportSolidsAndSurfacesAs()

NXOpen::StepCreator::ExportSolidsAndSurfacesAsOption NXOpen::StepCreator::ExportSolidsAndSurfacesAs ( )

返回导出实体和曲面的方式 - 该选项决定实体和曲面是作为精确几何还是离散化几何导出
创建于NX12.0.2。

许可要求：无

◆ FileSaveFlag()

bool NXOpen::StepCreator::FileSaveFlag ( )

返回文件保存标志 - 若执行文件导出则设为false
创建于NX11.0.0。

许可要求：无

◆ GeometricValidationProperties()

bool NXOpen::StepCreator::GeometricValidationProperties ( )

返回几何验证属性 - 仅用于 AP242 导出。如果设为 true，则创建几何验证属性
创建于 NX12.0.0。

许可要求：无

◆ InputFile()

NXString NXOpen::StepCreator::InputFile ( )

Returns the input file - name of file which is being exported.
Created in NX11.0.0.

License requirements : None

◆ KinematicApp()

NXString NXOpen::StepCreator::KinematicApp ( )

返回此应用的导出运动学 - 这将确定当前活动的应用
创建于 NX1953.0.0.

许可要求：无

◆ LayerMask()

NXString NXOpen::StepCreator::LayerMask ( )

Returns the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information. You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX11.0.0.

License requirements : None

◆ Material()

bool NXOpen::StepCreator::Material ( )

返回仅适用于 AP242 导出的材料密度信息 - 如果设为 true，则导出材料密度信息
创建于 NX2406.0.0。

许可要求：无

◆ ObjectTypes()

NXOpen::ObjectTypeSelector * NXOpen::StepCreator::ObjectTypes ( )

Returns the objectTypes - this is subcomponent being used to set object types filters. This will be used to filter objects based on the types
Created in NX11.0.0.

License requirements : None

◆ PMIValidationProperties()

bool NXOpen::StepCreator::PMIValidationProperties ( )

Returns the pmi validation properties - use this for ap242 export only. if set to true pmi validation properties will be created
Created in NX12.0.0.

License requirements : None

◆ ReferenceType()

NXOpen::StepCreator::CsysrefEnum NXOpen::StepCreator::ReferenceType ( )

返回参考类型 - 用于导出的参考坐标系
创建于 NX2406.0.0.

许可要求：无

◆ SaveSettings() [1/2]

void NXOpen::StepCreator::SaveSettings ( const char * filename )

The save settings - this will save the settings to a file sepcified
Created in NX11.0.0.

License requirements : None

参数

filename filename

◆ SaveSettings() [2/2]

void NXOpen::StepCreator::SaveSettings ( const NXString & filename )

The save settings - this will save the settings to a file sepcified
Created in NX11.0.0.

License requirements : None

参数

filename filename

◆ SetAssemblyValidationProperties()

void NXOpen::StepCreator::SetAssemblyValidationProperties ( bool validationProperties )

Sets the assembly validation properties - use this for ap242 export only. if set to true assembly validation properties will be created
Created in NX1980.0.0.

License requirements : None

参数

validationProperties validationproperties

◆ SetAuthor() [1/2]

void NXOpen::StepCreator::SetAuthor ( const char * author )

Sets the author
Created in NX11.0.0.

License requirements : None

参数

author author

◆ SetAuthor() [2/2]

void NXOpen::StepCreator::SetAuthor ( const NXString & author )

Sets the author
Created in NX11.0.0.

License requirements : None

参数

author author

◆ SetAuthorization() [1/2]

void NXOpen::StepCreator::SetAuthorization ( const char * authorization )

设置授权信息
创建于NX11.0.0。

许可要求：无

参数

authorization 授权信息

◆ SetAuthorization() [2/2]

void NXOpen::StepCreator::SetAuthorization ( const NXString & authorization )

设置授权信息
创建于NX11.0.0。

许可要求：无

参数

authorization 授权信息

◆ SetBsplineTol()

void NXOpen::StepCreator::SetBsplineTol ( double bsplineTol )

Sets the bspline tolerance
Created in NX11.0.0.

License requirements : None

参数

bsplineTol bsplinetol

◆ SetCloudOfPointsProperties()

void NXOpen::StepCreator::SetCloudOfPointsProperties ( bool validationProperties )

Sets the cloud of points validation properties - use this for ap242 export only. if set to true cloud of points validation properties will be created
Created in NX12.0.0.

License requirements : None

参数

validationProperties validationproperties

◆ SetColorAndLayers()

void NXOpen::StepCreator::SetColorAndLayers ( bool colorAndLayers )

设置颜色和层 - 如果设为 true，则保留 NX 颜色和层
创建于 NX11.0.0。

许可要求：无

参数

colorAndLayers colorandlayers

◆ SetCompany() [1/2]

void NXOpen::StepCreator::SetCompany ( const char * company )

设置公司名称
创建于NX11.0.0。

许可要求：无

参数

company 公司名称

◆ SetCompany() [2/2]

void NXOpen::StepCreator::SetCompany ( const NXString & company )

设置公司名称
创建于NX11.0.0。

许可要求：无

参数

company 公司名称

◆ SetCsys()

void NXOpen::StepCreator::SetCsys ( NXOpen::CoordinateSystem * csys )

设置坐标系 - 用于导出数据的参考坐标系
创建于 NX2406.0.0.

许可要求：无

参数

csys csys

◆ SetDescription() [1/2]

void NXOpen::StepCreator::SetDescription ( const char * description )

设置描述信息
创建于NX11.0.0。

许可要求：无

参数

description 描述信息

◆ SetDescription() [2/2]

void NXOpen::StepCreator::SetDescription ( const NXString & description )

设置描述信息
创建于NX11.0.0。

许可要求：无

参数

description 描述信息

◆ SetEntityNames()

void NXOpen::StepCreator::SetEntityNames ( NXOpen::StepCreator::EntityNameOption entityNames )

设置实体名称类型（长或短）
创建于 NX11.0.0。

许可要求：无

参数

entityNames entitynames

◆ SetExportAs()

void NXOpen::StepCreator::SetExportAs ( NXOpen::StepCreator::ExportAsOption exportAs )

设置导出类型 - 该选项决定数据是否使用AP203、AP214或AP242导出
创建于NX11.0.0。

许可要求：无

参数

exportAs 导出类型

◆ SetExportConvergentAs()

void NXOpen::StepCreator::SetExportConvergentAs ( NXOpen::StepCreator::ExportConvergentAsOption exportConvergentAs )

设置导出收敛性 - 此选项将决定收敛性几何是导出为精确且网格化的，还是仅导出网格化的几何
创建于 NX1953.0.0.

许可要求：无

参数

exportConvergentAs exportconvergentas

◆ SetExportExtRef()

void NXOpen::StepCreator::SetExportExtRef ( bool exportExtRef )

Sets the export ext ref - if set to true NX data can be output as external reference
Created in NX11.0.0.

License requirements : None

参数

exportExtRef exportextref

◆ SetExportExtRefStructureAs()

void NXOpen::StepCreator::SetExportExtRefStructureAs ( NXOpen::StepCreator::ExternalReferenceStructureOption exportExtRefStructureAs )

Sets the export ext ref as - specifiy the external reference Structure type
Created in NX11.0.0.

License requirements : None

参数

exportExtRefStructureAs exportextrefstructureas

◆ SetExportFrom()

void NXOpen::StepCreator::SetExportFrom ( NXOpen::StepCreator::ExportFromOption exportFrom )

Sets the export from - this option will determine if data from display part or existing part is exported
Created in NX11.0.0.

License requirements : None

参数

exportFrom exportfrom

◆ SetExportSolidsAndSurfacesAs()

void NXOpen::StepCreator::SetExportSolidsAndSurfacesAs ( NXOpen::StepCreator::ExportSolidsAndSurfacesAsOption exportSolidsAndSurfacesAs )

设置导出实体和曲面的方式 - 该选项决定实体和曲面是作为精确几何还是离散化几何导出
创建于NX12.0.2。

许可要求：无

参数

exportSolidsAndSurfacesAs 导出方式

◆ SetFileSaveFlag()

void NXOpen::StepCreator::SetFileSaveFlag ( bool doingFileSave )

设置文件保存标志 - 若执行文件导出则设为false
创建于NX11.0.0。

许可要求：无

参数

doingFileSave 是否执行文件保存

◆ SetGeometricValidationProperties()

void NXOpen::StepCreator::SetGeometricValidationProperties ( bool validationProperties )

设置几何验证属性 - 仅用于 AP242 导出。如果设为 true，则创建几何验证属性
创建于 NX12.0.0。

许可要求：无

参数

validationProperties validationproperties

◆ SetInputFile() [1/2]

void NXOpen::StepCreator::SetInputFile ( const char * filename )

Sets the input file - name of file which is being exported.
Created in NX11.0.0.

License requirements : None

参数

filename filename

◆ SetInputFile() [2/2]

void NXOpen::StepCreator::SetInputFile ( const NXString & filename )

Sets the input file - name of file which is being exported.
Created in NX11.0.0.

License requirements : None

参数

filename filename

◆ SetKinematicApp() [1/2]

void NXOpen::StepCreator::SetKinematicApp ( const char * kinematicApp )

设置此应用的导出运动学 - 这将确定当前活动的应用
创建于 NX1953.0.0.

许可要求：无

参数

kinematicApp kinematicapp

◆ SetKinematicApp() [2/2]

void NXOpen::StepCreator::SetKinematicApp ( const NXString & kinematicApp )

设置此应用的导出运动学 - 这将确定当前活动的应用
创建于 NX1953.0.0.

许可要求：无

参数

kinematicApp kinematicapp

◆ SetLayerMask() [1/2]

void NXOpen::StepCreator::SetLayerMask ( const char * layerMask )

设置层掩码 - 您可以通过仅指定包含适当信息的层来限制导出的数据。您可以输入用逗号分隔的层号或层范围。例如，1, 5, 88-109,190-199, 201, 206-210 是合法的规范。导出层的默认设置为 1-256。
创建于 NX11.0.0。

许可要求：无

参数

layerMask layermask

◆ SetLayerMask() [2/2]

void NXOpen::StepCreator::SetLayerMask ( const NXString & layerMask )

Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information. You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX11.0.0.

License requirements : None

参数

layerMask layermask

◆ SetMaterial()

void NXOpen::StepCreator::SetMaterial ( bool material )

设置仅适用于 AP242 导出的材料密度信息 - 如果设为 true，则导出材料密度信息
创建于 NX2406.0.0。

许可要求：无

参数

material material

◆ SetPMIValidationProperties()

void NXOpen::StepCreator::SetPMIValidationProperties ( bool validationProperties )

Sets the pmi validation properties - use this for ap242 export only. if set to true pmi validation properties will be created
Created in NX12.0.0.

License requirements : None

参数

validationProperties validationproperties

◆ SetReferenceType()

void NXOpen::StepCreator::SetReferenceType ( NXOpen::StepCreator::CsysrefEnum referenceType )

设置参考类型 - 用于导出的参考坐标系
创建于 NX2406.0.0.

许可要求：无

参数

referenceType referencetype

◆ SetSettingsFile() [1/2]

void NXOpen::StepCreator::SetSettingsFile ( const char * filename )

Sets the Settings File to read the default settings
Created in NX11.0.0.

License requirements : None

参数

filename filename

◆ SetSettingsFile() [2/2]

void NXOpen::StepCreator::SetSettingsFile ( const NXString & filename )

Sets the Settings File to read the default settings
Created in NX11.0.0.

License requirements : None

参数

filename filename

◆ SetSystemAttributes()

void NXOpen::StepCreator::SetSystemAttributes ( bool systemAttributes )

设置仅适用于 AP242 导出的系统属性 - 如果设为 true，则导出系统属性
创建于 NX1847.0.0。

许可要求：无

参数

systemAttributes systemattributes

◆ SettingsFile()

NXString NXOpen::StepCreator::SettingsFile ( )

Returns the Settings File to read the default settings
Created in NX11.0.0.

License requirements : None

◆ SetUserDefinedAttributes()

void NXOpen::StepCreator::SetUserDefinedAttributes ( bool userDefinedAttributes )

设置仅适用于 AP242 导出的用户定义属性 - 如果设为 true，则导出用户定义属性
创建于 NX1847.0.0。

许可要求：无

参数

userDefinedAttributes userdefinedattributes

◆ SetValidationProperties()

void NXOpen::StepCreator::SetValidationProperties ( bool validationProperties )

设置验证属性 - 如果设为 true，则创建验证属性
创建于 NX11.0.0。

许可要求：无

参数

validationProperties validationproperties

◆ SystemAttributes()

bool NXOpen::StepCreator::SystemAttributes ( )

返回仅适用于 AP242 导出的系统属性 - 如果设为 true，则导出系统属性
创建于 NX1847.0.0。

许可要求：无

◆ UserDefinedAttributes()

bool NXOpen::StepCreator::UserDefinedAttributes ( )

返回仅适用于 AP242 导出的用户定义属性 - 如果设为 true，则导出用户定义属性
创建于 NX1847.0.0。

许可要求：无

◆ ValidationProperties()

bool NXOpen::StepCreator::ValidationProperties ( )

返回验证属性 - 如果设为 true，则创建验证属性
创建于 NX11.0.0。

许可要求：无

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ CsysrefEnum

◆ EntityNameOption

◆ ExportAsOption

◆ ExportConvergentAsOption

◆ ExportFromOption

◆ ExportSolidsAndSurfacesAsOption

◆ ExternalReferenceStructureOption

成员函数说明

◆ AssemblyValidationProperties()

◆ Author()

◆ Authorization()

◆ BsplineTol()

◆ CloudOfPointsProperties()

◆ ColorAndLayers()

◆ Company()

◆ Csys()

◆ Description()

◆ EntityNames()

◆ ExportAs()

◆ ExportConvergentAs()

◆ ExportExtRef()

◆ ExportExtRefStructureAs()

◆ ExportFrom()

◆ ExportSelectionBlock()

◆ ExportSolidsAndSurfacesAs()

◆ FileSaveFlag()

◆ GeometricValidationProperties()

◆ InputFile()

◆ KinematicApp()

◆ LayerMask()

◆ Material()

◆ ObjectTypes()

◆ PMIValidationProperties()

◆ ReferenceType()

◆ SaveSettings() [1/2]

◆ SaveSettings() [2/2]

◆ SetAssemblyValidationProperties()

◆ SetAuthor() [1/2]

◆ SetAuthor() [2/2]

◆ SetAuthorization() [1/2]

◆ SetAuthorization() [2/2]

◆ SetBsplineTol()

◆ SetCloudOfPointsProperties()

◆ SetColorAndLayers()

◆ SetCompany() [1/2]

◆ SetCompany() [2/2]

◆ SetCsys()

◆ SetDescription() [1/2]

◆ SetDescription() [2/2]

◆ SetEntityNames()

◆ SetExportAs()

◆ SetExportConvergentAs()

◆ SetExportExtRef()

◆ SetExportExtRefStructureAs()

◆ SetExportFrom()

◆ SetExportSolidsAndSurfacesAs()

◆ SetFileSaveFlag()

◆ SetGeometricValidationProperties()

◆ SetInputFile() [1/2]

◆ SetInputFile() [2/2]

◆ SetKinematicApp() [1/2]

◆ SetKinematicApp() [2/2]

◆ SetLayerMask() [1/2]

◆ SetLayerMask() [2/2]

◆ SetMaterial()

◆ SetPMIValidationProperties()

◆ SetReferenceType()

◆ SetSettingsFile() [1/2]

◆ SetSettingsFile() [2/2]

◆ SetSystemAttributes()

◆ SettingsFile()

◆ SetUserDefinedAttributes()

◆ SetValidationProperties()

◆ SystemAttributes()

◆ UserDefinedAttributes()
