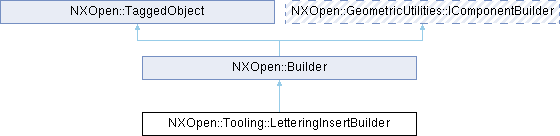

类 NXOpen::Tooling::LetteringInsertBuilder 继承关系图:

Public 成员函数
double	BottomingPlateClearance ()
bool	BottomingPlateToggle ()
double	DiePlateClearance ()
bool	DiePlateToggle ()
NXOpen::Expression *	DraftAngularDim ()
NXOpen::Expression *	EndDistanceLinearDim ()
NXString	Font ()
NXOpen::Tooling::LetteringInsertBuilder::FontStyleOptions	FontStyle ()
std::vector< NXString >	GetParentNames ()
void	GetSelectedFaceOccurrences (std::vector< NXOpen::TaggedObject * > &selectedFaceOccurrences)
NXOpen::Expression *	Height ()
NXString	InputLetter ()
NXOpen::TaggedObject *	InsertInstanceTag ()
NXOpen::Expression *	Length ()
NXOpen::Tooling::LetteringInsertBuilder::LetterDirectionOption	LetterDirection ()
bool	OnlyAddLetteringStandardPartToggle ()
NXString	ParentPartName ()
NXOpen::Tooling::LetteringInsertBuilder::ParentPartNodeOption	ParentPartNode ()
NXOpen::TaggedObject *	PostProcessPDWStandardClientData ()
void	PreparePDWStandardClientData ()
double	PunchPlateClearance ()
bool	PunchPlateToggle ()
NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions	Script ()
NXOpen::ScCollector *	SelectFace ()
void	SelectFont (const char *fontName, NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions script)
void	SelectFont (const NXString &fontName, NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions script)
void	SetBottomingPlateClearance (double bottomingPlateClearance)
void	SetBottomingPlateToggle (bool bottomingPlateToggle)
void	SetDiePlateClearance (double diePlateClearance)
void	SetDiePlateToggle (bool diePlateToggle)
void	SetFontStyle (NXOpen::Tooling::LetteringInsertBuilder::FontStyleOptions fontStyle)
void	SetInputLetter (const char *inputLetter)
void	SetInputLetter (const NXString &inputLetter)
void	SetInsertInstanceTag (NXOpen::TaggedObject *insertInstanceTag)
void	SetLetterDirection (NXOpen::Tooling::LetteringInsertBuilder::LetterDirectionOption letterDirection)
void	SetOnlyAddLetteringStandardPartToggle (bool onlyAddLetteringStandardPartToggle)
void	SetParentNames (std::vector< NXString > &parentNames)
void	SetParentPartName (const char *parentPartName)
void	SetParentPartName (const NXString &parentPartName)
void	SetParentPartNode (NXOpen::Tooling::LetteringInsertBuilder::ParentPartNodeOption parentPartNode)
void	SetPunchPlateClearance (double punchPlateClearance)
void	SetPunchPlateToggle (bool punchPlateToggle)
void	SetScript (NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions script)
void	SetSelectedFaceOccurrences (const std::vector< NXOpen::TaggedObject * > &selectedFaceOccurrences)
void	SetStripperPlateClearance (double stripperPlateClearance)
void	SetStripperPlateToggle (bool stripperPlateToggle)
void	SetWizardType (int wizardType)
void	StandardInsert ()
NXOpen::Expression *	StartDistanceLinearDim ()
double	StripperPlateClearance ()
bool	StripperPlateToggle ()
int	WizardType ()
Public 成员函数继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_LetteringInsertBuilderBuilder

详细描述

刻字镶件构建器

Represents lettering insert builder.
To create a new instance of this class, use NXOpen::Tooling::ProgressiveDieManager::CreateLetteringInsertBuilder
Default values.

Property	Value
BottomingPlateClearance	0.1
BottomingPlateToggle	0
DiePlateClearance	0.05
DiePlateToggle	0
DraftAngularDim.Value	0
EndDistanceLinearDim.Value	0.2 (millimeters part), 0.08 (inches part)
FontStyle	Regular
Height.Value	2 (millimeters part), 0.08 (inches part)
Length.Value	5 (millimeters part), 0.2 (inches part)
LetterDirection	Up
OnlyAddLetteringStandardPartToggle	0
ParentPartNode	NoParent
PunchPlateClearance	0.025
PunchPlateToggle	0
StartDistanceLinearDim.Value	-0.1 (millimeters part), -0.04 (inches part)
StripperPlateClearance	0.05
StripperPlateToggle	0

Created in NX1980.0.0.

成员枚举类型说明

◆ FontStyleOptions

enum NXOpen::Tooling::LetteringInsertBuilder::FontStyleOptions

Font style options

枚举值
FontStyleOptionsRegular	Regular style
FontStyleOptionsItalic	Italic style
FontStyleOptionsBold	Bold style
FontStyleOptionsBoldItalic	Bold italic style

◆ LetterDirectionOption

enum NXOpen::Tooling::LetteringInsertBuilder::LetterDirectionOption

Specify the direction of letter.

枚举值
LetterDirectionOptionUp	Up direction
LetterDirectionOptionDown	Down direction

◆ ParentPartNodeOption

enum NXOpen::Tooling::LetteringInsertBuilder::ParentPartNodeOption

Specify the parent node of insert part.

枚举值
ParentPartNodeOptionNoParent	No parent node

◆ ScriptOptions

enum NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions

Script or character set options

枚举值
ScriptOptionsOther	Specifies a default character set based on current system locale
ScriptOptionsWestern	Specifies the English character set
ScriptOptionsBaltic	Specifies the Baltic (Northeastern European) character set
ScriptOptionsChineseBig5	Specifies the "traditional" Chinese character set
ScriptOptionsCentralEuropean	Specifies a Eastern European character set
ScriptOptionsGb2312	Specifies the "simplified" Chinese character set
ScriptOptionsGreek	Specifies the Greek character set
ScriptOptionsHangul	Specifies the Hangul Korean character set
ScriptOptionsMac	Specifies the Apple Macintosh character set
ScriptOptionsOem	Specifies a mapping to one of the OEM code pages, according to the current system locale setting
ScriptOptionsCyrillic	Specifies the Russian Cyrillic character set
ScriptOptionsShiftJIS	Specifies the Japanese character set
ScriptOptionsSymbol	Specifies a character set of symbols
ScriptOptionsTurkish	Specifies the Turkish character set
ScriptOptionsVietnamese	Specifies the Vietnamese character set
ScriptOptionsJohab	Specifies the Johab Korean character set
ScriptOptionsArabic	Specifies the Arabic character set
ScriptOptionsHebrew	Specifies the Hebrew character set
ScriptOptionsThai	Specifies the Thai character set

成员函数说明

◆ BottomingPlateClearance()

double NXOpen::Tooling::LetteringInsertBuilder::BottomingPlateClearance ( )

Returns the bottoming plate clearance
Created in NX1980.0.0.

License requirements : None

◆ BottomingPlateToggle()

bool NXOpen::Tooling::LetteringInsertBuilder::BottomingPlateToggle ( )

Returns the bottoming plate toggle
Created in NX1980.0.0.

License requirements : None

◆ DiePlateClearance()

double NXOpen::Tooling::LetteringInsertBuilder::DiePlateClearance ( )

Returns the die plate clearance
Created in NX1980.0.0.

License requirements : None

◆ DiePlateToggle()

bool NXOpen::Tooling::LetteringInsertBuilder::DiePlateToggle ( )

Returns the die plate toggle
Created in NX1980.0.0.

License requirements : None

◆ DraftAngularDim()

NXOpen::Expression * NXOpen::Tooling::LetteringInsertBuilder::DraftAngularDim ( )

Returns the draft angular dim
Created in NX1980.0.0.

License requirements : None

◆ EndDistanceLinearDim()

NXOpen::Expression * NXOpen::Tooling::LetteringInsertBuilder::EndDistanceLinearDim ( )

Returns the end distance linear dim
Created in NX1980.0.0.

License requirements : None

◆ Font()

NXString NXOpen::Tooling::LetteringInsertBuilder::Font ( )

Returns the font
Created in NX1980.0.0.

License requirements : None

◆ FontStyle()

NXOpen::Tooling::LetteringInsertBuilder::FontStyleOptions NXOpen::Tooling::LetteringInsertBuilder::FontStyle ( )

Returns the font style
Created in NX1980.0.0.

License requirements : None

◆ GetParentNames()

std::vector< NXString > NXOpen::Tooling::LetteringInsertBuilder::GetParentNames ( )

获取父部件名称

返回: 父部件名称列表
创建于 NX1980.0.0。

许可要求：无

◆ GetSelectedFaceOccurrences()

void NXOpen::Tooling::LetteringInsertBuilder::GetSelectedFaceOccurrences ( std::vector< NXOpen::TaggedObject * > & selectedFaceOccurrences )

获取所选面的实例
创建于 NX1980.0.0。

许可要求：无

参数

selectedFaceOccurrences selectedfaceoccurrences

◆ Height()

NXOpen::Expression * NXOpen::Tooling::LetteringInsertBuilder::Height ( )

Returns the height
Created in NX1980.0.0.

License requirements : None

◆ InputLetter()

NXString NXOpen::Tooling::LetteringInsertBuilder::InputLetter ( )

Returns the input letter
Created in NX1980.0.0.

License requirements : None

◆ InsertInstanceTag()

NXOpen::TaggedObject * NXOpen::Tooling::LetteringInsertBuilder::InsertInstanceTag ( )

返回新的嵌入件实例
创建于 NX1980.0.0。

许可要求：无

◆ Length()

NXOpen::Expression * NXOpen::Tooling::LetteringInsertBuilder::Length ( )

Returns the length
Created in NX1980.0.0.

License requirements : None

◆ LetterDirection()

NXOpen::Tooling::LetteringInsertBuilder::LetterDirectionOption NXOpen::Tooling::LetteringInsertBuilder::LetterDirection ( )

Returns the letter direction
Created in NX1980.0.0.

License requirements : None

◆ OnlyAddLetteringStandardPartToggle()

bool NXOpen::Tooling::LetteringInsertBuilder::OnlyAddLetteringStandardPartToggle ( )

Returns the only add lettering standard part toggle
Created in NX1980.0.0.

License requirements : None

◆ ParentPartName()

NXString NXOpen::Tooling::LetteringInsertBuilder::ParentPartName ( )

Returns the parent part name to create insert.
Created in NX1980.0.0.

License requirements : None

◆ ParentPartNode()

NXOpen::Tooling::LetteringInsertBuilder::ParentPartNodeOption NXOpen::Tooling::LetteringInsertBuilder::ParentPartNode ( )

Returns the parent part node
Created in NX1980.0.0.

License requirements : None

◆ PostProcessPDWStandardClientData()

NXOpen::TaggedObject * NXOpen::Tooling::LetteringInsertBuilder::PostProcessPDWStandardClientData ( )

插入标准部件后处理 PDW 标准客户端数据

返回: 返回新创建的部件实例
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

◆ PreparePDWStandardClientData()

void NXOpen::Tooling::LetteringInsertBuilder::PreparePDWStandardClientData ( )

为标准部件管理准备 PDW 标准客户端数据
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

◆ PunchPlateClearance()

double NXOpen::Tooling::LetteringInsertBuilder::PunchPlateClearance ( )

Returns the punch plate clearance
Created in NX1980.0.0.

License requirements : None

◆ PunchPlateToggle()

bool NXOpen::Tooling::LetteringInsertBuilder::PunchPlateToggle ( )

Returns the punch plate toggle
Created in NX1980.0.0.

License requirements : None

◆ Script()

NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions NXOpen::Tooling::LetteringInsertBuilder::Script ( )

Returns the script
Created in NX1980.0.0.

License requirements : None

◆ SelectFace()

NXOpen::ScCollector * NXOpen::Tooling::LetteringInsertBuilder::SelectFace ( )

Returns the select face
Created in NX1980.0.0.

License requirements : None

◆ SelectFont() [1/2]

void NXOpen::Tooling::LetteringInsertBuilder::SelectFont	(	const char *	fontName,
		NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions	script )

Selects the font along with appropriate charactor set
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

fontName	Font
script	Charactor set

◆ SelectFont() [2/2]

void NXOpen::Tooling::LetteringInsertBuilder::SelectFont	(	const NXString &	fontName,
		NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions	script )

Selects the font along with appropriate charactor set
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

fontName	Font
script	Charactor set

◆ SetBottomingPlateClearance()

void NXOpen::Tooling::LetteringInsertBuilder::SetBottomingPlateClearance ( double bottomingPlateClearance )

Sets the bottoming plate clearance
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

bottomingPlateClearance bottomingplateclearance

◆ SetBottomingPlateToggle()

void NXOpen::Tooling::LetteringInsertBuilder::SetBottomingPlateToggle ( bool bottomingPlateToggle )

Sets the bottoming plate toggle
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

bottomingPlateToggle bottomingplatetoggle

◆ SetDiePlateClearance()

void NXOpen::Tooling::LetteringInsertBuilder::SetDiePlateClearance ( double diePlateClearance )

Sets the die plate clearance
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

diePlateClearance dieplateclearance

◆ SetDiePlateToggle()

void NXOpen::Tooling::LetteringInsertBuilder::SetDiePlateToggle ( bool diePlateToggle )

Sets the die plate toggle
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

diePlateToggle dieplatetoggle

◆ SetFontStyle()

void NXOpen::Tooling::LetteringInsertBuilder::SetFontStyle ( NXOpen::Tooling::LetteringInsertBuilder::FontStyleOptions fontStyle )

Sets the font style
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

fontStyle fontstyle

◆ SetInputLetter() [1/2]

void NXOpen::Tooling::LetteringInsertBuilder::SetInputLetter ( const char * inputLetter )

Sets the input letter
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

inputLetter inputletter

◆ SetInputLetter() [2/2]

void NXOpen::Tooling::LetteringInsertBuilder::SetInputLetter ( const NXString & inputLetter )

Sets the input letter
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

inputLetter inputletter

◆ SetInsertInstanceTag()

void NXOpen::Tooling::LetteringInsertBuilder::SetInsertInstanceTag ( NXOpen::TaggedObject * insertInstanceTag )

设置新的嵌入件实例
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

参数

insertInstanceTag 指定新的实例

◆ SetLetterDirection()

void NXOpen::Tooling::LetteringInsertBuilder::SetLetterDirection ( NXOpen::Tooling::LetteringInsertBuilder::LetterDirectionOption letterDirection )

Sets the letter direction
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

letterDirection letterdirection

◆ SetOnlyAddLetteringStandardPartToggle()

void NXOpen::Tooling::LetteringInsertBuilder::SetOnlyAddLetteringStandardPartToggle ( bool onlyAddLetteringStandardPartToggle )

Sets the only add lettering standard part toggle
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

onlyAddLetteringStandardPartToggle onlyaddletteringstandardparttoggle

◆ SetParentNames()

void NXOpen::Tooling::LetteringInsertBuilder::SetParentNames ( std::vector< NXString > & parentNames )

设置父部件名称
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

参数

parentNames 父部件名称列表

◆ SetParentPartName() [1/2]

void NXOpen::Tooling::LetteringInsertBuilder::SetParentPartName ( const char * parentPartName )

设置父部件名称以创建嵌入件
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

参数

parentPartName 指定父部件名称

◆ SetParentPartName() [2/2]

void NXOpen::Tooling::LetteringInsertBuilder::SetParentPartName ( const NXString & parentPartName )

设置父部件名称以创建嵌入件
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

参数

parentPartName 指定父部件名称

◆ SetParentPartNode()

void NXOpen::Tooling::LetteringInsertBuilder::SetParentPartNode ( NXOpen::Tooling::LetteringInsertBuilder::ParentPartNodeOption parentPartNode )

Sets the parent part node
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

parentPartNode parentpartnode

◆ SetPunchPlateClearance()

void NXOpen::Tooling::LetteringInsertBuilder::SetPunchPlateClearance ( double punchPlateClearance )

Sets the punch plate clearance
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

punchPlateClearance punchplateclearance

◆ SetPunchPlateToggle()

void NXOpen::Tooling::LetteringInsertBuilder::SetPunchPlateToggle ( bool punchPlateToggle )

Sets the punch plate toggle
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

punchPlateToggle punchplatetoggle

◆ SetScript()

void NXOpen::Tooling::LetteringInsertBuilder::SetScript ( NXOpen::Tooling::LetteringInsertBuilder::ScriptOptions script )

Sets the script
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

script script

◆ SetSelectedFaceOccurrences()

void NXOpen::Tooling::LetteringInsertBuilder::SetSelectedFaceOccurrences ( const std::vector< NXOpen::TaggedObject * > & selectedFaceOccurrences )

设置所选面的实例
创建于 NX1980.0.0。

许可要求：prog_die_wizard ("UG/Progressive Die Wizard")

参数

selectedFaceOccurrences selectedfaceoccurrences

◆ SetStripperPlateClearance()

void NXOpen::Tooling::LetteringInsertBuilder::SetStripperPlateClearance ( double stripperPlateClearance )

Sets the stripper plate clearance
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

stripperPlateClearance stripperplateclearance

◆ SetStripperPlateToggle()

void NXOpen::Tooling::LetteringInsertBuilder::SetStripperPlateToggle ( bool stripperPlateToggle )

Sets the stripper plate toggle
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

参数

stripperPlateToggle stripperplatetoggle

◆ SetWizardType()

void NXOpen::Tooling::LetteringInsertBuilder::SetWizardType ( int wizardType )

Sets the wizard type attribute
Created in NX1980.0.0.

License requirements : prog_die_wizard ("UG/Progressive Die Wizard")

参数

wizardType wizardtype

◆ StandardInsert()

void NXOpen::Tooling::LetteringInsertBuilder::StandardInsert ( )

Create lettering insert by standard insert method.
Created in NX1980.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

◆ StartDistanceLinearDim()

NXOpen::Expression * NXOpen::Tooling::LetteringInsertBuilder::StartDistanceLinearDim ( )

Returns the start distance linear dim
Created in NX1980.0.0.

License requirements : None

◆ StripperPlateClearance()

double NXOpen::Tooling::LetteringInsertBuilder::StripperPlateClearance ( )

Returns the stripper plate clearance
Created in NX1980.0.0.

License requirements : None

◆ StripperPlateToggle()

bool NXOpen::Tooling::LetteringInsertBuilder::StripperPlateToggle ( )

Returns the stripper plate toggle
Created in NX1980.0.0.

License requirements : None

◆ WizardType()

int NXOpen::Tooling::LetteringInsertBuilder::WizardType ( )

Returns the wizard type attribute
Created in NX1980.0.0.

License requirements : None

Public 类型
enum	FontStyleOptions { FontStyleOptionsRegular , FontStyleOptionsItalic , FontStyleOptionsBold , FontStyleOptionsBoldItalic }
enum	LetterDirectionOption { LetterDirectionOptionUp , LetterDirectionOptionDown }
enum	ParentPartNodeOption { ParentPartNodeOptionNoParent }
enum	ScriptOptions { ScriptOptionsOther , ScriptOptionsWestern , ScriptOptionsBaltic , ScriptOptionsChineseBig5 , ScriptOptionsCentralEuropean , ScriptOptionsGb2312 , ScriptOptionsGreek , ScriptOptionsHangul , ScriptOptionsMac , ScriptOptionsOem , ScriptOptionsCyrillic , ScriptOptionsShiftJIS , ScriptOptionsSymbol , ScriptOptionsTurkish , ScriptOptionsVietnamese , ScriptOptionsJohab , ScriptOptionsArabic , ScriptOptionsHebrew , ScriptOptionsThai }

Public 类型

Public 成员函数

友元

详细描述

成员枚举类型说明

◆ FontStyleOptions

◆ LetterDirectionOption

◆ ParentPartNodeOption

◆ ScriptOptions

成员函数说明

◆ BottomingPlateClearance()

◆ BottomingPlateToggle()

◆ DiePlateClearance()

◆ DiePlateToggle()

◆ DraftAngularDim()

◆ EndDistanceLinearDim()

◆ Font()

◆ FontStyle()

◆ GetParentNames()

◆ GetSelectedFaceOccurrences()

◆ Height()

◆ InputLetter()

◆ InsertInstanceTag()

◆ Length()

◆ LetterDirection()

◆ OnlyAddLetteringStandardPartToggle()

◆ ParentPartName()

◆ ParentPartNode()

◆ PostProcessPDWStandardClientData()

◆ PreparePDWStandardClientData()

◆ PunchPlateClearance()

◆ PunchPlateToggle()

◆ Script()

◆ SelectFace()

◆ SelectFont() [1/2]

◆ SelectFont() [2/2]

◆ SetBottomingPlateClearance()

◆ SetBottomingPlateToggle()

◆ SetDiePlateClearance()

◆ SetDiePlateToggle()

◆ SetFontStyle()

◆ SetInputLetter() [1/2]

◆ SetInputLetter() [2/2]

◆ SetInsertInstanceTag()

◆ SetLetterDirection()

◆ SetOnlyAddLetteringStandardPartToggle()

◆ SetParentNames()

◆ SetParentPartName() [1/2]

◆ SetParentPartName() [2/2]

◆ SetParentPartNode()

◆ SetPunchPlateClearance()

◆ SetPunchPlateToggle()

◆ SetScript()

◆ SetSelectedFaceOccurrences()

◆ SetStripperPlateClearance()

◆ SetStripperPlateToggle()

◆ SetWizardType()

◆ StandardInsert()

◆ StartDistanceLinearDim()

◆ StripperPlateClearance()

◆ StripperPlateToggle()

◆ WizardType()
