NXOpen::SketchAngularDimensionBuilder类 参考

草图角度尺寸构建器 更多...

#include <SketchAngularDimensionBuilder.hxx>

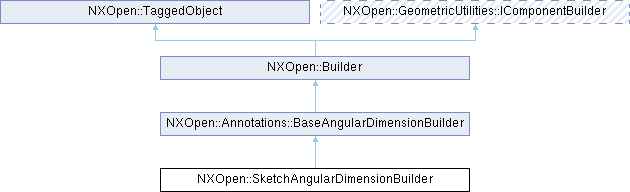

类 NXOpen::SketchAngularDimensionBuilder 继承关系图:

Public 成员函数
NXOpen::Annotations::DrivingValueBuilder *	Driving ()
Public 成员函数 继承自 NXOpen::Annotations::BaseAngularDimensionBuilder
void	AlternateAngle ()
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
NXOpen::SelectDisplayableObject *	FirstAssociativity ()
NXOpen::Direction *	FirstVector ()
NXOpen::View *	FirstVectorView ()
bool	GetFirstAssociativityVectorFlipped ()
bool	GetSecondAssociativityVectorFlipped ()
NXOpen::Annotations::SelectDimension *	Inherit ()
NXOpen::Annotations::Dimension::MeasurementTypes	MeasurementType ()
NXOpen::Annotations::OriginBuilder *	Origin ()
NXOpen::SelectDisplayableObject *	SecondAssociativity ()
NXOpen::Direction *	SecondVector ()
NXOpen::View *	SecondVectorView ()
void	SetFirstAssociativityVectorFlipped (bool firstVectorFlipped)
void	SetFirstVector (NXOpen::Direction *firstVector)
void	SetFirstVectorView (NXOpen::View *firstVectorView)
void	SetMeasurementType (NXOpen::Annotations::Dimension::MeasurementTypes measurementType)
void	SetNthAssociativityEdited (int index, bool edited)
void	SetSecondAssociativityVectorFlipped (bool secondVectorFlipped)
void	SetSecondVector (NXOpen::Direction *secondVector)
void	SetSecondVectorView (NXOpen::View *firstVectorView)
NXOpen::Annotations::StyleBuilder *	Style ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_SketchAngularDimensionBuilderBuilder

详细描述

草图角度尺寸构建器

Represents a NXOpen::SketchAngularDimensionBuilder
To create a new instance of this class, use NXOpen::SketchCollection::CreateAngularDimensionBuilder

Created in NX9.0.0.

成员函数说明

Driving()

NXOpen::Annotations::DrivingValueBuilder * NXOpen::SketchAngularDimensionBuilder::Driving

(

)

Returns the driving value builder, which manages driving dimension values
Created in NX9.0.0.

License requirements : None
