Public 类型 | Public 成员函数 | 友元 | 所有成员列表
NXOpen::CAM::Tool类 参考

刀具 更多...

#include <CAM_Tool.hxx>

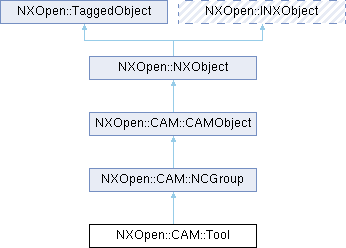

类 NXOpen::CAM::Tool 继承关系图:
NXOpen::CAM::NCGroup NXOpen::CAM::CAMObject NXOpen::NXObject NXOpen::TaggedObject NXOpen::INXObject

Public 类型

enum  Subtypes {
  SubtypesUndefined , SubtypesMill5 , SubtypesMill7 , SubtypesMill10 ,
  SubtypesMillBall , SubtypesDrillStandard , SubtypesDrillCenterBell , SubtypesDrillCountersink ,
  SubtypesDrillSpotFace , SubtypesDrillSpotDrill , SubtypesDrillBore , SubtypesDrillReam ,
  SubtypesDrillCounterbore , SubtypesDrillTap , SubtypesDrillBurnishing , SubtypesDrillThreadMill ,
  SubtypesDrillBackSpotFace , SubtypesDrillStep , SubtypesTurnStandard , SubtypesTurnButton ,
  SubtypesTurnBoringBar , SubtypesGrooveStandard , SubtypesGrooveRing , SubtypesGrooveFullNoseRadius ,
  SubtypesGrooveUserDefined , SubtypesThreadStandard , SubtypesThreadButress , SubtypesThreadAcme ,
  SubtypesThreadTrapezoidal , SubtypesGeneric , SubtypesProbe , SubtypesMillChamfer ,
  SubtypesMillSpherical , SubtypesDrillCore , SubtypesStdLaser , SubtypesLaser = 34 ,
  SubtypesDrillBackCountersink , SubtypesCoaxialLaser , SubtypesDrillBoringBar , SubtypesDrillChamferBoringBar ,
  SubtypesDrillBackBore , SubtypesThreadTriangularStandard , SubtypesThreadTriangularTrapezoidal , SubtypesBarrelStandard ,
  SubtypesBarrelTangent , SubtypesBarrelTaper , SubtypesBarrelLens , SubtypesMillDovetail ,
  SubtypesTurnPrime
}
enum  Types {
  TypesMill , TypesDrill , TypesTurn , TypesGroove ,
  TypesThread , TypesWedm , TypesBarrel , TypesTcutter ,
  TypesForm , TypesDrillSpcGroove , TypesSolid , TypesMillForm ,
  TypesLaser , TypesSoft = 12
}
Public 类型 继承自 NXOpen::CAM::CAMObject
enum  Attr {
  AttrProjDiffTaxis = 1 , AttrProfileFlipMside , AttrBndSplineTangent , AttrBlankNormalDiffTaxis ,
  AttrBndHasSleepObj , AttrClrnrNotParallelTaxis , AttrBndNotParallelFloor , AttrFloorNotUpToDate ,
  AttrSingleProfileWithFirstCut , AttrCutterConversionProblem , AttrPredefinedDepthConversionProblem , AttrAcceptDrivePosition = 100 ,
  AttrReparametrization = 110 , AttrBetweenFromStart = 120 , AttrCurveCutRange = 130 , AttrFixGssmCornerData = 140 ,
  AttrPlmConversion = 150 , AttrPlmFeedcomp , AttrPlmFillet , AttrPlmSlowdown ,
  AttrPlmGeometry , AttrWedmPoints = 160 , AttrCavityMillInheritTrimBnds = 170 , AttrRtdObsolete = 1000 ,
  AttrZlevelHolderParamChange = 2000 , AttrNcmObsoleteSeqControl = 2100 , AttrNcmObsoleteCustomFeed , AttrNcmObsoleteLocalRetract ,
  AttrNcmClearTraversalZero , AttrNcmObsoleteEngretToClearance , AttrGmcInvalidNxVersion = 2201 , AttrProbingInvalidNxVersion ,
  AttrInspPathInvalidNxVersion = 2300 , AttrCustomDataGougingObsolete , AttrCustomDataGougingPartObsolete , AttrCustomDataGougingDriveObsolete ,
  AttrCustomDataIgnoreLoopsObsolete , AttrCustomDataIgnoreLoopsRemoved , AttrLimitToolRunOn = 2400 , AttrScoprNcmChangeLinearNormalToPart ,
  AttrPossibleToolAxisProblem
}
enum  FeedRateUnit { FeedRateUnitNone , FeedRateUnitPerMinute , FeedRateUnitPerRevolution }
enum  Status { StatusComplete , StatusRepost , StatusRegen , StatusApproved = 4 }
enum  TransitionPathTypes {
  TransitionPathTypesNone , TransitionPathTypesBefore , TransitionPathTypesBetween , TransitionPathTypesAfter ,
  TransitionPathTypesBeforeToolChange , TransitionPathTypesAfterToolChange
}
enum  ValidationResult { ValidationResultNotApplicable , ValidationResultOk , ValidationResultNotChecked , ValidationResultFail }
enum  ValidationType {
  ValidationTypeGouge = 1 , ValidationTypeToolHolderCollision , ValidationTypeToolRapidCollision , ValidationTypeHasPath ,
  ValidationTypeSuspectPath , ValidationTypeFeedsSpeeds
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数

NXOpen::CAM::TrackPointCollection * CAMTrackPointCollection ()
NXOpen::CAM::GenericTrackingBuilder * CreateGenericTrackingBuilder (NXOpen::CAM::SolidTrackPoint *csoObject)
NXOpen::CAM::ProbeTrackingBuilder * CreateProbeTrackingBuilder (NXOpen::CAM::ProbeTrackPoint *csoObject)
NXOpen::CAM::SolidTrackingBuilder * CreateSolidTrackingBuilder (NXOpen::CAM::SolidTrackPoint *csoObject)
void ExportPart (const char *libRef)
void ExportPart (const NXString &libRef)
void GetTypeAndSubtype (NXOpen::CAM::Tool::Types *type, NXOpen::CAM::Tool::Subtypes *subtype)
bool RetrieveHolder (const char *libRef)
bool RetrieveHolder (const NXString &libRef)
bool RetrieveShank (const char *shankLibRef)
bool RetrieveShank (const NXString &shankLibRef)
void UpdateFromLibrary ()
Public 成员函数 继承自 NXOpen::CAM::NCGroup
NXOpen::INXObject * FindObject (const char *sid)
NXOpen::INXObject * FindObject (const NXString &sid)
std::vector< NXOpen::CAM::CAMObject * > GetMembers ()
NXOpen::CAM::NCGroup * GetParent ()
Public 成员函数 继承自 NXOpen::CAM::CAMObject
bool AskPathExists ()
void ConvertToExplorerDialog ()
NXOpen::CAM::Path * CreateEmptyPath ()
void GenerateAndSaveTransitionPath (NXOpen::CAM::CAMObject::TransitionPathTypes transitionPathType, NXOpen::CAM::CAMObject *transitionPathOpr)
bool GetBooleanValue (const char *title)
bool GetBooleanValue (const NXString &title)
NXOpen::CAM::CAMObject::FeedRateUnit GetFeedRate (const char *title, double *value)
NXOpen::CAM::CAMObject::FeedRateUnit GetFeedRate (const NXString &title, double *value)
int GetFeedRateColor (const char *title)
int GetFeedRateColor (const NXString &title)
std::vector< int > GetIntegerArrayValue (const char *title)
std::vector< int > GetIntegerArrayValue (const NXString &title)
int GetIntegerValue (const char *title)
int GetIntegerValue (const NXString &title)
NXOpen::NXObject * GetObject (const char *title)
NXOpen::NXObject * GetObject (const NXString &title)
std::vector< NXOpen::NXObject * > GetObjectArrayValue (const char *title)
std::vector< NXOpen::NXObject * > GetObjectArrayValue (const NXString &title)
NXOpen::CAM::Path * GetPath ()
std::vector< double > GetRealArrayValue (const char *title)
std::vector< double > GetRealArrayValue (const NXString &title)
double GetRealValue (const char *title)
double GetRealValue (const NXString &title)
NXOpen::CAM::CAMObject::Status GetStatus ()
std::vector< NXString > GetStringArrayValue (const char *title)
std::vector< NXString > GetStringArrayValue (const NXString &title)
NXString GetStringValue (const char *title)
NXString GetStringValue (const NXString &title)
NXOpen::CAM::CAMObject * GetTransitionPathOperation (NXOpen::CAM::CAMObject::TransitionPathTypes transitionPathType)
int GetWireEdmFeedRate (const char *title, double *value)
int GetWireEdmFeedRate (const NXString &title, double *value)
bool Has911Attribute (NXOpen::CAM::CAMObject::Attr attrId)
void Remove911Attribute (NXOpen::CAM::CAMObject::Attr attrId)
void RemoveAll911Attributes ()
void SavePath (NXOpen::CAM::Path *theBuilder)
void SetBooleanValue (const char *title, bool value)
void SetBooleanValue (const NXString &title, bool value)
void SetFeedRate (const char *title, double value, NXOpen::CAM::CAMObject::FeedRateUnit unit)
void SetFeedRate (const NXString &title, double value, NXOpen::CAM::CAMObject::FeedRateUnit unit)
void SetFeedRateColor (const char *title, int value)
void SetFeedRateColor (const NXString &title, int value)
void SetIntegerArrayValue (const char *title, const std::vector< int > &value)
void SetIntegerArrayValue (const NXString &title, const std::vector< int > &value)
void SetIntegerValue (const char *title, int value)
void SetIntegerValue (const NXString &title, int value)
void SetObject (const char *title, NXOpen::NXObject *value)
void SetObject (const NXString &title, NXOpen::NXObject *value)
void SetObjectArrayValue (const char *title, const std::vector< NXOpen::NXObject * > &value)
void SetObjectArrayValue (const NXString &title, const std::vector< NXOpen::NXObject * > &value)
void SetRealArrayValue (const char *title, const std::vector< double > &value)
void SetRealArrayValue (const NXString &title, const std::vector< double > &value)
void SetRealValue (const char *title, double value)
void SetRealValue (const NXString &title, double value)
void SetStringArrayValue (const char *title, std::vector< NXString > &value)
void SetStringArrayValue (const NXString &title, std::vector< NXString > &value)
void SetStringValue (const char *title, const char *value)
void SetStringValue (const NXString &title, const NXString &value)
void SetUserName (const char *name)
void SetUserName (const NXString &name)
void SetWireEdmFeedRate (const char *title, double value, int side)
void SetWireEdmFeedRate (const NXString &title, double value, int side)
NXString UserName ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _ToolBuilder

额外继承的成员函数

Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

刀具

表示一个 NC 组
要获取此类的实例，请使用 NXOpen::CAM::NCGroupCollection

创建于 NX5.0.0.

成员枚举类型说明

◆ Subtypes

enum NXOpen::CAM::Tool::Subtypes

刀具子类型

枚举值
SubtypesUndefined

未定义

SubtypesMill5

铣削刀具-5参数

SubtypesMill7

铣削刀具-7参数

SubtypesMill10

铣削刀具-10参数

SubtypesMillBall

铣削刀具-球头铣刀

SubtypesDrillStandard

钻孔刀具

SubtypesDrillCenterBell

中心钻

SubtypesDrillCountersink

沉头孔刀具

SubtypesDrillSpotFace

锪平面刀具

SubtypesDrillSpotDrill

点钻

SubtypesDrillBore

镗孔刀具

SubtypesDrillReam

铰刀

SubtypesDrillCounterbore

平底沉头孔刀具

SubtypesDrillTap

丝锥

SubtypesDrillBurnishing

滚压刀具

SubtypesDrillThreadMill

螺纹铣刀

SubtypesDrillBackSpotFace

背面锪平面刀具

SubtypesDrillStep

阶梯钻

SubtypesTurnStandard

车削刀具-标准

SubtypesTurnButton

车削刀具-圆形刀片

SubtypesTurnBoringBar

车削刀具-镗杆

SubtypesGrooveStandard

切槽刀具-标准

SubtypesGrooveRing

切槽刀具-环形

SubtypesGrooveFullNoseRadius

切槽刀具-全圆角

SubtypesGrooveUserDefined

切槽刀具-用户定义

SubtypesThreadStandard

螺纹刀具-标准

SubtypesThreadButress

螺纹刀具-锯齿形

SubtypesThreadAcme

螺纹刀具-ACME

SubtypesThreadTrapezoidal

螺纹刀具-梯形

SubtypesGeneric

实体刀具通用

SubtypesProbe

测头

SubtypesMillChamfer

铣削倒角铣刀

SubtypesMillSpherical

铣削球形铣刀

SubtypesDrillCore

取芯钻

SubtypesStdLaser

标准激光刀具

SubtypesLaser

激光

SubtypesDrillBackCountersink

背面沉头孔

SubtypesCoaxialLaser

同轴激光刀具

SubtypesDrillBoringBar

镗杆刀具

SubtypesDrillChamferBoringBar

倒角镗杆刀具

SubtypesDrillBackBore

背面镗孔刀具

SubtypesThreadTriangularStandard

螺纹刀具-三角形-标准

SubtypesThreadTriangularTrapezoidal

螺纹刀具-三角形-梯形

SubtypesBarrelStandard

桶形刀具-标准

SubtypesBarrelTangent

桶形刀具-相切

SubtypesBarrelTaper

桶形刀具-锥度

SubtypesBarrelLens

桶形刀具-透镜

SubtypesMillDovetail

铣削刀具-球形铣刀

SubtypesTurnPrime

车削刀具-Prime

◆ Types

enum NXOpen::CAM::Tool::Types

刀具类型

枚举值
TypesMill

铣削刀具

TypesDrill

钻孔刀具

TypesTurn

车削刀具

TypesGroove

切槽刀具

TypesThread

螺纹刀具

TypesWedm

线切割刀具

TypesBarrel

铣削刀具-桶形铣刀

TypesTcutter

铣削刀具-T型铣刀

TypesForm

成形刀具

TypesDrillSpcGroove

铣削刀具-T型铣刀

TypesSolid

实体刀具

TypesMillForm

用户定义铣刀

TypesLaser

激光刀具

TypesSoft

软

成员函数说明

◆ CAMTrackPointCollection()

NXOpen::CAM::TrackPointCollection * NXOpen::CAM::Tool::CAMTrackPointCollection ( )

返回 CAMTrackPointCollection
创建于 NX3.0.0。

◆ CreateGenericTrackingBuilder()

NXOpen::CAM::GenericTrackingBuilder * NXOpen::CAM::Tool::CreateGenericTrackingBuilder ( NXOpen::CAM::SolidTrackPoint * csoObject)

创建通用跟踪点构建器

返回
创建的通用跟踪点构建器
创建于 NX4.0.0。

许可要求：cam_base ("CAM BASE")
参数
csoObject待编辑的实体跟踪点

◆ CreateProbeTrackingBuilder()

NXOpen::CAM::ProbeTrackingBuilder * NXOpen::CAM::Tool::CreateProbeTrackingBuilder ( NXOpen::CAM::ProbeTrackPoint * csoObject)

创建测头跟踪点构建器

返回
创建的测头跟踪点构建器
创建于 NX4.0.0。

许可要求：cam_base ("CAM BASE")
参数
csoObject待编辑的测头跟踪点

◆ CreateSolidTrackingBuilder()

NXOpen::CAM::SolidTrackingBuilder * NXOpen::CAM::Tool::CreateSolidTrackingBuilder ( NXOpen::CAM::SolidTrackPoint * csoObject)

创建实体跟踪点构建器

返回
创建的实体跟踪点构建器
创建于 NX4.0.0。

许可要求：cam_base ("CAM BASE")
参数
csoObject待编辑的实体跟踪点

◆ ExportPart() [1/2]

void NXOpen::CAM::Tool::ExportPart ( const char * libRef)

导出部件
创建于 NX10.0.2。

许可要求：无

参数
libRef部件名称（包含位置）

◆ ExportPart() [2/2]

void NXOpen::CAM::Tool::ExportPart ( const NXString & libRef)

导出部件
创建于 NX10.0.2。

许可要求：无

参数
libRef部件名称（包含位置）

◆ GetTypeAndSubtype()

void NXOpen::CAM::Tool::GetTypeAndSubtype ( NXOpen::CAM::Tool::Types * type,
NXOpen::CAM::Tool::Subtypes * subtype )

获取刀具类型和子类型
创建于 NX7.5.0。

许可要求：无

参数
type刀具类型
subtype刀具子类型

◆ RetrieveHolder() [1/2]

bool NXOpen::CAM::Tool::RetrieveHolder ( const char * libRef)

检索刀柄
创建于 NX8.0.0。

许可要求：无

参数
libRef刀具库引用

◆ RetrieveHolder() [2/2]

bool NXOpen::CAM::Tool::RetrieveHolder ( const NXString & libRef)

检索刀柄
创建于 NX8.0.0。

许可要求：无

参数
libRef刀具库引用

◆ RetrieveShank() [1/2]

bool NXOpen::CAM::Tool::RetrieveShank ( const char * shankLibRef)

检索刀杆
创建于 NX2206.0.0。

许可要求：无

参数
shankLibRef刀杆库引用

◆ RetrieveShank() [2/2]

bool NXOpen::CAM::Tool::RetrieveShank ( const NXString & shankLibRef)

检索刀杆
创建于 NX2206.0.0。

许可要求：无

参数
shankLibRef刀杆库引用

◆ UpdateFromLibrary()

void NXOpen::CAM::Tool::UpdateFromLibrary ( )

从库中更新库刀具
创建于 NX7.5.0。

许可要求：cam_base ("CAM BASE")
