NXOpen::Motion::BodyContactAdams类 参考

Adams体接触对象 更多...

#include <Motion_BodyContactAdams.hxx>

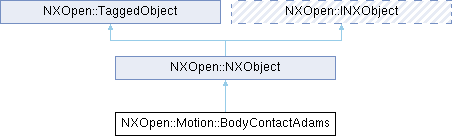

类 NXOpen::Motion::BodyContactAdams 继承关系图:
NXOpen::NXObject NXOpen::TaggedObject NXOpen::INXObject

Public 类型

enum  CoulombFriction { CoulombFrictionOff , CoulombFrictionOn }
enum  ForceModel { ForceModelImpact , ForceModelPoisson }
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数

NXOpen::Motion::BodyContactAdams::CoulombFriction CoulombFrictionOption ()
NXOpen::Expression * DynamicCoefficientExpression ()
NXOpen::Expression * ForceExponentExpression ()
NXOpen::Motion::BodyContactAdams::ForceModel ForceModelType ()
NXOpen::Expression * FrictionVelocityExpression ()
NXOpen::Expression * MaterialDampingExpression ()
NXOpen::Expression * PenetrationDepthExpression ()
NXOpen::Expression * RestitutionCoefficentExpression ()
void SetCoulombFrictionOption (NXOpen::Motion::BodyContactAdams::CoulombFriction coulombFriction)
void SetForceModelType (NXOpen::Motion::BodyContactAdams::ForceModel forceModel)
NXOpen::Expression * StaticCoefficientExpression ()
NXOpen::Expression * StictionVelocityExpression ()
NXOpen::Expression * StiffnessExpression ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _BodyContactAdamsBuilder

额外继承的成员函数

Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

Adams体接触对象

表示 NXOpen::Motion::BodyContactAdams
创建于 NX5.0.0.

成员枚举类型说明

◆ CoulombFriction

enum NXOpen::Motion::BodyContactAdams::CoulombFriction

3D接触库仑摩擦选项的枚举

枚举值
CoulombFrictionOff

关闭

CoulombFrictionOn

打开

◆ ForceModel

enum NXOpen::Motion::BodyContactAdams::ForceModel

3D接触力模型的枚举

枚举值
ForceModelImpact

冲击

ForceModelPoisson

泊松

成员函数说明

◆ CoulombFrictionOption()

NXOpen::Motion::BodyContactAdams::CoulombFriction NXOpen::Motion::BodyContactAdams::CoulombFrictionOption ( )

获取库仑摩擦选项
创建于 NX5.0.0.

许可证要求 : 无

◆ DynamicCoefficientExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::DynamicCoefficientExpression ( )

获取动摩擦系数
创建于 NX8.0.0.

许可证要求 : 无

◆ ForceExponentExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::ForceExponentExpression ( )

获取力指数表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ ForceModelType()

NXOpen::Motion::BodyContactAdams::ForceModel NXOpen::Motion::BodyContactAdams::ForceModelType ( )

获取力模型类型
创建于 NX5.0.0.

许可证要求 : 无

◆ FrictionVelocityExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::FrictionVelocityExpression ( )

获取摩擦速度表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ MaterialDampingExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::MaterialDampingExpression ( )

获取材料阻尼表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ PenetrationDepthExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::PenetrationDepthExpression ( )

获取穿透深度表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ RestitutionCoefficentExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::RestitutionCoefficentExpression ( )

获取恢复系数表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ SetCoulombFrictionOption()

void NXOpen::Motion::BodyContactAdams::SetCoulombFrictionOption ( NXOpen::Motion::BodyContactAdams::CoulombFriction coulombFriction)

设置库仑摩擦选项
创建于 NX5.0.0.

许可证要求 : mechanisms ("MECHANISMS")

参数
coulombFriction库仑摩擦

◆ SetForceModelType()

void NXOpen::Motion::BodyContactAdams::SetForceModelType ( NXOpen::Motion::BodyContactAdams::ForceModel forceModel)

设置力模型类型
创建于 NX5.0.0.

许可证要求 : mechanisms ("MECHANISMS")

参数
forceModel力模型

◆ StaticCoefficientExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::StaticCoefficientExpression ( )

获取静摩擦系数表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ StictionVelocityExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::StictionVelocityExpression ( )

获取静摩擦速度表达式
创建于 NX8.0.0.

许可证要求 : 无

◆ StiffnessExpression()

NXOpen::Expression * NXOpen::Motion::BodyContactAdams::StiffnessExpression ( )

获取刚度表达式
创建于 NX8.0.0.

许可证要求 : 无
