NXOpen::Tooling::CostDataObject类 参考

成本数据对象 更多...

#include <Tooling_CostDataObject.hxx>

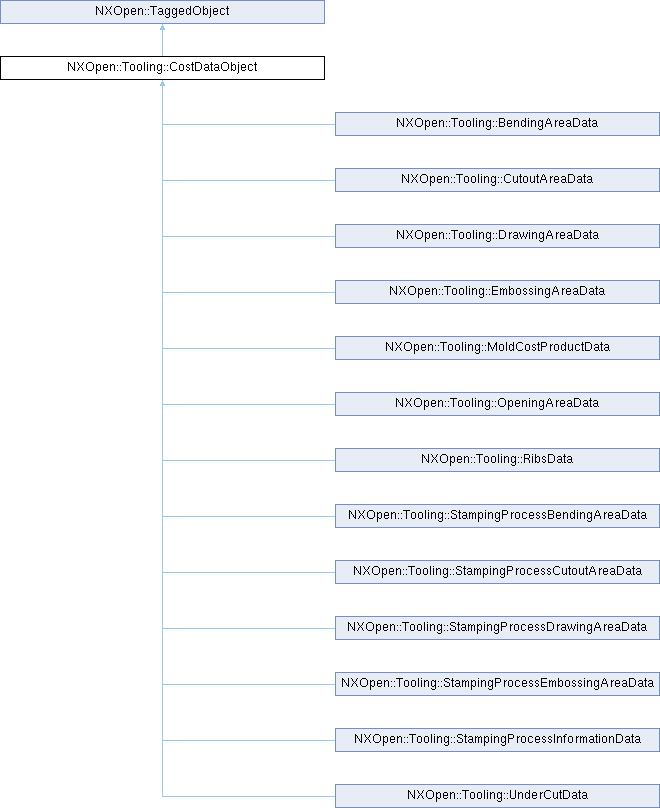

类 NXOpen::Tooling::CostDataObject 继承关系图:

Public 类型
enum	QuotationType { QuotationTypeFormula , QuotationTypeDatabase }

Public 成员函数
void	AskConvergentBodies (std::vector< NXOpen::Body * > &convergentBodies)
void	AskCostObjectParameterValues (std::vector< NXString > &costObjectStringValueList)
void	AskCostObjects (int objectType, int objectSubtype, std::vector< NXOpen::Tooling::CostDataObject * > &costObjects)
void	AskFeatureRelatedFacetsWithChildren (std::vector< int > &pFacetIds)
void	GetChildren (std::vector< NXOpen::Tooling::CostDataObject * > &childrenCostFeatures)
NXOpen::Tooling::CostDataObject *	GetParent ()
void	SetIsChildrenExpanded (bool isExpanded)
void	SetQuotationType (NXOpen::Tooling::CostDataObject::QuotationType type)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_CostDataObjectBuilder

详细描述

成本数据对象

Represents the cost feature data object.
Not support KF.

Created in NX1899.0.0.

成员枚举类型说明

QuotationType

enum NXOpen::Tooling::CostDataObject::QuotationType

Quotation type

枚举值
QuotationTypeFormula	use the formula to quote
QuotationTypeDatabase	use the database to quote

成员函数说明

AskConvergentBodies()

void NXOpen::Tooling::CostDataObject::AskConvergentBodies

(

std::vector< NXOpen::Body * > &

convergentBodies

)

Ask the convergent bodies of the cost feature
Created in NX2206.0.0.

License requirements : None

参数

convergentBodies

convergentbodies

AskCostObjectParameterValues()

void NXOpen::Tooling::CostDataObject::AskCostObjectParameterValues

(

std::vector< NXString > &

costObjectStringValueList

)

Ask all parameter values of the costing object
Created in NX1926.0.0.

License requirements : None

参数

costObjectStringValueList

costobjectstringvaluelist

AskCostObjects()

void NXOpen::Tooling::CostDataObject::AskCostObjects	(	int	objectType,
		int	objectSubtype,
		std::vector< NXOpen::Tooling::CostDataObject * > &	costObjects )

Ask all cost objects with specified type
Created in NX1899.0.0.

License requirements : None

参数

objectType	objecttype
objectSubtype	objectsubtype
costObjects	costobjects

AskFeatureRelatedFacetsWithChildren()

void NXOpen::Tooling::CostDataObject::AskFeatureRelatedFacetsWithChildren

(

std::vector< int > &

pFacetIds

)

Ask all cost objects related facets including its children
Created in NX1926.0.0.

License requirements : None

参数

pFacetIds

pfacetids

GetChildren()

void NXOpen::Tooling::CostDataObject::GetChildren

(

std::vector< NXOpen::Tooling::CostDataObject * > &

childrenCostFeatures

)

Asks children of the cost feature
Created in NX2206.5000.0.

License requirements : None

参数

childrenCostFeatures

childrencostfeatures

GetParent()

NXOpen::Tooling::CostDataObject * NXOpen::Tooling::CostDataObject::GetParent

(

)

Asks parent of the cost feature
Created in NX2206.5000.0.

License requirements : None

SetIsChildrenExpanded()

void NXOpen::Tooling::CostDataObject::SetIsChildrenExpanded

(

bool

isExpanded

)

Set the status indicating whether or not the children are expanded when showing them in UI table list
Created in NX2206.0.0.

License requirements : None

参数

isExpanded

isexpanded

SetQuotationType()

void NXOpen::Tooling::CostDataObject::SetQuotationType

(

NXOpen::Tooling::CostDataObject::QuotationType

type

)

Sets the quotation type
Created in NX2406.0.0.

License requirements : None

参数

type

type
