#include <CAM_Operation.hxx>

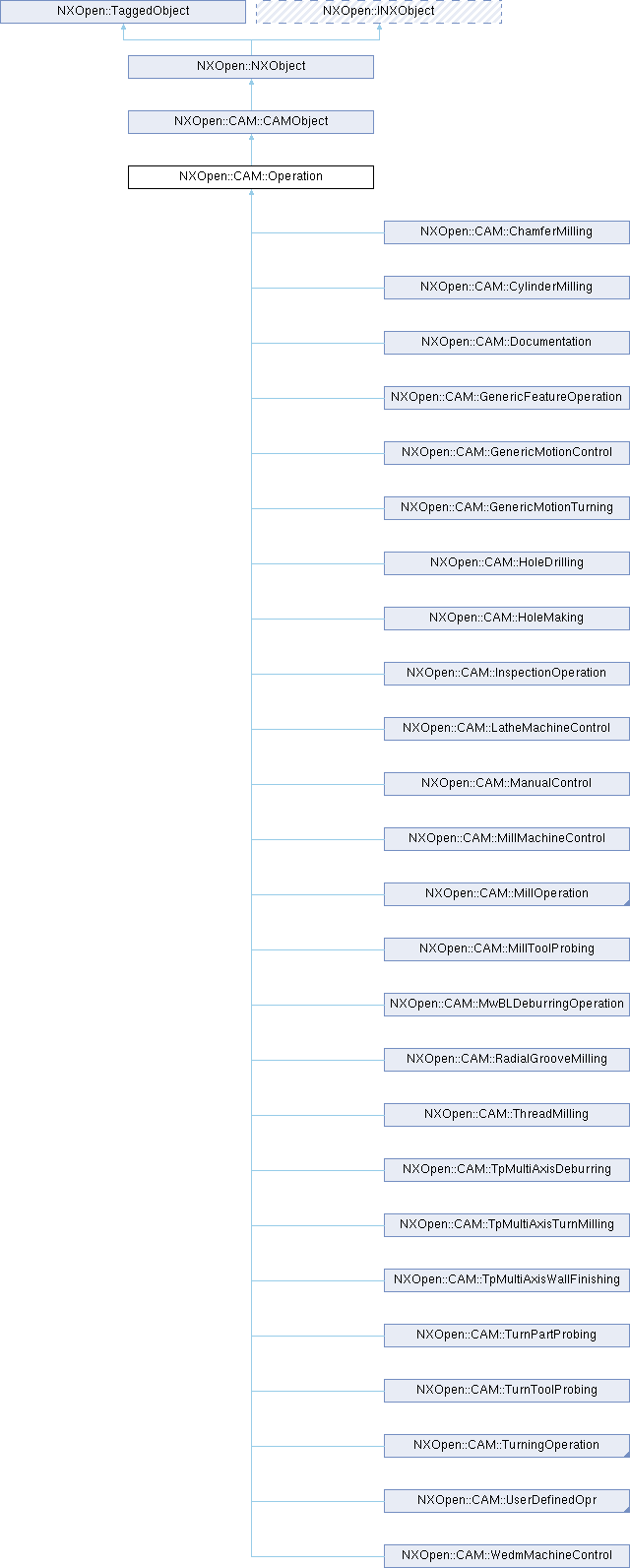

类 NXOpen::CAM::Operation 继承关系图:

Public 类型
enum	GenerateIpwStatus { GenerateIpwStatusPass , GenerateIpwStatusNoSetup , GenerateIpwStatusNoBlank , GenerateIpwStatusHasRefpart , GenerateIpwStatusNoPath }
Public 类型继承自 NXOpen::CAM::CAMObject
enum	Attr { AttrProjDiffTaxis = 1 , AttrProfileFlipMside , AttrBndSplineTangent , AttrBlankNormalDiffTaxis , AttrBndHasSleepObj , AttrClrnrNotParallelTaxis , AttrBndNotParallelFloor , AttrFloorNotUpToDate , AttrSingleProfileWithFirstCut , AttrCutterConversionProblem , AttrPredefinedDepthConversionProblem , AttrAcceptDrivePosition = 100 , AttrReparametrization = 110 , AttrBetweenFromStart = 120 , AttrCurveCutRange = 130 , AttrFixGssmCornerData = 140 , AttrPlmConversion = 150 , AttrPlmFeedcomp , AttrPlmFillet , AttrPlmSlowdown , AttrPlmGeometry , AttrWedmPoints = 160 , AttrCavityMillInheritTrimBnds = 170 , AttrRtdObsolete = 1000 , AttrZlevelHolderParamChange = 2000 , AttrNcmObsoleteSeqControl = 2100 , AttrNcmObsoleteCustomFeed , AttrNcmObsoleteLocalRetract , AttrNcmClearTraversalZero , AttrNcmObsoleteEngretToClearance , AttrGmcInvalidNxVersion = 2201 , AttrProbingInvalidNxVersion , AttrInspPathInvalidNxVersion = 2300 , AttrCustomDataGougingObsolete , AttrCustomDataGougingPartObsolete , AttrCustomDataGougingDriveObsolete , AttrCustomDataIgnoreLoopsObsolete , AttrCustomDataIgnoreLoopsRemoved , AttrLimitToolRunOn = 2400 , AttrScoprNcmChangeLinearNormalToPart , AttrPossibleToolAxisProblem }
enum	FeedRateUnit { FeedRateUnitNone , FeedRateUnitPerMinute , FeedRateUnitPerRevolution }
enum	Status { StatusComplete , StatusRepost , StatusRegen , StatusApproved = 4 }
enum	TransitionPathTypes { TransitionPathTypesNone , TransitionPathTypesBefore , TransitionPathTypesBetween , TransitionPathTypesAfter , TransitionPathTypesBeforeToolChange , TransitionPathTypesAfterToolChange }
enum	ValidationResult { ValidationResultNotApplicable , ValidationResultOk , ValidationResultNotChecked , ValidationResultFail }
enum	ValidationType { ValidationTypeGouge = 1 , ValidationTypeToolHolderCollision , ValidationTypeToolRapidCollision , ValidationTypeHasPath , ValidationTypeSuspectPath , ValidationTypeFeedsSpeeds }
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }

Public 成员函数
void	AppendMove (NXOpen::CAM::Move *move)
NXOpen::CAM::MoveCollection *	CAMMoveCollection ()
void	ClearMaterialRemovalRate ()
void	ClearRemovedVolume ()
NXOpen::CAM::ToolPathEditorBuilder *	CreateToolPathEditorBuilder ()
std::vector< NXOpen::CAM::Operation * >	GetDividedOperations ()
NXOpen::CAM::Operation *	GetFirstOfDivide ()
NXString	GetInProcessFeatureType ()
NXOpen::NXObject *	GetInputIpw ()
double	GetMaterialRemovalRate ()
std::vector< NXOpen::CAM::Operation * >	GetOtherInstances ()
NXOpen::CAM::NCGroup *	GetParent (NXOpen::CAM::CAMSetup::View branch)
double	GetRemovedVolume ()
NXOpen::CAM::Operation *	GetSourceOfMirrorOperation ()
double	GetToolpathCuttingLength ()
double	GetToolpathCuttingTime ()
double	GetToolpathLength ()
double	GetToolpathTime ()
bool	GetTransformationMatrix (NXOpen::Matrix3x3 rotationMatrix, NXOpen::Vector3d translation, double *scale)
std::vector< NXString >	GetUserDefinedMoveTypes ()
NXOpen::CAM::GougeCheckResults *	GougeCheckResults ()
bool	GougeCheckStatus ()
bool	HasOtherInstances ()
NXOpen::CAM::FBM::Feature *	InsertFeature (NXOpen::CAM::CAMFeature *tagMachiningFeature)
void	InsertMove (NXOpen::CAM::Move insertAfter, NXOpen::CAM::Move move)
bool	IsDivided ()
bool	IsFirstOfDivide ()
bool	IsMaintainCutAngle ()
bool	IsMaintainCutDirection ()
bool	IsMirror ()
void	RemoveFeature (NXOpen::CAM::CAMFeature *tagFeature)
void	SetInProcessFeatureType (const char *type)
void	SetInProcessFeatureType (const NXString &type)
void	SetMachiningArea (const char *type)
void	SetMachiningArea (const NXString &type)
void	SetToolpathCuttingLength (double length)
void	SetToolpathCuttingTime (double time)
void	SetToolpathLength (double length)
void	SetToolpathTime (double time)
void	UnlinkInstance ()
Public 成员函数继承自 NXOpen::CAM::CAMObject
bool	AskPathExists ()
void	ConvertToExplorerDialog ()
NXOpen::CAM::Path *	CreateEmptyPath ()
void	GenerateAndSaveTransitionPath (NXOpen::CAM::CAMObject::TransitionPathTypes transitionPathType, NXOpen::CAM::CAMObject *transitionPathOpr)
bool	GetBooleanValue (const char *title)
bool	GetBooleanValue (const NXString &title)
NXOpen::CAM::CAMObject::FeedRateUnit	GetFeedRate (const char title, double value)
NXOpen::CAM::CAMObject::FeedRateUnit	GetFeedRate (const NXString &title, double *value)
int	GetFeedRateColor (const char *title)
int	GetFeedRateColor (const NXString &title)
std::vector< int >	GetIntegerArrayValue (const char *title)
std::vector< int >	GetIntegerArrayValue (const NXString &title)
int	GetIntegerValue (const char *title)
int	GetIntegerValue (const NXString &title)
NXOpen::NXObject *	GetObject (const char *title)
NXOpen::NXObject *	GetObject (const NXString &title)
std::vector< NXOpen::NXObject * >	GetObjectArrayValue (const char *title)
std::vector< NXOpen::NXObject * >	GetObjectArrayValue (const NXString &title)
NXOpen::CAM::Path *	GetPath ()
std::vector< double >	GetRealArrayValue (const char *title)
std::vector< double >	GetRealArrayValue (const NXString &title)
double	GetRealValue (const char *title)
double	GetRealValue (const NXString &title)
NXOpen::CAM::CAMObject::Status	GetStatus ()
std::vector< NXString >	GetStringArrayValue (const char *title)
std::vector< NXString >	GetStringArrayValue (const NXString &title)
NXString	GetStringValue (const char *title)
NXString	GetStringValue (const NXString &title)
NXOpen::CAM::CAMObject *	GetTransitionPathOperation (NXOpen::CAM::CAMObject::TransitionPathTypes transitionPathType)
int	GetWireEdmFeedRate (const char title, double value)
int	GetWireEdmFeedRate (const NXString &title, double *value)
bool	Has911Attribute (NXOpen::CAM::CAMObject::Attr attrId)
void	Remove911Attribute (NXOpen::CAM::CAMObject::Attr attrId)
void	RemoveAll911Attributes ()
void	SavePath (NXOpen::CAM::Path *theBuilder)
void	SetBooleanValue (const char *title, bool value)
void	SetBooleanValue (const NXString &title, bool value)
void	SetFeedRate (const char *title, double value, NXOpen::CAM::CAMObject::FeedRateUnit unit)
void	SetFeedRate (const NXString &title, double value, NXOpen::CAM::CAMObject::FeedRateUnit unit)
void	SetFeedRateColor (const char *title, int value)
void	SetFeedRateColor (const NXString &title, int value)
void	SetIntegerArrayValue (const char *title, const std::vector< int > &value)
void	SetIntegerArrayValue (const NXString &title, const std::vector< int > &value)
void	SetIntegerValue (const char *title, int value)
void	SetIntegerValue (const NXString &title, int value)
void	SetObject (const char title, NXOpen::NXObject value)
void	SetObject (const NXString &title, NXOpen::NXObject *value)
void	SetObjectArrayValue (const char title, const std::vector< NXOpen::NXObject > &value)
void	SetObjectArrayValue (const NXString &title, const std::vector< NXOpen::NXObject * > &value)
void	SetRealArrayValue (const char *title, const std::vector< double > &value)
void	SetRealArrayValue (const NXString &title, const std::vector< double > &value)
void	SetRealValue (const char *title, double value)
void	SetRealValue (const NXString &title, double value)
void	SetStringArrayValue (const char *title, std::vector< NXString > &value)
void	SetStringArrayValue (const NXString &title, std::vector< NXString > &value)
void	SetStringValue (const char title, const char value)
void	SetStringValue (const NXString &title, const NXString &value)
void	SetUserName (const char *name)
void	SetUserName (const NXString &name)
void	SetWireEdmFeedRate (const char *title, double value, int side)
void	SetWireEdmFeedRate (const NXString &title, double value, int side)
NXString	UserName ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_OperationBuilder

额外继承的成员函数
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

加工操作

表示一个工序
要创建或编辑此类的实例，请使用 NXOpen::CAM::OperationBuilder

创建于 NX4.0.0.

成员枚举类型说明

◆ GenerateIpwStatus

enum NXOpen::CAM::Operation::GenerateIpwStatus

定义 can_generate_ipw 的状态

枚举值
GenerateIpwStatusPass	通过
GenerateIpwStatusNoSetup	无设置
GenerateIpwStatusNoBlank	无毛坯
GenerateIpwStatusHasRefpart	存在参考部件
GenerateIpwStatusNoPath	无刀轨

成员函数说明

◆ AppendMove()

void NXOpen::CAM::Operation::AppendMove ( NXOpen::CAM::Move * move )

追加移动
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE") OR insp_programming ("INSPECTION PROGRAMMING")

参数

move 移动

◆ CAMMoveCollection()

NXOpen::CAM::MoveCollection * NXOpen::CAM::Operation::CAMMoveCollection ( )

表示移动集合
Created in NX3.0.0.

◆ ClearMaterialRemovalRate()

void NXOpen::CAM::Operation::ClearMaterialRemovalRate ( )

清除材料去除率
创建于 NX2306.0.0。

许可要求：cam_base ("CAM BASE")

◆ ClearRemovedVolume()

void NXOpen::CAM::Operation::ClearRemovedVolume ( )

清除移除的体积
创建于 NX2306.0.0。

许可要求：cam_base ("CAM BASE")

◆ CreateToolPathEditorBuilder()

NXOpen::CAM::ToolPathEditorBuilder * NXOpen::CAM::Operation::CreateToolPathEditorBuilder ( )

创建刀轨编辑器移动构建器

返回: 新对象数组
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE") OR insp_programming ("INSPECTION PROGRAMMING")

◆ GetDividedOperations()

std::vector< NXOpen::CAM::Operation * > NXOpen::CAM::Operation::GetDividedOperations ( )

从此操作的刀路分割中获取分割后的操作
创建于NX10.0.3。

许可要求：cam_base ("CAM BASE")

◆ GetFirstOfDivide()

NXOpen::CAM::Operation * NXOpen::CAM::Operation::GetFirstOfDivide ( )

获取分割操作的第一个源操作

返回: 用于分割的第一个操作
创建于NX10.0.3。

许可要求：cam_base ("CAM BASE")

◆ GetInProcessFeatureType()

NXString NXOpen::CAM::Operation::GetInProcessFeatureType ( )

获取在制特征类型
Created in NX9.0.1.

License requirements : None

◆ GetInputIpw()

NXOpen::NXObject * NXOpen::CAM::Operation::GetInputIpw ( )

获取操作的输入IPW。调用者负责在使用后释放返回的小平面体。

返回: 作为小平面体的IPW
Created in NX8.5.1.

License requirements : cam_base ("CAM BASE")

◆ GetMaterialRemovalRate()

double NXOpen::CAM::Operation::GetMaterialRemovalRate ( )

返回材料去除率

返回: 材料去除率
创建于 NX2306.0.0。

许可要求：cam_base ("CAM BASE")

◆ GetOtherInstances()

std::vector< NXOpen::CAM::Operation * > NXOpen::CAM::Operation::GetOtherInstances ( )

获取操作的其他实例
创建于NX10.0.3。

许可要求：cam_base ("CAM BASE")

◆ GetParent()

NXOpen::CAM::NCGroup * NXOpen::CAM::Operation::GetParent ( NXOpen::CAM::CAMSetup::View branch )

获取父级

返回: 操作父级
Created in NX7.5.0.

License requirements : None

参数

branch 用于获取操作父级的分支

◆ GetRemovedVolume()

double NXOpen::CAM::Operation::GetRemovedVolume ( )

返回移除的体积

返回: 移除的体积
创建于 NX2306.0.0。

许可要求：cam_base ("CAM BASE")

◆ GetSourceOfMirrorOperation()

NXOpen::CAM::Operation * NXOpen::CAM::Operation::GetSourceOfMirrorOperation ( )

获取镜像操作的源操作

返回: 源操作
Created in NX2312.0.0.

License requirements : cam_base ("CAM BASE")

◆ GetToolpathCuttingLength()

double NXOpen::CAM::Operation::GetToolpathCuttingLength ( )

返回刀轨切削长度（部件单位：毫米或英寸）

返回: 刀轨切削长度（部件单位：毫米或英寸）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

◆ GetToolpathCuttingTime()

double NXOpen::CAM::Operation::GetToolpathCuttingTime ( )

返回刀轨切削时间（分钟）

返回: 刀轨切削时间（分钟）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

◆ GetToolpathLength()

double NXOpen::CAM::Operation::GetToolpathLength ( )

返回刀轨长度（部件单位：毫米或英寸）

返回: 刀轨长度（部件单位：毫米或英寸）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

◆ GetToolpathTime()

double NXOpen::CAM::Operation::GetToolpathTime ( )

返回刀轨时间（分钟）

返回: 刀轨时间（分钟）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

◆ GetTransformationMatrix()

bool NXOpen::CAM::Operation::GetTransformationMatrix	(	NXOpen::Matrix3x3 *	rotationMatrix,
		NXOpen::Vector3d *	translation,
		double *	scale )

获取变换矩阵

返回: 操作是否被变换
创建于 NX1872.0.0。

许可要求：cam_base ("CAM BASE") 或 insp_programming ("INSPECTION PROGRAMMING")

参数

rotationMatrix	旋转矩阵
translation	平移向量
scale	比例

◆ GetUserDefinedMoveTypes()

std::vector< NXString > NXOpen::CAM::Operation::GetUserDefinedMoveTypes ( )

获取有效的用户定义移动类型

返回: 用户定义移动类型
Created in NX8.0.0.

License requirements : None

◆ GougeCheckResults()

NXOpen::CAM::GougeCheckResults * NXOpen::CAM::Operation::GougeCheckResults ( )

返回过切检查结果
Created in NX11.0.2.

License requirements : cam_base ("CAM BASE")

◆ GougeCheckStatus()

bool NXOpen::CAM::Operation::GougeCheckStatus ( )

返回过切检查状态
Created in NX10.0.2.

License requirements : cam_base ("CAM BASE")

◆ HasOtherInstances()

bool NXOpen::CAM::Operation::HasOtherInstances ( )

返回指示符，显示操作是否具有其他实例
创建于NX10.0.3。

许可要求：cam_base ("CAM BASE")

◆ InsertFeature()

NXOpen::CAM::FBM::Feature * NXOpen::CAM::Operation::InsertFeature ( NXOpen::CAM::CAMFeature * tagMachiningFeature )

插入一个加工特征进行加工，并返回一个在制特征

返回: 在制特征
Created in NX9.0.0.

License requirements : cam_base ("CAM BASE")

参数

tagMachiningFeature 加工特征

◆ InsertMove()

void NXOpen::CAM::Operation::InsertMove	(	NXOpen::CAM::Move *	insertAfter,
		NXOpen::CAM::Move *	move )

插入移动
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE") OR insp_programming ("INSPECTION PROGRAMMING")

参数

insertAfter	在此之后插入
move	移动

◆ IsDivided()

bool NXOpen::CAM::Operation::IsDivided ( )

返回指示符，显示操作是否为刀路分割的结果
创建于NX10.0.3。

许可要求：cam_base ("CAM BASE")

◆ IsFirstOfDivide()

bool NXOpen::CAM::Operation::IsFirstOfDivide ( )

返回指示符，显示操作是否为刀路分割的源
创建于NX10.0.3。

许可要求：cam_base ("CAM BASE")

◆ IsMaintainCutAngle()

bool NXOpen::CAM::Operation::IsMaintainCutAngle ( )

镜像操作是否保持切削角度？

返回: 如果镜像操作保持切削角度，则为 true
创建于 NX12.0.1。

许可要求：cam_base ("CAM BASE")

◆ IsMaintainCutDirection()

bool NXOpen::CAM::Operation::IsMaintainCutDirection ( )

镜像操作是否保持切削方向？

返回: 如果镜像操作保持切削方向，则为 true
创建于 NX12.0.1。

许可要求：cam_base ("CAM BASE")

◆ IsMirror()

bool NXOpen::CAM::Operation::IsMirror ( )

操作是否为镜像操作？

返回: 如果操作是镜像则返回true
创建于NX12.0.1。

许可要求：cam_base ("CAM BASE")

◆ RemoveFeature()

void NXOpen::CAM::Operation::RemoveFeature ( NXOpen::CAM::CAMFeature * tagFeature )

移除一个加工特征
Created in NX9.0.0.

License requirements : cam_base ("CAM BASE")

参数

tagFeature 加工特征

◆ SetInProcessFeatureType() [1/2]

void NXOpen::CAM::Operation::SetInProcessFeatureType ( const char * type )

设置在制特征类型
Created in NX9.0.0.

License requirements : cam_base ("CAM BASE")

参数

type 类型

◆ SetInProcessFeatureType() [2/2]

void NXOpen::CAM::Operation::SetInProcessFeatureType ( const NXString & type )

设置在制特征类型
Created in NX9.0.0.

License requirements : cam_base ("CAM BASE")

参数

type 类型

◆ SetMachiningArea() [1/2]

void NXOpen::CAM::Operation::SetMachiningArea ( const char * type )

设置加工区域
Created in NX9.0.1.

License requirements : cam_base ("CAM BASE")

参数

type 类型

◆ SetMachiningArea() [2/2]

void NXOpen::CAM::Operation::SetMachiningArea ( const NXString & type )

设置加工区域
Created in NX9.0.1.

License requirements : cam_base ("CAM BASE")

参数

type 类型

◆ SetToolpathCuttingLength()

void NXOpen::CAM::Operation::SetToolpathCuttingLength ( double length )

设置刀轨切削长度（部件单位：毫米或英寸）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

参数

length 刀轨切削长度（部件单位：毫米或英寸）

◆ SetToolpathCuttingTime()

void NXOpen::CAM::Operation::SetToolpathCuttingTime ( double time )

设置刀轨切削时间（分钟）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

参数

time	刀轨切削时间（分钟）

◆ SetToolpathLength()

void NXOpen::CAM::Operation::SetToolpathLength ( double length )

设置刀轨长度（部件单位：毫米或英寸）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

参数

length 刀轨长度（部件单位：毫米或英寸）

◆ SetToolpathTime()

void NXOpen::CAM::Operation::SetToolpathTime ( double time )

设置刀轨时间（分钟）
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

参数

time 刀轨时间（分钟）

◆ UnlinkInstance()

void NXOpen::CAM::Operation::UnlinkInstance ( )

取消链接实例
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Public 类型

Public 成员函数

友元

额外继承的成员函数

详细描述

成员枚举类型说明

◆ GenerateIpwStatus

成员函数说明

◆ AppendMove()

◆ CAMMoveCollection()

◆ ClearMaterialRemovalRate()

◆ ClearRemovedVolume()

◆ CreateToolPathEditorBuilder()

◆ GetDividedOperations()

◆ GetFirstOfDivide()

◆ GetInProcessFeatureType()

◆ GetInputIpw()

◆ GetMaterialRemovalRate()

◆ GetOtherInstances()

◆ GetParent()

◆ GetRemovedVolume()

◆ GetSourceOfMirrorOperation()

◆ GetToolpathCuttingLength()

◆ GetToolpathCuttingTime()

◆ GetToolpathLength()

◆ GetToolpathTime()

◆ GetTransformationMatrix()

◆ GetUserDefinedMoveTypes()

◆ GougeCheckResults()

◆ GougeCheckStatus()

◆ HasOtherInstances()

◆ InsertFeature()

◆ InsertMove()

◆ IsDivided()

◆ IsFirstOfDivide()

◆ IsMaintainCutAngle()

◆ IsMaintainCutDirection()

◆ IsMirror()

◆ RemoveFeature()

◆ SetInProcessFeatureType() [1/2]

◆ SetInProcessFeatureType() [2/2]

◆ SetMachiningArea() [1/2]

◆ SetMachiningArea() [2/2]

◆ SetToolpathCuttingLength()

◆ SetToolpathCuttingTime()

◆ SetToolpathLength()

◆ SetToolpathTime()

◆ UnlinkInstance()
