NXOpen::SketchMakeParallelBuilder类 参考

草图平行约束构建器 更多...

#include <SketchMakeParallelBuilder.hxx>

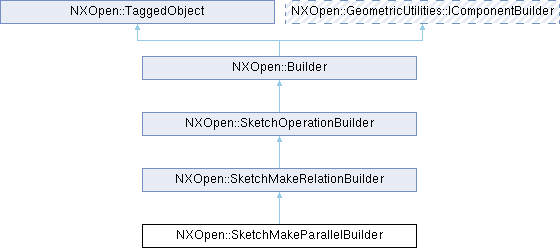

类 NXOpen::SketchMakeParallelBuilder 继承关系图:
NXOpen::SketchMakeRelationBuilder NXOpen::SketchOperationBuilder NXOpen::Builder NXOpen::TaggedObject NXOpen::GeometricUtilities::IComponentBuilder

友元

class _SketchMakeParallelBuilderBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::SketchMakeRelationBuilder
enum  RelationTypes {
  RelationTypesCoincident , RelationTypesCollinear , RelationTypesHorizontal , RelationTypesVertical ,
  RelationTypesParallel , RelationTypesPerpendicular , RelationTypesEqualLength , RelationTypesEqualRadius ,
  RelationTypesSymmetric , RelationTypesTangent , RelationTypesMidpointAligned , RelationTypesPointOnString ,
  RelationTypesTangentToString , RelationTypesPerpendicularToString
}
Public 类型 继承自 NXOpen::SketchOperationBuilder
enum  SolverStatus {
  SolverStatusUnknown , SolverStatusInitializing , SolverStatusConfigured , SolverStatusConfigureFailed ,
  SolverStatusUpdated , SolverStatusUpdateFailed
}
Public 成员函数 继承自 NXOpen::SketchMakeRelationBuilder
void ClearCurrentOperation ()
NXOpen::SelectNXObjectList * LockObjects ()
NXOpen::SelectNXObjectList * LockPoints ()
NXOpen::SelectNXObjectList * MotionObjects ()
NXOpen::SelectNXObjectList * MotionPoints ()
void SetCreateConstraints (bool createConstaints)
NXOpen::SelectNXObject * StationaryObject ()
Public 成员函数 继承自 NXOpen::SketchOperationBuilder
NXOpen::SketchOperationData * ExportOperationData ()
std::vector< NXOpen::SketchFoundRelation * > FindRelations ()
NXOpen::SketchOperationBuilder::SolverStatus GetSolverStatus ()
 NX_DEPRECATED ("Deprecated in NX2007.0.0. Use NXOpen::SketchOperationBuilder::ExportOperationData instead.") NXString ExportSolverConfiguration(int *numStringSize)
void RestoreOperation ()
void SetRelationRelaxState (NXOpen::SketchRelation *relation, bool relax)
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject * Commit ()
void Destroy ()
std::vector< NXOpen::NXObject * > GetCommittedObjects ()
NXOpen::NXObject * GetObject ()
NXOpen::PreviewBuilder * PreviewBuilder ()
void ShowResults ()
virtual bool Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

详细描述

草图平行约束构建器

表示 NXOpen::SketchMakeParallelBuilder 构建器。
要创建此类的新实例，请使用 NXOpen::SketchCollection::CreateSketchMakeParallelBuilder

创建于 NX1847.0.0。
