持久化结果类更多...

#include <Validate_PersistentResult.hxx>

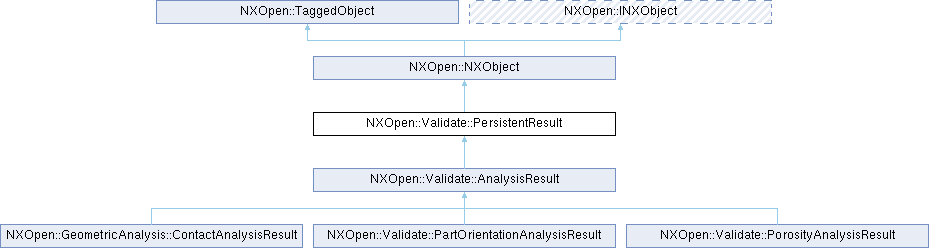

类 NXOpen::Validate::PersistentResult 继承关系图:

Public 成员函数
void	AddTrackingObjects (const char key, const std::vector< NXOpen::TaggedObject > &objects)
void	AddTrackingObjects (const NXString &key, const std::vector< NXOpen::TaggedObject * > &objects)
NXString	CheckerClassId ()
NXOpen::Validation::Result	ErrorLevel ()
std::vector< NXOpen::TaggedObject * >	GetTrackingObjects (const char *key)
std::vector< NXOpen::TaggedObject * >	GetTrackingObjects (const NXString &key)
void	SetCheckerClassId (const char *classId)
void	SetCheckerClassId (const NXString &classId)
void	SetErrorLevel (NXOpen::Validation::Result errorLevel)
bool	UpToDateStatus ()
Public 成员函数继承自 NXOpen::NXObject
NXOpen::AttributeIterator *	CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject *	FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
bool	GetBooleanUserAttribute (const char *title, int index)
bool	GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
int	GetIntegerAttribute (const char *title)
int	GetIntegerUserAttribute (const char *title, int index)
int	GetIntegerUserAttribute (const NXString &title, int index)
bool	GetNextUserAttribute (NXOpen::AttributeIterator iterator, NXOpen::NXObject::AttributeInformation info)
NXString	GetPdmReferenceAttributeValue (const char *attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
NXString	GetPdmReferenceAttributeValue (const NXString &attributeTitle)
	获取指定对象的PDM参考属性值。用户需提供属性标题，将返回UI显示的属性值。
double	GetRealAttribute (const char *title)
double	GetRealUserAttribute (const char *title, int index)
double	GetRealUserAttribute (const NXString &title, int index)
NXString	GetReferenceAttribute (const char *title)
NXString	GetStringAttribute (const char *title)
NXString	GetStringUserAttribute (const char *title, int index)
NXString	GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString	GetTimeUserAttribute (const char *title, int index)
NXString	GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int	GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation >	GetUserAttributes (NXOpen::AttributeIterator *iterator)
int	GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int	GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool	HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool	IsOccurrence ()
virtual NXString	JournalIdentifier ()
virtual NXString	Name ()
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
	NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component *	OwningComponent ()
virtual NXOpen::BasePart *	OwningPart ()
virtual void	Print ()
virtual NXOpen::INXObject *	Prototype ()
void	SetAttribute (const char *title)
void	SetAttribute (const char title, const char value)
void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, double value)
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, int value)
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void	SetAttribute (const char *title, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void	SetName (const char *name)
virtual void	SetName (const NXString &name)
void	SetPdmReferenceAttribute (const char attributeTitle, const char attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
	设置对象的PDM参考属性值。用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。创建于NX12.0.0。许可要求：无
void	SetReferenceAttribute (const char title, const char value)
void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeAttribute (const char title, const char value)
void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_PersistentResultBuilder

额外继承的成员函数
Public 类型继承自 NXOpen::NXObject
enum	AttributeType { AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger , AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference , AttributeTypeAny = 100 }
enum	DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性继承自 NXOpen::NXObject
NXOpen::Update::Option	option
const NXString NXOpen::Update::Option	option
double NXOpen::Update::Option	option
int NXOpen::Update::Option	option
const NXString &	value
double	value
int	value

详细描述

持久化结果类

表示一个 @link NXOpen::Validate::PersistentResult NXOpen::Validate::PersistentResult@endlink 对象。

于NX1872.0.0版本创建。

成员函数说明

◆ AddTrackingObjects() [1/2]

void NXOpen::Validate::PersistentResult::AddTrackingObjects	(	const char *	key,
		const std::vector< NXOpen::TaggedObject * > &	objects )

添加 Validate::PersistentResult 跟踪对象。
于NX1872.0.0版本创建。

许可要求：无

参数

key	键
objects	对象

◆ AddTrackingObjects() [2/2]

void NXOpen::Validate::PersistentResult::AddTrackingObjects	(	const NXString &	key,
		const std::vector< NXOpen::TaggedObject * > &	objects )

添加 Validate::PersistentResult 跟踪对象。
于NX1872.0.0版本创建。

许可要求：无

参数

key	键
objects	对象

◆ CheckerClassId()

NXString NXOpen::Validate::PersistentResult::CheckerClassId ( )

返回检查器类ID。
于NX1872.0.0版本创建。

许可要求：无

◆ ErrorLevel()

NXOpen::Validation::Result NXOpen::Validate::PersistentResult::ErrorLevel ( )

返回错误级别。
于NX1872.0.0版本创建。

许可要求：无

◆ GetTrackingObjects() [1/2]

std::vector< NXOpen::TaggedObject * > NXOpen::Validate::PersistentResult::GetTrackingObjects ( const char * key )

获取 Validate::PersistentResult 跟踪对象，这些对象在修改时会触发 Validate::PersistentResult 重新运行。例如，如果PersistentResult跟踪一个面，当该面被修改时，它会重新运行。

返回: 于NX1872.0.0版本创建。

许可要求：无

参数

key 键

◆ GetTrackingObjects() [2/2]

std::vector< NXOpen::TaggedObject * > NXOpen::Validate::PersistentResult::GetTrackingObjects ( const NXString & key )

获取 Validate::PersistentResult 跟踪对象，这些对象在修改时会触发 Validate::PersistentResult 重新运行。例如，如果PersistentResult跟踪一个面，当该面被修改时，它会重新运行。

返回: 于NX1872.0.0版本创建。

许可要求：无

参数

key 键

◆ SetCheckerClassId() [1/2]

void NXOpen::Validate::PersistentResult::SetCheckerClassId ( const char * classId )

设置检查器类ID。
于NX1872.0.0版本创建。

许可要求：无

参数

classId 类ID

◆ SetCheckerClassId() [2/2]

void NXOpen::Validate::PersistentResult::SetCheckerClassId ( const NXString & classId )

设置检查器类ID。
于NX1872.0.0版本创建。

许可要求：无

参数

classId 类ID

◆ SetErrorLevel()

void NXOpen::Validate::PersistentResult::SetErrorLevel ( NXOpen::Validation::Result errorLevel )

设置错误级别。
于NX1872.0.0版本创建。

许可要求：无

参数

errorLevel 错误级别

◆ UpToDateStatus()

bool NXOpen::Validate::PersistentResult::UpToDateStatus ( )

返回结果的最新状态。
于NX1872.0.0版本创建。

许可要求：无
