NXOpen::Diagramming::FillBuilder类 参考

填充构建器 更多...

#include <Diagramming_FillBuilder.hxx>

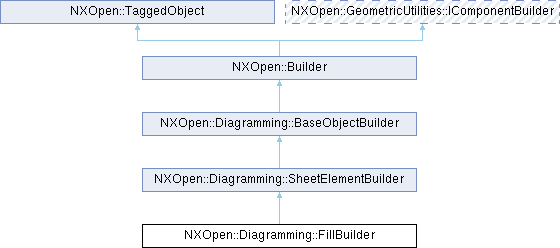

类 NXOpen::Diagramming::FillBuilder 继承关系图:

Public 成员函数
NXOpen::Diagramming::Geometry::SelectBaseGeometryList *	Geometries ()
Public 成员函数 继承自 NXOpen::Diagramming::SheetElementBuilder
void	GetAllowedTransformations (bool *isAllowedTranslation, bool *isAllowedRotation, bool *isAllowedScale, bool *isAllowedShear)
void	GetMinNodeSize (std::vector< double > &sizeValues)
double	Height ()
NXOpen::Diagramming::DiagrammingSizingpolicy	HeightPolicy ()
bool	Internal ()
NXOpen::Diagramming::Annotation *	Label ()
NXString	LabelName ()
NXOpen::Diagramming::LocationBuilder *	Location ()
NXOpen::Diagramming::DiagrammingLocationstyle	LocationStyle ()
bool	MirrorX ()
bool	MirrorY ()
NXOpen::Diagramming::SheetElement *	Owner ()
NXOpen::Diagramming::Sheet *	OwningSheet ()
NXOpen::Diagramming::RenderingPropertiesBuilder *	RenderingProperties ()
NXOpen::Diagramming::SheetElementBuilder::ResizeOptionType	ResizeOption ()
double	Rotation ()
void	SetHeight (double height)
void	SetHeightPolicy (NXOpen::Diagramming::DiagrammingSizingpolicy heightPolicy)
void	SetLabelName (const char *labelname)
void	SetLabelName (const NXString &labelname)
void	SetLocationStyle (NXOpen::Diagramming::DiagrammingLocationstyle locationStyle)
void	SetMinNodeSize (const std::vector< double > &sizeValues)
void	SetMirrorX (bool mirrorX)
void	SetMirrorY (bool mirrorY)
void	SetOwner (NXOpen::Diagramming::SheetElement *owner)
void	SetOwningSheet (NXOpen::Diagramming::Sheet *owningSheet)
void	SetResizeOption (NXOpen::Diagramming::SheetElementBuilder::ResizeOptionType resizeOption)
void	SetRotation (double angle)
void	SetWidth (double width)
void	SetWidthPolicy (NXOpen::Diagramming::DiagrammingSizingpolicy widthPolicy)
void	SetX (double x)
void	SetY (double y)
void	SetZDepth (int zDepth)
NXOpen::Diagramming::SheetElement *	SourceElement ()
bool	UpToDate ()
bool	Visible ()
double	Width ()
NXOpen::Diagramming::DiagrammingSizingpolicy	WidthPolicy ()
double	X ()
double	Y ()
int	ZDepth ()
Public 成员函数 继承自 NXOpen::Builder
NXOpen::NXObject *	Commit ()
void	Destroy ()
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
NXOpen::NXObject *	GetObject ()
NXOpen::PreviewBuilder *	PreviewBuilder ()
void	ShowResults ()
virtual bool	Validate ()
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t	Tag () const

友元
class	_FillBuilderBuilder

额外继承的成员函数
Public 类型 继承自 NXOpen::Diagramming::SheetElementBuilder
enum	ResizeOptionType {   ResizeOptionTypeAnyDirection , ResizeOptionTypeOnAnchor , ResizeOptionTypeSameRatio , ResizeOptionTypeSameRationOnCorner ,   ResizeOptionTypeSameRatioOnEdge }

详细描述

填充构建器

表示FillBuilder。
要创建此类的新实例，请使用 NXOpen::Diagramming::FillCollection::CreateFillBuilder

在NX2206.0.0中创建。

成员函数说明

Geometries()

NXOpen::Diagramming::Geometry::SelectBaseGeometryList * NXOpen::Diagramming::FillBuilder::Geometries

(

)

返回边界几何
在NX2206.0.0中创建。

许可证要求：无
