Public 成员函数 | 友元 | 所有成员列表
NXOpen::Arc类 参考

圆弧对象 更多...

#include <Arc.hxx>

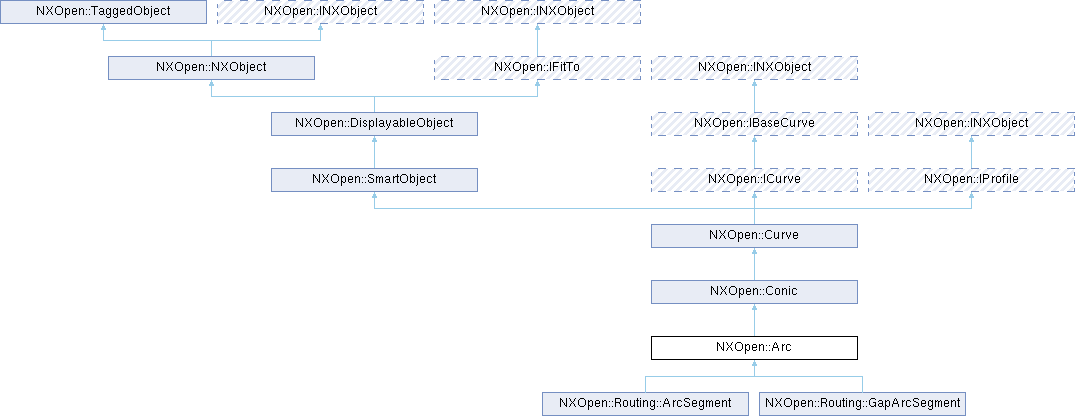

类 NXOpen::Arc 继承关系图:
NXOpen::Conic NXOpen::Curve NXOpen::SmartObject NXOpen::ICurve NXOpen::IProfile NXOpen::DisplayableObject NXOpen::IBaseCurve NXOpen::INXObject NXOpen::NXObject NXOpen::IFitTo NXOpen::INXObject NXOpen::TaggedObject NXOpen::INXObject NXOpen::INXObject NXOpen::Routing::ArcSegment NXOpen::Routing::GapArcSegment

Public 成员函数

double EndAngle ()
double Radius ()
void SetParameters (const NXOpen::Point3d &startPoint, const NXOpen::Point3d &endPoint, const NXOpen::Point3d &anchorPoint, double rho)
void SetParameters (double radius, const NXOpen::Point3d &center, double startAngle, double endAngle)
void SetParameters (double radius, const NXOpen::Point3d &center, double startAngle, double endAngle, NXOpen::NXMatrix *matrix)
void SetRadius (double radius)
double StartAngle ()
Public 成员函数 继承自 NXOpen::Conic
NXOpen::Point3d CenterPoint ()
void GetOrientation (NXOpen::Point3d *center, NXOpen::Vector3d *xDirection, NXOpen::Vector3d *yDirection)
NXOpen::NXMatrix * Matrix ()
double RotationAngle ()
void SetOrientation (const NXOpen::Point3d &center, const NXOpen::Vector3d &xDirection, const NXOpen::Vector3d &yDirection)
void SetParameters (const NXOpen::Point3d &startPoint, const NXOpen::Point3d &endPoint, const NXOpen::Point3d &anchorPoint, double rho)
Public 成员函数 继承自 NXOpen::Curve
virtual NXOpen::Drawings::DraftingCurveInfo * GetDraftingCurveInfo ()
virtual double GetLength ()
virtual std::vector< NXOpen::GeometricUtilities::CurveLocation > GetLocations ()
virtual bool IsDraftingCurve ()
virtual bool IsReference ()
Public 成员函数 继承自 NXOpen::SmartObject
void Evaluate ()
void ProtectFromDelete ()
void ReleaseDeleteProtection ()
void RemoveParameters ()
void ReplaceParameters (NXOpen::SmartObject *otherSo)
void SetVisibility (NXOpen::SmartObject::VisibilityOption visibility)
NXOpen::SmartObject::UpdateOption Update ()
NXOpen::SmartObject::VisibilityOption Visibility ()
Public 成员函数 继承自 NXOpen::DisplayableObject
void Blank ()
int Color ()
void Highlight ()
bool IsBlanked ()
int Layer ()
NXOpen::DisplayableObject::ObjectFont LineFont ()
NXOpen::DisplayableObject::ObjectWidth LineWidth ()
NXOpen::Point3d NameLocation ()
void RedisplayObject ()
void RemoveViewDependency ()
void SetColor (int color)
void SetLayer (int layer)
void SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
void SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
void SetNameLocation (const NXOpen::Point3d &location)
void Unblank ()
void Unhighlight ()
Public 成员函数 继承自 NXOpen::NXObject
NXOpen::AttributeIterator * CreateAttributeIterator ()
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
NX_DEPRECATED("Deprecated in NX8.0.0. Use DeleteUserAttribute instead.") void DeleteAttributeByTypeAndTitle(NXOpen void DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::AttributeIterator *iterator, NXOpen::Update::Option option)
void DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
virtual NXOpen::INXObject * FindObject (const char *journalIdentifier)
virtual NXOpen::INXObject * FindObject (const NXString &journalIdentifier)
bool GetBooleanUserAttribute (const char *title, int index)
bool GetBooleanUserAttribute (const NXString &title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const char *title, int index)
NXOpen::NXObject::ComputationalTime GetComputationalTimeUserAttribute (const NXString &title, int index)
int GetIntegerAttribute (const char *title)
int GetIntegerUserAttribute (const char *title, int index)
int GetIntegerUserAttribute (const NXString &title, int index)
bool GetNextUserAttribute (NXOpen::AttributeIterator *iterator, NXOpen::NXObject::AttributeInformation *info)
NXString GetPdmReferenceAttributeValue (const char *attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
NXString GetPdmReferenceAttributeValue (const NXString &attributeTitle)
 获取指定对象的PDM参考属性值。 用户需提供属性标题，将返回UI显示的属性值。
double GetRealAttribute (const char *title)
double GetRealUserAttribute (const char *title, int index)
double GetRealUserAttribute (const NXString &title, int index)
NXString GetReferenceAttribute (const char *title)
NXString GetStringAttribute (const char *title)
NXString GetStringUserAttribute (const char *title, int index)
NXString GetStringUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetTimeAttribute(NXOpen NXString GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
NXString GetTimeUserAttribute (const char *title, int index)
NXString GetTimeUserAttribute (const NXString &title, int index)
NX_DEPRECATED("Deprecated in NX11.0.0. Use GetUserAttribute instead.") std std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttribute (const char *title, bool includeUnset, bool addStringValues, NXOpen::NXObject::AttributeType type)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXOpen::NXObject::AttributeInformation GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
NXString GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator)
int GetUserAttributeCount (NXOpen::AttributeIterator *iterator, bool countArrayAsOneAttribute)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type)
int GetUserAttributeCount (NXOpen::NXObject::AttributeType type, bool includeUnset, bool countArrayAsOneAttribute)
bool GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
bool GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes ()
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (bool includeUnset)
std::vector< NXOpen::NXObject::AttributeInformation > GetUserAttributes (NXOpen::AttributeIterator *iterator)
int GetUserAttributeSize (const char *title, NXOpen::NXObject::AttributeType type)
int GetUserAttributeSize (const NXString &title, NXOpen::NXObject::AttributeType type)
std::vector< NXOpen::NXObject * > GetUserAttributeSourceObjects ()
bool HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
bool HasUserAttribute (NXOpen::AttributeIterator *iterator)
virtual bool IsOccurrence ()
virtual NXString JournalIdentifier ()
virtual NXString Name ()
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") double GetRealAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") int GetIntegerAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetReferenceAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use GetUserAttribute instead.") NXString GetStringAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetAttribute(const NXString &title)
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetReferenceAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
 NX_DEPRECATED ("Deprecated in NX8.0.0. Use SetUserAttribute instead.") void SetTimeAttribute(const NXString &title
virtual NXOpen::Assemblies::Component * OwningComponent ()
virtual NXOpen::BasePart * OwningPart ()
virtual void Print ()
virtual NXOpen::INXObject * Prototype ()
void SetAttribute (const char *title)
void SetAttribute (const char *title, const char *value)
void SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetAttribute (const char *title, double value)
void SetAttribute (const char *title, double value, NXOpen::Update::Option option)
void SetAttribute (const char *title, int value)
void SetAttribute (const char *title, int value, NXOpen::Update::Option option)
void SetAttribute (const char *title, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
void SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
virtual void SetName (const char *name)
virtual void SetName (const NXString &name)
void SetPdmReferenceAttribute (const char *attributeTitle, const char *attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetPdmReferenceAttribute (const NXString &attributeTitle, const NXString &attributeValue)
 设置对象的PDM参考属性值。 用户需提供属性标题和UI显示的别名值。若参考属性为数组类型，此操作将被忽略。 别名字符串会转换为内部值（如会话标识符），并将该内部值设置到指定对象上。
创建于NX12.0.0。

许可要求：无
void SetReferenceAttribute (const char *title, const char *value)
void SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeAttribute (const char *title, const char *value)
void SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
void SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
void SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
void SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
void SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
void SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
Public 成员函数 继承自 NXOpen::TaggedObject
tag_t Tag () const

友元

class _ArcBuilder

额外继承的成员函数

Public 类型 继承自 NXOpen::SmartObject
enum  UpdateOption {
  UpdateOptionDontUpdate , UpdateOptionWithinModeling , UpdateOptionAfterModeling , UpdateOptionAfterParentBody ,
  UpdateOptionMixed
}
enum  VisibilityOption { VisibilityOptionInvisible , VisibilityOptionVisible , VisibilityOptionVisibleIfParentInvisible }
Public 类型 继承自 NXOpen::DisplayableObject
enum  ObjectFont {
  ObjectFontSolid = 1 , ObjectFontDashed , ObjectFontPhantom , ObjectFontCenterline ,
  ObjectFontDotted , ObjectFontLongDashed , ObjectFontDottedDashed , ObjectFontEight = 11 ,
  ObjectFontNine , ObjectFontTen , ObjectFontEleven
}
enum  ObjectWidth {
  ObjectWidthNormal , ObjectWidthThick , ObjectWidthThin , ObjectWidthOne = 5 ,
  ObjectWidthTwo , ObjectWidthThree , ObjectWidthFour , ObjectWidthFive ,
  ObjectWidthSix , ObjectWidthSeven , ObjectWidthEight , ObjectWidthNine
}
Public 类型 继承自 NXOpen::NXObject
enum  AttributeType {
  AttributeTypeInvalid , AttributeTypeNull , AttributeTypeBoolean , AttributeTypeInteger ,
  AttributeTypeReal , AttributeTypeString , AttributeTypeTime , AttributeTypeReference ,
  AttributeTypeAny = 100
}
enum  DateAndTimeFormat { DateAndTimeFormatNumeric , DateAndTimeFormatTextual }
Public 属性 继承自 NXOpen::NXObject
NXOpen::Update::Option option
const NXString NXOpen::Update::Option option
double NXOpen::Update::Option option
int NXOpen::Update::Option option
const NXString & value
double value
int value

详细描述

圆弧对象

表示一段圆弧曲线。圆弧的起始角和终止角是相对于方向矩阵的 X 轴和 Y 轴测量的。
要创建此类的新实例，请使用 NXOpen::CurveCollection::CreateArc

创建于 NX3.0.0.

成员函数说明

◆ EndAngle()

double NXOpen::Arc::EndAngle ( )

获取 圆弧的终止角。
创建于 NX3.0.0.

许可要求：无

◆ Radius()

double NXOpen::Arc::Radius ( )

获取 圆弧的半径。
创建于 NX3.0.0.

许可要求：无

◆ SetParameters() [1/3]

void NXOpen::Arc::SetParameters ( const NXOpen::Point3d & startPoint,
const NXOpen::Point3d & endPoint,
const NXOpen::Point3d & anchorPoint,
double rho )

设置圆锥曲线的起始点、终止点、锚点和 Rho 值。
创建于 NX11.0.0.

许可要求：solid_modeling ("SOLIDS MODELING") 或 drafting ("DRAFTING") 或 geometric_tol ("GDT")

参数
startPoint起始点
endPoint终止点
anchorPoint锚点
rhorho 值

◆ SetParameters() [2/3]

void NXOpen::Arc::SetParameters ( double radius,
const NXOpen::Point3d & center,
double startAngle,
double endAngle )

设置圆弧的中心点、半径、起始角和终止角。
创建于 NX3.0.0.

许可要求：solid_modeling ("SOLIDS MODELING") 或 drafting ("DRAFTING") 或 geometric_tol ("GDT")

参数
radius必须大于零
center中心点
startAngle以弧度为单位
endAngle以弧度为单位。终止角不能等于起始角

◆ SetParameters() [3/3]

void NXOpen::Arc::SetParameters ( double radius,
const NXOpen::Point3d & center,
double startAngle,
double endAngle,
NXOpen::NXMatrix * matrix )

设置圆弧的中心点、半径、起始角和终止角，以及方向矩阵。
创建于 NX3.0.0.

许可要求：solid_modeling ("SOLIDS MODELING") 或 drafting ("DRAFTING") 或 geometric_tol ("GDT")

参数
radius半径必须大于零。
center中心点
startAngle以弧度为单位
endAngle以弧度为单位。终止角不能等于起始角。
matrix方向矩阵

◆ SetRadius()

void NXOpen::Arc::SetRadius ( double radius)

设置圆弧的半径。
创建于 NX4.0.0.

许可要求：solid_modeling ("SOLIDS MODELING") 或 drafting ("DRAFTING") 或 geometric_tol ("GDT")

参数
radius半径

◆ StartAngle()

double NXOpen::Arc::StartAngle ( )

获取 圆弧的起始角。
创建于 NX3.0.0.

许可要求：无
